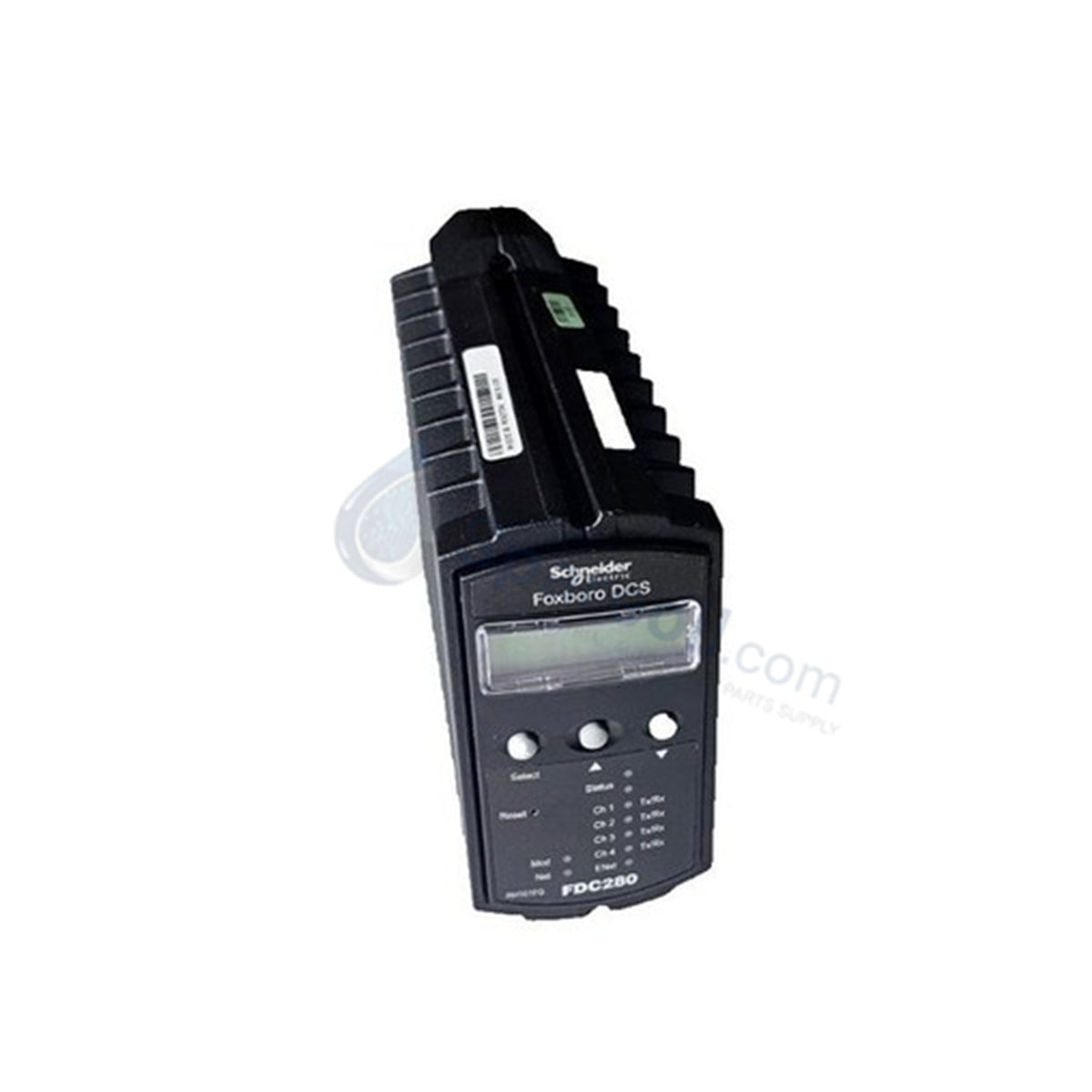

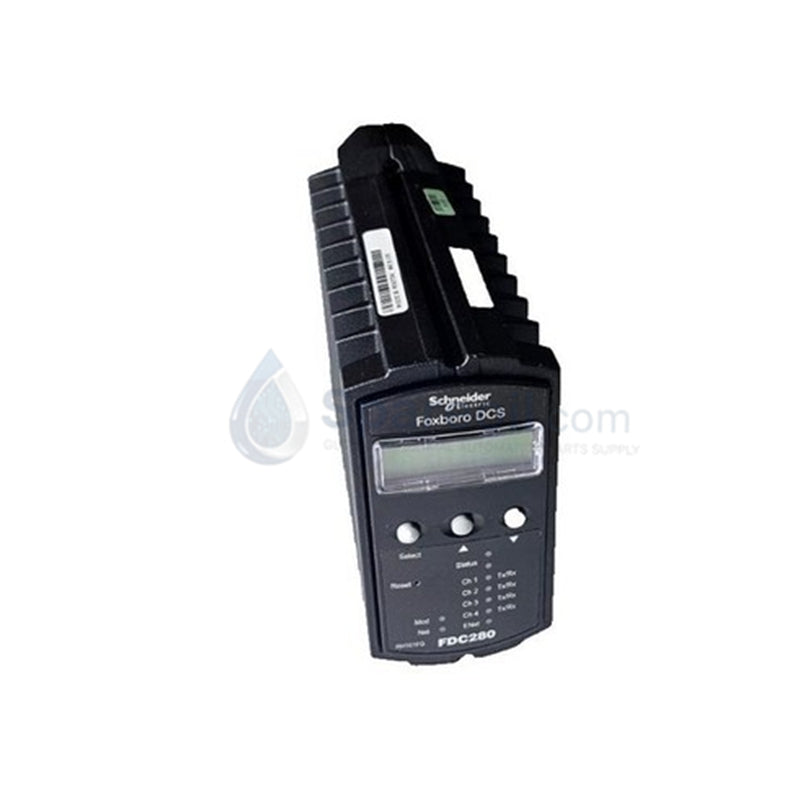

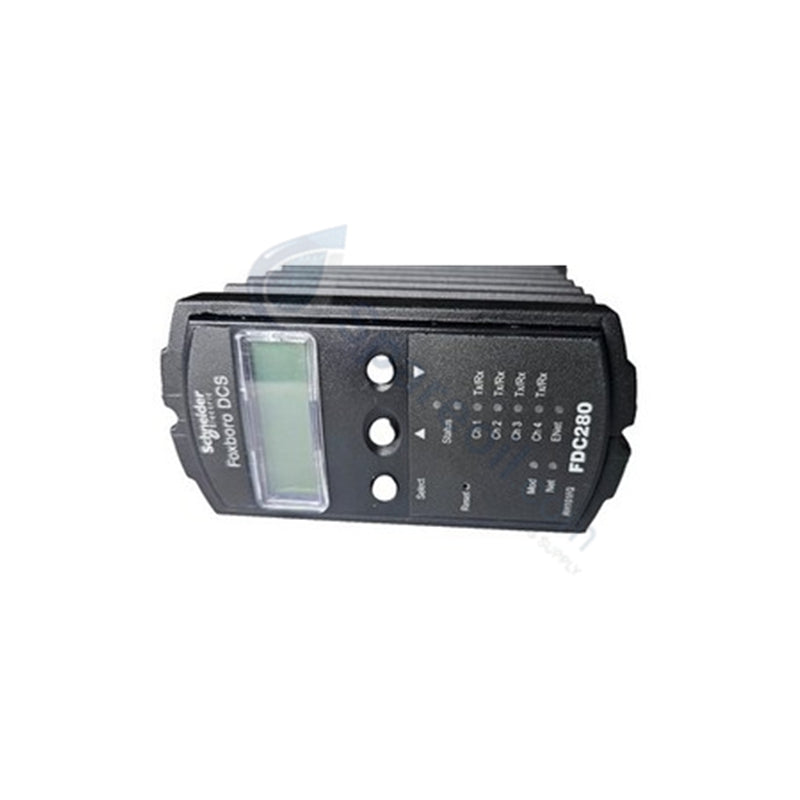

Foxboro FDC280 RH101FQ Field Device Controller 280
The Foxboro FDC280 RH101FQ, also cataloged as the FDC280 Field Device Controller, operates as a dedicated hardware component for high-performance distributed process control within EcoStruxure Foxboro DCS platforms. The controller provides direct physical/electrical execution for deterministic loop management, interfacing field instrumentation to host networks via dual FOUNDATION Fieldbus H1 communication channels.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | FDC280 RH101FQ |
| Brand | Foxboro (Schneider Electric) |
| Origin | USA |
| Weight | Standard DCS controller weight |
| Dimensions | Standard Foxboro baseplate module form factor |
| Operating Temp | -20 deg C to +70 deg C |
| Power Consumption | Redundant 24 VDC inputs via baseplate |
| Protocol Support | FOUNDATION Fieldbus H1 (IEC 61158) |
| Channel Count | Dual isolated H1 channels |
| Communication Speed | 31.25 kbit/s |
| Device Capacity | Up to 32 field devices per channel |
| Isolation Voltage | 1500 VDC channel-to-logic isolation |
| Ingress Protection | IP20 |
FOUNDATION Fieldbus Connectivity & Loop Execution
The FDC280 RH101FQ executes deterministic 1 ms loop execution cycles while maintaining continuous FOUNDATION Fieldbus H1 communication across two isolated channels operating at 31.25 kbit/s. Channel-to-logic galvanic isolation rated at 1500 VDC prevents field-side electrical surges and ground potential differences from interfering with host system operations. The integrated fieldbus architecture allows real-time execution of function blocks, continuous device diagnostics, and multi-variable signal passing across up to 32 connected field devices per channel.
Frequently Asked Questions
Q: What is the device loading limit per FOUNDATION Fieldbus H1 channel on the FDC280?
A: Each H1 channel supports up to 32 field devices. However, engineers must verify total current draw and segment bus power limits during system design to prevent communication dropouts.
Q: Can the FDC280 module be replaced without interrupting active process loops?
A: Yes, the module supports live hot-swapping directly on the active baseplate, allowing maintenance personnel to replace hardware without shutting down the overall DCS system.
Q: How does the controller process redundant power inputs?
A: Operational power is delivered via redundant 24 VDC rails through the baseplate interface, ensuring uninterrupted controller execution during primary power supply voltage fluctuations or single-source failures.
Field Installation Guidelines
Follow these standardized engineering practices during installation to ensure deterministic communications and physical safety:
- Secure the FDC280 controller firmly onto its designated baseplate position until the locking mechanism engages completely.
- Verify that fieldbus segment wiring utilizes twisted-shielded pair cable specifically rated for 31.25 kbit/s FOUNDATION Fieldbus H1 networks.
- Install approved fieldbus terminators at both physical ends of each H1 segment to prevent signal reflections and bus noise.
- Connect cable shields to designated shield grounding terminals at the control cabinet end only to prevent circulating ground loops.
- Ensure cabinet ambient temperatures remain within the rated -20 deg C to +70 deg C operating window with adequate, unobstructed airflow.
