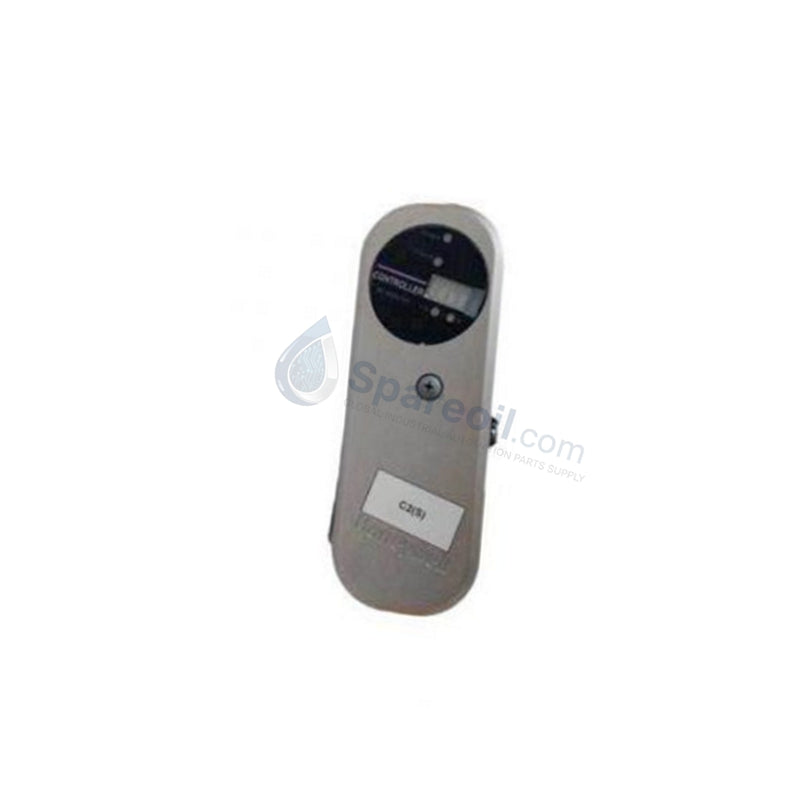

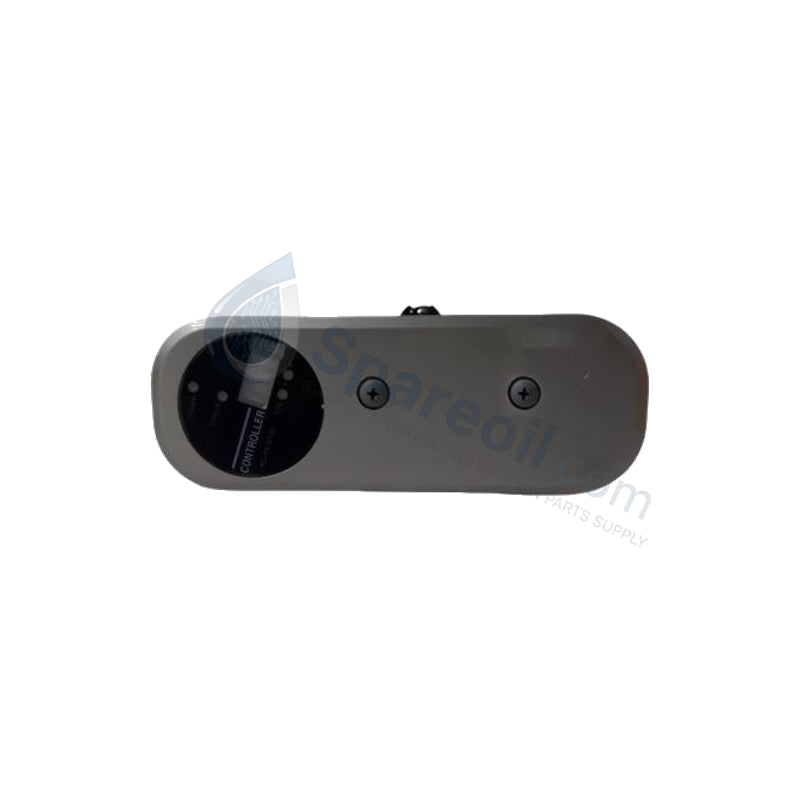

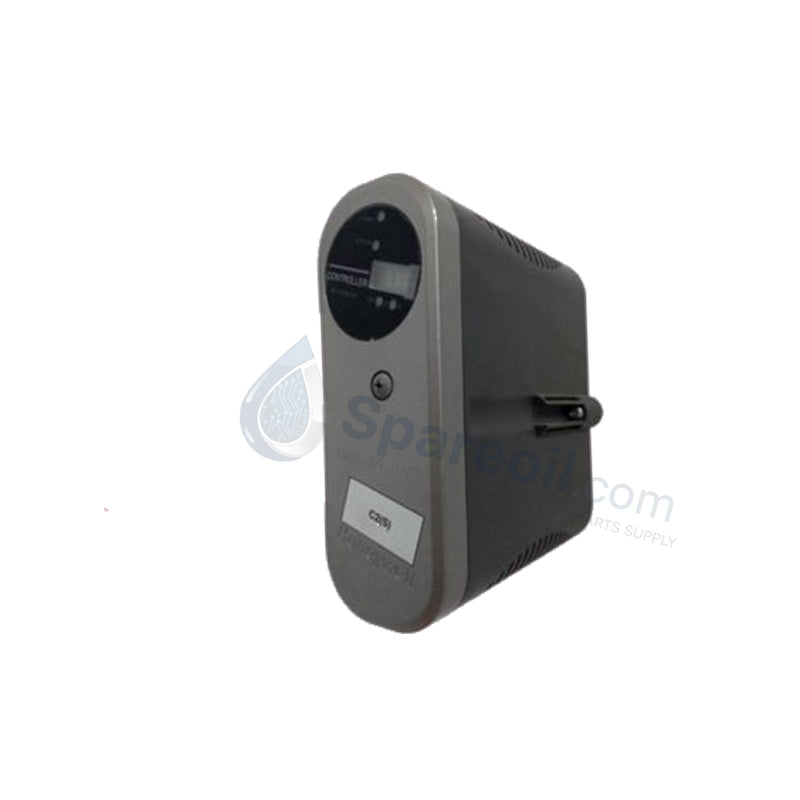

Brand New Honeywell 8C-PDIS01 Digital Input SOE Original

Availability: 99 left in stock

Product Overview The Honeywell 8C-PDIS01 (51454360-175) serves as a specialized Sequence of Events (SOE) digital input module for the Experion PKS Series...

SKU: 8C-PDIS01

Manufacturer: Honeywell
Product No.: 8C-PDIS01
Product Type: Sequence of Events (SOE)
Product Origin: USA
Payment:T/T, Western Union
Weight: 350g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Honeywell 8C-PDIS01 (51454360-175) serves as a specialized Sequence of Events (SOE) digital input module for the Experion PKS Series 8 environment. It captures discrete state changes from field switches, relays, and safety sensors with ultra-high precision. By providing 1 millisecond (1ms) timestamp resolution, this module allows plant engineers to reconstruct the exact order of events during critical trips or unplanned shutdowns. We offer this component as 100% Brand New and Original, ensuring your safety and monitoring systems operate with laboratory-grade timing accuracy in the most demanding refinery and power plant applications.

Technical Specifications

Feature	Specification Details
Input Channels	16 or 32 Isolated Channels (Configurable)
Input Voltage	24 VDC Nominal
Timestamp Resolution	1 millisecond (SOE Capable)
Isolation Voltage	2500 Vrms Channel-to-System
Input Current	2 mA per channel
Diagnostics	Open-wire detection & Fault monitoring
Operating Temp	-20°C to +60°C
Redundancy	Full support for High-Availability pairs
Certifications	CE, UL, CSA, G3 Conformal Coating

Engineering Advantages

Precision Root Cause Analysis: The 8C-PDIS01 eliminates the guesswork during plant disturbances. Its 1ms resolution captures high-speed "first-out" events, allowing operators to distinguish which safety interlock triggered first during a cascade trip.
Aggressive Galvanic Isolation: With a 2500 Vrms isolation rating, this module creates a robust electrical barrier between the field wiring and the C300 controller. This protects the core system backplane from ground loops and high-voltage transients common in heavy manufacturing.
Smart Diagnostic Coverage: Built-in open-wire detection identifies physical wiring breaks before they lead to a system failure. This proactive monitoring ensures that your safety-critical inputs remain "live" and ready to respond.
Seamless Scalability: The module integrates directly into the Series 8 form factor, utilizing high-density PWA technology to provide up to 32 channels in a compact footprint. This optimizes cabinet space in both new builds and brownfield retrofits.
Redundant Reliability: For mission-critical loops, the 8C-PDIS01 supports redundant pairing. If the primary module detects an internal fault, the backup seamlessly takes over, maintaining continuous event tracking without data loss.

FAQs

What is the difference between a standard Digital Input and this SOE Module?

Standard DI modules scan at the controller's cycle time (often 50ms or 100ms). The 8C-PDIS01 captures changes at the hardware level with 1ms precision, making it essential for trip analysis where millisecond differences matter.
Does this module support open-wire detection on all channels?

Yes. The 8C-PDIS01 continuously monitors the loop integrity for each channel. If a field wire disconnects, the module generates a diagnostic alarm to notify maintenance personnel immediately.
Can I replace a CC-PDIS01 with an 8C-PDIS01?

While both perform digital input functions, the "8C" designation indicates a Series 8 module, and "CC" typically refers to C300. Always check your specific I/O termination assembly (IOTA) and firmware compatibility before swapping between Series 8 and standard C300 hardware.
Does the module require a specific IOTA for 32-channel operation?

Yes. To utilize the full 32-channel capacity, you must pair the module with the appropriate 32-channel IOTA. Using a 16-channel IOTA will limit the available points.
