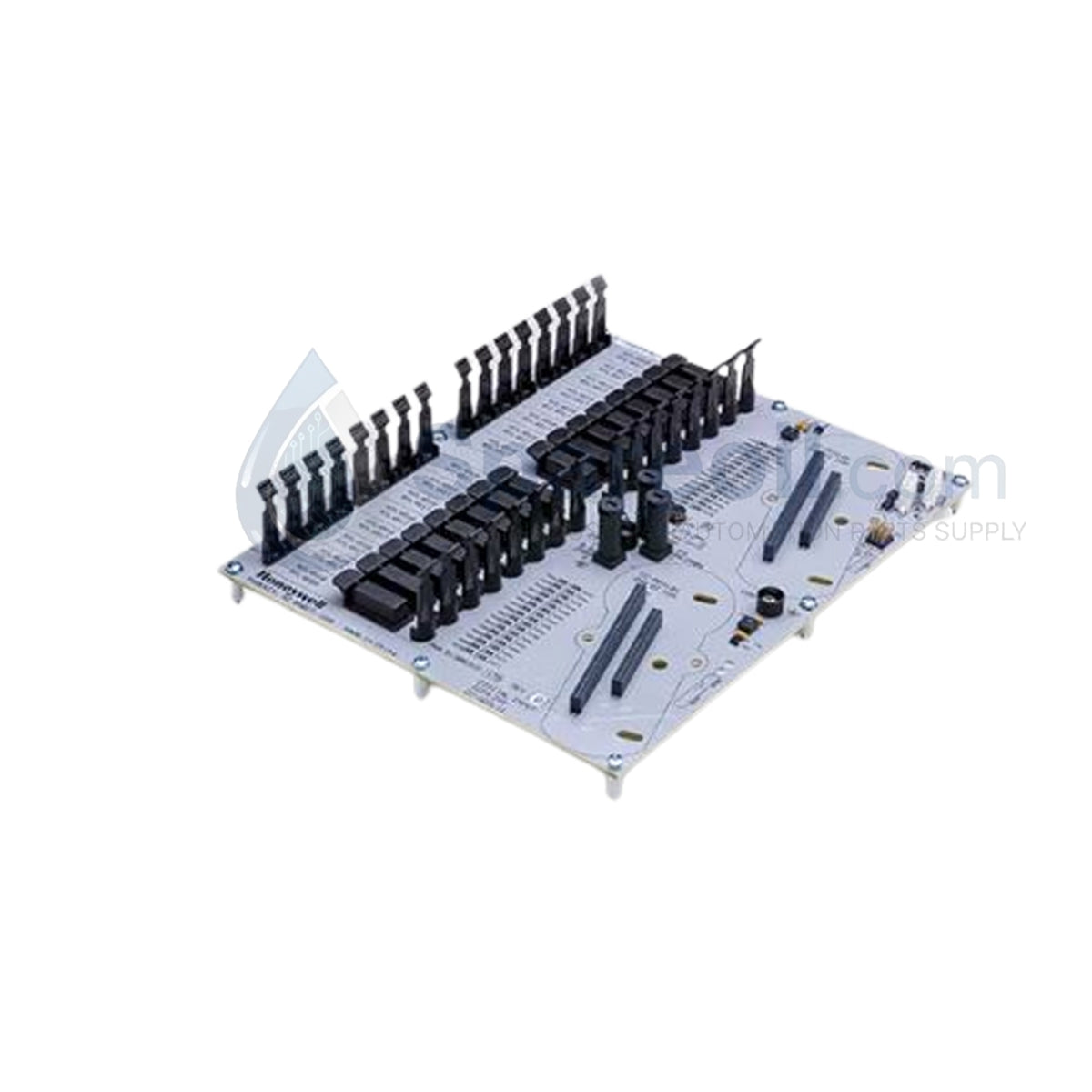

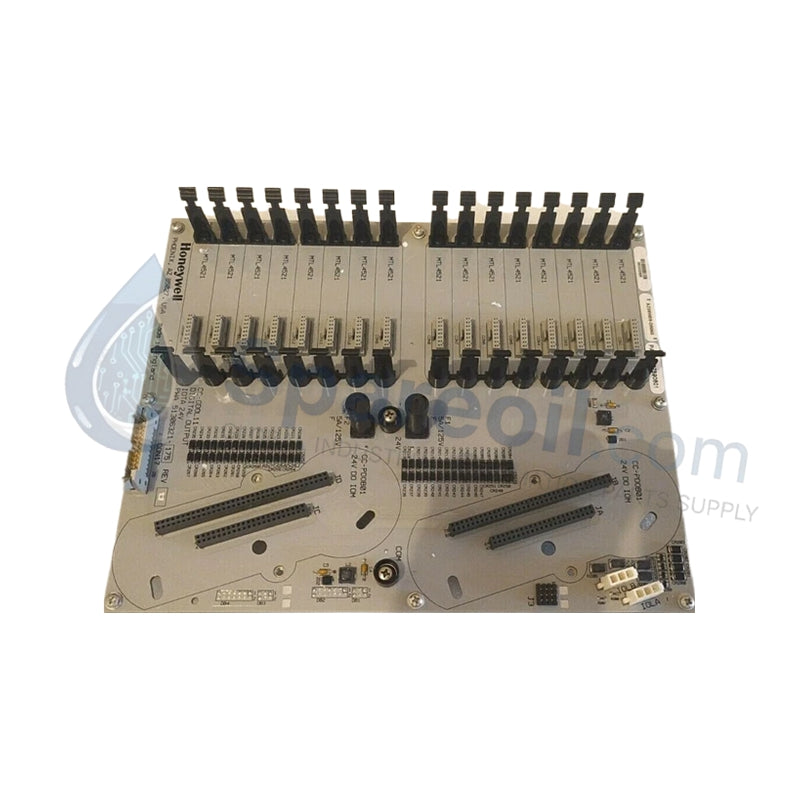

51306321-175 CC-GDOL11 16-Channel 24V DC PWA | Honeywell

Availability: 99 left in stock

Product Overview The Honeywell CC-GDOL11 (associated with PWA 51306321-175 and model PDOB01) serves as a high-density 16-channel Digital Output Input...

SKU: CC-GDOL11

Manufacturer: Honeywell
Product No.: CC-GDOL11
Product Type: I/O Termination Assemblies
Product Origin: USA
Payment:T/T, Western Union
Weight: 450g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Honeywell CC-GDOL11 (associated with PWA 51306321-175 and model PDOB01) serves as a high-density 16-channel Digital Output Input Output Termination Assembly (IOTA). This 100% brand-new, original unit functions as the critical interface between the Experion PKS Series C control environment and field-level execution hardware. It delivers precise 24V DC signals to actuate solenoids, relays, and indicators, ensuring deterministic response times in mission-critical process automation sectors.

Technical Specifications

The CC-GDOL11 utilizes a robust printed wire assembly (PWA) designed to handle the thermal and electrical demands of continuous industrial switching.

Attribute	Technical Detail
Model Number	CC-GDOL11 / PDOB01
Part Number (PWA)	51306321-175
Channel Count	16 Digital Outputs
Output Voltage	24 V DC
Max Load Current	0.5 A per channel
Isolation	Channel-to-channel and channel-to-system
Diagnostics	Integrated short-circuit and overload detection
Operating Temp	0 °C to +55 °C
Humidity	5% to 95% RH (non-condensing)
Mounting	Series C Carrier / DIN Rail
Weight	0.45 kg

Engineering Advantages

The Honeywell CC-GDOL11 resolves complex field integration and protection requirements through advanced logic circuitry:

Comprehensive Circuit Protection: Every channel on the CC-GDOL11 incorporates individual short-circuit and overload detection. Consequently, the module protects the central controller from field-side electrical faults, preventing a single faulty solenoid from damaging the entire I/O subsystem.
Deterministic Load Control: The unit supports sourcing or sinking configurations with a steady 0.5 A per channel output. This capacity allows the module to drive most industrial relays and solenoid valves directly, eliminating the need for interposing relays in many standard applications.
Galvanic Isolation Standards: High-level isolation between the field-side 24V DC and the internal system logic prevents ground loops and transient spikes from affecting data integrity. This ensures that the control network remains stable even in electrically noisy environments.
Simplified Series C Maintenance: The modular IOTA design allows for rapid replacement and clear terminal identification. Maintenance teams can diagnose output states through integrated system diagnostics, significantly reducing the Mean Time to Repair (MTTR) during plant upsets.

FAQs

Is the CC-GDOL11 compatible with both Experion PKS and TDC 3000?

While primarily designed for the Experion PKS Series C platform, this IOTA integrates with various Honeywell DCS subsystems that support Series C I/O. Always check your specific controller firmware for compatibility.
What happens if a channel exceeds the 0.5 A load limit?

The integrated diagnostics will detect an overcurrent condition and automatically trip the affected channel to protect the PWA. Once you resolve the field-side load issue, you can typically reset the channel through the system software.
Does this part include the plastic base or just the PWA?

The CC-GDOL11 (51306321-175) typically refers to the Printed Wire Assembly and the termination unit. Ensure your order specifies if you require the complete assembly or just the replacement PWA.
Can I use this module for high-speed pulse outputs?

The CC-GDOL11 is optimized for standard digital switching (on/off). For high-frequency pulse width modulation (PWM) or high-speed counting, we recommend utilizing a dedicated pulse output module.
