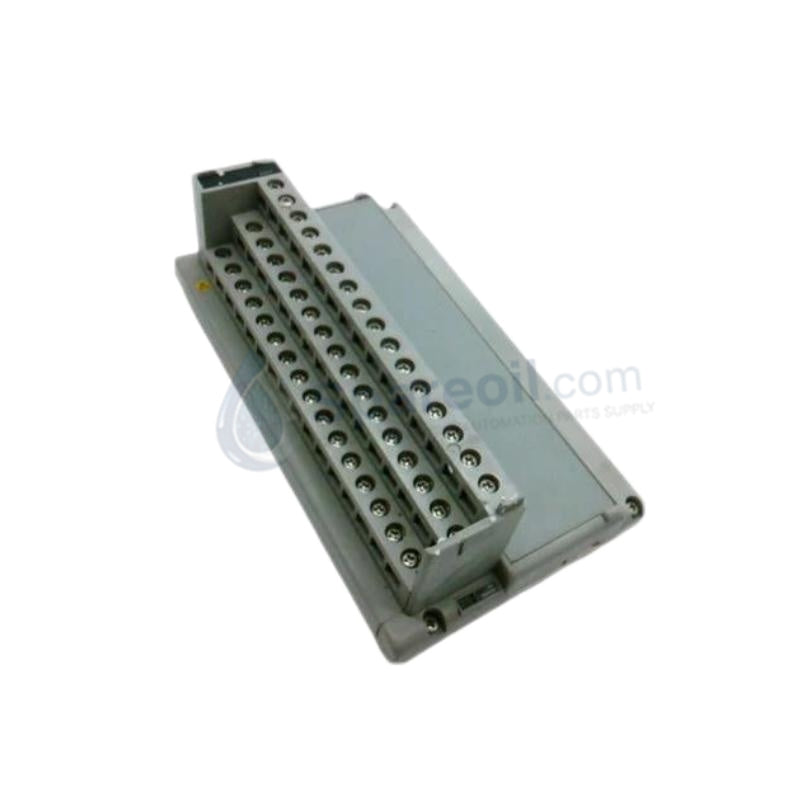

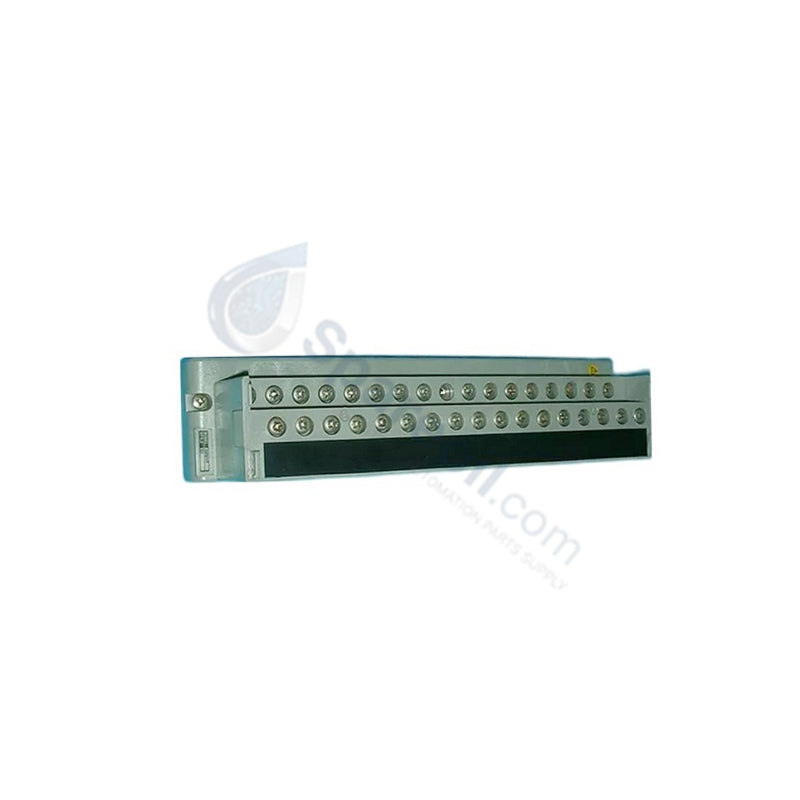

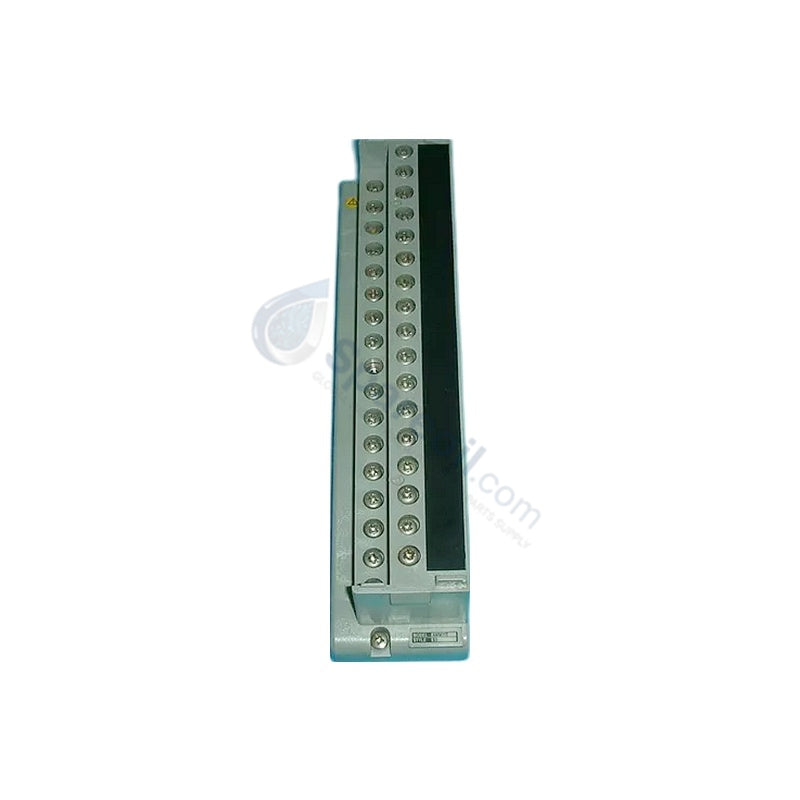

Yokogawa AMM11T Analog Input Module

Configured for multi-channel analog signal acquisition in Centum CS / Centum VP systems, the Yokogawa AMM11T (AMM11T Analog Input Module) provides direct physical/electrical execution. The hardware operates as part of the RIO subsystem, routing 16 independent analog input lines into a centralized 12-bit analog-to-digital conversion matrix to update process variable data frames across the internal system bus structure.

Layout Configuration Selection: Layout 1

Hardware Specifications

Parameter Specification
Model AMM11T
Brand Yokogawa Electric Corporation
Origin Japan
Weight 0.3 kg
Dimensions Standard RIO module dimensions
Operating Temp -20 to +60 deg C
Power Consumption 3 W
Channel Capacity 16 analog input channels
Input Signal Config 4-20 mA DC, 1-5 V DC, +/- 10 V DC
Converter Resolution 12-bit A/D conversion
Measurement Accuracy +/- 0.1% of full scale
Internal Update Rate 100 ms typical
Input Terminal Impedance 250 Ohm (current mode), 1 MOhm or higher (voltage mode)
Max Input Thresholds 27 mA (current mode), +/- 15 V (voltage mode)
System Circuit Isolation Channel-to-system isolation rated at 1500 VAC
Storage Temperature -40 to +70 deg C
Relative Humidity 5 to 95% RH (non-condensing)
External Interface Ports Pressure clamp terminals or MIL connector interface options

Process Control & DCS Instrumentation Technical Attributes

The architecture incorporates a multiplexed topology supporting both current loop and voltage-based sensor arrays. Channel-to-system isolation barriers withstand up to 1500 VAC, preventing high-potential common-mode transients on the field wiring from propagating into the backplane logic components. For field loops operating on the 4-20 mA HART loop protocol, external dropping resistors maintain the correct loop impedance values, while channel-to-channel configuration boundaries require precise execution of parallel common references to mitigate ground loop noise vulnerabilities across the non-isolated channel banks.

Frequently Asked Questions

Q: How does the module handle a continuous electrical fault on a single input channel?

A: The 1500 VAC isolation network prevents a high-voltage surge on the field wiring from breaching the system backplane, though an over-voltage condition exceeding the +/- 15 V threshold on one channel can cause signal distortions on adjacent multiplexed points.

Q: Can this component capture sub-millisecond pressure transience spikes?

A: The internal processing matrix operates with a fixed typical update cycle of 100 ms. Fast dynamic variables with transient frequencies under 10 Hz cannot be resolved by this hardware scanning profile.

Field Installation Guidelines

  • RIO Subsystem Insertion: Line up the module alignment tabs with the target slot rails on the RIO base unit, ensuring uniform insertion until the multi-pin connector locks completely into the active backplane bus.
  • Instrumentation Cable Routing: Run all 4-20 mA and 1-5 V signal loops through independent, twisted-pair shielded cables, routing the runs separate from any 3-phase power or inductive switching conductors inside the enclosure.
  • Shield Ground Separation: Connect the instrument drain wires exclusively to the dedicated clean instrument earth grounding bar inside the marshalling enclosure, ensuring the field sensor ends remain ungrounded to break potential earth loops.
  • Termination Torque Management: Secure field wiring leads into the pressure clamp terminal assembly, verifying screw tension parameters comply with industrial terminal strip guidelines to prevent vibration-induced loosening.
