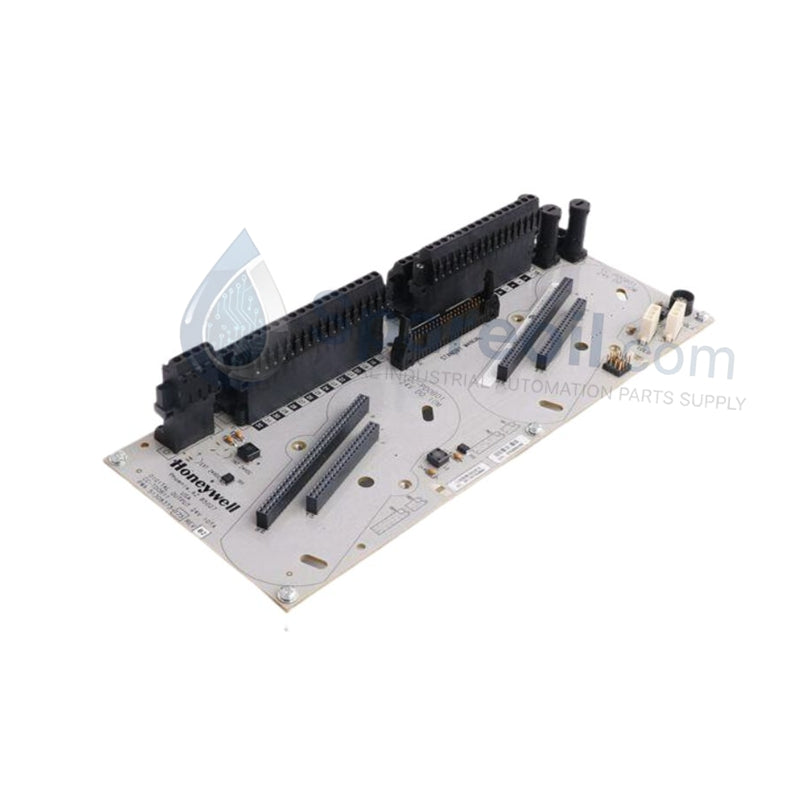

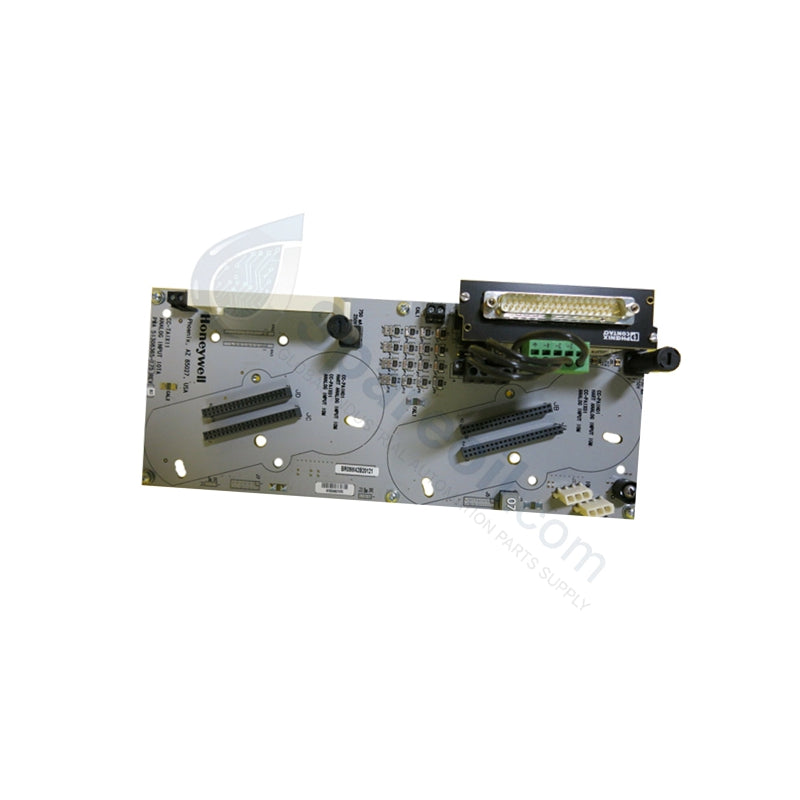

Brand New Honeywell 8U-TDIL11 51307782-176 DI IOTA

Availability: 99 left in stock

Product Overview The Honeywell 8U-TDIL11 (Part Number: 51307782-176) functions as a high-density Digital Input IOTA (Input/Output Termination Assembly) designed for the Experion...

SKU: 8U-TDIL11

Manufacturer: Honeywell
Product No.: 8U-TDIL11
Product Type: Digital Input Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 350g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

The Honeywell 8U-TDIL11 (Part Number: 51307782-176) functions as a high-density Digital Input IOTA (Input/Output Termination Assembly) designed for the Experion PKS and TDC platforms. This module captures discrete on/off states from field devices—such as limit switches, sensors, and relay contacts—and converts them into precise system-level data. We provide this hardware as 100% Brand New and Original, ensuring mission-critical performance in oil refining, petrochemical, and power generation sectors. Its redundant architecture (Rev A) guarantees continuous process monitoring even during hardware transitions or faults.

Technical Specifications

Feature	Specification Detail
Input Channels	16 or 32 Discrete Inputs (Configuration dependent)
Nominal Input Voltage	24 VDC (Range: 18–30 VDC)
Response Time	≤ 10 ms (Typical 5 ms)
Isolation	1500 VDC (Channel-to-Channel & Channel-to-Backplane)
Power Consumption	1.5 W Maximum
Operating Temperature	–20°C to +70°C
Vibration Resistance	Engineered for high-vibration industrial zones
System Compatibility	Honeywell Experion PKS / TDC / SIS Platforms
Redundancy	Full Redundancy Support (Rev A)

Engineering Advantages

Optimized Signal Integrity: The 8U-TDIL11 utilizes advanced electrical noise immunity and 1500 VDC isolation. This protective barrier prevents ground loops and field-side transients from damaging the core DCS backplane, maintaining data accuracy in electrically noisy environments.
Rapid Fault Detection: A response time of ≤10 ms allows the controller to react almost instantaneously to status changes. This speed proves essential for Safety Instrumented Systems (SIS) and high-speed manufacturing interlocks where every millisecond counts.
Ruggedized Form Factor: The module thrives in extreme conditions. Its thermal design supports a wide operating range (up to +70°C), eliminating the need for expensive specialized cooling in many remote instrument enclosures.
Legacy System Modernization: The 8U-TDIL11 integrates seamlessly into existing Honeywell TDC or Experion infrastructures. This makes it an ideal choice for engineers upgrading legacy systems who require faster response times and better isolation without overhauling the entire wiring architecture.
Redundant Reliability: As a Redundant IOTA, this module ensures that a single point of failure does not interrupt the monitoring of critical process variables. It maintains system availability during maintenance or unexpected module trips.

FAQs

Does the 8U-TDIL11 support "hot-swapping"?

Yes. In a redundant configuration, the 8U-TDIL11 allows for the replacement of active components without shutting down the control loop, ensuring zero process downtime.
What is the primary difference between 51307782-176 and earlier models?

The 51307782-176 (Rev A) offers enhanced isolation and significantly faster signal response times (5ms typical) compared to legacy digital input assemblies, providing a more robust interface for modern high-speed controllers.
Can I use this module in a non-redundant setup?

While the 8U-TDIL11 supports redundancy for mission-critical applications, it can also function in a standalone (simplex) capacity depending on the specific IOTA base used in your cabinet.
What mounting options are available for this module?

The 8U-TDIL11 supports both standard DIN rail mounting and rack-mount configurations, offering flexibility for space-constrained control cabinets.
