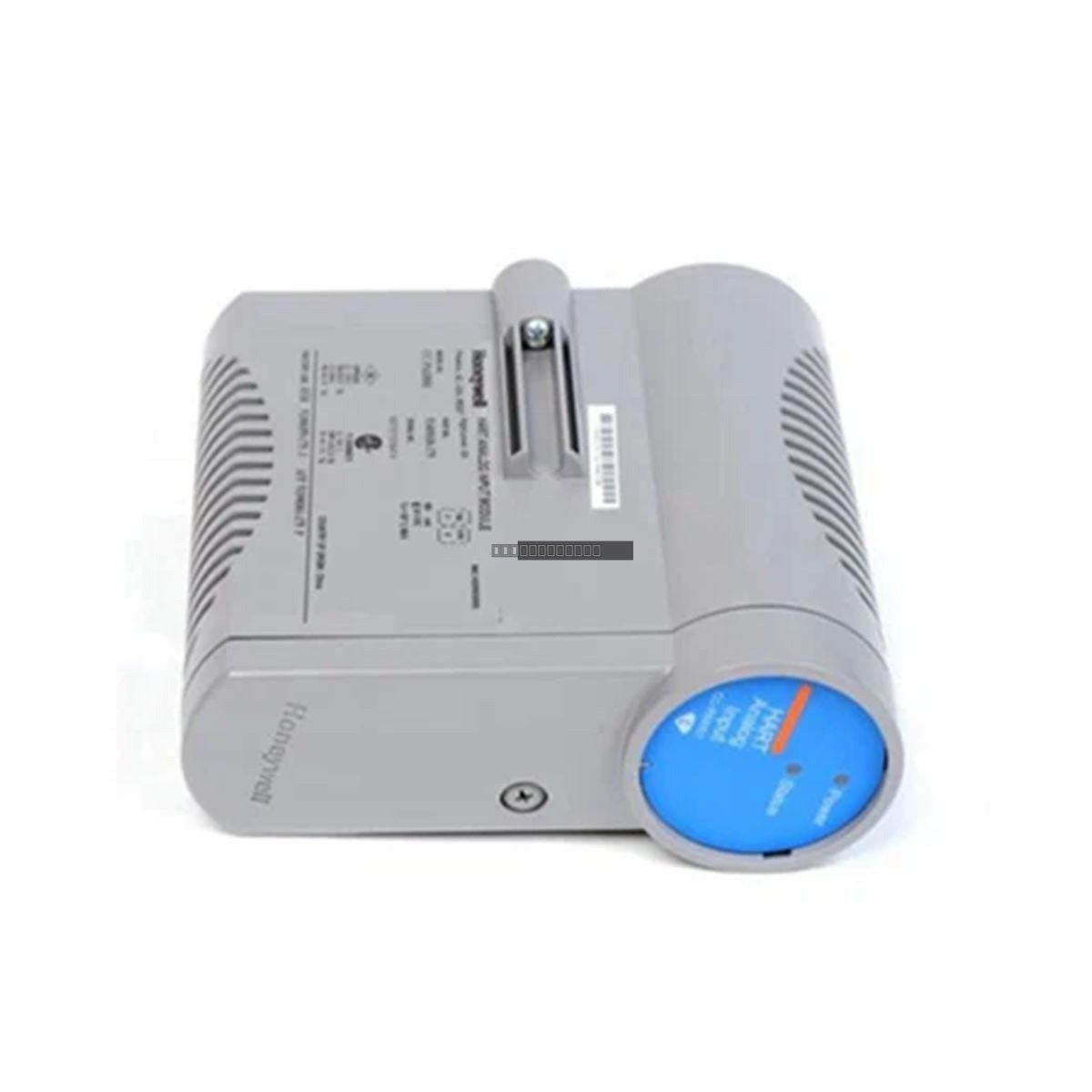

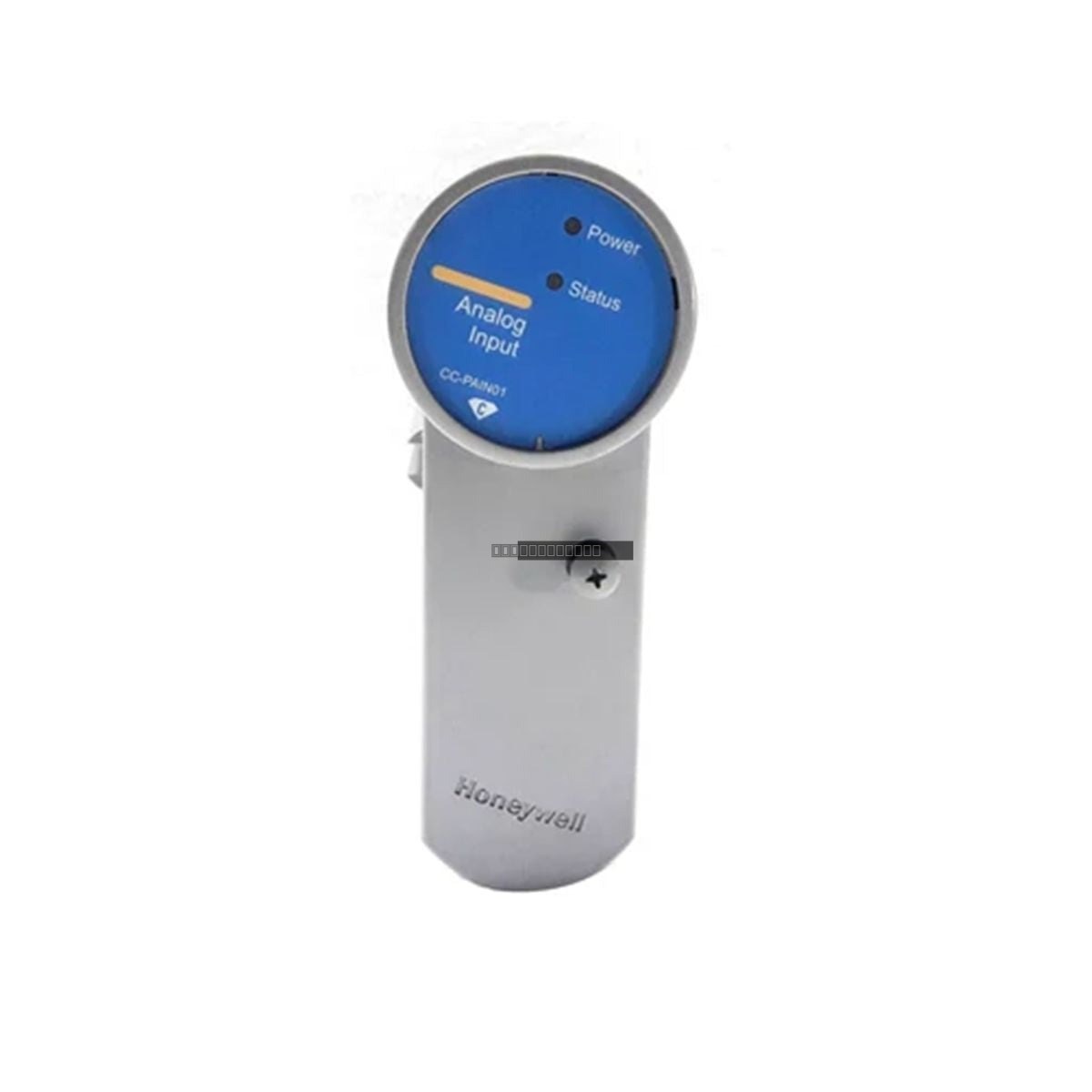

Honeywell 8C-TAIDB1 51307133-175 Analog Input Module

Honeywell 8C-TAIDB1 51307133-175 Experion LX Analog Input Module

Availability: 5 left in stock

DescriptionThe Honeywell 8C-TAIDB1 (51307133-175) is an Analog Input IOTA (Input/Output Termination Assembly) module designed for the Experion LX control system....

SKU: 8C-TAIDB1

Manufacturer: Honeywell
Product No.: 8C-TAIDB1
Product Type: Analog Input Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 380g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Honeywell 8C-TAIDB1 (51307133-175) is an Analog Input IOTA (Input/Output Termination Assembly) module designed for the Experion LX control system. This module provides high-density analog signal processing with support for both single-ended and differential input configurations. It is engineered to support HART-capable multivariable instruments, allowing for efficient data collection and integration within industrial control loops.

Features

16-channel analog input capacity for high-density monitoring.
Supports voltage (0-5V, 1-5V, 0.4-2V) and current (4-20mA) input ranges.
HART-capable for advanced diagnostics and multivariable instrument communication.
Integrated self-diagnostics for enhanced system reliability.
Optional redundancy support to ensure high availability in critical control applications.
Fast loop scan performance for real-time process control.

Applications

The 8C-TAIDB1 module is utilized in process automation environments requiring precise analog signal acquisition, including oil and gas, chemical processing, and power generation facilities. It is specifically intended for use within the Honeywell Experion LX architecture to interface field instrumentation with the control network.

Technical Specifications

Parameter	Specification
Model	8C-TAIDB1 (51307133-175)
Input Channels	16
Input Types	Voltage, Current
Input Range	0-5V, 1-5V, 0.4-2V, 4-20mA
Resolution	16 bits
Voltage Rating	24 VDC
Current Rating	310 mA
Common Mode Rejection	70 dB (DC to 60 Hz)
Normal Mode Rejection	19 dB (at 60 Hz)
Input Impedance (Voltage)	> 10 M Ohm (powered)
Max Normal Mode Input	+/- 30 Volts

Installation Guidelines

Ensure the control system is powered down before installing or removing the module from the I/O rack.
Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
Verify that the IOTA is securely mounted and that all field wiring is terminated according to the specific loop requirements.
Route signal cables away from high-voltage lines and sources of electromagnetic interference (EMI) to maintain signal integrity.
Ensure proper grounding of the module chassis to the system common ground to minimize noise and common-mode interference.

FAQ

Does this module support HART communication?

Yes, the 8C-TAIDB1 is HART-capable, allowing it to communicate with smart field instruments for configuration and diagnostic data.

Can this module be used in redundant configurations?

Yes, the module supports optional redundancy, which can be implemented depending on the specific requirements of the Experion LX control cabinet configuration.

What is the input impedance for voltage measurements?

The input impedance for voltage inputs is greater than 10 M Ohm when the module is powered.
