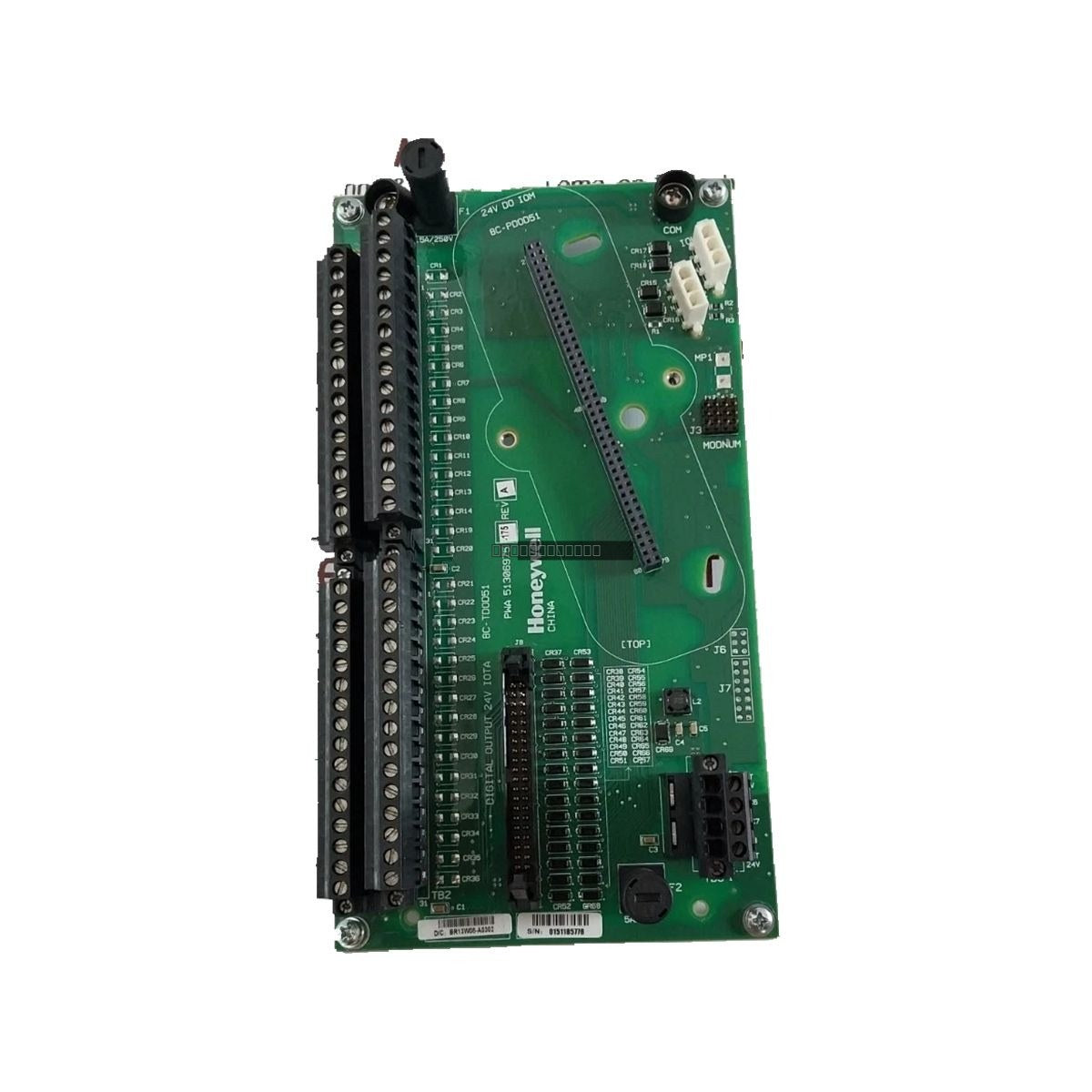

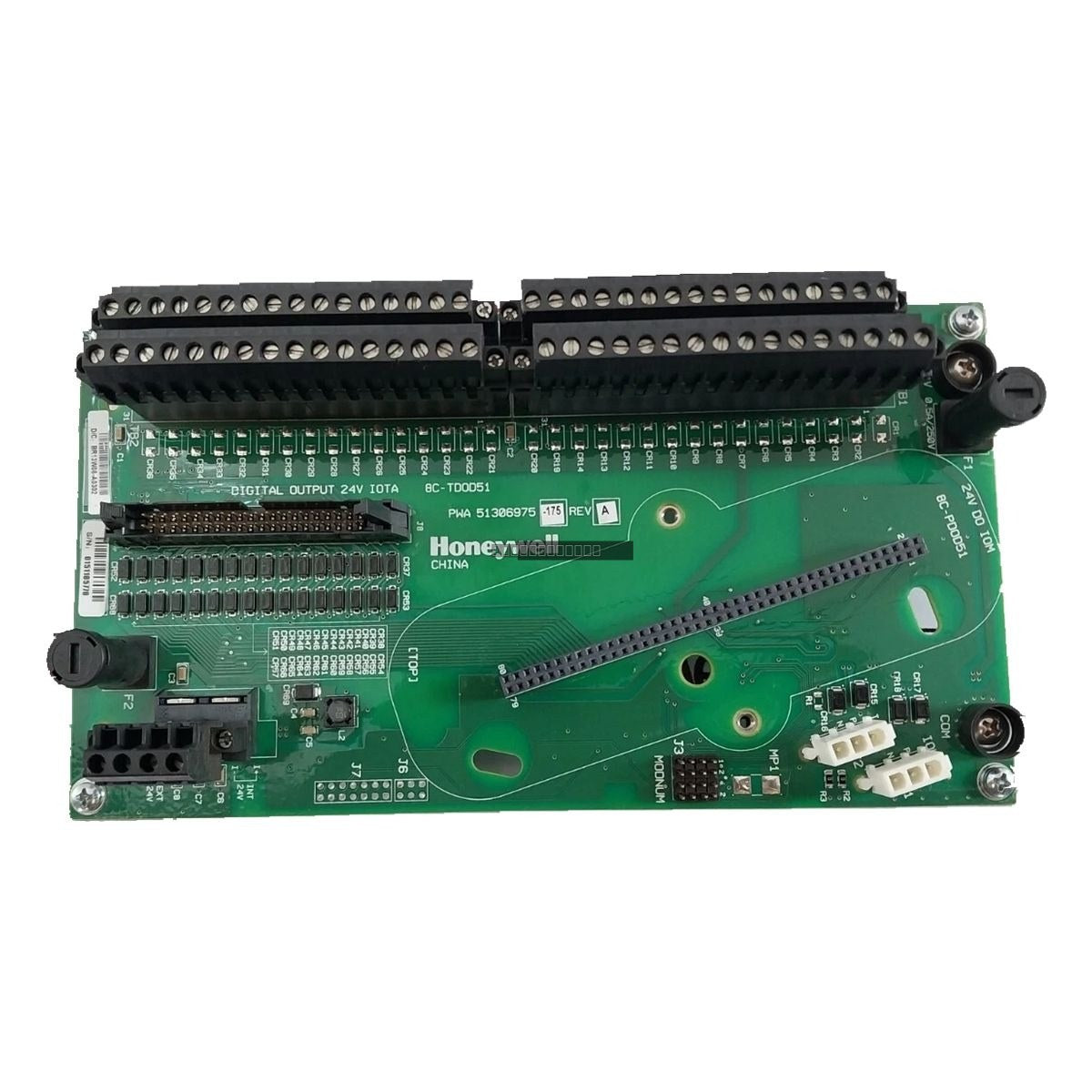

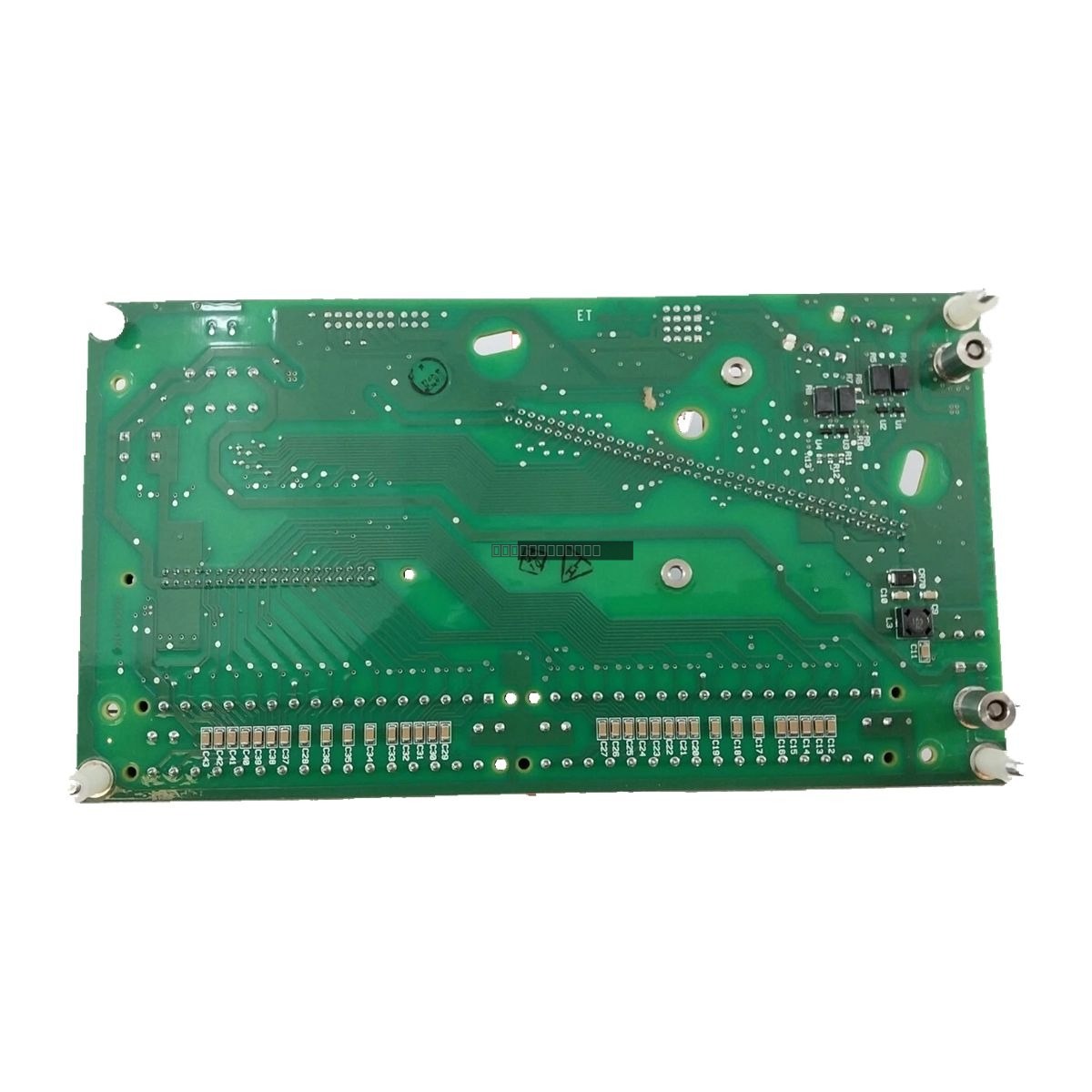

Honeywell 8C-TDOD51 51306975-175 Digital Output Module

Availability: 1 left in stock

DescriptionThe Honeywell 8C-TDOD51 (51306975-175) is a 24 VDC digital output module engineered for distributed control applications within Honeywell Experion PKS...

SKU: 8C-TDOD51 51306975-175

Manufacturer: Honeywell
Product No.: 8C-TDOD51 51306975-175
Product Type: Digital Output Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 240g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Honeywell 8C-TDOD51 (51306975-175) is a 24 VDC digital output module engineered for distributed control applications within Honeywell Experion PKS architectures. This module provides 12-channel discrete output capability, designed to drive field devices such as solenoid valves, relays, and actuator interfaces. It is widely utilized in process industries, including power generation, oil refining, and chemical production, to ensure deterministic operation and reliable process execution.

Features

12-channel discrete output configuration for high-density control.
Supports 24 VDC nominal output voltage with up to 2 A current handling per channel.
12-bit output control architecture for precise switching.
High-accuracy performance with ±0.1 percent full-scale precision.
Integrated channel and system-level electrical isolation to mitigate load disturbances.
Optimized for deterministic execution within Honeywell Experion PKS control systems.

Applications

This module is designed for critical process automation tasks where stable, high-speed switching is required. Typical applications include the control of industrial actuators, solenoid-operated valves, and interposing relays in complex distributed control system (DCS) environments.

Technical Specifications

Model	8C-TDOD51 / 51306975-175
Brand	Honeywell
Number of Outputs	12 Channels
Output Voltage	24 VDC Nominal
Output Current	Up to 2 A per channel
Resolution	12-bit
Accuracy	±0.1 percent of full scale
Power Consumption	4 W
Operating Temperature	0 to 60 deg C

Installation Guidelines

Ensure the control system is powered down before installing or removing the module from the backplane.
Verify that the module is correctly seated in the designated Honeywell I/O rack slot to ensure proper bus communication.
Use shielded cabling for field connections to minimize EMI/RFI interference in high-noise industrial environments.
Maintain proper ventilation within the cabinet to ensure the module operates within its specified 0 to 60 deg C temperature range.
Follow standard ESD (Electrostatic Discharge) handling procedures when touching the module circuitry.

FAQ

Is the 8C-TDOD51 compatible with all Experion PKS systems?

The 8C-TDOD51 is designed for specific Honeywell Experion PKS architectures. Please verify your system's hardware compatibility list or the specific revision requirements of your I/O rack before installation.

What is the primary function of the isolation in this module?

The channel and system-level isolation are designed to protect the internal control logic from electrical noise, surges, or faults originating from the field-side load devices, thereby increasing overall system reliability.
