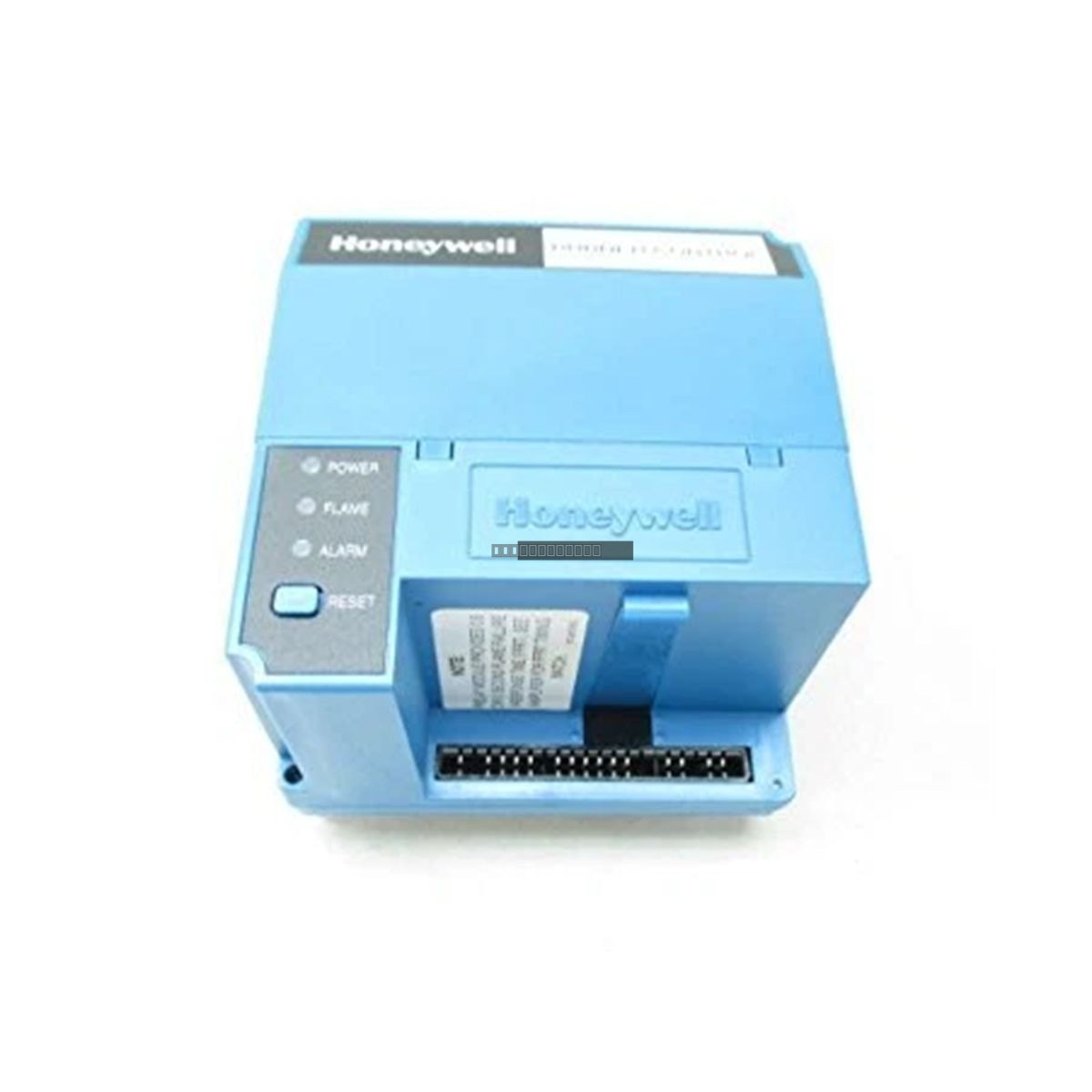

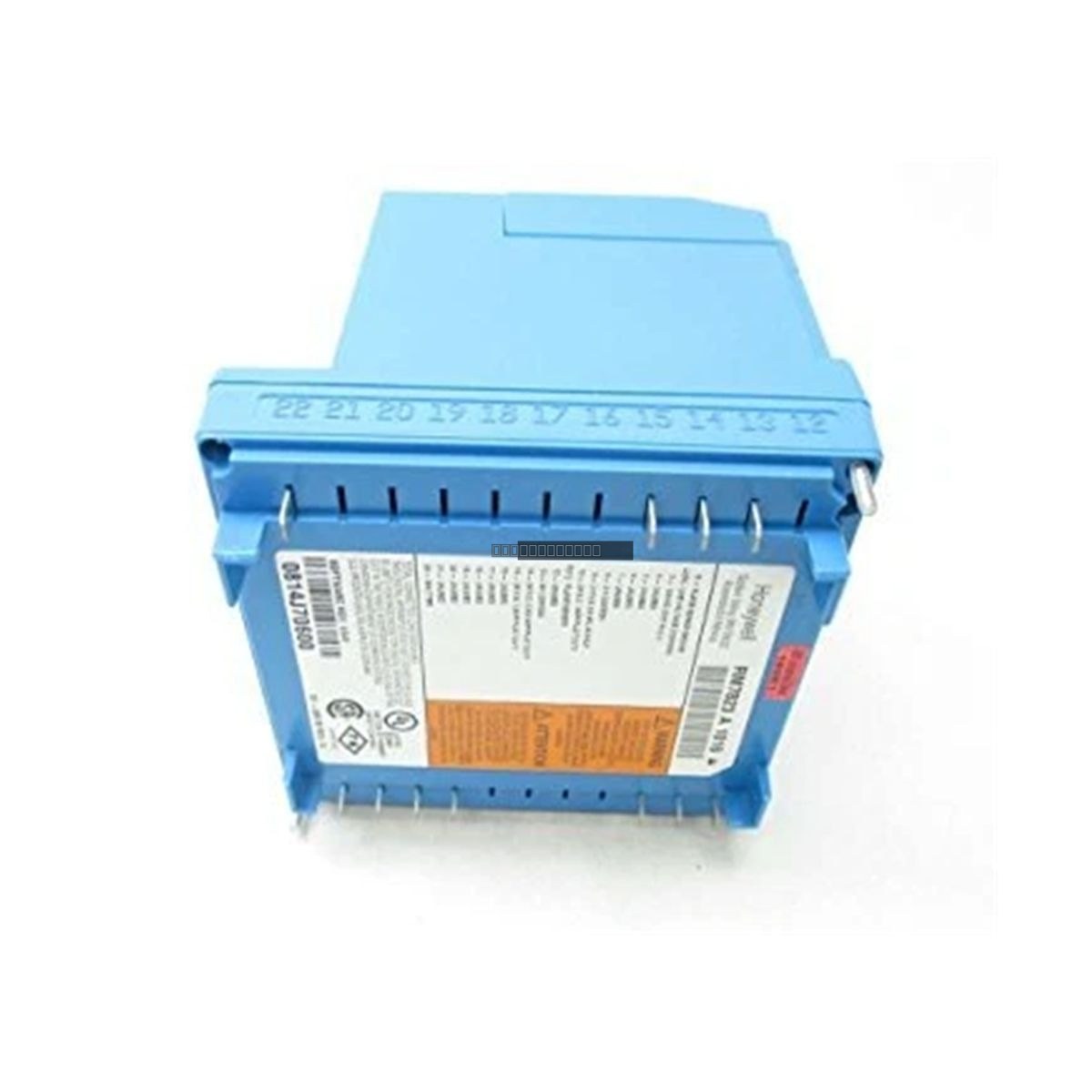

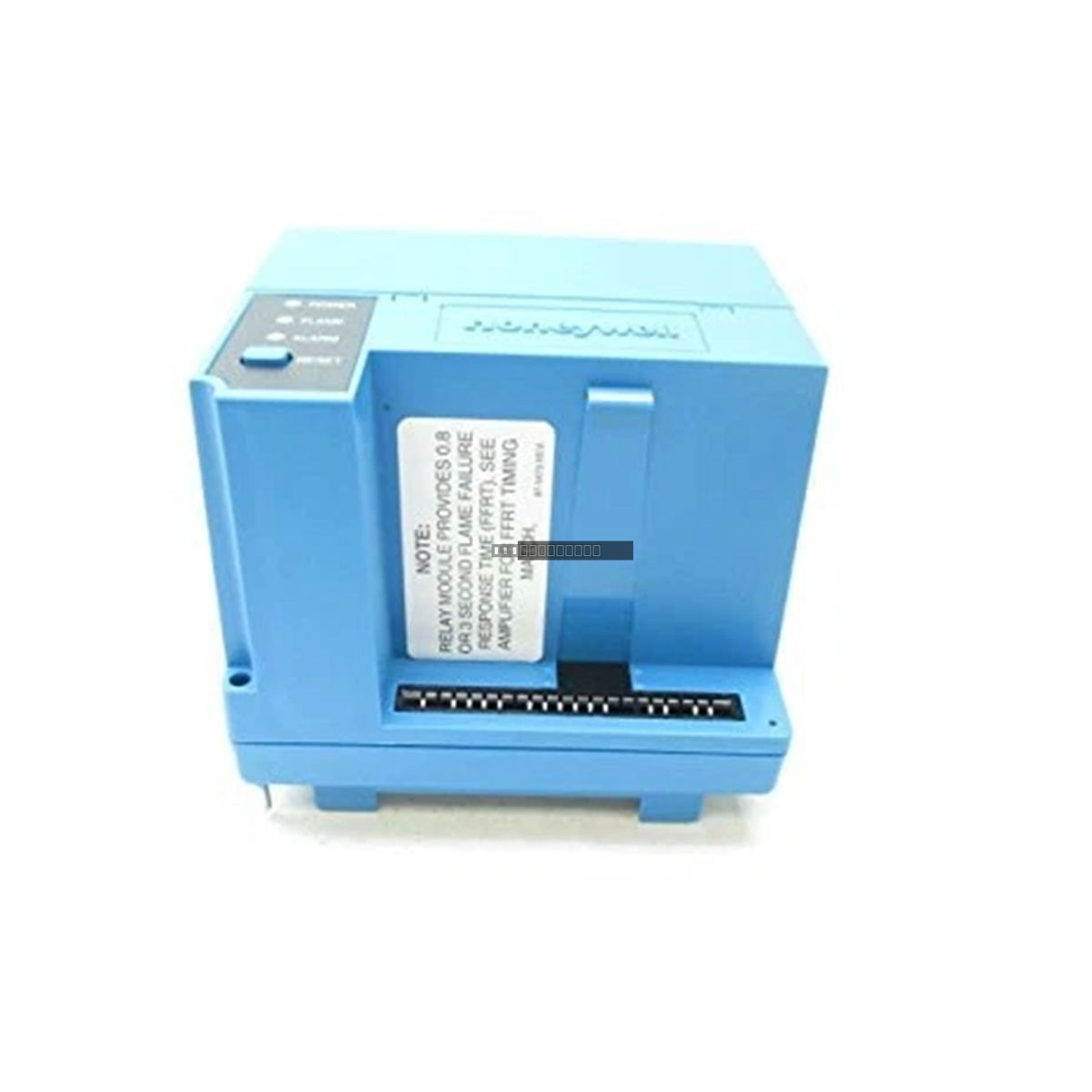

Honeywell RM7823A1016 Flame Detector Relay Module

Availability: 5 left in stock

The Honeywell RM7823A1016 is a microprocessor-based flame safeguard relay module designed for industrial burner management systems. It provides critical flame...

SKU: RM7823A1016

Manufacturer: Honeywell
Product No.: RM7823A1016
Product Type: Flame Detector Relay Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 1500g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

The Honeywell RM7823A1016 is a microprocessor-based flame safeguard relay module designed for industrial burner management systems. It provides critical flame signal processing and relay output control for boilers, furnaces, process heaters, and combustion control skids. By continuously evaluating flame sensor inputs, the module ensures safe burner operation and initiates immediate shutdown in the event of flame failure.

Features

Microprocessor-based flame verification engine for high-reliability signal processing.
Compatible with UV and IR flame sensors for versatile burner monitoring.
Deterministic relay output architecture for safe fuel valve and ignition interlock control.
Integrated timing-based discrimination logic to mitigate false flame detection from electrical noise or transient light.
Fail-safe design ensures transition to a lockout state upon detection of internal faults or loss of flame signal.
Standard RM7800 series plug-in architecture for simplified installation and maintenance.

Applications

This module is intended for use in high-risk thermal environments, including power generation plants, oil refineries, and chemical processing facilities. It serves as a core component within the Honeywell RM7800 series burner management architecture to maintain safety standards in combustion control loops.

Technical Specifications

Model	RM7823A1016
Brand	Honeywell
Product Type	Flame Detector Relay Module
Operating Temperature	0 to 60 deg C
Processing	Microprocessor-based signal verification
Mounting	Plug-in base module
Safety Function	Flame failure detection, lockout control, automatic shutdown

Installation Guidelines

Ensure the burner management system is fully powered down before inserting or removing the module from the base.
Verify that the module is securely seated in the RM7800 series base to ensure proper backplane contact.
Maintain proper grounding of the burner control cabinet to minimize electromagnetic interference (EMI) on flame sensor signal lines.
Route flame sensor signal cables separately from high-voltage power lines to prevent signal corruption.
Ensure the installation environment remains within the specified temperature range of 0 to 60 deg C to prevent thermal degradation of internal components.

FAQ

What is the primary function of the RM7823A1016?

The RM7823A1016 acts as a flame safeguard relay that monitors flame presence via connected sensors and controls burner safety interlocks, such as fuel valves and ignition systems, to prevent hazardous operation.

Is this module compatible with existing RM7800 series systems?

Yes, the RM7823A1016 is designed for the Honeywell RM7800 series burner management platform and utilizes standard plug-in base mounting for easy integration or replacement.

What happens if the module detects a flame failure?

The module executes internal safety logic to trigger an immediate shutdown and enters a lockout state, which requires a manual reset to restore operation.
