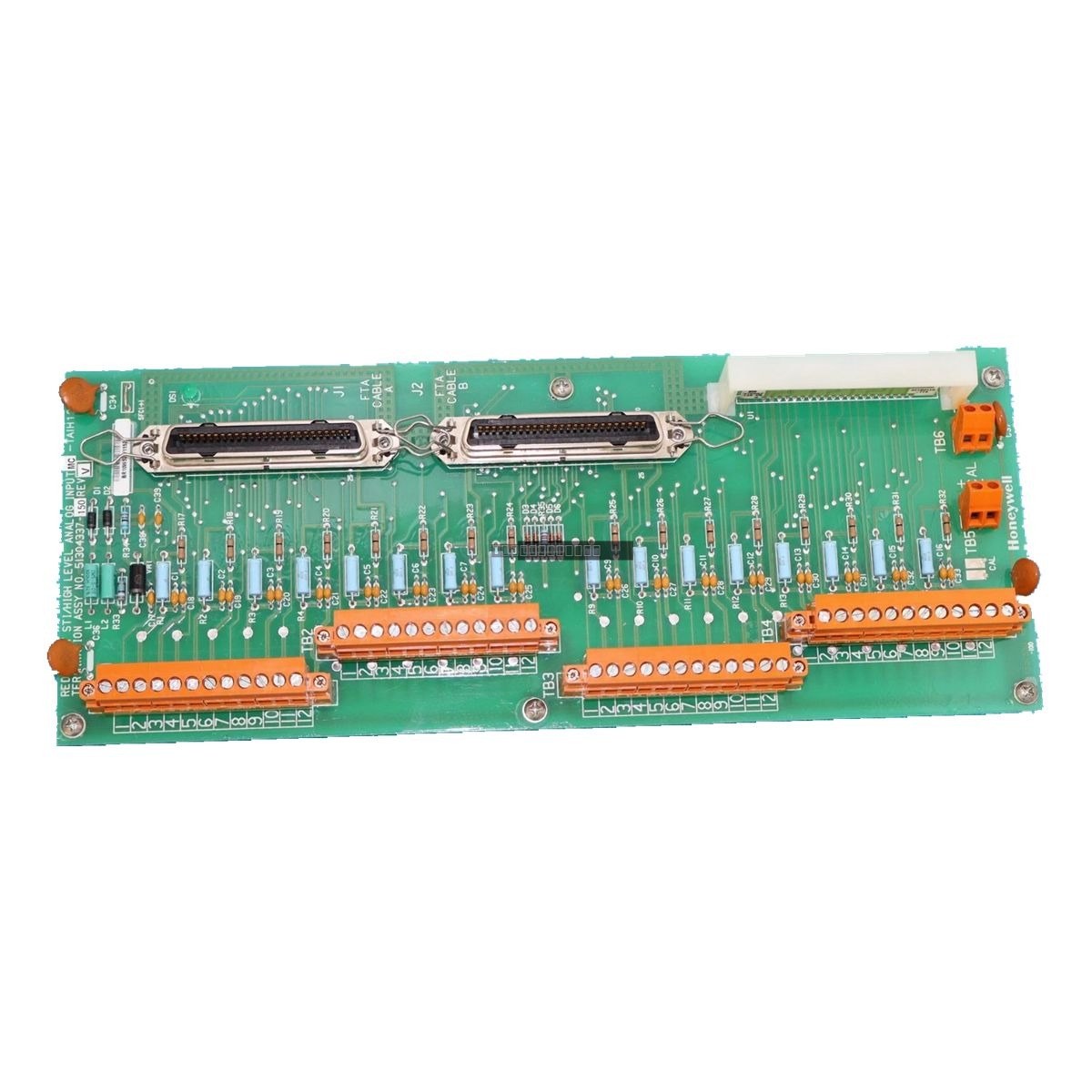

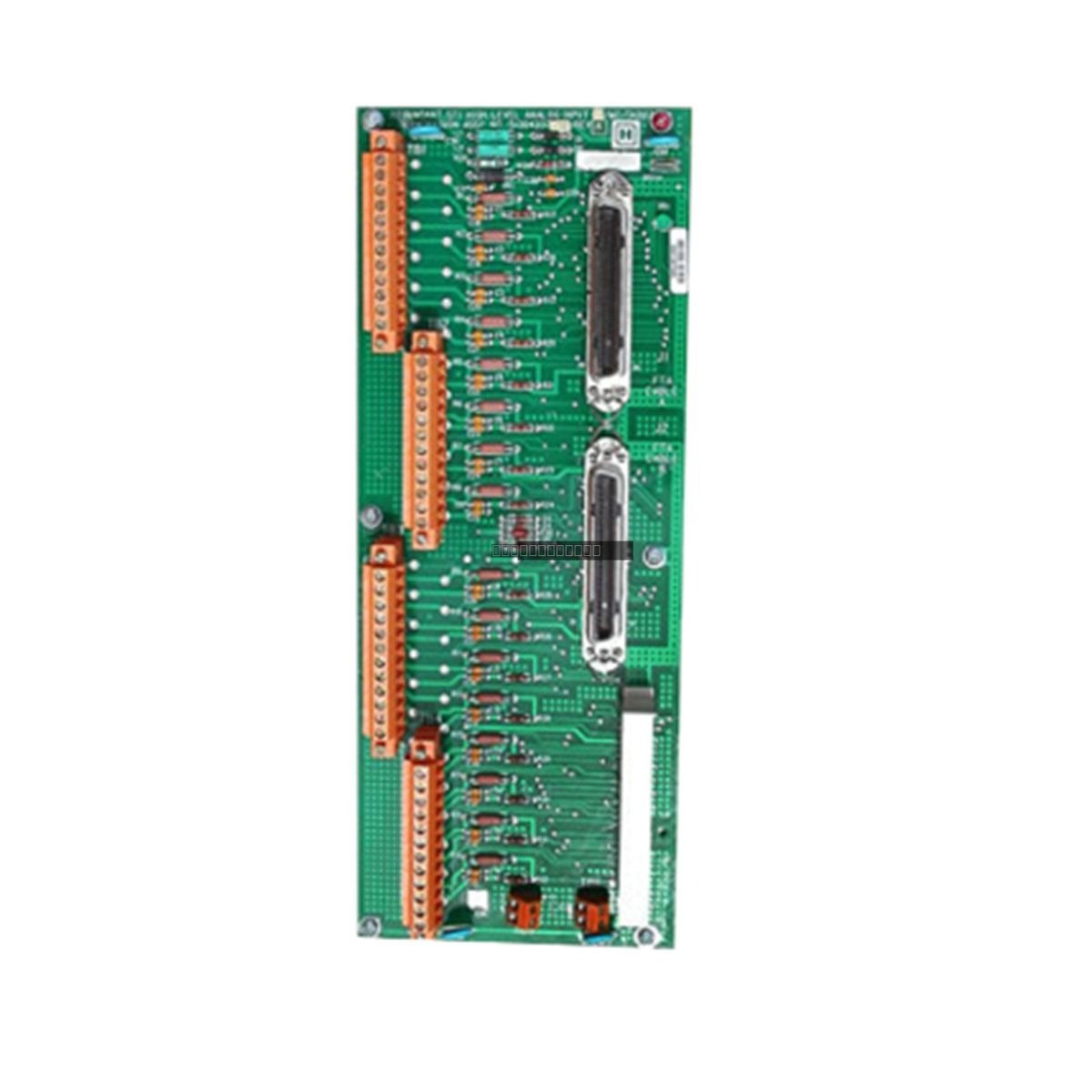

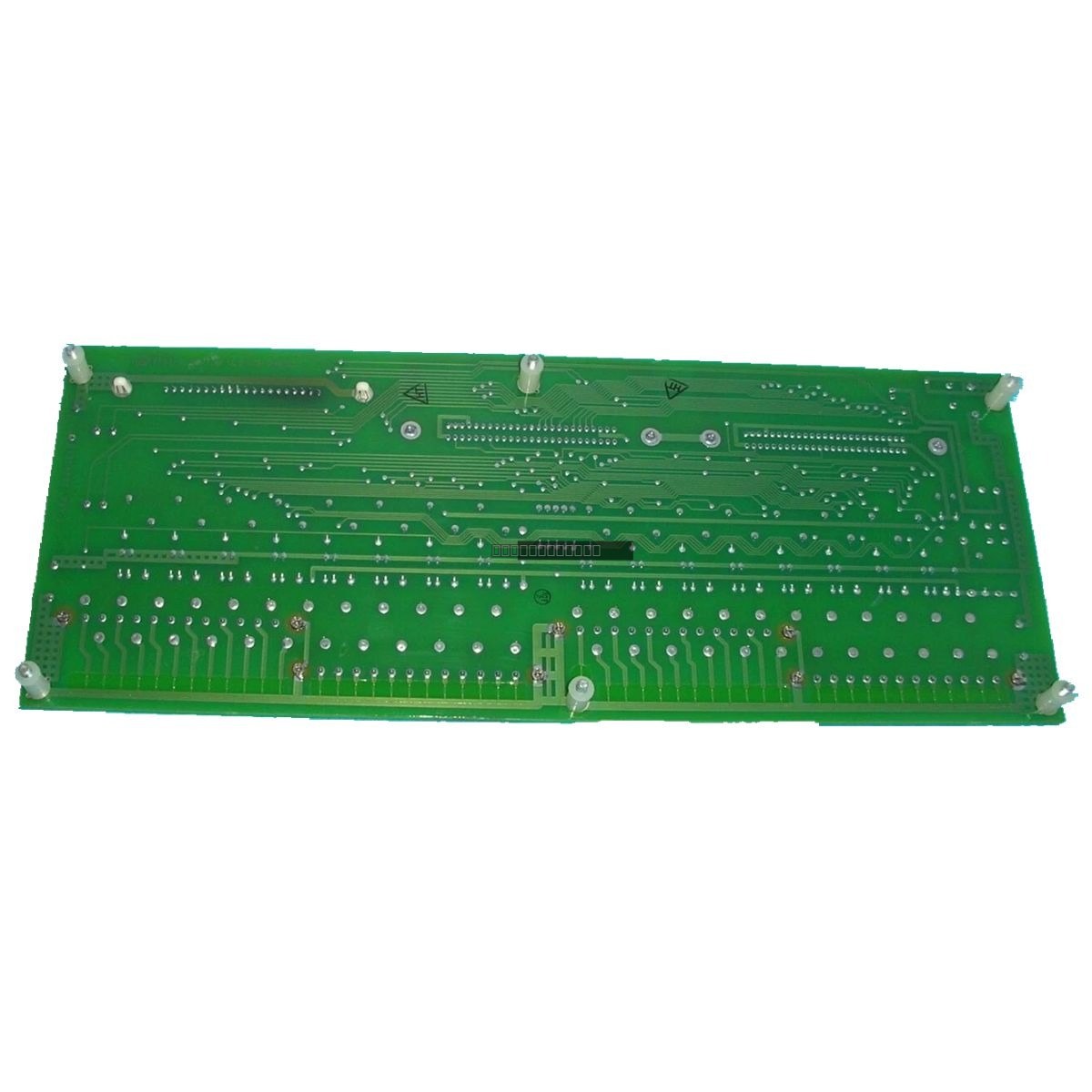

Honeywell MC-TAIH12 High Level Analog Input FTA

Availability: 10 left in stock

DescriptionThe Honeywell MC-TAIH12 is a high-level analog input Field Termination Assembly (FTA) engineered for reliable signal acquisition in industrial control...

SKU: MC-TAIH12

Manufacturer: Honeywell
Product No.: MC-TAIH12
Product Type: Analog Input FTA
Product Origin: USA
Payment:T/T, Western Union
Weight: 1200g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Honeywell MC-TAIH12 is a high-level analog input Field Termination Assembly (FTA) engineered for reliable signal acquisition in industrial control environments. This module serves as a critical interface between field instrumentation and Honeywell control system I/O modules. It is specifically designed to support 16 channels of analog input, facilitating the integration of process variables into control architectures used in power generation, oil and gas, and chemical processing facilities.

Features

High Channel Density: Provides 16 discrete analog input channels for efficient field signal termination.
Redundancy Support: Engineered for redundant input configurations, enhancing system availability and minimizing the risk of single-point failures.
Robust Connectivity: Utilizes compression terminal blocks to ensure secure, vibration-resistant connections in demanding industrial settings.
Passive Architecture: Operates as a passive termination assembly, requiring no internal power supply for signal routing.
Signal Integrity: Designed to maintain consistent impedance and noise resistance, ensuring stable signal transmission even in environments with high electrical interference.

Applications

The MC-TAIH12 is widely deployed in process automation systems where continuous, high-integrity monitoring is required. Typical applications include:

Oil and gas refineries and offshore platforms.
Power plant control and monitoring systems.
Chemical and petrochemical processing plants.
Safety-critical industrial automation loops.

Technical Specifications

Model	MC-TAIH12
Brand	Honeywell
Module Type	High Level Analog Input FTA
Input Channels	16
Signal Type	High Level Analog
Redundancy	Supported (Dual-channel redundant configuration)
Terminal Type	Compression Terminals
Power Consumption	Passive (No internal power required)
Operating Temperature	0 to 60 deg C

Installation Guidelines

Environment: Ensure the installation area is free from excessive dust, moisture, and corrosive gases. Maintain the operating temperature within the specified 0 to 60 deg C range.
Wiring: Use appropriate shielded cabling to minimize EMI/RFI interference. Ensure all wires are firmly seated in the compression terminals to prevent intermittent signals due to vibration.
Grounding: Follow standard industrial grounding practices for signal shields to ensure noise immunity.
Handling: Observe standard ESD (Electrostatic Discharge) precautions when handling the module to prevent component damage.
Maintenance: Periodically inspect terminal connections for tightness, especially in high-vibration environments.

FAQ

Is the MC-TAIH12 an active signal processing module?

No, the MC-TAIH12 is a passive Field Termination Assembly (FTA). Its primary function is to provide a physical interface and signal routing between field devices and the control system I/O, rather than performing active signal processing or conversion.

Does this module require an external power supply?

As a passive termination assembly, the MC-TAIH12 does not require its own internal power supply to function; it relies on the power provided by the connected control system I/O modules and field instrumentation loops.
