Original Honeywell CC-PUIO01 Series C Universal Input Output

Availability: 99 left in stock

Product Overview The Honeywell CC-PUIO01 (Assembly 8C-SHEDA1 / Catalog 51307186-175) functions as a high-density, 32-channel Universal Input/Output (UIO) module within...

SKU: CC-PUIO01 8C-SHEDA1 51307186-175

Manufacturer: Honeywell
Product No.: CC-PUIO01 8C-SHEDA1 51307186-175
Product Type: Experion PKS Series C
Product Origin: USA
Payment:T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Overview

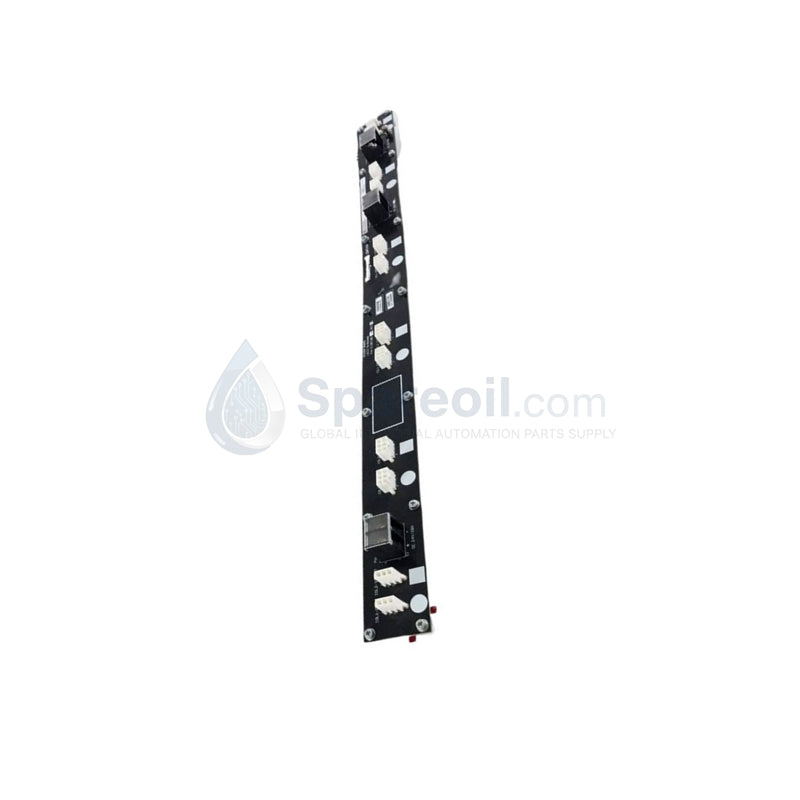

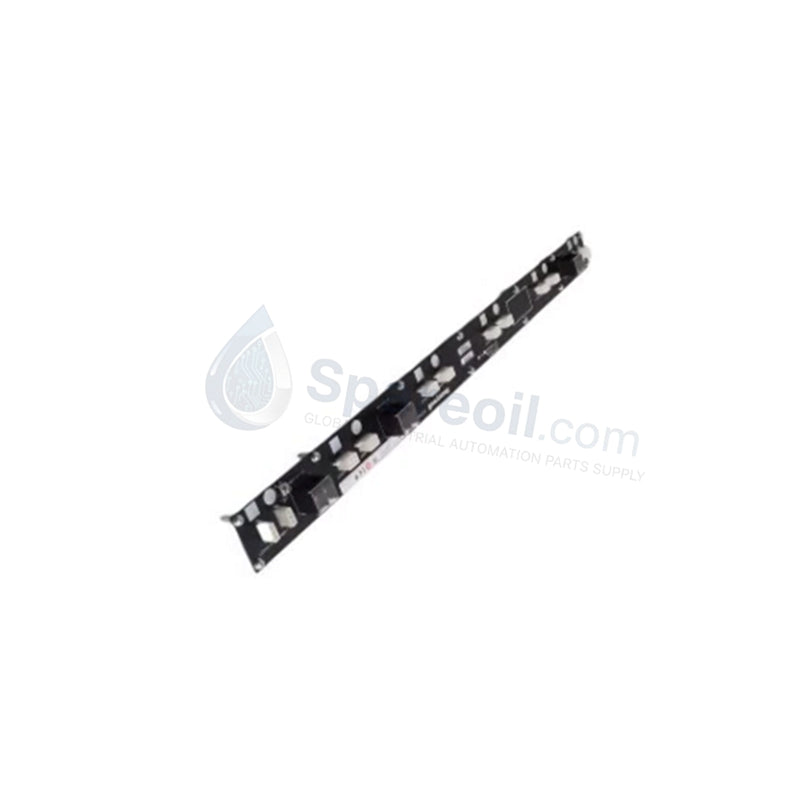

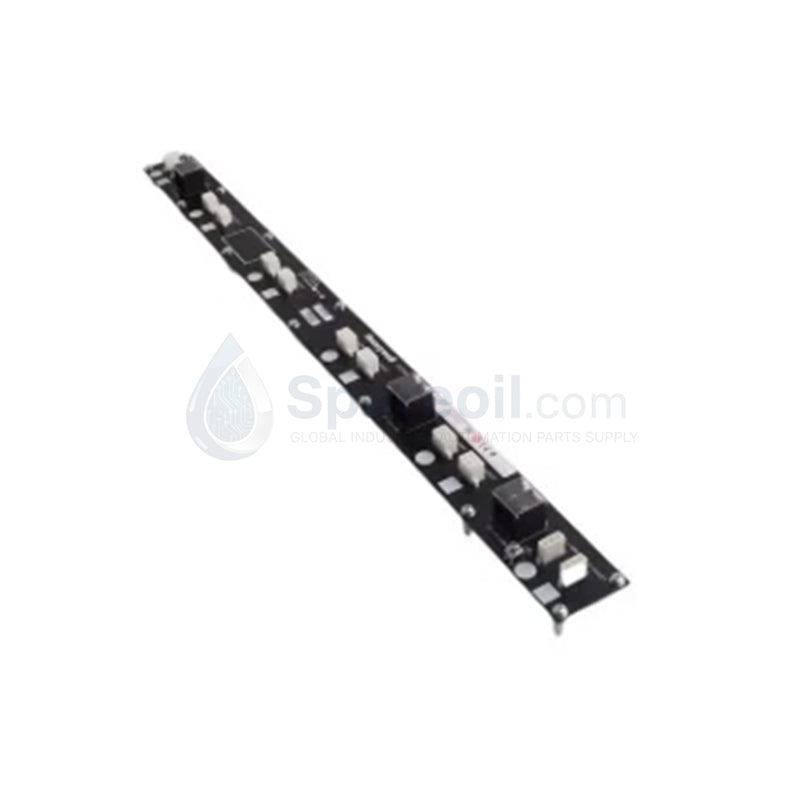

The Honeywell CC-PUIO01 (Assembly 8C-SHEDA1 / Catalog 51307186-175) functions as a high-density, 32-channel Universal Input/Output (UIO) module within the Experion PKS Series C environment. This 100% brand-new, original unit eliminates the need for hardware-specific modules by allowing engineers to configure each channel individually as AI, AO, DI, or DO. By integrating the 8C-SHEDA1 header board, this module facilitates high-speed RS-485 and IOLINK communication, ensuring deterministic data exchange between field instrumentation and the controller in mission-critical applications.

Technical Specifications

The CC-PUIO01 utilizes a hardened PWB architecture to maintain signal integrity in extreme industrial conditions.

Parameter	Specification Details
Model Number	CC-PUIO01 / 8C-SHEDA1
Part Number	51307186-175
Channel Count	32 Configurable Channels
Signal Configurations	AI (4–20 mA, 1–5 V), AO (4–20 mA), DI (24V DC), DO (24V DC)
Communication Protocol	RS-485 and IOLINK
Resolution	12–16 bit A/D and D/A Conversion
Operating Temperature	–40°C to +70°C
Dimensions (W × H × D)	172 mm × 102 mm × 41 mm
Weight	0.5 kg
Certifications	CE, UL508, CSA, TUV
Protection	EMI/RFI Shielding, Conformal Coating

Engineering Advantages

The Honeywell 8C-SHEDA1 CC-PUIO01 streamlines automation architecture while resolving common field integration pain points:

Total Configuration Flexibility: The "Universal" architecture allows each of the 32 channels to adapt to changing field requirements. Consequently, maintenance teams can repurpose existing modules for new sensors without replacing hardware, which significantly lowers Total Cost of Ownership (TCO).
Drastic Hardware Reduction: By consolidating four module types (AI, AO, DI, DO) into one CC-PUIO01 unit, facilities reduce their spare parts inventory requirements. This simplification streamlines system design and minimizes cabinet footprint in space-constrained offshore rigs or remote terminal units (RTUs).
Extreme Thermal Resilience: Engineered for the harshest environments, the module operates reliably from –40°C to +70°C. Therefore, it maintains precision control in unconditioned outdoor cabinets or high-heat processing zones where standard controllers often fail.
Integrated Diagnostic Intelligence: The module features built-in monitoring for open circuits and short circuits on a per-channel basis. This granular diagnostic capability allows technicians to pinpoint field-side wiring faults instantly, preventing localized issues from escalating into system-wide downtime.

FAQs

Can the CC-PUIO01 replace standard dedicated AI or DI modules?

Yes. The CC-PUIO01 performs all functions of dedicated Series C analog and digital modules. However, ensure your I/O Termination Assembly (IOTA) supports universal configurations and your Experion PKS software version recognizes the UIO module type.
What is the role of the 8C-SHEDA1 header board?

The 8C-SHEDA1 serves as the physical and electrical interface board. It manages the IOLINK and RS-485 signal transmission between the UIO module and the C300 controller, while also distributing filtered power to the 32 I/O channels.
How does the module handle electrical noise in heavy industrial sites?

Honeywell incorporates multi-layer EMI/RFI shielding and conformal coating on the 51307186-175. These measures protect the internal 16-bit converters from electromagnetic interference generated by large motors or variable frequency drives (VFDs).
What happens if a single channel fails?

The CC-PUIO01 utilizes channel-to-channel isolation. As a result, a localized short circuit or surge on one field instrument does not propagate to adjacent channels or the system backplane, keeping the remaining 31 channels operational.
