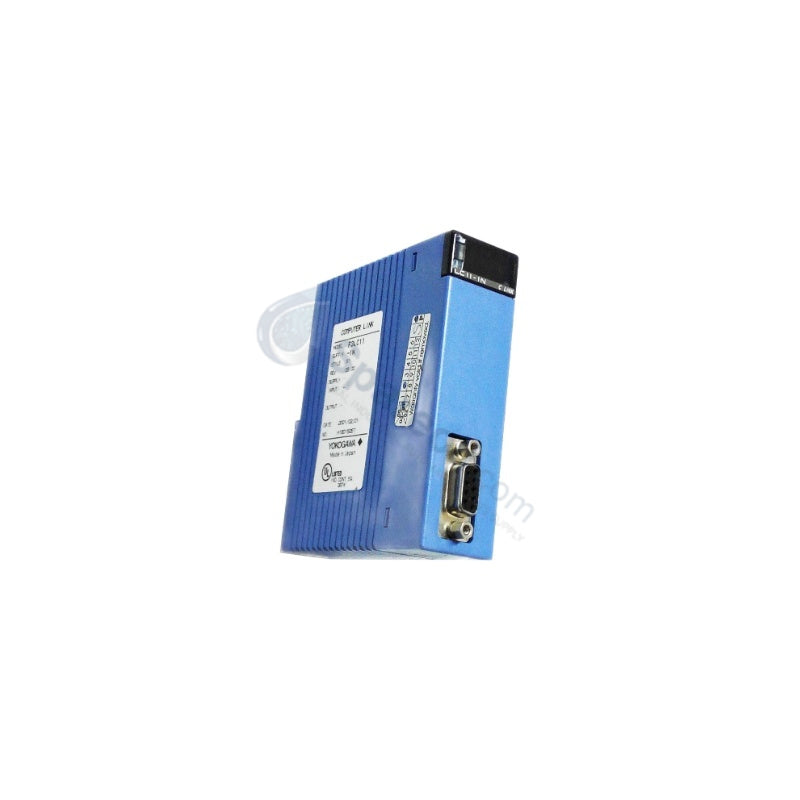

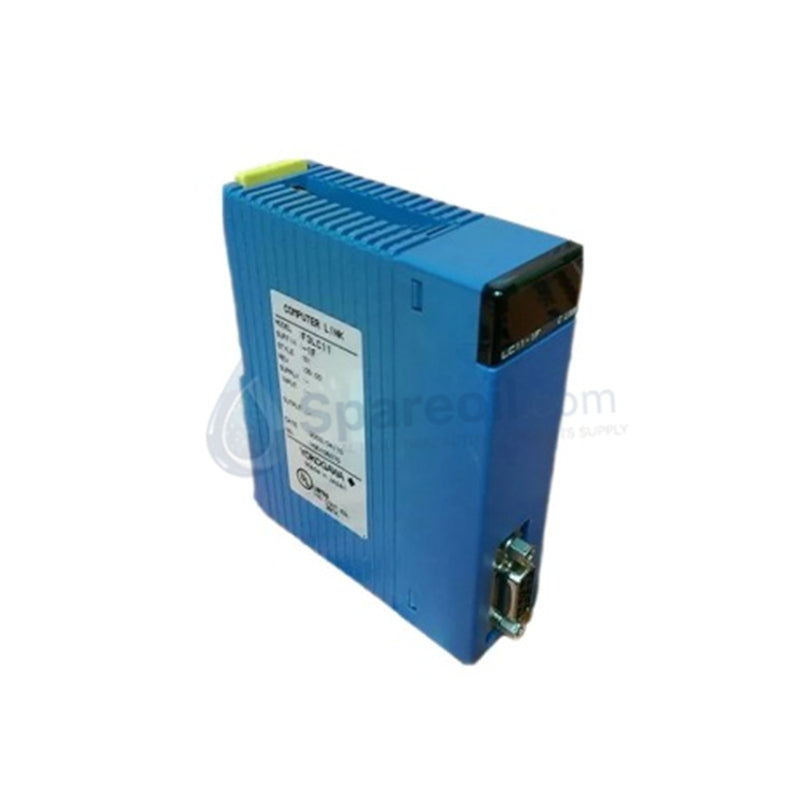

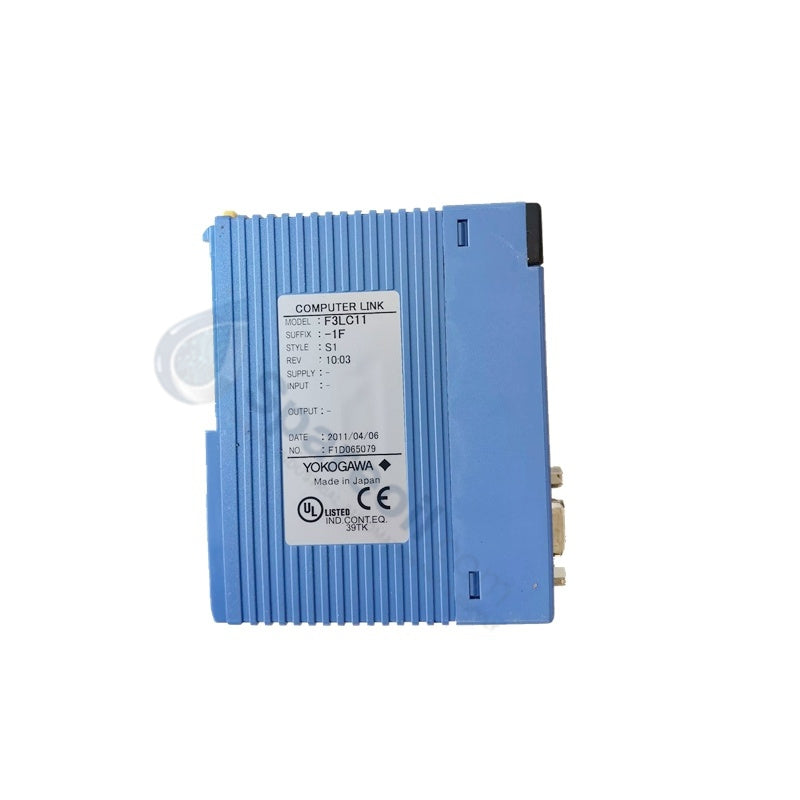

Yokogawa F3LC11-1F Personal Computer Link Module

The Yokogawa F3LC11-1F, also cataloged as the F3LC11 Personal Computer Link Module, operates as a dedicated hardware component for industrial controls and communications within FA-M3 and STARDOM controller networks. Configured for serial interface execution, the module executes point-to-point asynchronous data exchanges to link host computer applications directly with the internal controller register space.

Layout Configuration Selection: Layout 1

Hardware Specifications

Parameter Specification
Model F3LC11-1F
Brand Yokogawa Electric Corporation
Origin Japan
Weight 0.11 kg net assembly weight (1.0 kg shipping weight)
Dimensions 2.89 cm x 10.0 cm x 8.32 cm
Operating Temp -20 to +60 deg C
Power Consumption Internal current consumption of 320 mA at 5 VDC
Communications Interface Conforms fully to the EIA RS-232-C serial standard
Number of Ports 1 communication port (non-isolated layout architecture)
Transmission Mode Asynchronous half-duplex routing
Synchronization Start-stop block synchronization
Baud Rate Array 300, 600, 1200, 2400, 4800, 9600, 14400, 19200, 28800, 38400, 57.6k, 115.2 kbps
Transmission Distance Maximum 15 m line radius
Error Checking Protocols Parity check and longitudinal checksum routines
Serial Control Lines Request to Send (RS) always on, Data Terminal Ready (ER) always on
Physical Connector Base D-sub 9-pin connector (female wiring block) with M2.6 screw retention
Suffix Specification -1F Standard general-purpose variant (Non explosion-proof)
Storage Temperature -40 to +70 deg C
Humidity Envelope 5 to 95% RH (non-condensing)

Industrial Control & Communications Technical Attributes

This communication module relies on a deterministic serial interface driver capable of scaling data transmission velocities up to 115.2 kbps over a 15 m physical copper link. The D-sub interface handles asynchronous character streaming, using automatic hardware parity generation and checksum validation blocks to enforce communication link velocity parameters. Because the port utilizes a non-isolated architecture directly tied to the internal backplane ground plane, all connected host hardware must share an identical potential baseline to prevent cross-talk noise interference or transient voltage breakdown across the serial logic channels.

Frequently Asked Questions

Q: Why are the RS (Request to Send) and ER (Data Terminal Ready) lines hardwired to an always-on state inside this module?

A: The module forces these control loops active to skip complex hardware handshaking timing routines, allowing instant, half-duplex start-stop synchronization over basic three-wire RS-232-C serial cables.

Q: What precautions must be taken due to the non-isolated design of the F3LC11-1F serial port?

A: Ground loop currents will travel through the communication cable if the host PC and the controller rack operate at different ground potentials; you must maintain equipotential grounding or insert an external isolation barrier.

Field Installation Guidelines

  • Baseplate Module Engagement: Align the card chassis with the dedicated slot guides on the controller baseplate, sliding it until the backplane interface seats completely before fastening the retention screw.
  • Serial Cable Torque: Secure the female D-sub 9-pin cable connector onto the module faceplate interface using the M2.6 terminal retention screws to prevent vibration-induced disconnects.
  • Equipotential Bonding Trace: Connect the host computer frame ground and the controller baseplate rack directly to a centralized clean earth ground bar to avoid stray common-mode potential differences.
  • Baud Rate Matching Configuration: Verify that the software registers inside the CPU configuration tool exactly match the external host computer system velocity settings (up to 115.2 kbps) to avoid frame errors.
