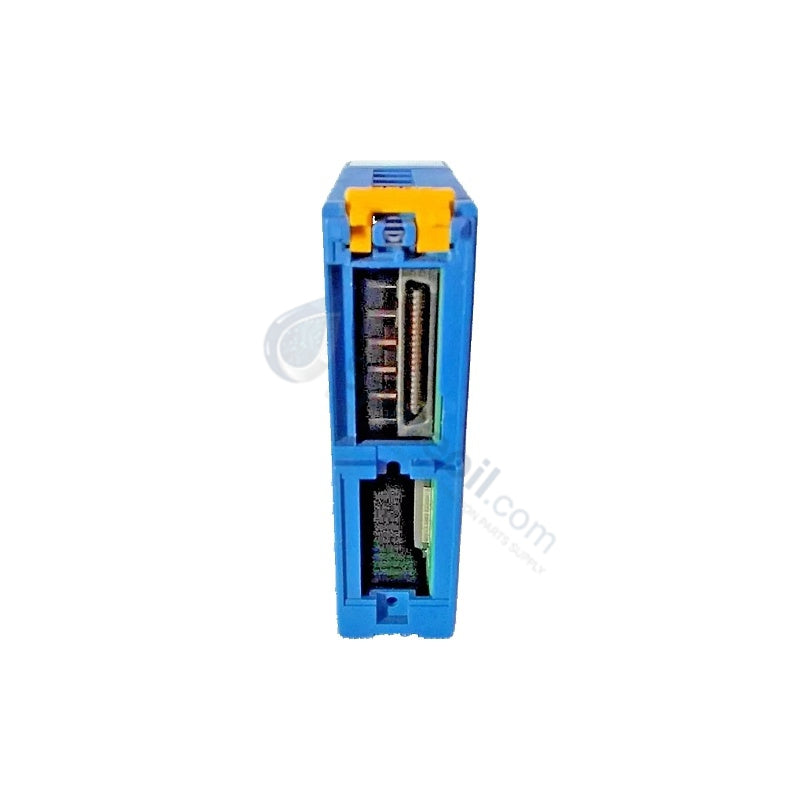

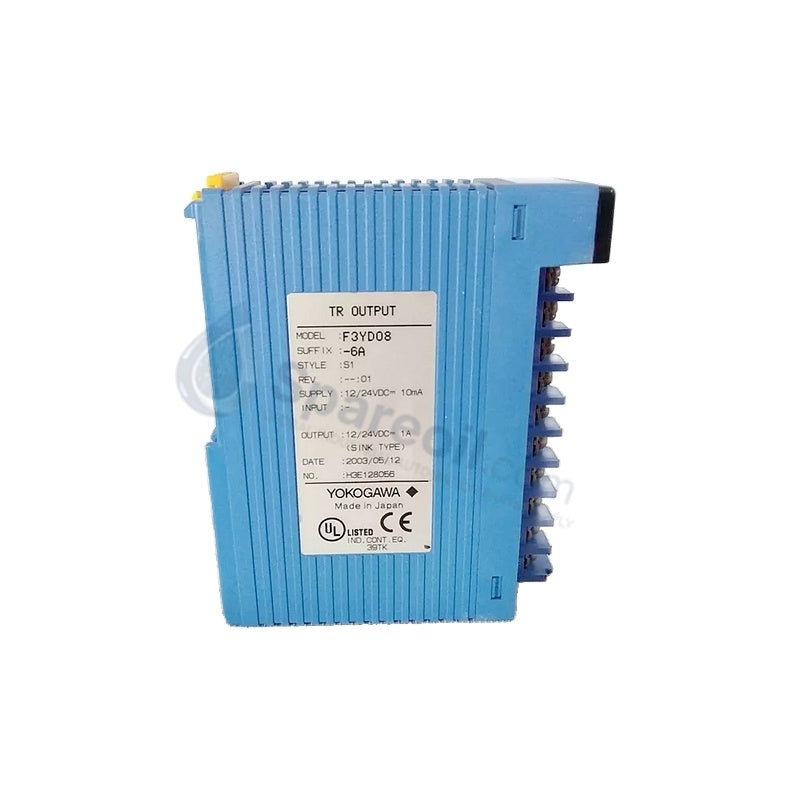

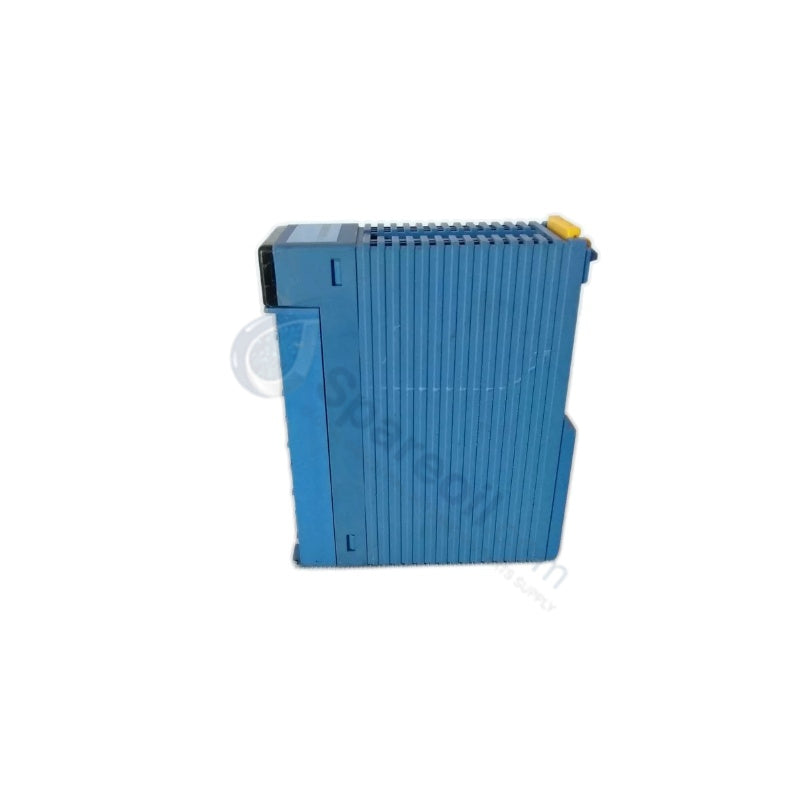

Yokogawa F3YD08-6A Digital Output Module

The Yokogawa F3YD08-6A, also cataloged as the F3YD08 Transistor Output Module, operates as a dedicated hardware component for digital output signal isolation and switching within FA-M3 and STARDOM controller networks. Configured for discrete logic execution, the module translates internal control commands into physical open-collector transistor state modifications to govern external field devices.

Layout Configuration Selection: Layout 1

Hardware Specifications

Parameter Specification
Model F3YD08-6A
Brand Yokogawa Electric Corporation
Origin Japan
Weight 0.13 kg (0.29 lbs)
Dimensions 2.5 cm x 10.2 cm x 8.4 cm
Operating Temp -20 to +60 deg C
Power Consumption 60 mA at 5 VDC backplane current consumption
Output Type Transistor (Open Collector)
Number of Outputs 8 discrete channels
External Power Supply 12-24 VDC external source bounds
Load Current Capacity Up to 0.5 A per channel
On-State Voltage Drop Maximum 0.5 VDC
Off-State Leakage Current Maximum 0.1 mA
Circuit Protection Type Integrated active clamp components
Isolation Breakdown Limit Channel-to-system isolation verified at 1500 VAC
Signal Propagation Delay Response time less than or equal to 1 ms
Local Interface Wiring 10-point terminal block with M3.5 screw fixation
Storage Temperature -40 to +70 deg C
Humidity Limits 5 to 95% RH (non-condensing)

Process Control & DCS Instrumentation Technical Attributes

This component enforces structured electrical boundaries through a channel-to-system isolation layer engineered to withstand 1500 VAC spikes. The open-collector circuit structure utilizes internal active clamps to absorb transient voltage kickbacks encountered during inductive de-energization cycles. When interacting with distributed control environments, the internal registers process discrete transitions within a 1 ms window, preventing channel-to-channel isolation degradation and protecting the logic backplane bus from external field interference.

Frequently Asked Questions

Q: What protection does the integrated active clamp provide during inductive switching?

A: The active clamp limits the inductive voltage spike generated when a channel cuts current to devices like solenoids, preventing transistor breakdown without requiring immediate external diode placement for low-energy loads.

Q: How does the module indicate individual channel states for field diagnostics?

A: The module faceplate embeds physical LED indicators that light up dynamically when the internal logic drives the corresponding open-collector transistor into a saturated conduction state.

Field Installation Guidelines

  • Baseplate Module Insertion: Position the hardware module within the designated FA-M3 baseplate channel guide, pressing firmly until the internal connectors mate before securing the M3.5 mounting screw.
  • Terminal Wiring Termination: Connect field wiring directly to the 10-point terminal block, ensuring strip lengths match the M3.5 compression plates to avoid exposed conductor lines.
  • Shield Ground Tracking: Route all external cable shield drains to the primary control cabinet clean ground rail to suppress high-frequency noise injection.
  • Thermal Envelope Maintenance: Arrange physical space layout to facilitate natural convection, ensuring ambient conditions remain within the designated -20 to +60 deg C operational threshold.
