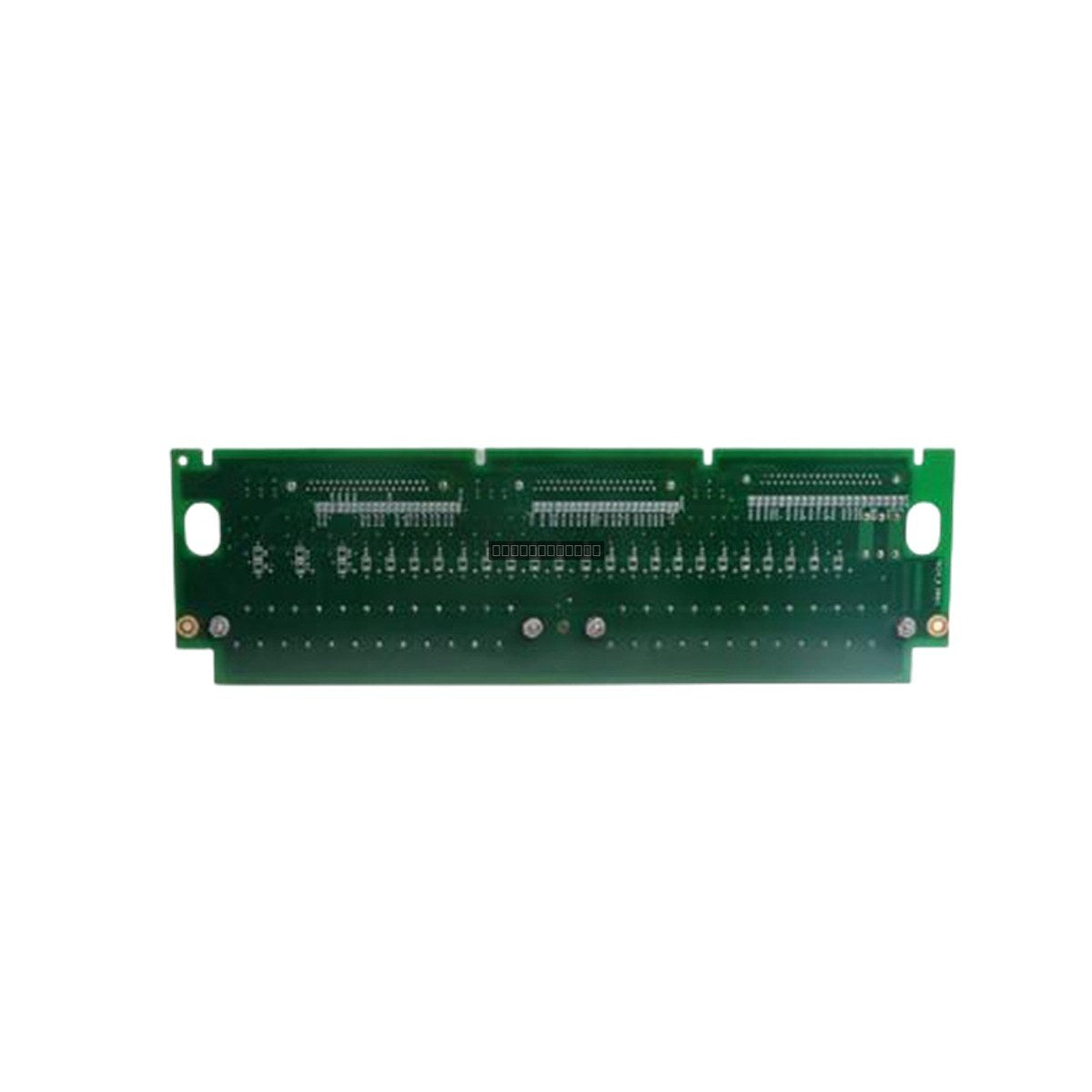

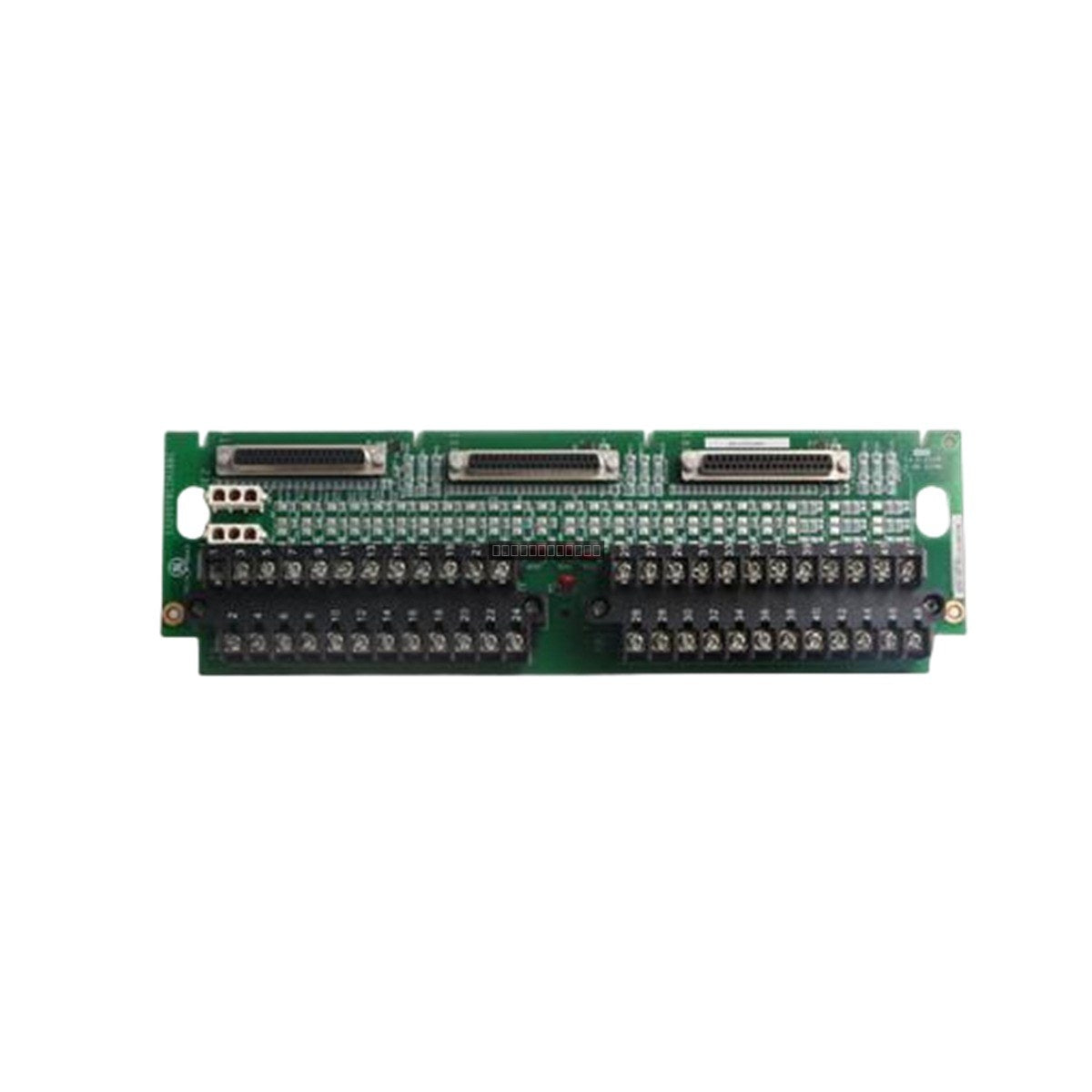

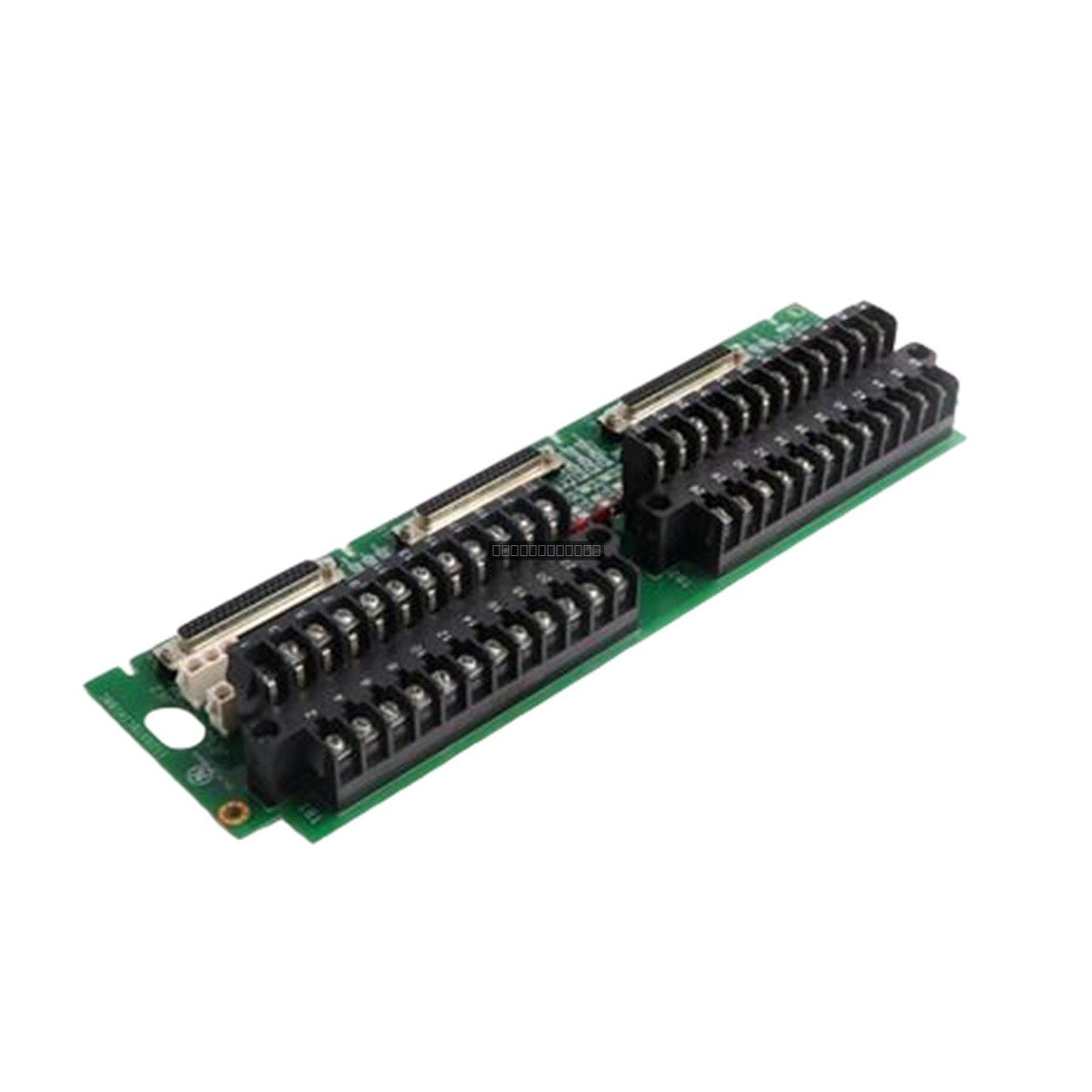

General Electric IS200TBCIH1BCE Mark VIe Terminal Contact Board

General Electric Mark VIe IS200TBCIH1BCE Terminal Contact Board

Availability: 2 left in stock

DescriptionThe IS200TBCIH1BCE is a Terminal Contact Board designed for use within the General Electric Mark VIe Speedtronic control system. This...

SKU: IS200TBCIH1BCE

Manufacturer: General Electric
Product No.: IS200TBCIH1BCE
Product Type: Terminal Contact Board
Product Origin: USA
Payment:T/T, Western Union
Weight: 280g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The IS200TBCIH1BCE is a Terminal Contact Board designed for use within the General Electric Mark VIe Speedtronic control system. This component serves as a critical interface for managing contact inputs, ensuring reliable signal processing and connectivity within the turbine control architecture. It is designed to facilitate the integration of field-level contact signals into the broader control network.

Features

Provides 24 dedicated contact inputs for system monitoring.
Integrated 24 Vdc input circuitry for direct field interface.
Features a 4 ms hardware filter to ensure signal integrity and debounce.
Robust isolation rating of 500 Vdc channel-to-bus to protect control electronics.
Compatible with Mark VIe Speedtronic control platforms.

Technical Specifications

Model	IS200TBCIH1BCE
Spare Model	IS200TBCIH1B
Input Capacity	24 Contact Inputs
Input Voltage	24 Vdc
Hardware Filter	4 ms
Isolation	500 Vdc (Channel-to-Bus)
Operating Temperature	-30 degC to +65 degC
Storage Temperature	-40 degC to +85 degC
Humidity	95% RH (non-condensing)

Installation Guidelines

Ensure the control system is powered down before installing or removing the board.
Handle the module using proper ESD (Electrostatic Discharge) protection practices to prevent damage to sensitive components.
Verify that all field wiring is properly secured to the terminal blocks and routed to minimize EMI interference.
Ensure the board is correctly seated in the designated rack slot to maintain proper electrical contact with the backplane.
Maintain adequate ventilation in the cabinet to ensure operation within the specified temperature range.

FAQ

What is the primary function of the IS200TBCIH1BCE?
This board acts as a terminal interface for 24 contact inputs, allowing the Mark VIe system to monitor field-level digital signals.

Is this board compatible with the IS200TBCIH1B?
Yes, the IS200TBCIH1BCE is often used as a direct replacement or spare for the IS200TBCIH1B model.

What is the isolation rating for this board?
The board provides 500 Vdc isolation between the channels and the bus to ensure system safety and signal stability.
