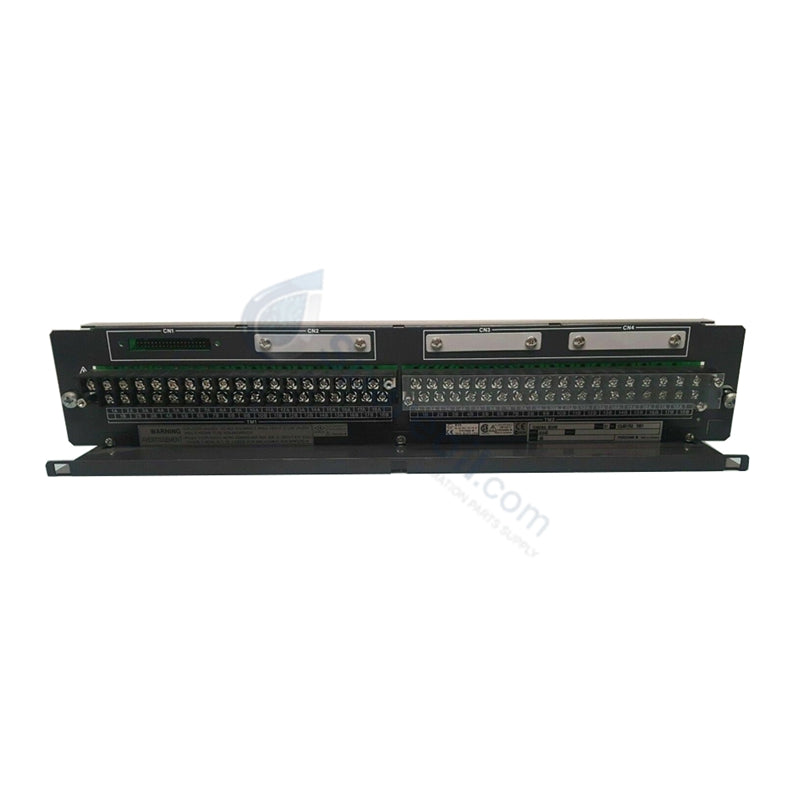

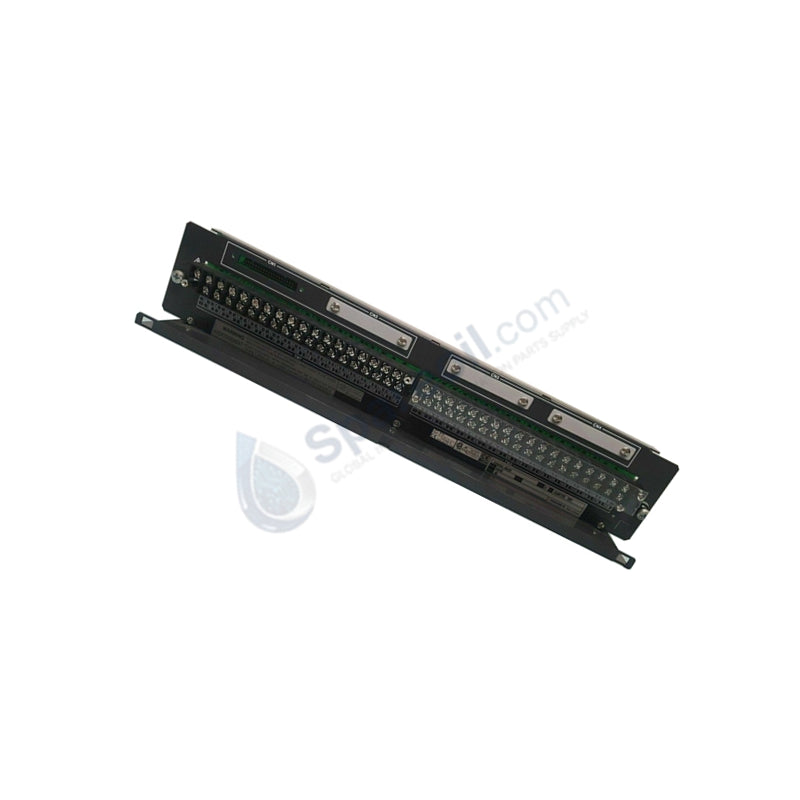

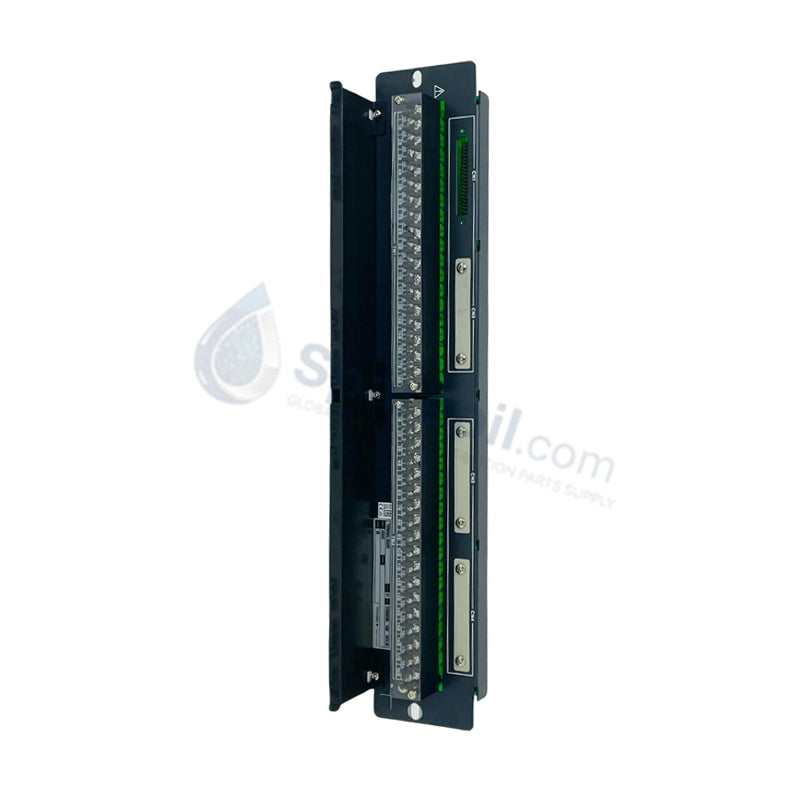

Yokogawa AET4D-00 CENTUM VP Terminal Board

The Yokogawa AET4D-00, also cataloged as the AET4D Analog Terminal Board, operates as a dedicated hardware component for field signal termination and cold junction compensation routing within CENTUM VP and CENTUM CS 3000 platforms. Technicians wire field transmitters, RTDs, and thermocouples directly to the M4 screw terminals on this board, which bridges field signals to analog I/O modules such as the AAI143 and AOI143. The 16-channel assembly supports both single and dual-redundant I/O module configurations, maintaining high signal integrity and isolation across process control loops.

Hardware Specifications

Parameter Specification
Model AET4D-00
Brand Yokogawa
Origin Japan
Weight 1.5 kg
Dimensions 482.6 x 88.1 x 85 mm
Operating Temp -20 to +60 deg C
Power Consumption Passive pass-through (bus powered via connected I/O module)
Channel Capacity 16 channels per board
Connection Type M4 screw terminals
Compatible Modules Analog I/O modules (e.g., AAI143, AOI143)
Supported Signals Thermocouple, RTD, 4-20 mA current, VDC voltage
Insulation Resistance 100 Mohm minimum at 500 VDC
Withstand Voltage 500 VAC for 1 minute

Cold Junction Compensation & Channel-to-Channel Isolation

Engineers integrate the terminal board with specialized temperature acquisition loops to maintain cold junction compensation (CJC) accuracy when processing thermocouple millivolt inputs. High-grade terminal contacts restrict parasitic thermal EMF generation across the temperature boundary. Furthermore, robust dielectric isolation up to 500 VAC prevents ground loop currents and field transients from propagating along the 4-20 mA HART loop protocol lines, shielding the system backplane from field-side electrical disturbances.

Frequently Asked Questions

Q: Does the terminal board support dual-redundant analog I/O module wiring configurations?

A: Yes, internal signal busing allows a single terminal board to route field connections simultaneously to primary and secondary redundant analog I/O modules.

Q: What screw torque specification applies when terminating field wiring to the M4 terminals?

A: Technicians should tighten the M4 terminal screws to a nominal torque of 1.2 Nm to ensure low contact resistance without damaging conductor strands.

Q: What insulation resistance threshold does the hardware maintain between field terminals and chassis ground?

A: The board provides an insulation resistance of 100 Mohm minimum when tested at 500 VDC across terminal blocks and mounting hardware.

Field Installation Guidelines

  1. Mount the terminal board securely onto the designated 19-inch rack frame or cabinet panel using four standard mounting screws.
  2. Verify that all field-side power sources remain de-energized prior to attaching signal wiring to the terminal blocks.
  3. Strip field conductor ends to 8 mm and crimp standard ring or spade lugs onto the wire ends before inserting them under the M4 screw terminals.
  4. Tighten all terminal screws to 1.2 Nm using a properly fitted screwdriver to prevent loose connections or micro-arcing.
  5. Route thermocouple extension wires away from AC power lines and variable frequency drive cables to suppress electromagnetic interference.
  6. Connect signal cable shields directly to the designated cabinet grounding bar at a single point to prevent ground loop noise.
