Honeywell 10101/2/3 Fail-Safe Digital Input Module 48 VDC

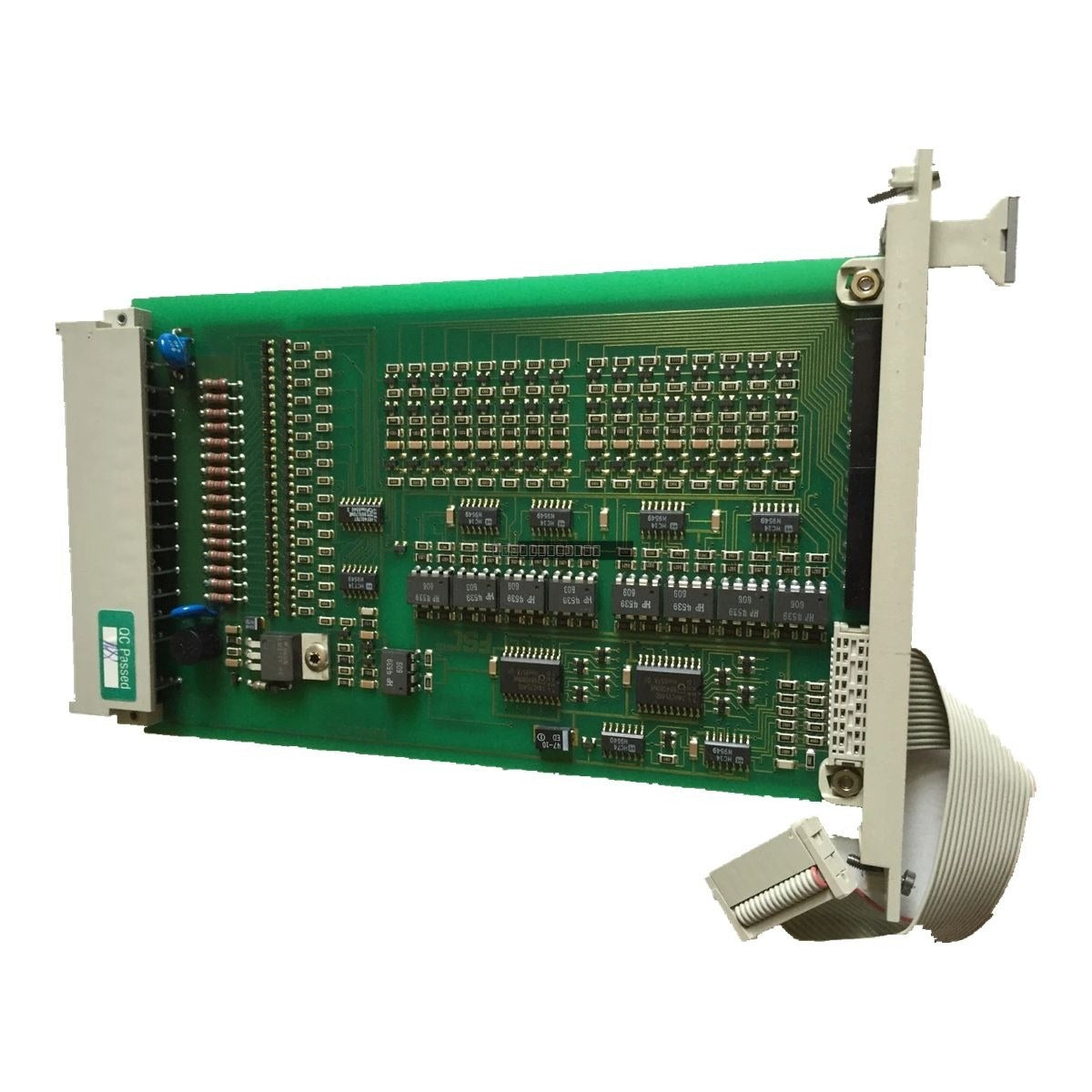

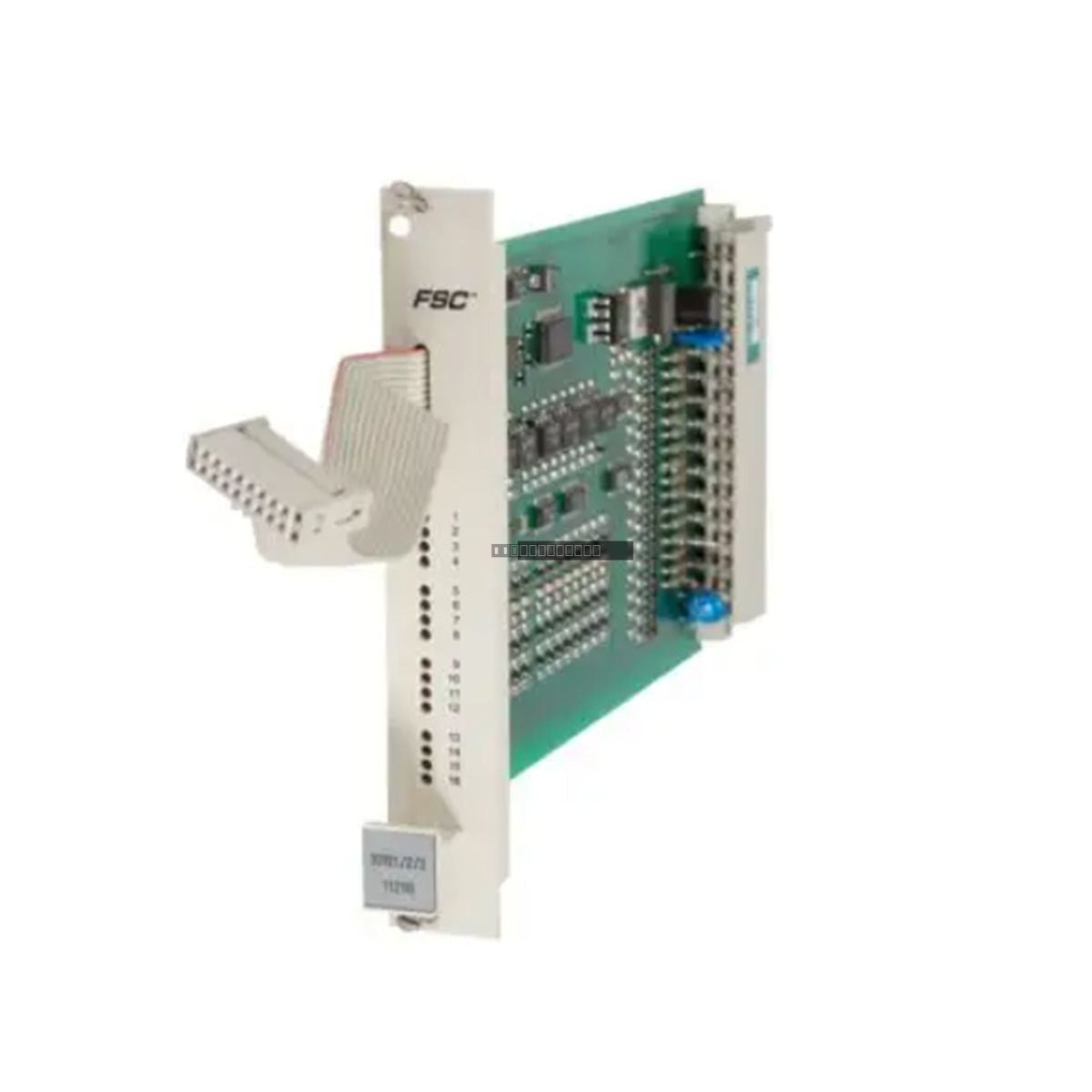

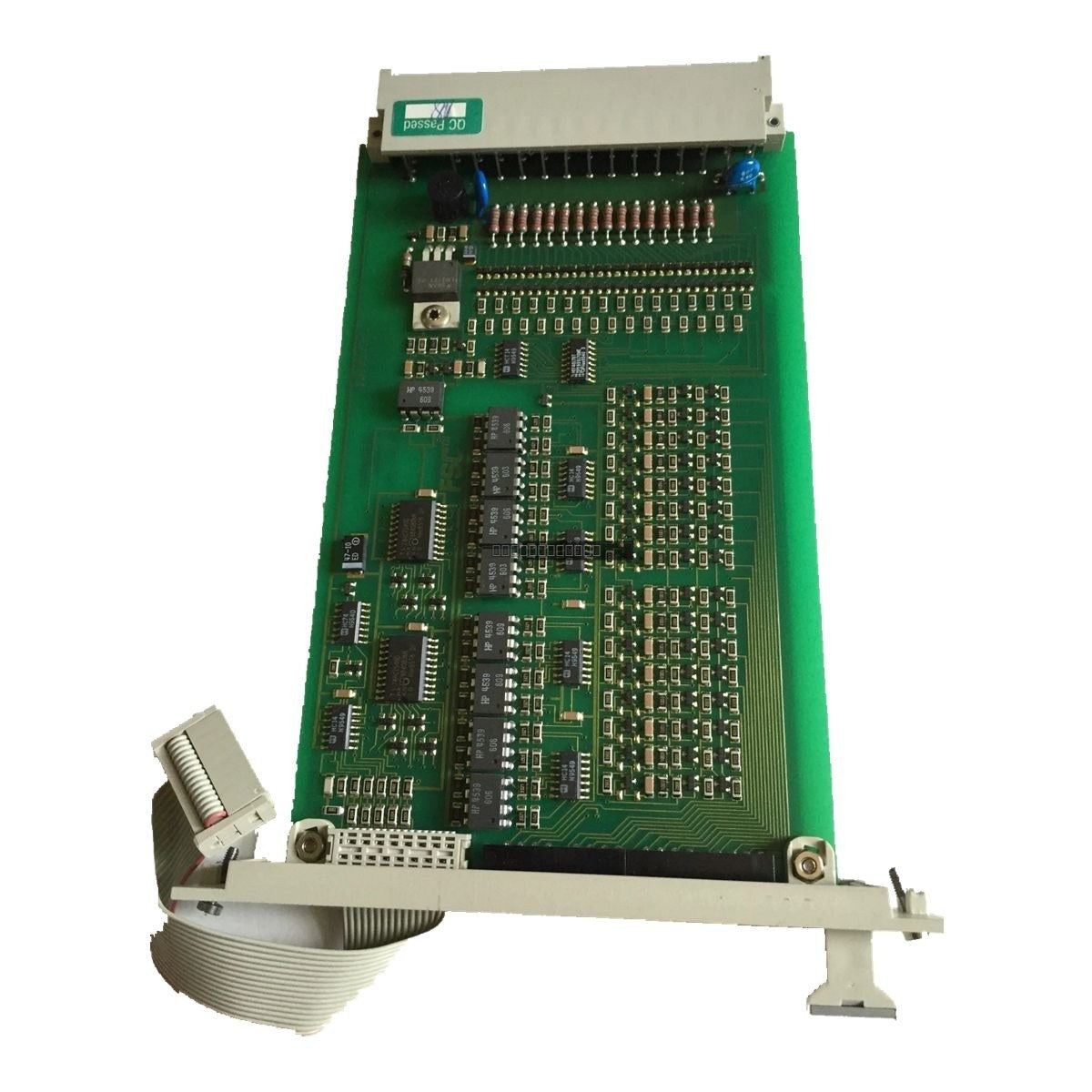

Honeywell 10101/2/3 Fail-Safe Digital Input Module

Availability: 1 left in stock

DescriptionThe Honeywell 10101/2/3 is a high-reliability, fail-safe digital input module engineered for safety instrumented systems (SIS). It provides 16 digital...

SKU: 10101/2/3

Manufacturer: Honeywell
Product No.: 10101/2/3
Product Type: Digital Input Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 250g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Honeywell 10101/2/3 is a high-reliability, fail-safe digital input module engineered for safety instrumented systems (SIS). It provides 16 digital input channels designed to operate at a nominal 48 VDC. The module features a fail-to-safe architecture, ensuring that in the event of an internal fault, all inputs transition to a de-energized state to maintain a defined safe condition. It is widely utilized in critical process control environments, including oil and gas facilities and power generation plants, where high availability and safety integrity are mandatory.

Features

16-channel digital input configuration for high-density signal acquisition.
Fail-to-safe design ensures inputs default to a de-energized state upon failure.
Continuous internal self-test routines to validate logic 0 and logic 1 detection.
Advanced crosstalk monitoring between channels to prevent signal interference.
Optimized for industrial noise immunity with a 10 ms input delay to suppress transient disturbances.
Compatible with 48 VDC external field signals.

Applications

This module is designed for safety-critical applications requiring SIL-rated performance, including emergency shutdown systems (ESD), fire and gas monitoring, and critical process interlocks in industrial automation.

Technical Specifications

Model	10101/2/3
Channels	16 Digital Inputs
Rated Input Voltage	48 VDC
Maximum Input Voltage	70 VDC
Input Current	4 mA at 48 VDC
Logic HIGH Level	> 30 VDC
Logic LOW Level	< 16 VDC (< 1.1 mA)
Input Delay	10 ms (typical)
Power Consumption (5 VDC)	8 mA
Power Consumption (24 VDC)	80 mA
Power Consumption (48 VDC)	65 mA
Operating Temperature	0 to 60 deg C

Installation Guidelines

Ensure the system is powered down before inserting or removing the module from the rack.
Verify that a common 0 VDC reference is established between the internal 24 VDC and external 48 VDC power supplies.
Ensure proper connector alignment; the module utilizes specific coding (Module: holes A5, C13; Rack: pins A5, C13).
Handle the module using standard ESD precautions to prevent damage to sensitive internal circuitry.
Route signal cabling away from high-EMI sources to maintain signal integrity.

FAQ

What is the primary function of the 10101/2/3 module?

The 10101/2/3 is a digital input module used in safety-critical systems to monitor 48 VDC signals while providing continuous diagnostic coverage and fail-safe operation.

What happens if the module experiences an internal failure?

The module is designed to fail-to-safe, meaning all inputs are forced into a de-energized state to ensure the process remains in a safe condition.

Are there specific requirements for the power supply?

Yes, the module requires a common 0 VDC reference between the internal 24 VDC logic supply and the external 48 VDC field supply for stable operation.
