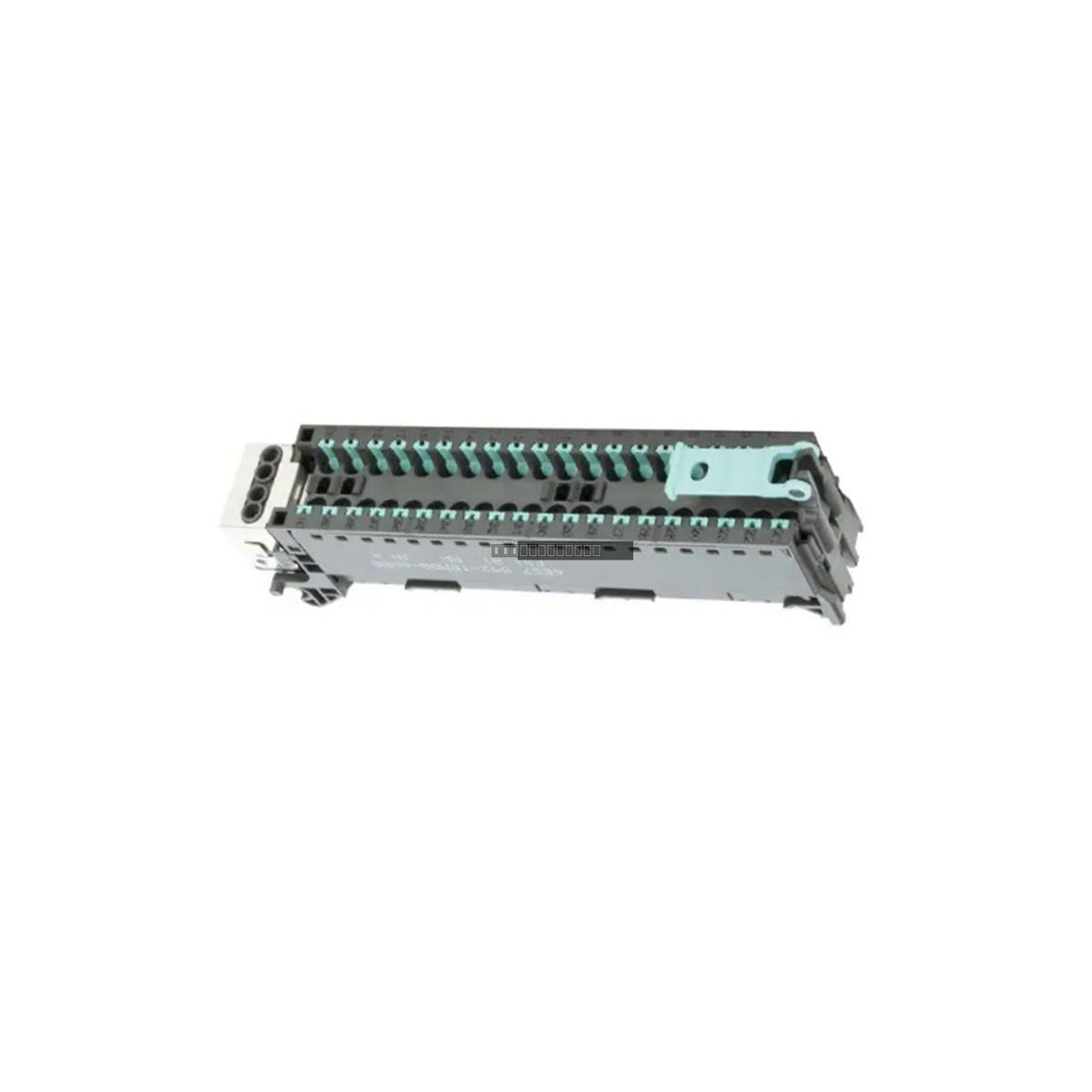

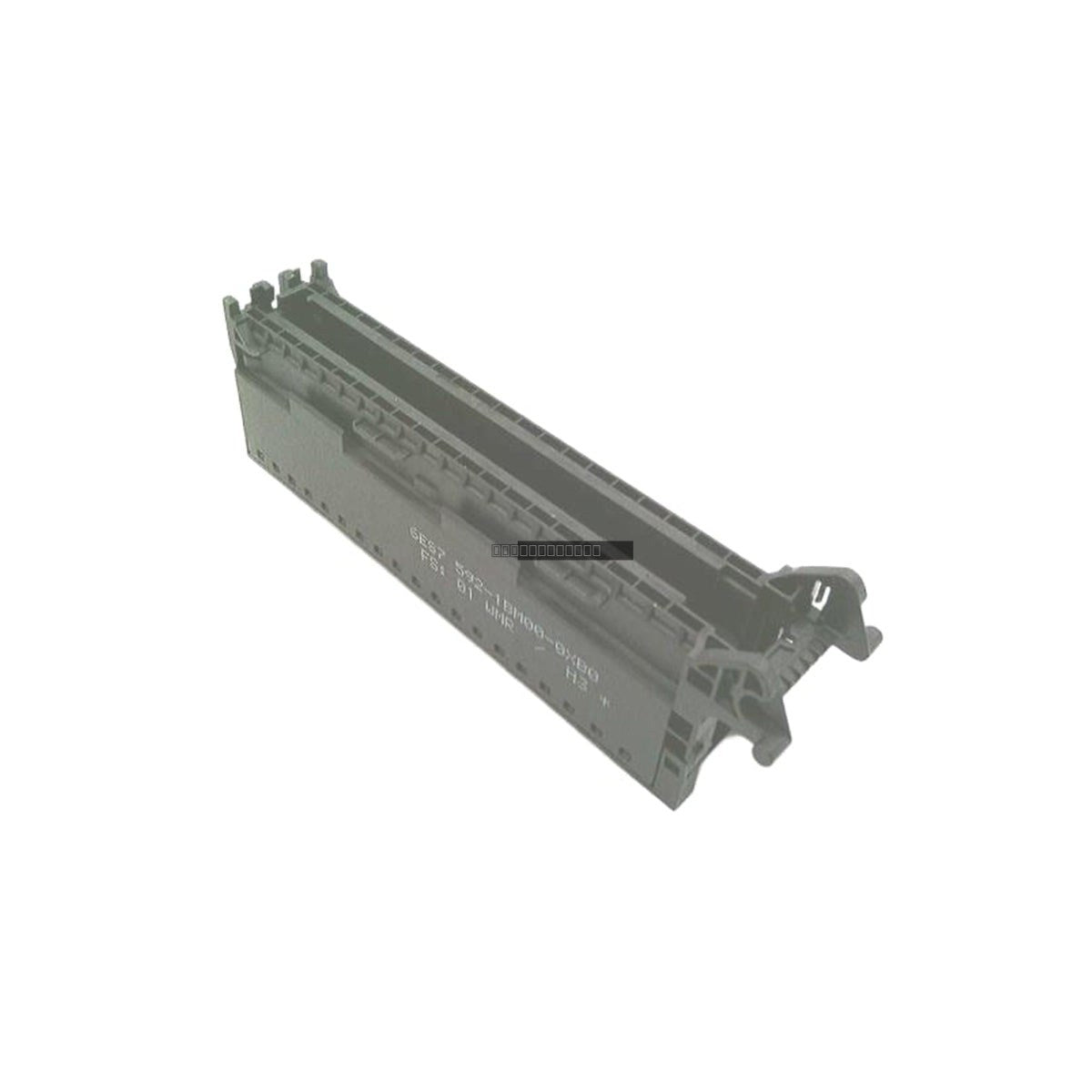

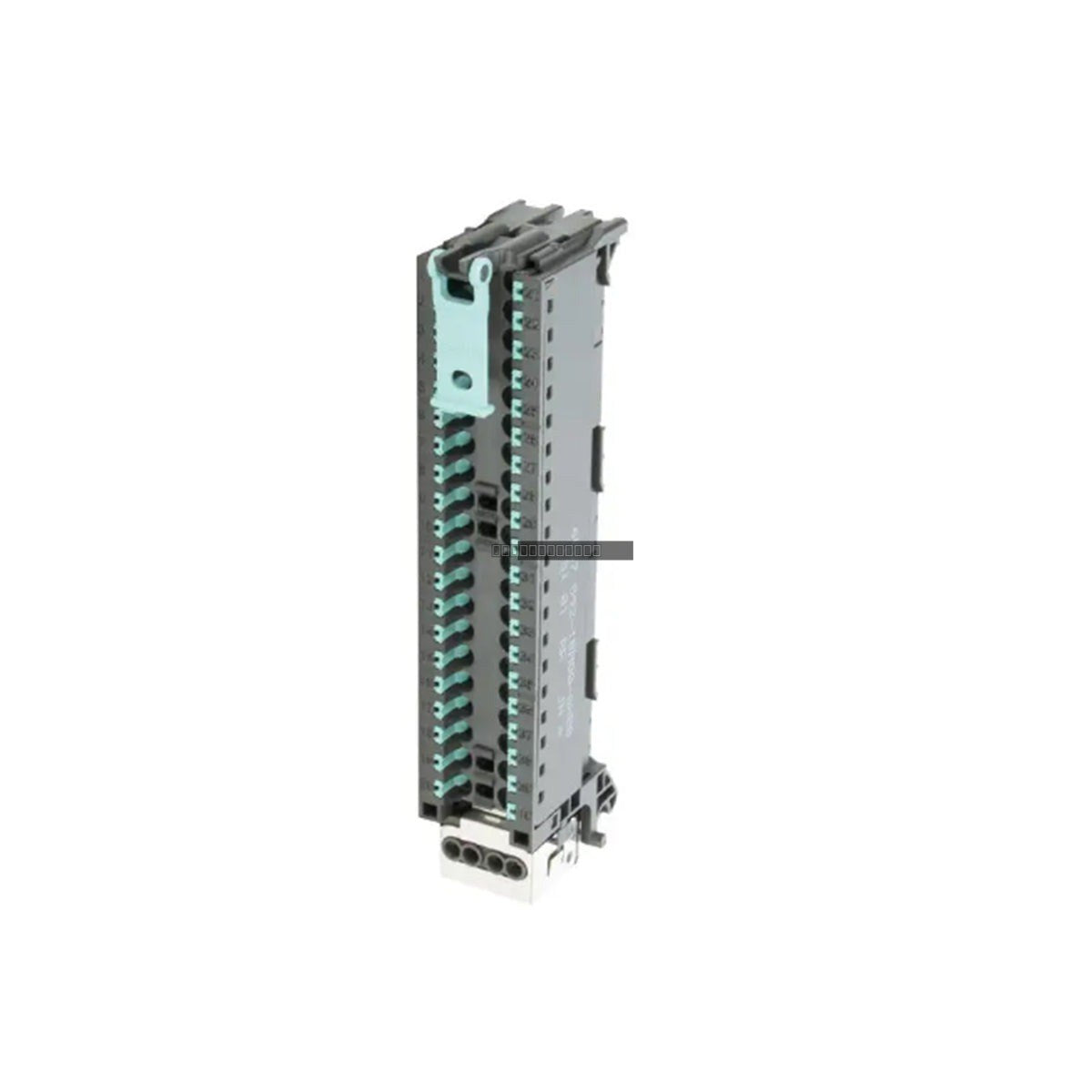

Siemens 6ES7592-1BM00-0XB0 S7-1500 40-Pole Front Connector

Siemens 6ES7592-1BM00-0XB0 Simatic S7-1500 40-Pole Front Connector

Availability: 2 left in stock

DescriptionThe Siemens 6ES7592-1BM00-0XB0 is a 40-pole front connector designed for the Simatic S7-1500 automation system. This component utilizes advanced push-in...

SKU: 6ES5581-0HB11

Manufacturer: Siemens
Product No.: 6ES5581-0HB11
Product Type: Front Connector
Product Origin: Germany
Payment:T/T, Western Union
Weight: 100g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Siemens 6ES7592-1BM00-0XB0 is a 40-pole front connector designed for the Simatic S7-1500 automation system. This component utilizes advanced push-in technology to facilitate rapid, tool-free wiring of signal modules. Engineered for high-density I/O configurations, it ensures reliable electrical contact in demanding industrial environments, including power generation, manufacturing, and process control facilities. The connector is specifically optimized for 35 mm wide S7-1500 modules, providing a secure, vibration-resistant interface that simplifies both initial system commissioning and ongoing maintenance.

Features

40-pole design for high-density signal module connectivity.
Tool-free push-in terminal technology for efficient conductor termination.
Supports solid and ferruled stranded conductors (0.25 mm² to 1.5 mm²).
Integrated strain relief slots for secure cable management using included ties.
Includes four potential bridges for simplified power distribution.
Vibration-resistant contact force ensures long-term signal integrity.
Fast, latching mechanical connection to the module front face.

Technical Specifications

Model	6ES7592-1BM00-0XB0
Series	Simatic S7-1500
Number of Poles	40
Connection Technology	Push-in
Conductor Cross Section	0.25 mm² to 1.5 mm²
Stripping Length	8 mm to 11 mm
Module Compatibility	35 mm wide S7-1500 modules
Operating Temperature	-30 deg C to 60 deg C
Included Accessories	4 potential bridges, cable ties

Installation Guidelines

Ensure the signal module is powered down before attempting to attach or remove the front connector.
Strip conductors to the specified length (8 mm to 11 mm) to ensure proper insertion depth.
When using ferrules, ensure they comply with DIN 46228 standards for optimal contact.
Insert the conductor into the terminal until it reaches the mechanical stop; no screwdriver is required for push-in terminals.
Utilize the integrated cable tie slots to secure field wiring and prevent mechanical strain on the connector pins.
Verify that the connector is fully latched into the S7-1500 module housing to maintain electrical continuity.

FAQ

Does this connector require special tools for wiring? No, this unit features push-in technology, allowing for tool-free conductor insertion.

Can I use this with any S7-1500 module? This connector is designed for 35 mm wide S7-1500 signal modules. Please verify your specific module's documentation to ensure compatibility.

Are potential bridges included? Yes, the package includes four potential bridges to assist with internal power distribution.
