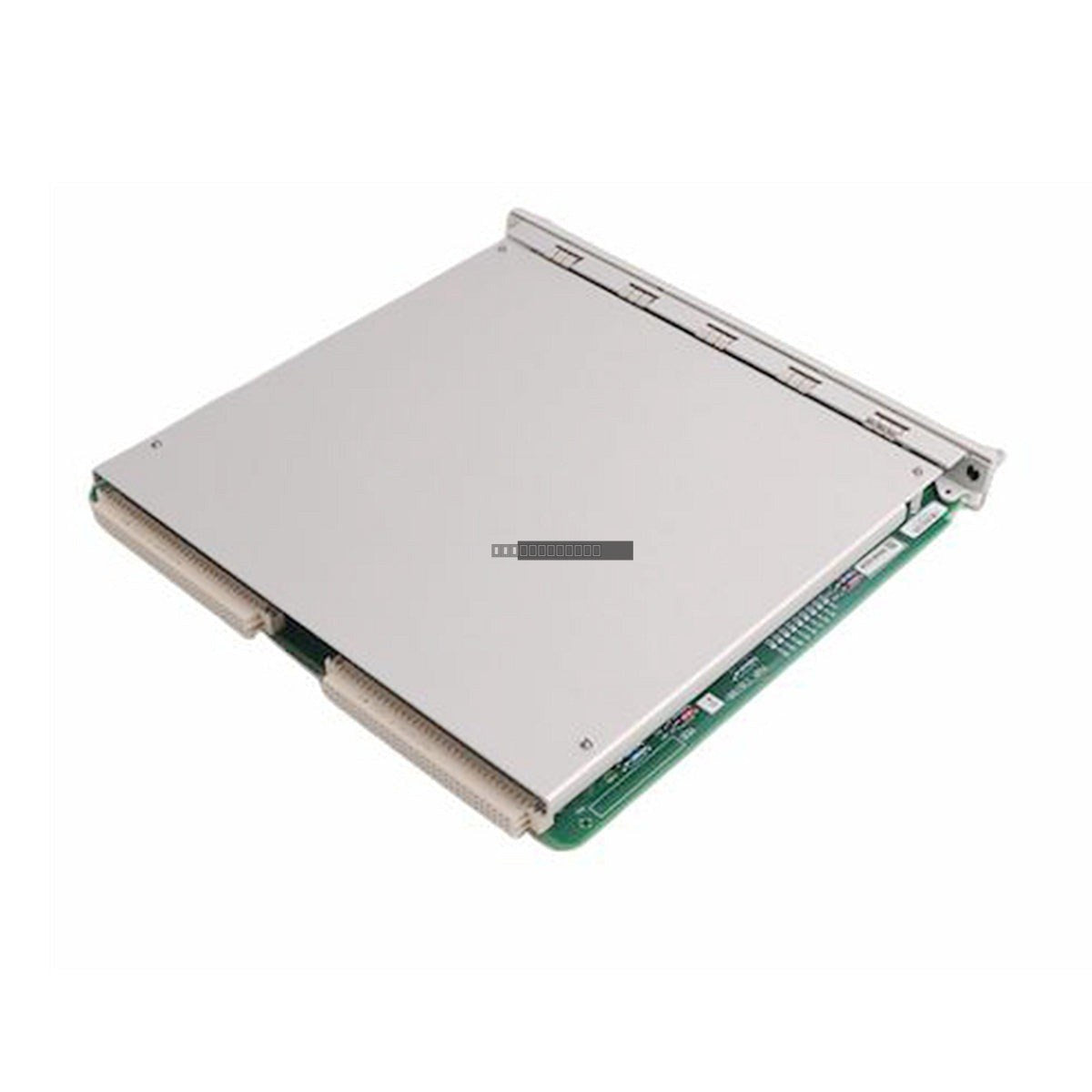

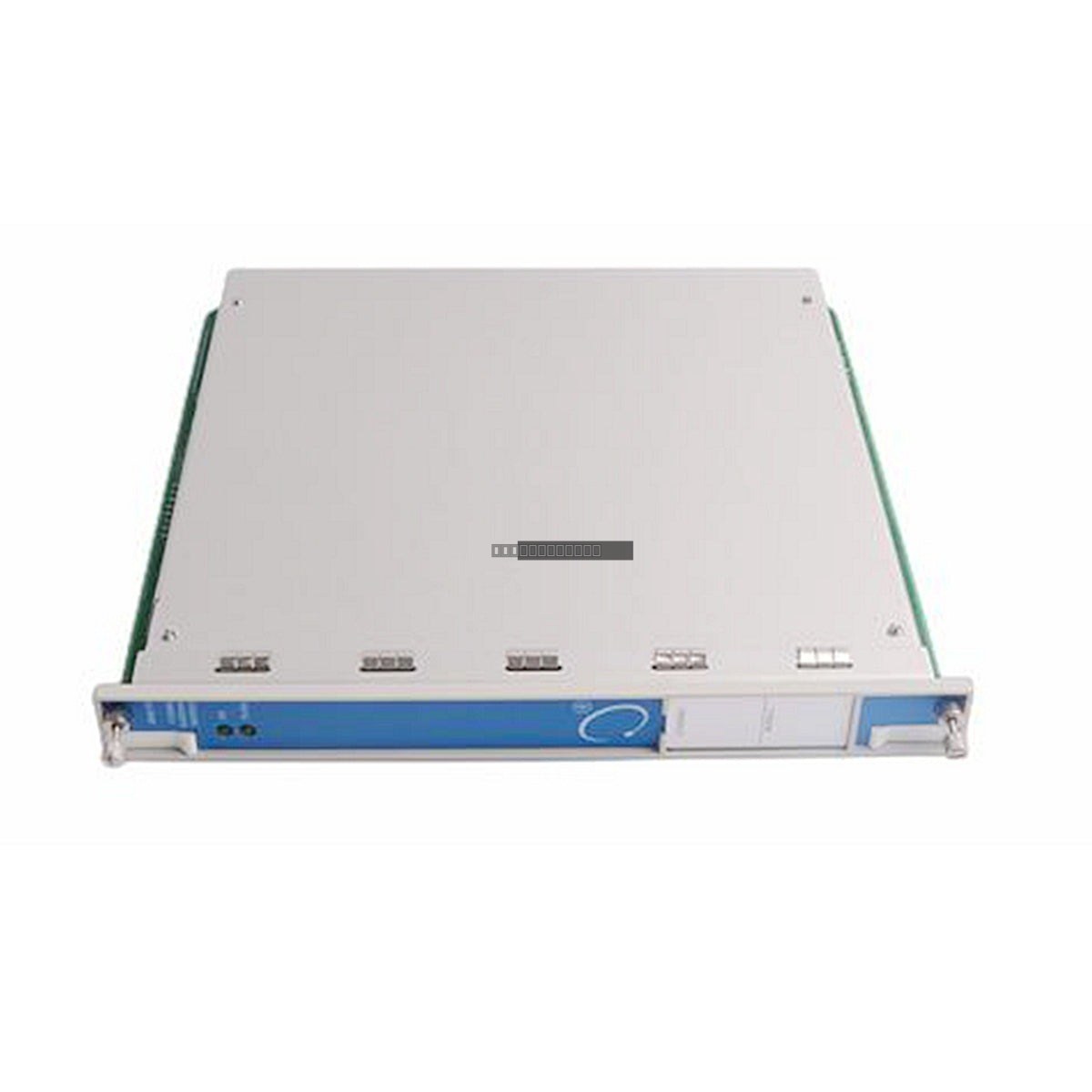

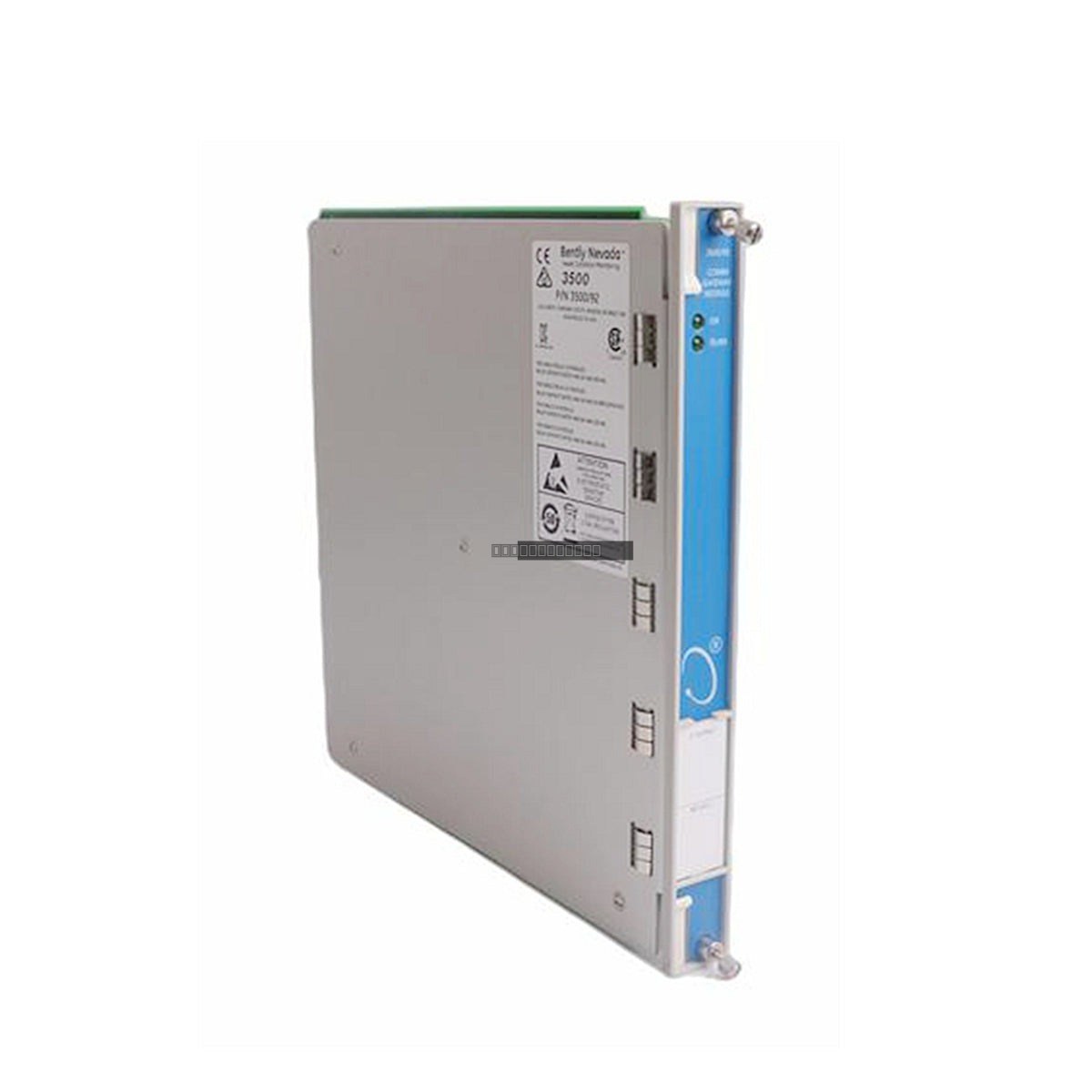

Bently Nevada 3500/94 Display Router

Bently Nevada 3500/94 Display Router Module

Availability: 4 left in stock

DescriptionThe Bently Nevada 3500/94 Display Router is a specialized interface module designed for the 3500 Machinery Protection System. It acts...

SKU: 3500/94

Manufacturer: Bently Nevada
Product No.: 3500/94
Product Type: Display Router Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 550g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Description

The Bently Nevada 3500/94 Display Router is a specialized interface module designed for the 3500 Machinery Protection System. It acts as a critical communication link between the 3500 rack and the 3500 VGA Display unit. By routing data from the rack to the display, this module enables operators to view real-time machinery monitoring data, alarm statuses, and system configurations directly on a connected monitor.

Features

Facilitates high-speed communication between the 3500 rack and external VGA display units.
Supports remote mounting capabilities up to 8 meters (25 feet) from the rack.
Low power consumption profile with a maximum rating of 4.6 Watts.
Designed for integration into standard 3500 series rack configurations.
Robust environmental operating range suitable for industrial control room conditions.

Technical Specifications

Product Model	3500/94
Spare Part Number	145988-01
Power Consumption	4.6 Watts (Max)
Operating Temperature	-30 degC to +65 degC (-22 degF to +150 degF)
Storage Temperature	-40 degC to +85 degC (-40 degF to +185 degF)
Relative Humidity	95%, non-condensing

Installation Guidelines

Ensure the 3500 rack is powered down before inserting or removing the 3500/94 module to prevent damage to the backplane connectors.
The module should be installed in a designated slot within the 3500 rack; ensure it is fully seated and the front panel screws are tightened to maintain proper grounding.
Use appropriate shielded cabling for the VGA interface to minimize electromagnetic interference (EMI) in industrial environments.
Maintain proper ventilation within the cabinet to ensure the module stays within its specified operating temperature range.
Handle with care using ESD-safe practices to prevent damage to sensitive electronic components.

FAQ

Is the 3500/94 module still in production?

No, the Bently Nevada 3500/94 Display Router has been discontinued by the manufacturer. We provide high-quality surplus or refurbished units to support legacy system maintenance.

What is the maximum distance for the display connection?

The 3500/94 module supports a cable distance of up to 8 meters (25 feet) between the rack and the display unit.
