Bently Nevada TK-3E 177313-02-02-00 Proximity System Test Kit

Availability: 3 left in stock

The Bently Nevada TK-3E 177313-02-02-00 is a motorized, portable proximity system test kit designed to simulate shaft vibration and position...

SKU: TK-3E 177313-02-02-00

Manufacturer: Bently Nevada
Product No.: TK-3E 177313-02-02-00
Product Type: Vibration Monitor Calibration Kit
Product Origin: USA
Payment:T/T, Western Union
Weight: 5400g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

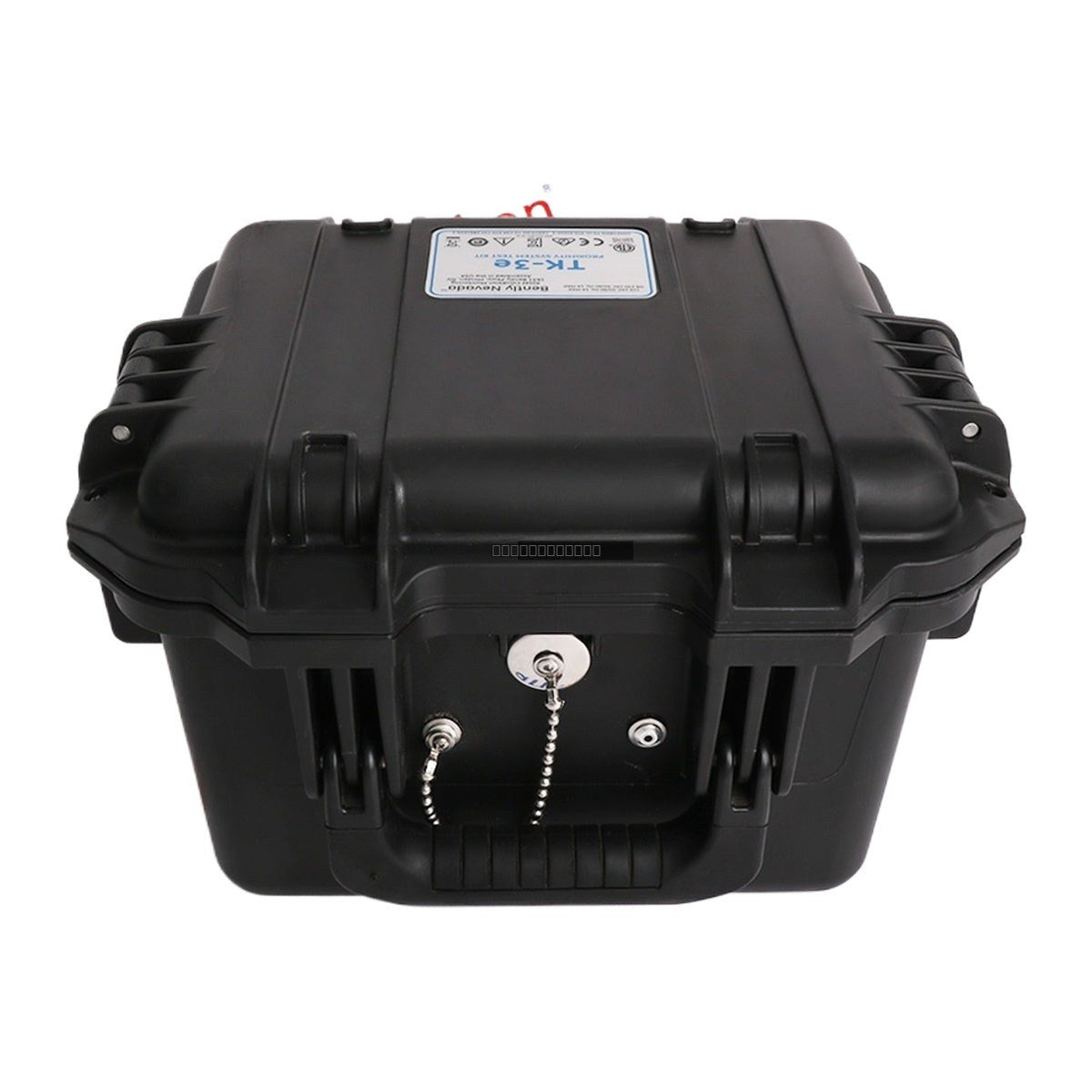

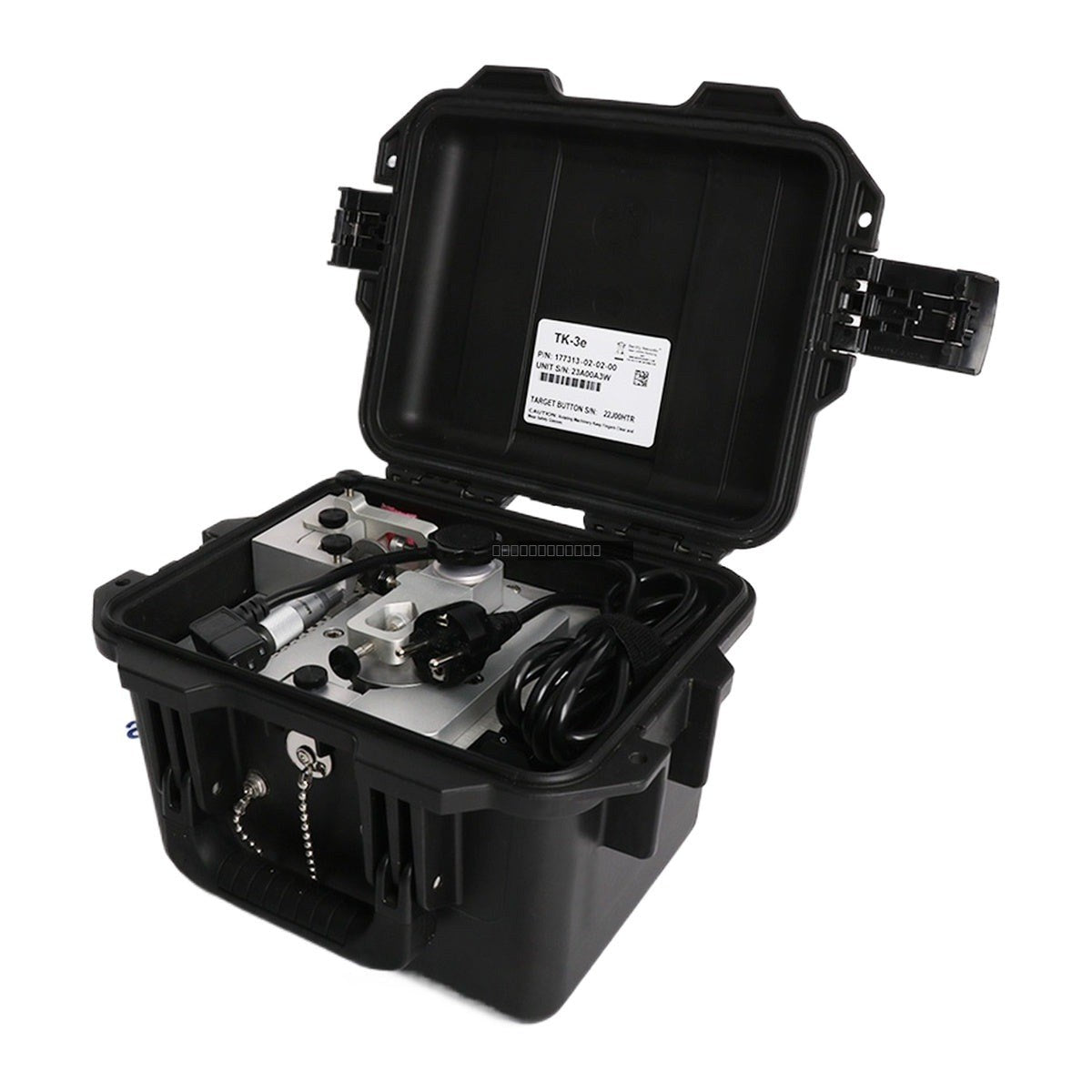

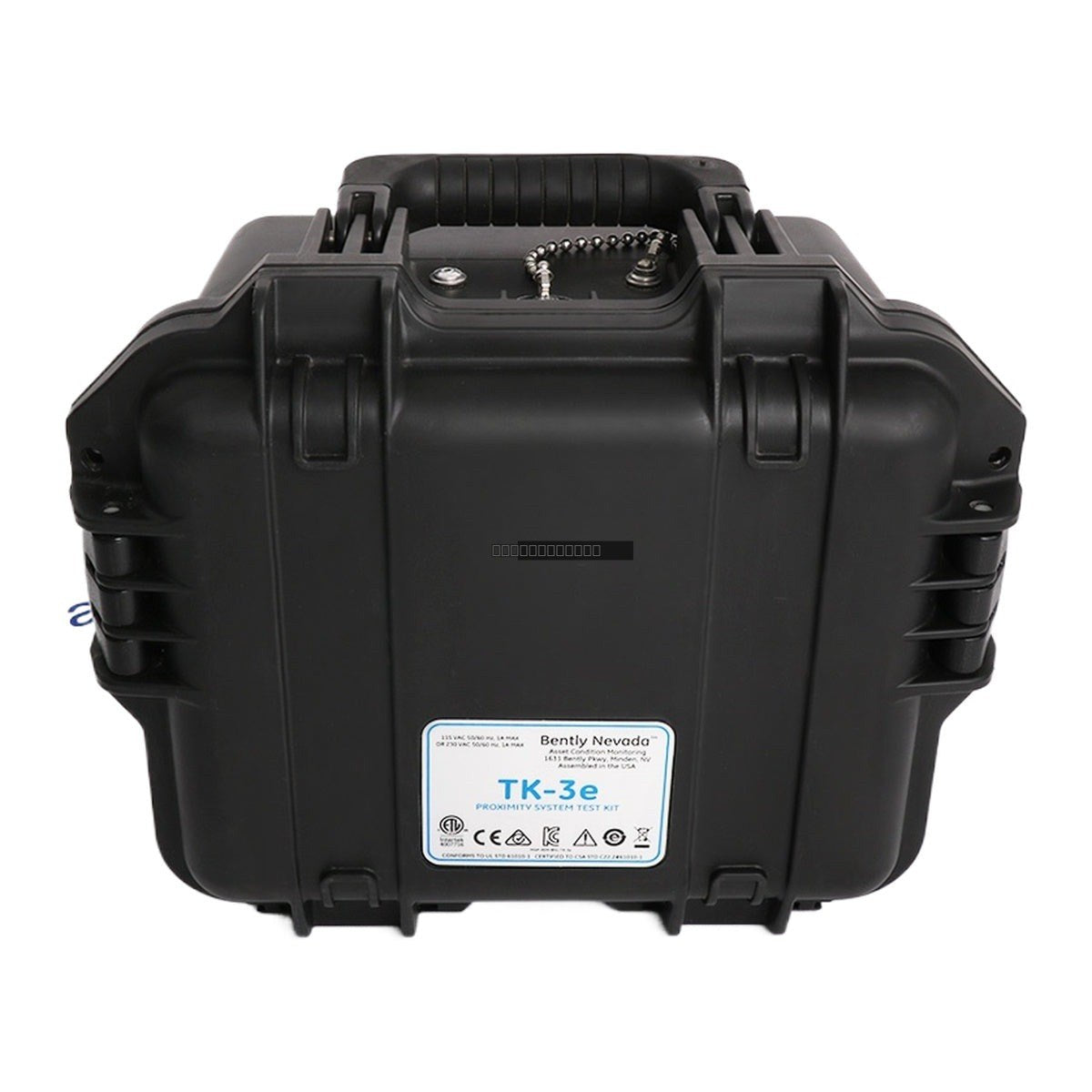

The Bently Nevada TK-3E 177313-02-02-00 is a motorized, portable proximity system test kit designed to simulate shaft vibration and position for the calibration and verification of Bently Nevada eddy current proximity transducer systems. This kit ensures that transducer inputs and monitor readouts remain accurate, supporting critical machinery condition monitoring.

Features

Electric-driven calibration system for proximity transducers
Simulates shaft vibration and axial/radial displacement
Precision spindle micrometer assembly for controlled probe positioning
Universal probe mount accommodating diameters from 5 mm to 19 mm
Integrated target wheel assembly with AISI 4140 alloy steel target
Rugged, foam-lined carrying case for field and laboratory use

Applications

Power Generation: Calibration of vibration monitoring loops in thermal, hydroelectric, and nuclear plants
Oil, Gas, & Petrochemicals: Verification of proximity sensors in refineries and offshore processing facilities
Rotating Equipment: Routine maintenance and commissioning for centrifugal compressors, steam turbines, and large industrial fans
Machinery Protection: Checking thrust position drift and radial vibration linearity to prevent rotor-to-stator contact

Technical Specifications

Model	TK-3E 177313-02-02-00
Vibration Amplitude Range	50 um to 254 um (2 to 10 mils) peak-to-peak
Spindle Micrometer Range	0 to 25.4 mm (0 to 1000 mils)
Operating Temperature	0 degC to 50 degC (32 degF to 122 degF)
Storage Temperature	-18 degC to 65 degC (0 degF to 150 degF)
Humidity	95% Non-Condensing
Power Supply	115/230 VAC, 50/60 Hz
Target Material	AISI 4140 Alloy Steel

Installation Guidelines

Ensure the test kit is placed on a stable, level surface. The base includes vibration isolation feet to minimize external interference.
Verify the power supply voltage setting (115V or 230V) matches the local power source before connecting.
When mounting the proximity probe, ensure it is securely held in the universal mount without over-tightening the clamp.
Connect the Proximitor sensor to the probe using the appropriate extension cable and provide the required -24 VDC power to the sensor.
Use a digital multimeter to monitor the gap voltage while adjusting the micrometer in calibrated increments to verify the Incremental Scale Factor (ISF).
Always power down the test kit and disconnect from the power source before performing maintenance or cleaning.

FAQ

What is the TK-3E 177313-02-02-00?

The Bently Nevada TK-3E 177313-02-02-00 is an electrically driven proximity system test kit used to calibrate vibration monitors and verify the operational condition of proximity transducer systems.

Do I need an oscilloscope to use the TK-3E?

No, an oscilloscope is not required. You can use a standard digital multimeter to read the gap voltage and evaluate the vibration signal.

What is the power requirement for this kit?

The unit operates on 95–125 Vac or 190–250 Vac, 50/60 Hz.

What are the environmental limits?

It is rated for indoor use up to an altitude of 2000 meters. The operational temperature range is 0 degC to 50 degC in up to 95% non-condensing humidity.
