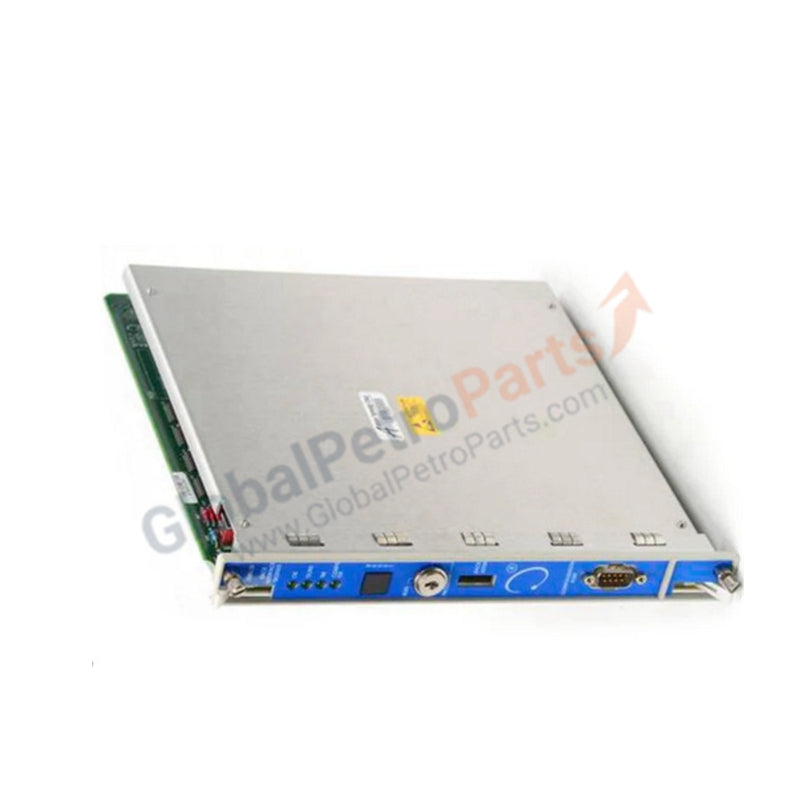

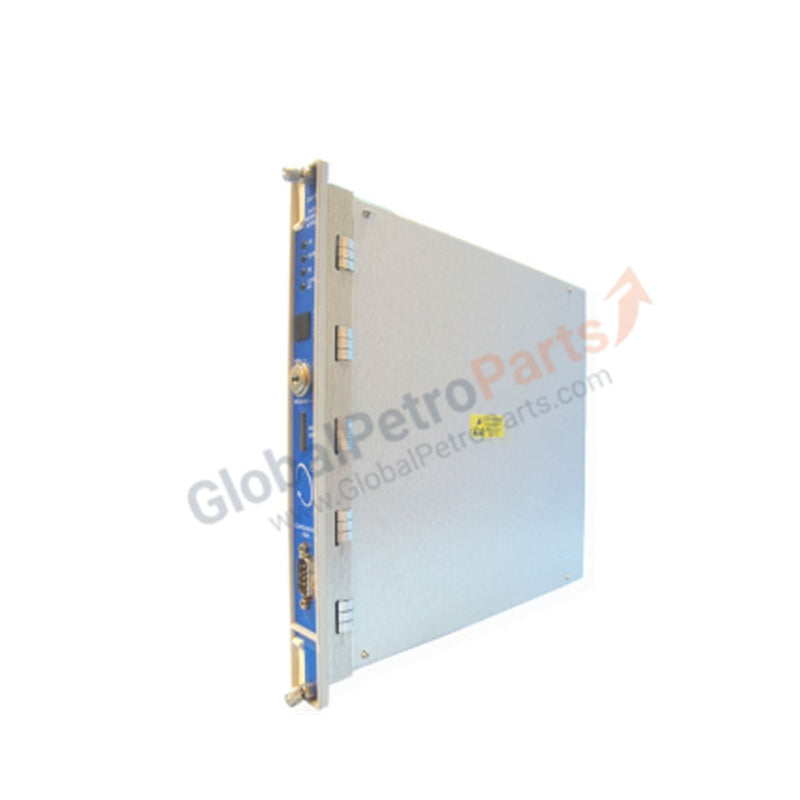

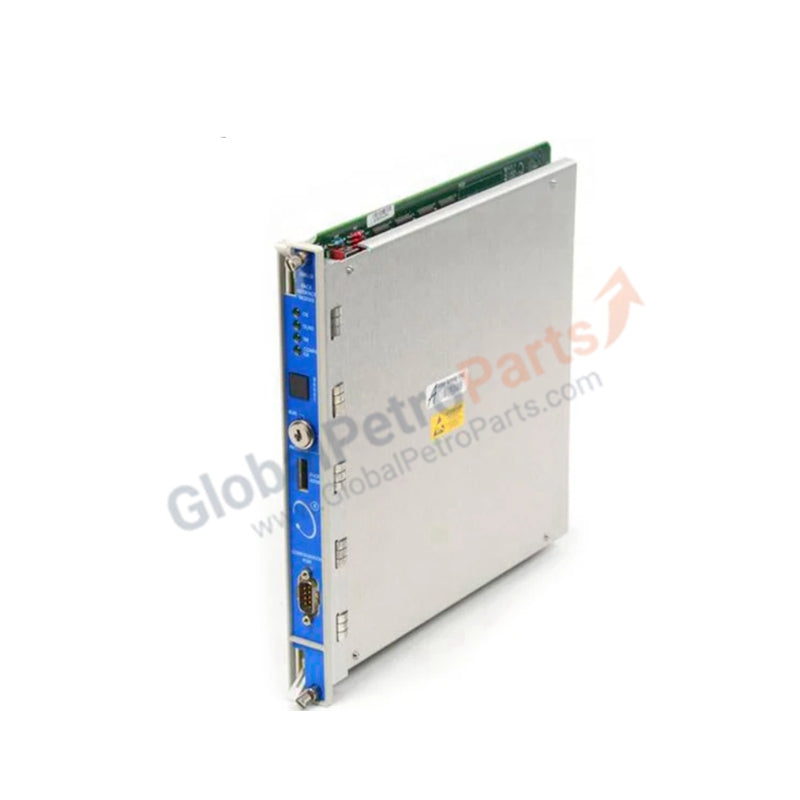

Bently Nevada 3500/22M 138607-01 Transient Data Module

138607-01 | Bently Nevada | 3500/22M Standard Transient Data Interface Module

138607-01 | Bently Nevada | 3500/22M Standard Transient Data Interface Module

Availability: 10 left in stock

OverviewThe 3500/22M 138607-01 Standard Transient Data Interface (TDI) Module by Bently Nevada provides seamless communication between the 3500 monitoring rack and connected...

SKU: 3500/22M 138607-01

Manufacturer: Bently Nevada
Product No.: 3500/22M 138607-01
Product Type: Transient Data Interface Module
Payment:T/T, Western Union
Weight: 1100g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Overview
The 3500/22M 138607-01 Standard Transient Data Interface (TDI) Module by Bently Nevada provides seamless communication between the 3500 monitoring rack and connected software, enabling reliable acquisition of static, dynamic, and transient data. This module integrates TDI functionality with Ethernet I/O capabilities for robust system monitoring.

Technical Specifications

Model: 3500/22M 138607-01
Module Type: Standard Transient Data Interface
I/O Module Options:

01: 10Base-T/100Base-TX Ethernet
02: 100Base-FX Fiber-Optic Ethernet

Transient Data Interface Type:

01: Standard for regular monitoring applications
02: TMR for triple modular redundant systems

Agency Approval Options:

00: None
01: CSA/NRTL/C
02: CSA/ATEX

Installation Slot: Adjacent to power supply modules in the 3500 rack
Power Consumption: 10.5 W
Input Voltage Range: –10 V DC to +10 V DC
Front Panel Port: USB-B for local configuration
Ethernet Connectivity: Supports both copper (10Base-T/100Base-TX) and fiber-optic (100Base-FX) connections
Operating Temperature: –30 °C to +65 °C
Storage Temperature: –40 °C to +85 °C
Humidity Range: 0%–95% non-condensing
Weight: 0.91 kg (TDI Module) + 0.20 kg (I/O Module), total 1.11 kg

Features

Combines transient data collection with rack interface functions in a single module
Compatible with System 1 and 3500 Configuration Software for advanced diagnostics
Supports pre- and post-event waveform recording for detailed monitoring analysis
Flexible networking with both copper and fiber Ethernet options
Optional TMR configuration for redundant systems requiring high availability

Applications
Designed for standard and critical monitoring setups in rotating machinery and condition monitoring environments.

FAQ
Q: Can this module be used in triple modular redundant systems?
A: Yes, select TDI Type 02 and corresponding I/O module for TMR support.

Q: What Ethernet options are available?
A: Copper 10Base-T/100Base-TX or fiber-optic 100Base-FX depending on selected I/O module.
