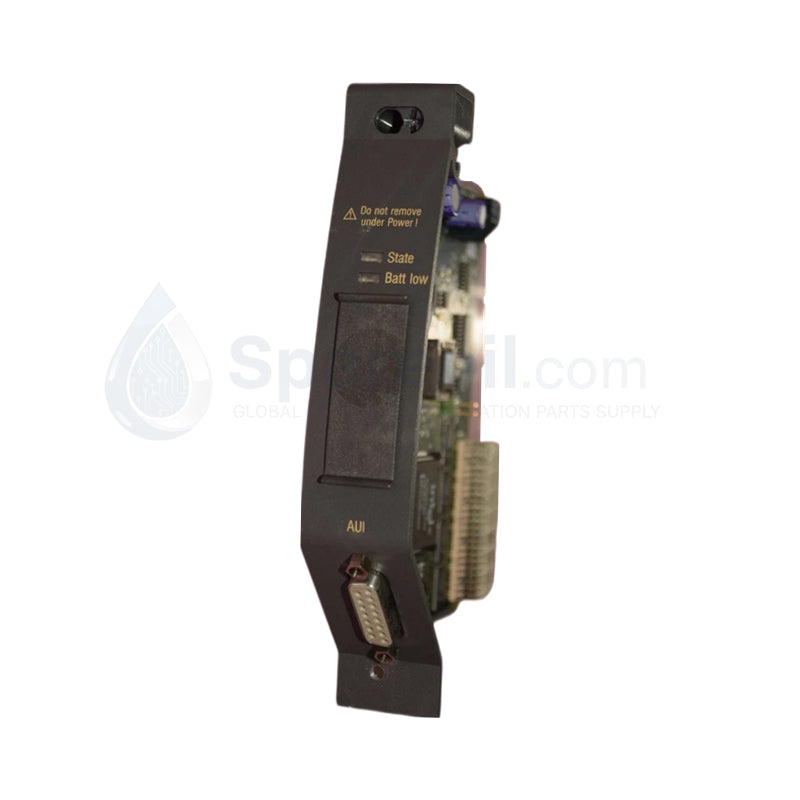

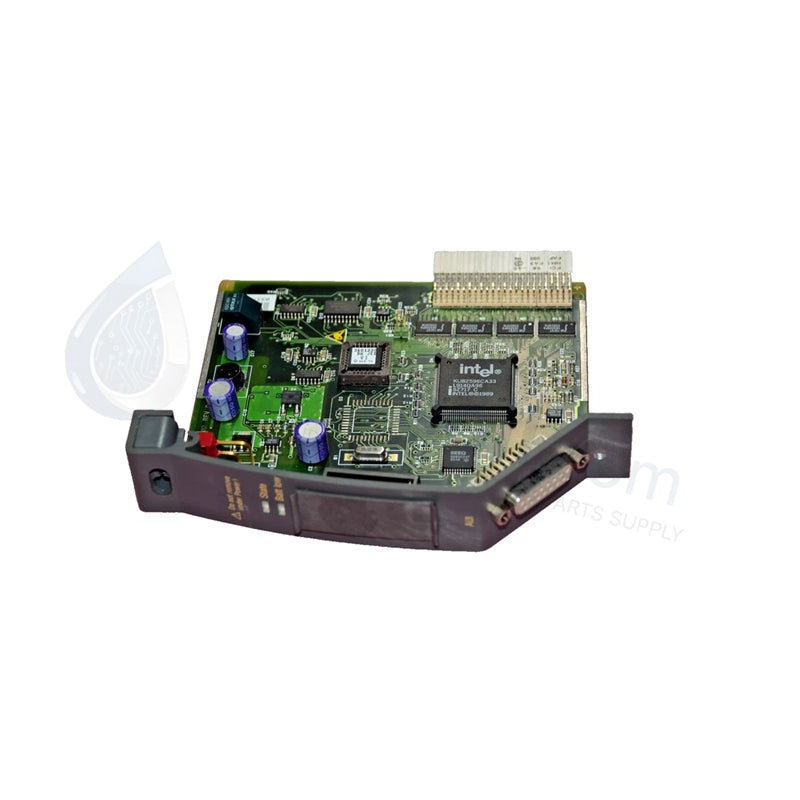

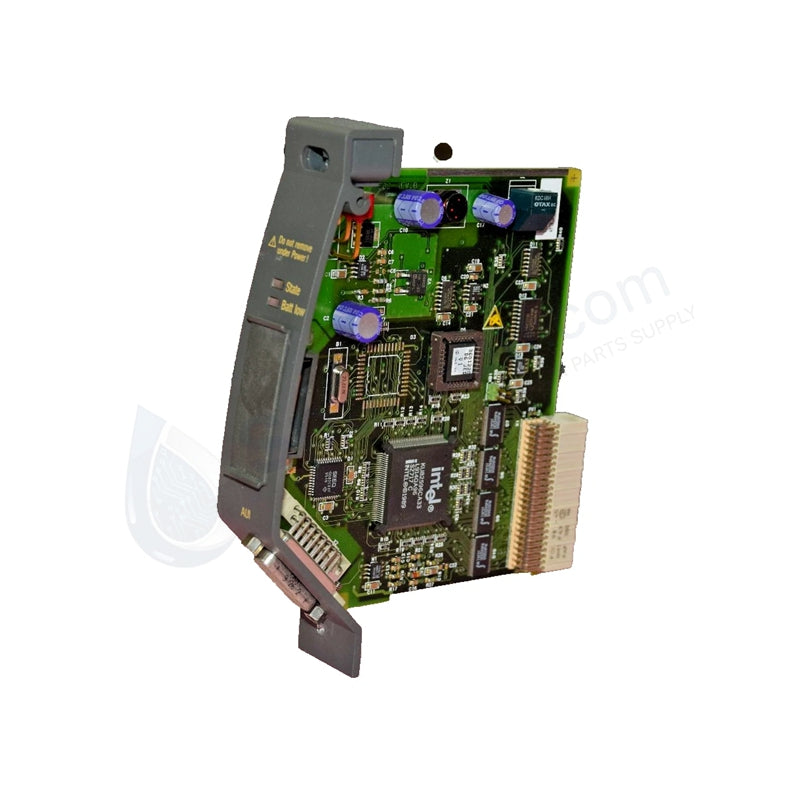

ABB ACS550 ACS800 DFE02 37262-4-0369566 Communication Unit

ABB ACS550 ACS800 DFE02 37262-4-0369566 Communication Unit

Availability: 10 left in stock

Gemini said ABB DFE02 | 37262-4-0369566 | Ethernet Modbus TCP EtherNet/IP Module Product Overview The DFE02 (37262-4-0369566) is a high-performance Ethernet-based...

SKU: DFE02

Manufacturer: ABB
Product No.: DFE02
Product Type: Fieldbus Communication Module
Product Origin: Switzerland
Payment:T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

ABB DFE02 | 37262-4-0369566 | Ethernet Modbus TCP EtherNet/IP Module

Product Overview

The DFE02 (37262-4-0369566) is a high-performance Ethernet-based fieldbus communication module designed for the ABB Freelance 2000 DCS and specific ACS drive series (ACS550/ACS800). It serves as a bridge between high-speed industrial Ethernet networks and ABB control hardware, supporting multi-protocol environments including Modbus TCP/IP and EtherNet/IP. The DFE02 enables real-time drive parameterization, status monitoring, and seamless integration into modern Distributed Control Systems (DCS) and SCADA environments without the need for an external power supply.

Technical Specifications

The DFE02 (37262-4-0369566) is optimized for low-latency communication in mission-critical industrial Ethernet loops.

Manufacturer: ABB
Model: DFE02
Part Number: 37262-4-0369566 (also referenced as 0369566)
Network Interface: 10/100 Mbps Ethernet (RJ45)
Supported Protocols: Modbus TCP/IP, EtherNet/IP
System Compatibility: ABB Freelance 2000, ACS550, ACS800 Drives
Addressing Modes: Static IP assignment or DHCP
Power Supply: Powered directly from the host drive/controller backplane
Power Consumption: 2.5 W
Status Monitoring: Integrated LEDs for Link, Activity, and Module Fault
Operating Temperature: -10°C to +55°C
Storage Temperature: -40°C to +70°C
Protection Class: IP20
Dimensions: 127 mm x 70 mm x 25 mm
Weight: 0.4 kg (Net unit weight)
Certifications: CE, UL, CSA compliance

Functional Performance Features

Dual-Protocol Support: The DFE02 (37262-4-0369566) allows simultaneous or selectable Modbus TCP and EtherNet/IP connectivity, making it compatible with a wide range of PLCs and industrial controllers from multiple vendors.
Internal Bus Integration: When used as a "Field Device Enclosure" (FDE) accessory in larger DCS systems like 800xA or Freelance, it ensures the safe routing of communication signals through standardized DIN rail mounting.
Zero External Wiring for Power: The module draws its logic power directly from the drive's communication slot, simplifying cabinet wiring and reducing potential failure points.
Enhanced Diagnostics: Real-time feedback via system software and onboard LEDs allows for rapid isolation of network-level versus module-level faults.
