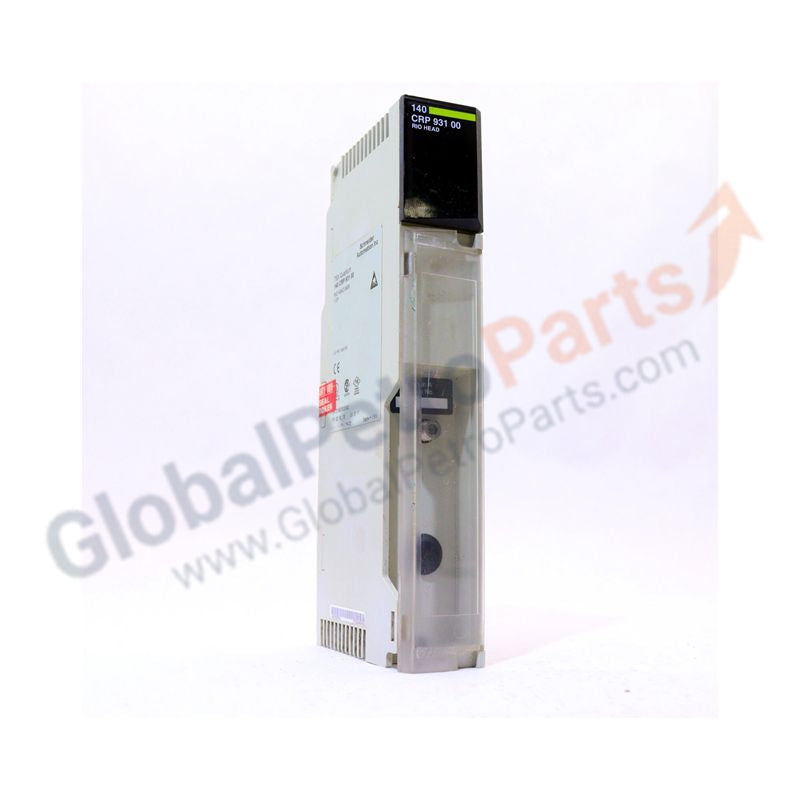

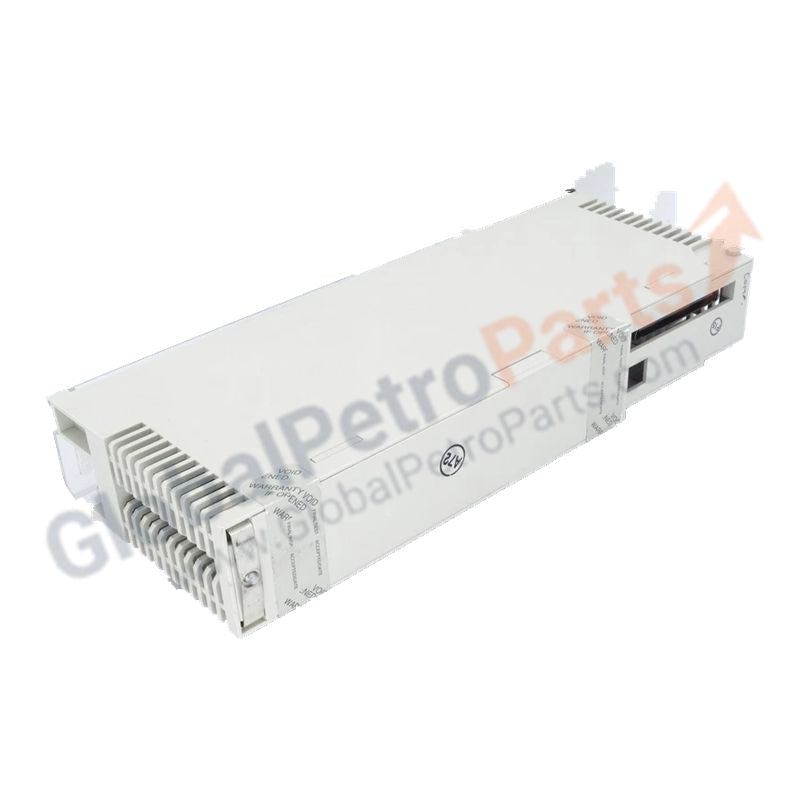

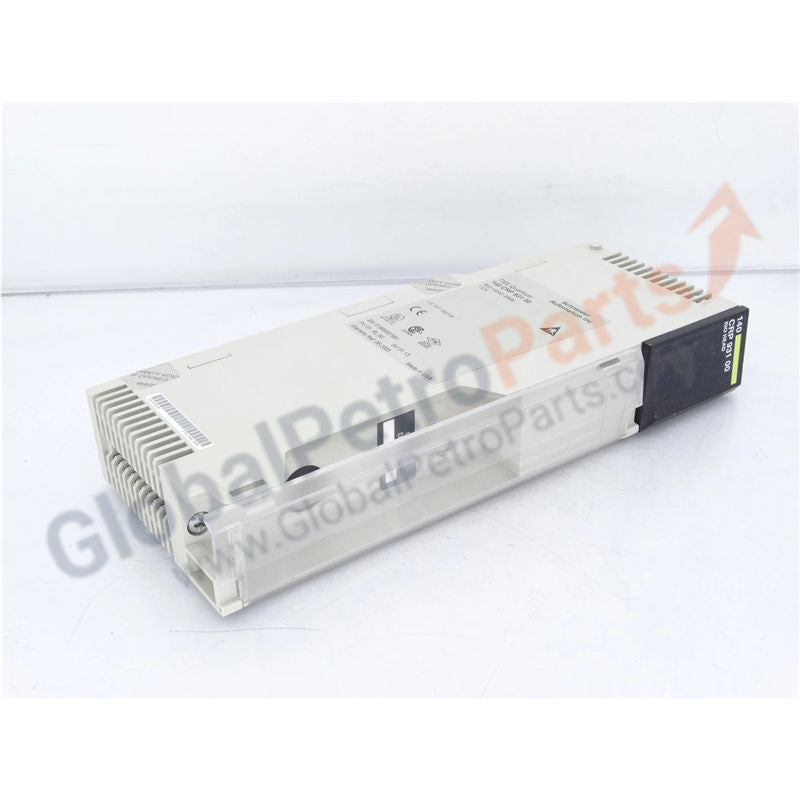

Schneider Electric 140CRP93100 Communication Interface Modules

Availability: 94 left in stock

Product Description 140CRP93100 (Part Number: 140CRP93100) is a Remote I/O (RIO) Head-end Adapter for the Modicon Quantum platform. It acts as the communication master, allowing a...

SKU: 140CRP93100

Manufacturer: Schneider
Product No.: 140CRP93100
Product Type: Communication Interface Modules
Product Origin: France
Payment:T/T, Western Union
Weight: 550g
Shipping port: Xiamen
Warranty: 12 months

Description Reviews

Product Description

140CRP93100 (Part Number: 140CRP93100) is a Remote I/O (RIO) Head-end Adapter for the Modicon Quantum platform. It acts as the communication master, allowing a Quantum processor to interface with up to 31 remote I/O drops over a deterministic coaxial network.

The module supports Quantum 200, 500, and 800 Symax systems, providing a bridge between legacy and modern hardware with high-speed, reliable data exchange.

Technical Specifications

Feature	Specification
Module Function	RIO Head-end Master (Single Channel)
Network Capacity	Up to 31 remote drops
Data Capacity	64 input / 64 output words per drop
Communication Interface	1 × Female "F" elbowed connector, 75 Ω coaxial
Data Rate	1.544 Mbit/s
Dynamic Range	35 dB
Isolation	500 V DC (coax center to ground)
Power Dissipation	3 W
Bus Current	600 mA
Operating Temp.	0–60 °C
Humidity	95 % non-condensing
EMC	4 kV contact / 8 kV air discharge; 10 V/m field resistance
Certifications	FM Class 1 Division 2, UL 508, CSA C22.2 No 142, CUL

Applications

Water treatment plants
Mining facilities
Large-scale industrial sites with dispersed I/O points
Centralized control with high-speed response for remote sensors and actuators

Notes

Single-channel adapter: Use 140CRP93200 for dual-cable redundancy
Configuration: Managed via Quantum programming (Concept, ProWORX, Unity Pro/Control Expert)
Cable Requirement: Standard RG-6 or RG-11, 75 Ω coaxial
