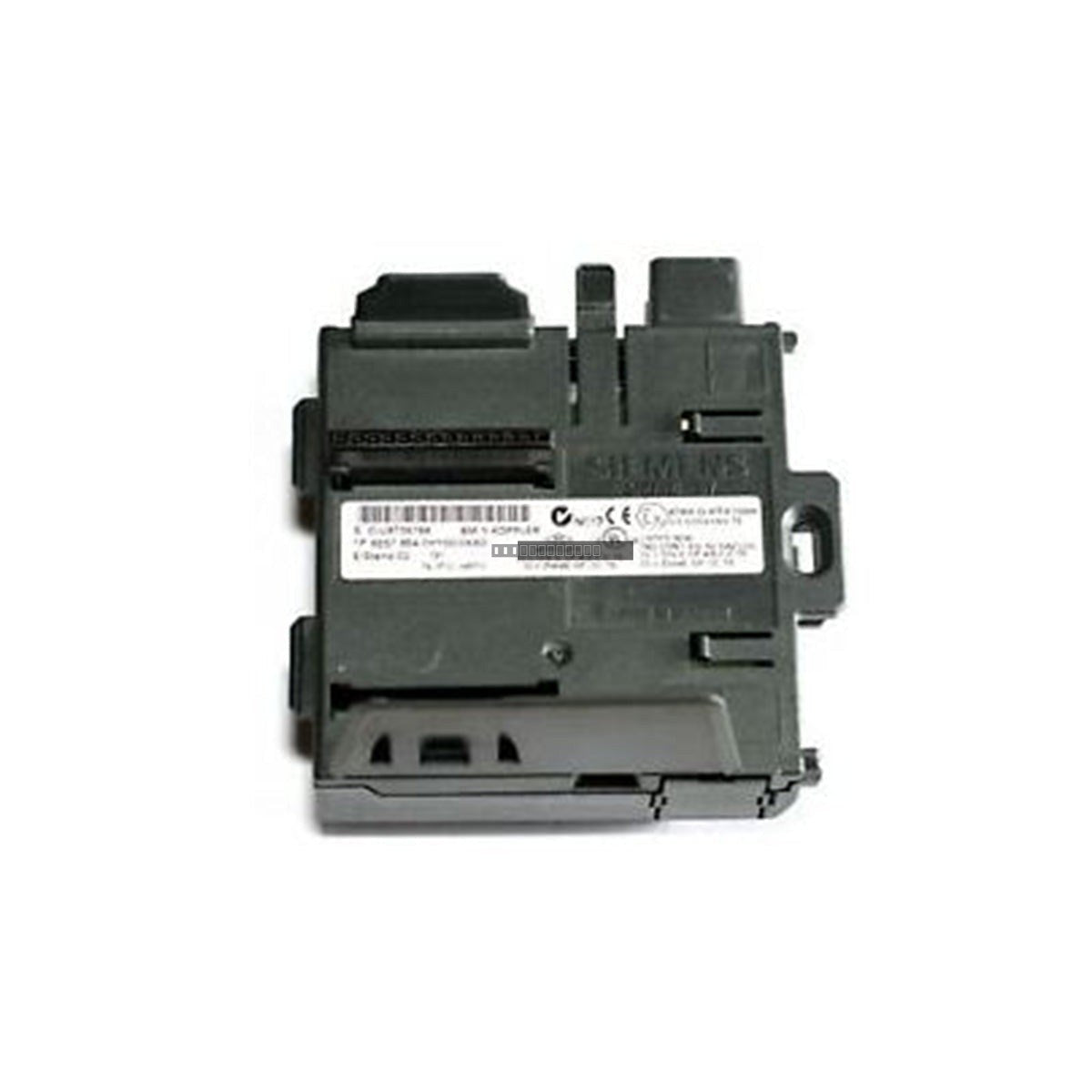

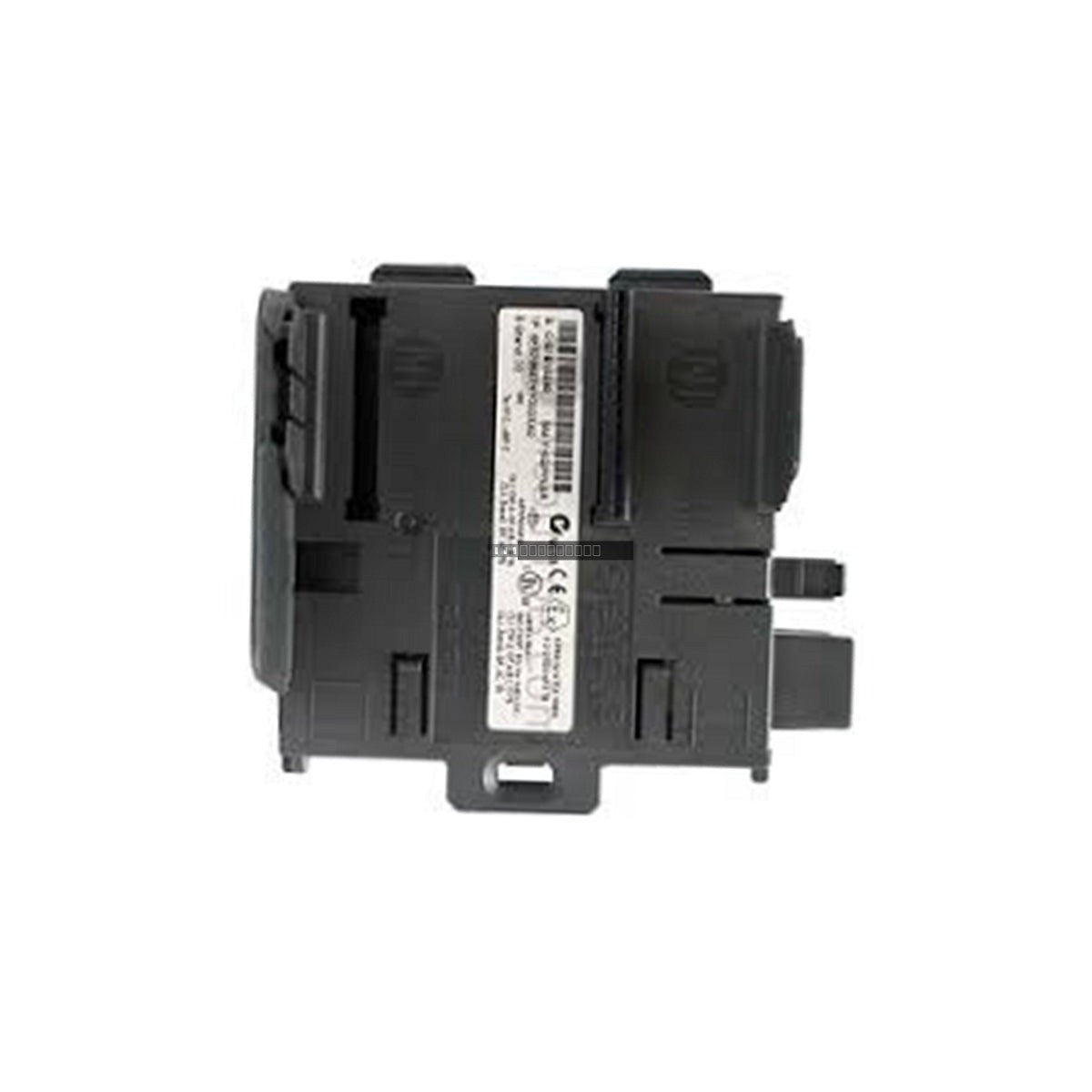

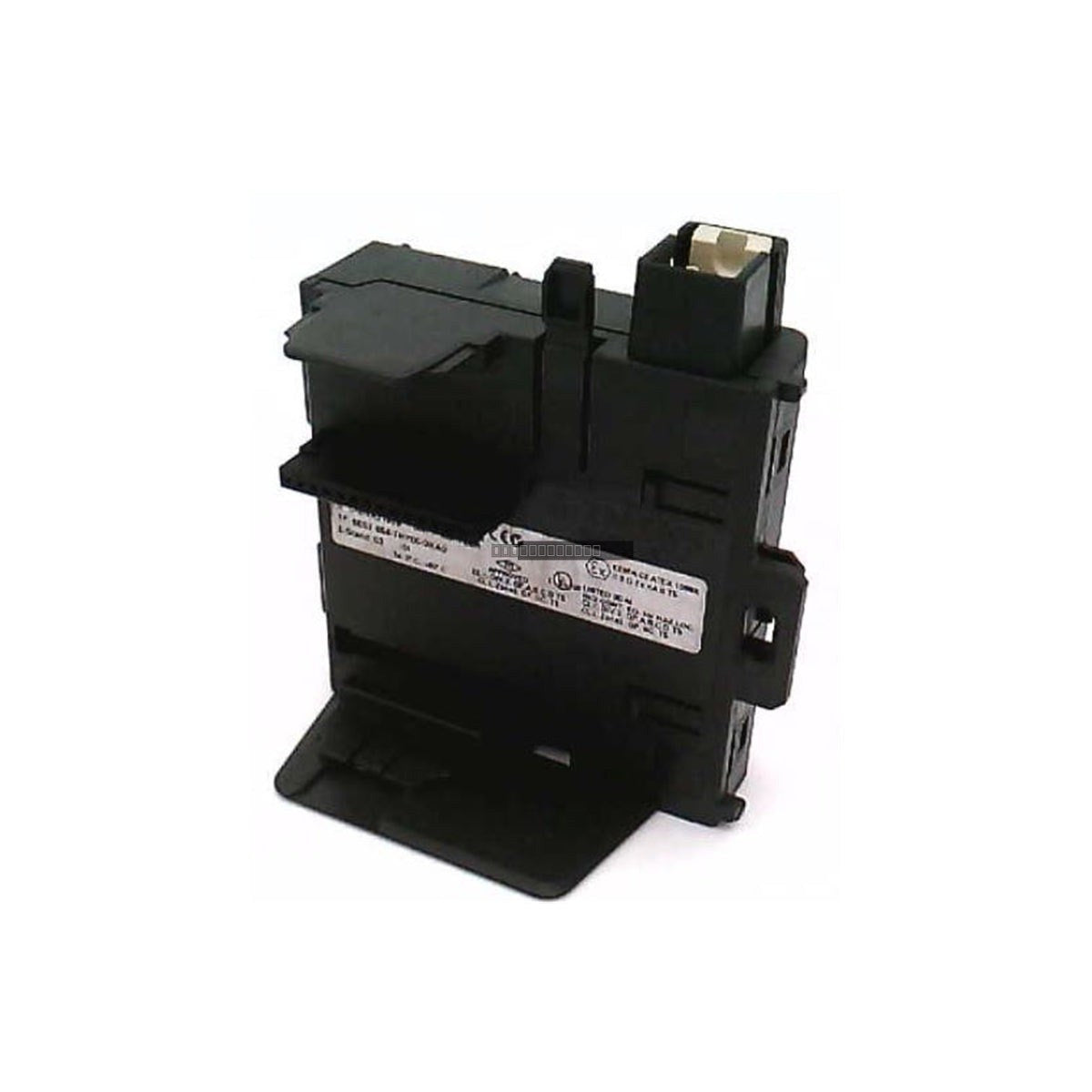

Siemens 6ES7654-7HY00-0XA0 SIMATIC S7 Bus Module for Y-Coupler

6ES7654-7HY00-0XA0 Siemens SIMATIC S7 Bus Module for Y-Coupler

التوفر: 0 متوفر في المخزون

DescriptionThe Siemens 6ES7654-7HY00-0XA0 is a dedicated bus module designed to serve as the mounting base for the Y-Coupler within SIMATIC...

رمز المنتج: 6ES7654-7HY00-0XA0

Manufacturer: Siemens
Product No.: 6ES7654-7HY00-0XA0
Product Type: Bus Module
Product Origin: Germany
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

Description

The Siemens 6ES7654-7HY00-0XA0 is a dedicated bus module designed to serve as the mounting base for the Y-Coupler within SIMATIC S7 and ET 200M distributed I/O systems. This module is an essential component in high-availability automation environments, facilitating the connection between redundant PROFIBUS DP master systems and standard single-channel PROFIBUS DP segments. By enabling the integration of standard slaves into fault-tolerant architectures, this module plays a critical role in maintaining continuous operation in demanding industrial sectors, including chemical processing, power generation, and oil and gas refining.

Features

Provides the necessary electrical and mechanical interface for Y-Coupler integration.
Supports hot-swapping functionality, allowing for module replacement without interrupting backplane communication.
Robust design ensures high-speed data integrity across redundant network transitions.
Passive bus unit construction ensures long-term reliability and zero power consumption from the communication line.
Includes integrated shielding to maintain signal quality in high-EMI industrial environments.

Applications

This bus module is engineered for use in high-availability automation systems where redundant communication paths are required. It is commonly deployed in ET 200M stations to bridge the gap between redundant master systems and non-redundant field devices, effectively preventing single points of failure in complex control networks.

Technical Specifications

Model	6ES7654-7HY00-0XA0
Brand	Siemens
Series	SIMATIC S7 / ET 200M
Product Type	Bus Module for Y-Coupler
Protection Class	IP20
Operating Temperature	0 to 60 deg C
Storage Temperature	-40 to 70 deg C
Mounting	Standard DIN Rail / S7 Rail

Installation Guidelines

Ensure the station power is disconnected before installing or removing the bus module to prevent electrical damage.
Mount the module securely on a standard DIN rail or S7 mounting rail, ensuring proper alignment with the backplane bus.
Handle the module by the edges to avoid contact with sensitive electronic components; use ESD-safe handling practices.
Ensure that the protective backplane cover is in place for any unoccupied slots to maintain terminal integrity and prevent debris ingress.
Verify that the Y-Coupler is fully seated and locked into the bus module to ensure stable electrical contact.

FAQ

Can I replace this module while the system is running? Yes, this bus module supports hot-swapping, allowing for maintenance of the Y-Coupler without shutting down the entire distributed I/O station.

Does this module require an external power supply? No, this is a passive bus unit designed to facilitate signal routing and does not consume power from the signal line.
