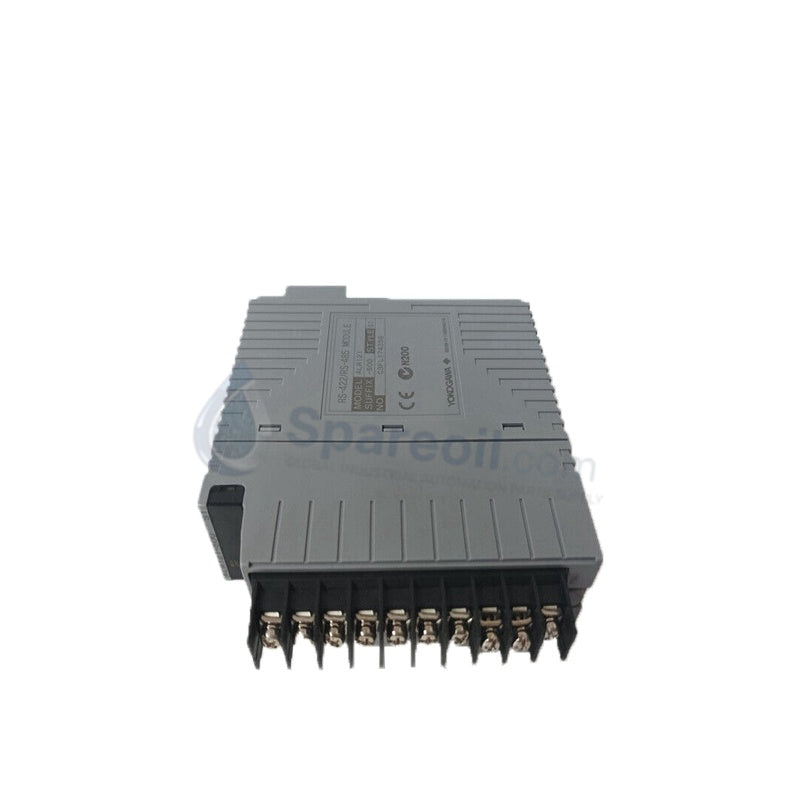

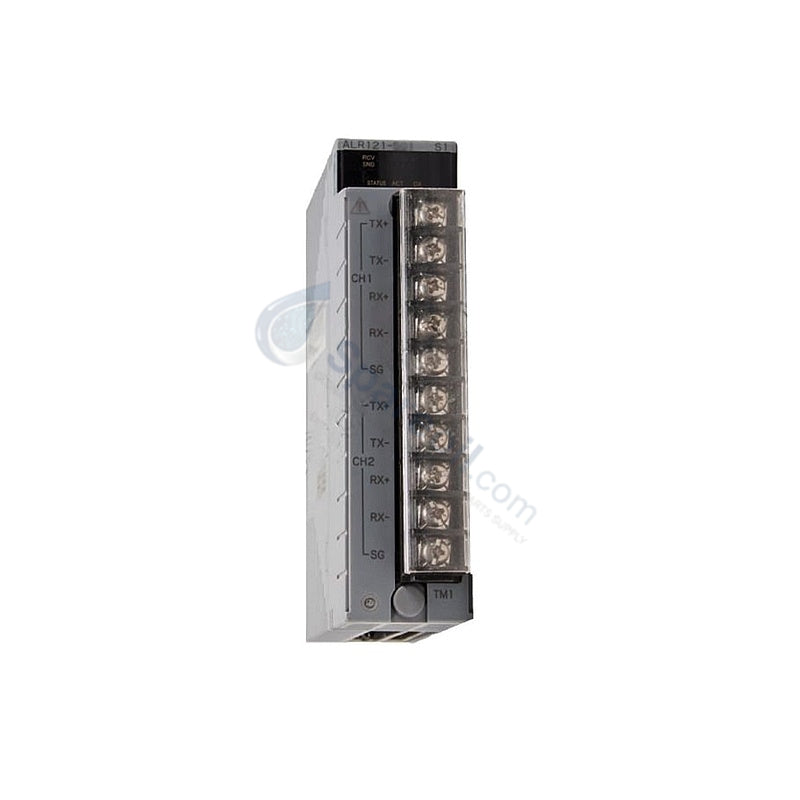

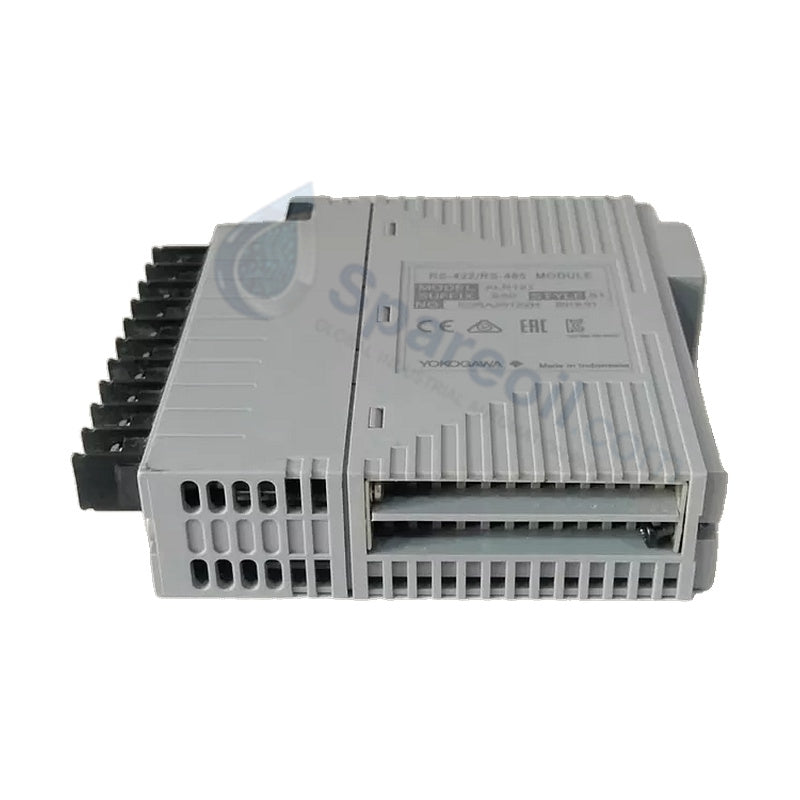

Yokogawa ALR121-S50 Serial Communication Module

Configured for serial data transmission between controllers and external subsystems in CENTUM VP and ProSafe-RS networks, the Yokogawa ALR121-S50 (Yokogawa ALR121 Serial Communication Module) provides direct physical/electrical execution. The hardware operates as a dual-port physical layer interface module that manages asynchronous, start-stop synchronized serial loops without utilizing intermediate conversion equipment.

Suffix Breakdown & Model Matrix

The formal suffix nomenclature defines the structural engineering type, environmental classification, and hardware generation for the module assembly:

• Base Model (ALR121): Establishes the core 2-port serial communication interface architecture utilizing physical RS-422 and RS-485 signaling protocols.
• Type Suffix (-S): Designates the standard functional hardware configuration optimized for standard industrial I/O backplane bus communication velocity frameworks.
• Explosion Protection Suffix (5): Specifies the standard hardware execution type with no explosion protection classification.
• Revision Suffix (0): Identifies the basic hardware design revision. Note that the complete ALR121-S50 configuration serves as the direct physical and functional replacement for legacy ALR121-S00 modules.

Hardware Specifications

Process Control Integration & Serial Noise Isolation

Operating as an active element within high-density distributed control system nests, this communication card handles autonomous data scanning for peripheral devices via Modbus RTU or proprietary protocols. To maintain system reliability, the module design features extensive electrical isolation between the internal backplane logic and the field serial networks, providing channel-to-channel isolation safeguards. This layout contains localized electrical faults and high-voltage line spikes to the transceiver stage, shielding the primary controller processor from ground potential shifts. The dual-port configuration supports flexible wiring topologies, functioning either in dedicated point-to-point lines or multi-drop networks, maintaining steady data updates without introducing noise cross-talk or timing latency into the 4-20 mA HART loop protocol layer.

Frequently Asked Questions

Q: Can the serial communication baud rate be parameterized independently for each of the two ports on the ALR121-S50 module?

A: Yes, each physical port functions as an autonomous communication channel. The hardware transmission speed matrix (ranging from 1200 bps to 38400 bps) and the transmission codes (ASCII or binary) are configured independently inside the host system engineering software to match the exact parameters of the respective downstream slave devices.

Q: What are the functional grounding and hardware requirements when switching a port from RS-422 to RS-485 multipoint mode?

A: The transition requires correct pin assignment termination at the external block interface. In RS-485 multipoint mode, appropriate line-termination resistors must be switched in or wired across the furthest physical node of the network loop to prevent signal reflection and data frame corruption over extended distances.

Field Installation Guidelines

• Enclosure Insertion Protocol: Align the card with the vertical plastic guide rails of the target slot on the baseplate nest. Slide the module backward firmly until the backplane bus pins snap into the receptacle, then torque the retaining screw to prevent micro-disconnections from industrial vibration.
• Serial Cable Shield Termination: Connect the outer braided shield of the RS-422/RS-485 signal cable directly to the functional instrument earth bar inside the marshalling enclosure. Do not ground the cable shield at both ends to avoid creating a destructive ground loop circuit.
• Physical Channel Segregation: Keep all serial signal cables separated from internal AC power links and variable frequency drive (VFD) output paths. Maintain a minimum distance of 100 mm within open wireways to ensure electromagnetic noise coupling remains below common-mode rejection limits.
• Operating Temperature Verification: Verify that the internal cabinet ventilation profiles maintain ambient air conditions surrounding the module chassis within the defined -20 to +70 deg C range. Avoid blocking the lower or upper cooling slots of the module housing.
