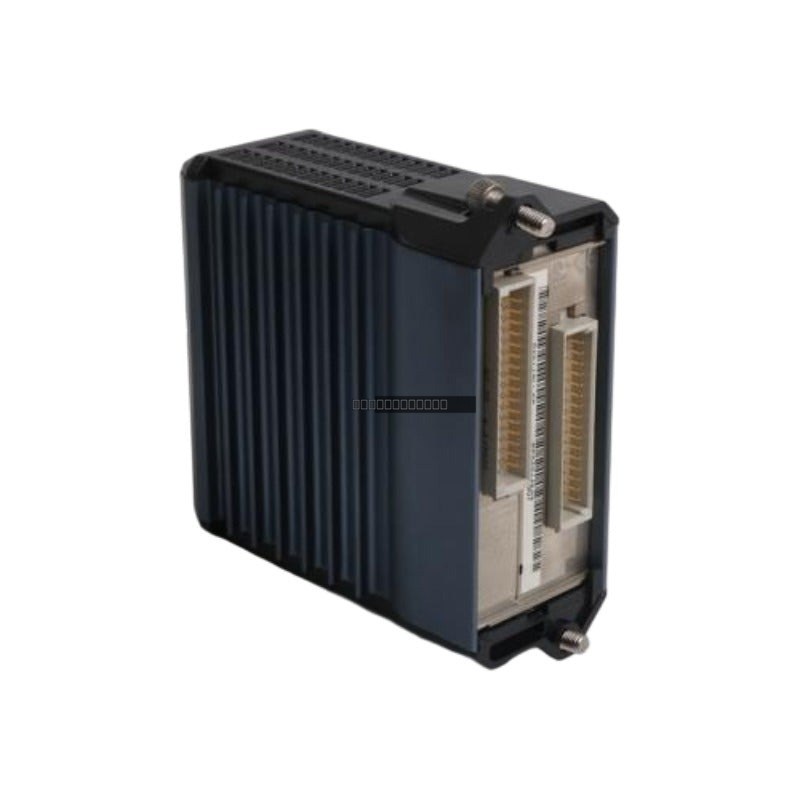

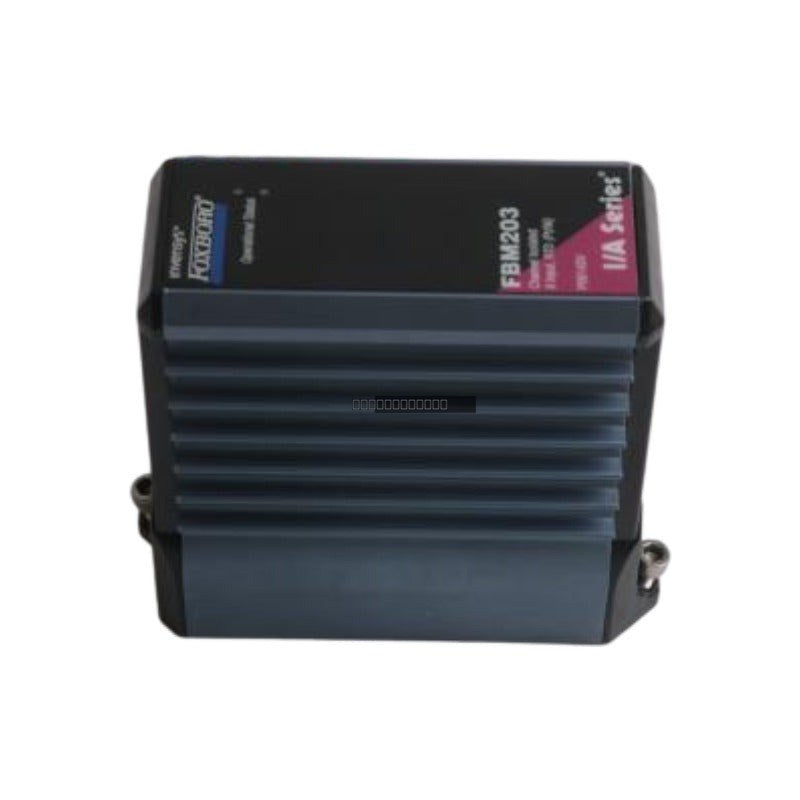

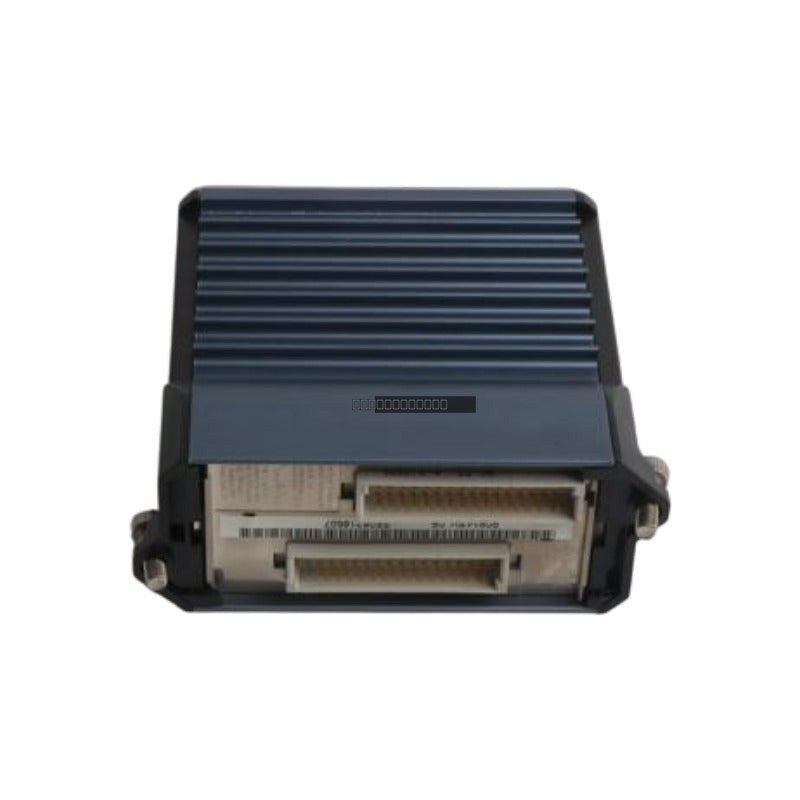

Foxboro FBM203 I/A Series 8-Channel RTD Input Module

التوفر: 5 متوفر في المخزون

The Foxboro FBM203 is a high-performance, 8-channel RTD input module engineered for the I/A Series distributed control system. It provides...

رمز المنتج: FBM203

Manufacturer: Foxboro
Product No.: FBM203
Product Type: RTD Input Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 280g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

The Foxboro FBM203 is a high-performance, 8-channel RTD input module engineered for the I/A Series distributed control system. It provides precise temperature monitoring by supporting a range of sensor configurations, including 2-wire, 3-wire, and 4-wire RTD inputs, as well as direct resistance measurements. This module is essential for applications requiring high signal integrity, such as power generation, pharmaceutical processing, and food production, where stable thermal data is critical for process control.

Features

Versatile Sensor Support: Compatible with various RTD types including Pt 100, Pt 200, Pt 500, Pt 1000, Ni 120, and Cu 10.
Galvanic Isolation: Features 600 V AC channel-to-channel and channel-to-ground isolation to minimize noise and prevent ground loops.
Lead Compensation: Advanced internal circuitry automatically compensates for lead-wire resistance, ensuring accuracy over extended field wiring runs.
Hot-Swappable Design: Supports removal and replacement while the system is energized, facilitating maintenance without process downtime.
Noise Filtering: Programmable integration times for 50 Hz or 60 Hz to effectively reject common-mode AC line noise.
Harsh Environment Ready: Rated for G3 harsh environment operation, ensuring durability in corrosive or demanding industrial settings.

Technical Specifications

Model	FBM203
Channels	8 Isolated RTD/Resistance
Resistance Ranges	0 to 320 Ohms or 0 to 3200 Ohms
Accuracy	+/- 0.02% of span
Power Consumption	3 W maximum
Operating Temperature	-20 to +70 deg C
Environmental Rating	G3 (Harsh)

Installation Guidelines

Ensure the I/A Series baseplate is properly grounded before module insertion.
The FBM203 is hot-swappable; verify that the baseplate slot is free of debris before seating the module.
Use shielded twisted-pair cabling for field sensor connections to maintain noise immunity.
Ensure proper polarity when wiring 2-wire, 3-wire, or 4-wire RTD sensors to the terminal blocks.
Maintain adequate airflow around the control cabinet to keep ambient temperatures within the -20 to +70 deg C operating range.
Handle with standard ESD precautions to prevent damage to internal sensitive components.

FAQ

Q: Can the FBM203 be replaced while the system is running?
A: Yes, the FBM203 is designed for hot-swapping, allowing for replacement without powering down the baseplate or interrupting other modules.

Q: Does this module support 4-wire RTD sensors?
A: Yes, the FBM203 is fully compatible with 2-wire, 3-wire, and 4-wire RTD configurations, with automatic lead-wire resistance compensation.

Q: What is the primary function of the channel-to-channel isolation?
A: The isolation prevents electrical interference and ground loops between channels, which is essential for maintaining high-accuracy temperature measurements in noisy industrial environments.
