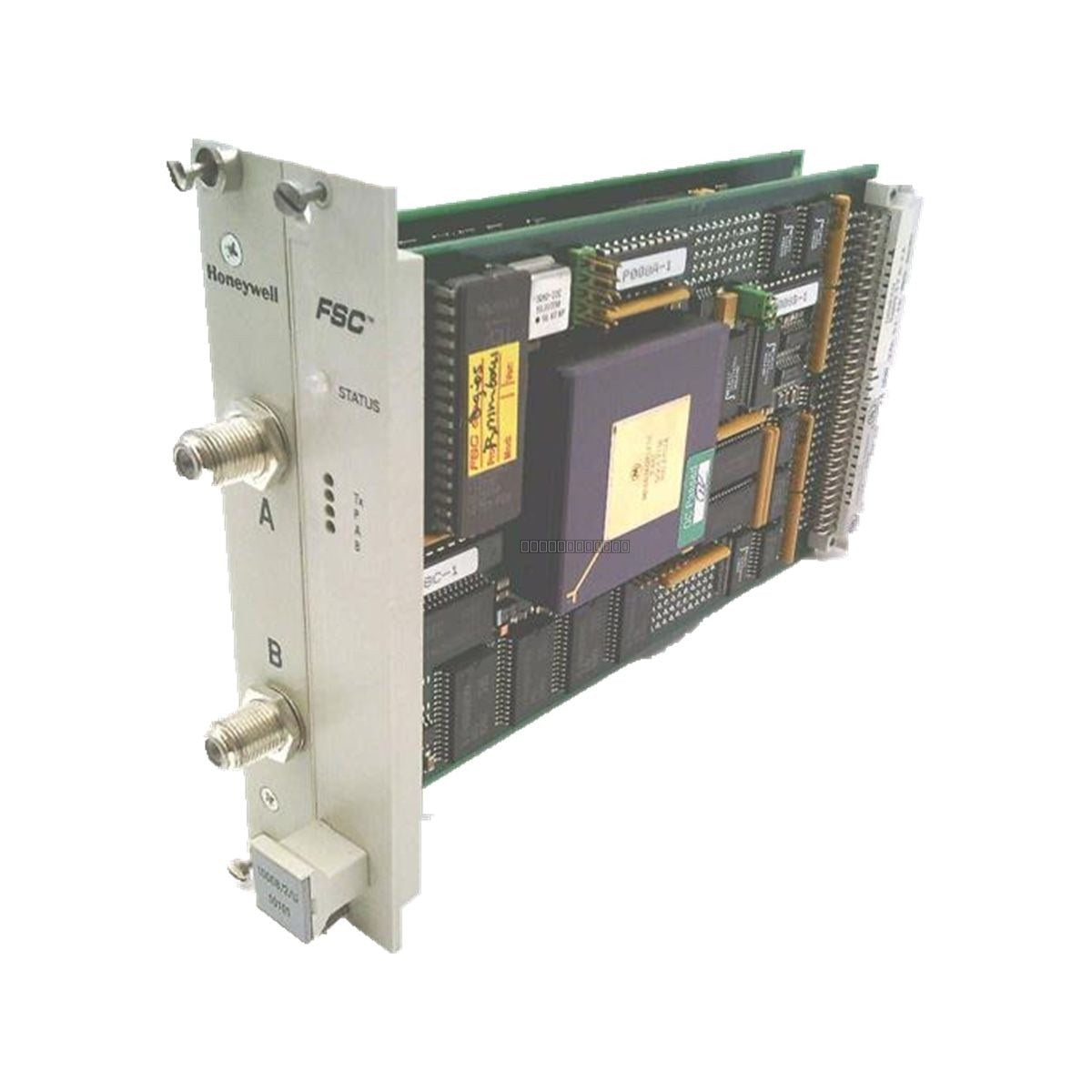

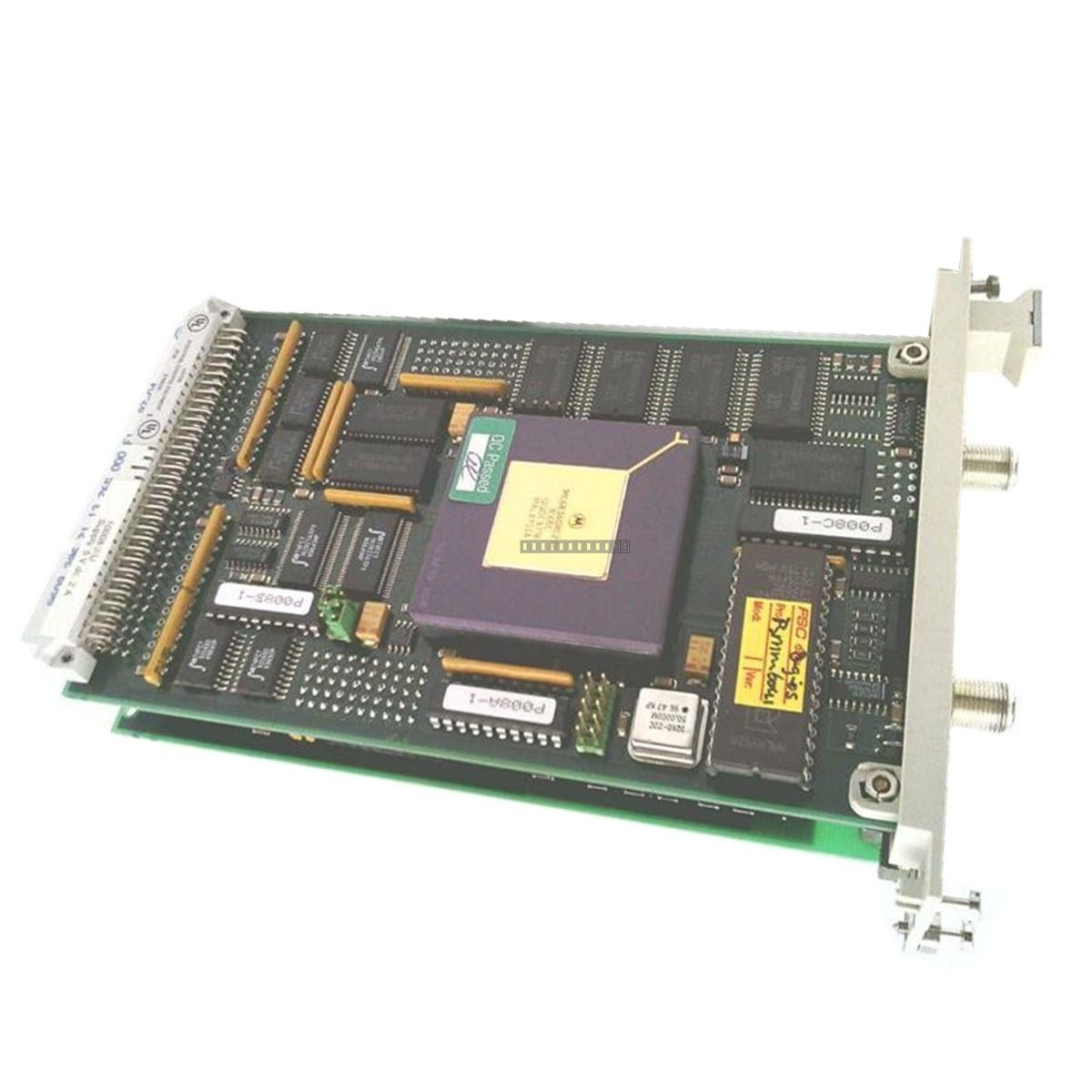

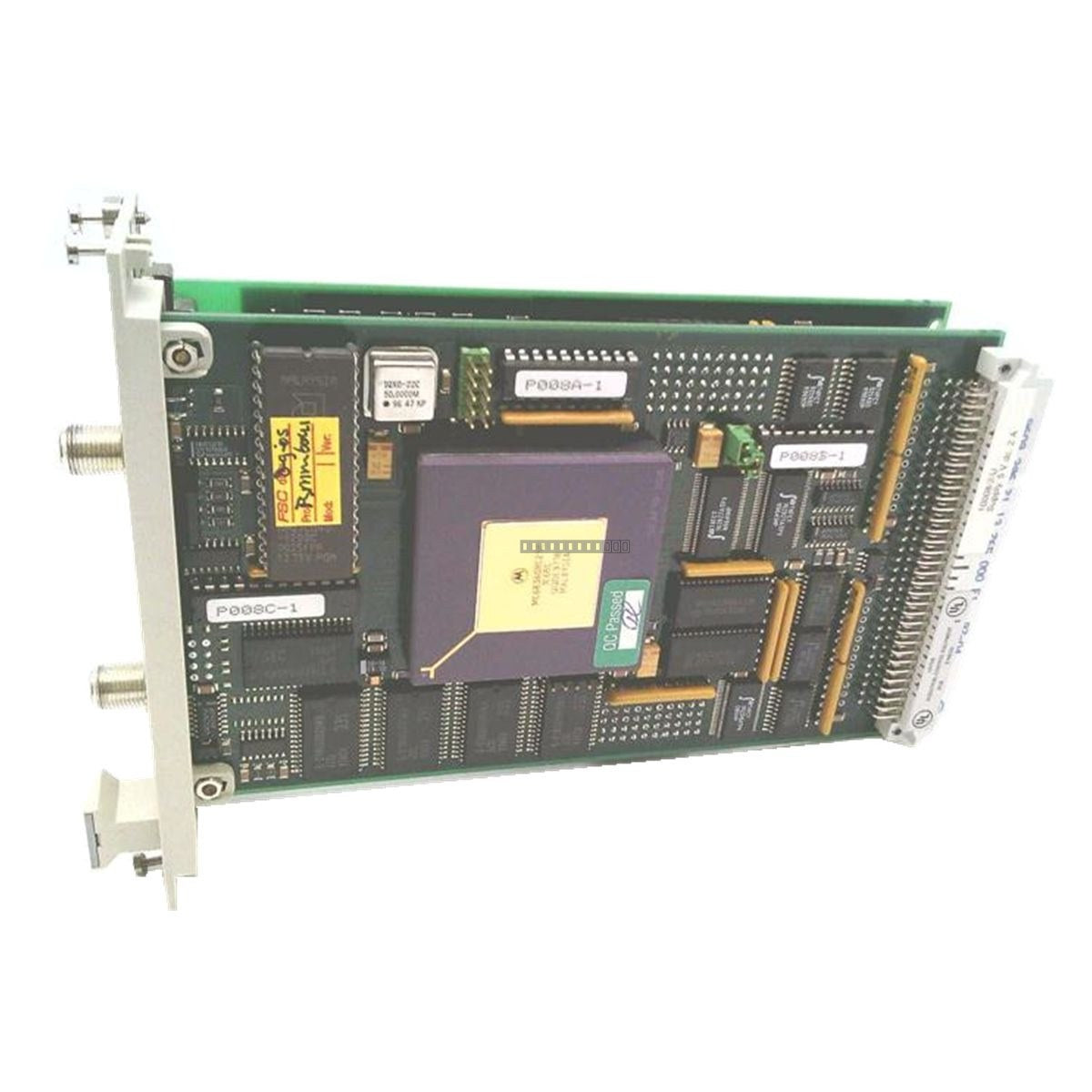

Honeywell 10008/2/U FSC Communication Module

التوفر: 6 متوفر في المخزون

DescriptionThe Honeywell 10008/2/U (100082U) is a specialized communication module engineered for the FSC (Fail Safe Controller) safety system. It serves...

رمز المنتج: 10008/2/U

Manufacturer: Honeywell
Product No.: 10008/2/U
Product Type: Communication Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 450g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

Description

The Honeywell 10008/2/U (100082U) is a specialized communication module engineered for the FSC (Fail Safe Controller) safety system. It serves as the critical interface for data exchange between the FSC safety system and the TotalPlant Solution (TPS) via the Universal Control Network (UCN). Designed for high-availability safety-critical environments, this module provides a redundant communication link that ensures deterministic data transfer, essential for oil and gas, chemical, and power generation applications.

Features

Redundant Architecture: Supports dual-channel (A and B) communication links to ensure continuous operation and high system availability.
Processor-Driven Performance: Utilizes a Motorola 68360 communication processor (25 MHz) for efficient data management.
Robust Communication: Features a Motorola 68824 token bus controller (10 MHz) and a Motorola 68194 carrierband modem for reliable UCN connectivity.
Integrated Diagnostics: Includes dedicated LED indicators for status, transmit activity, primary node status, and active channel monitoring.
Automated Synchronization: Application firmware is automatically downloaded from the FSC processor upon system startup for rapid initialization.

Applications

This module is intended for use in Honeywell FSC Safety Manager systems requiring integration with distributed control systems (DCS). It is suitable for safety-instrumented systems (SIS) in hazardous process industries where reliable, deterministic communication is required to maintain safety integrity levels.

Technical Specifications

Model	10008/2/U
Processor	Motorola 68360 (25 MHz)
Token Bus Controller	Motorola 68824 (10 MHz)
Memory	4 Mbit EPROM, 16 Mbit Local RAM (parity), 2 Mbit Shared RAM, 1 kbit EEPROM
Power Supply	5 VDC
Current Consumption	2 A
Operating Temperature	0 to 60 deg C
Storage Temperature	-40 to 85 deg C
Compatibility	FSC version 400 or higher

Installation Guidelines

Handling: This module contains sensitive electronic components. Use proper ESD (electrostatic discharge) protection during handling and installation.
Mounting: Designed for standard FSC rack mounting (8 TE width, 3 HE height). Ensure the module is fully seated in the backplane connector before securing.
Power: Ensure the system power is off before inserting or removing the module to prevent damage to the backplane or module circuitry.
Grounding: Ensure the FSC rack is properly grounded to maintain signal integrity and comply with EMI/EMC standards.
Cabling: Use shielded cables for UCN connections to minimize interference. Route communication cables away from high-voltage power lines.

Compliance and Certifications

The 10008/2/U module is designed to meet industrial safety and quality standards, including CE, TUV, and UL certifications.

FAQ

Q: Does this module support redundant communication?
A: Yes, the 10008/2/U provides a fully isolated redundant communication link using dual channels A and B.

Q: What is the required software version for this module?
A: This module is compatible with FSC version 400 or higher.
