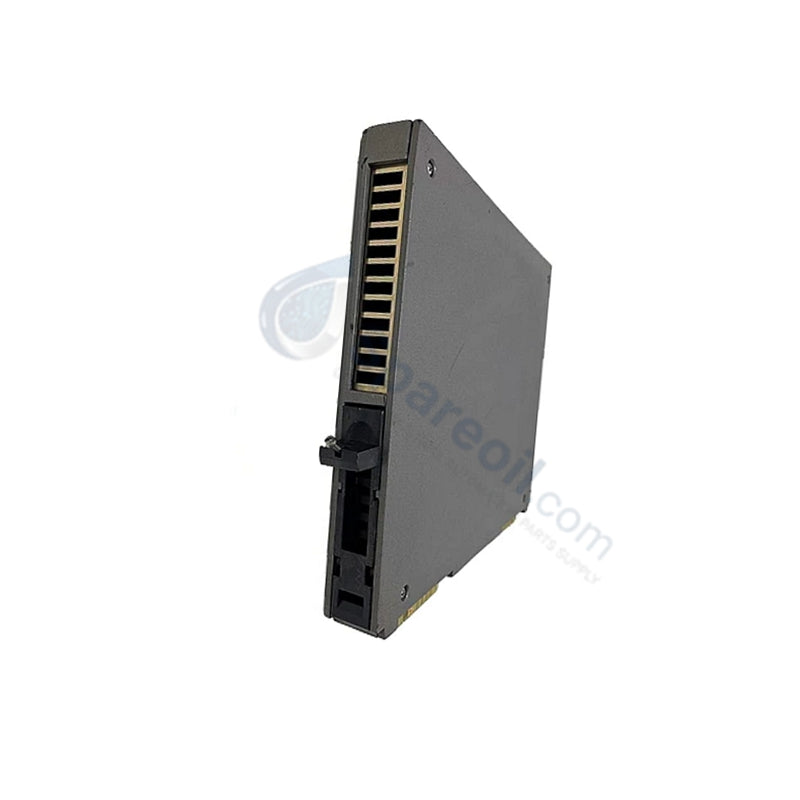

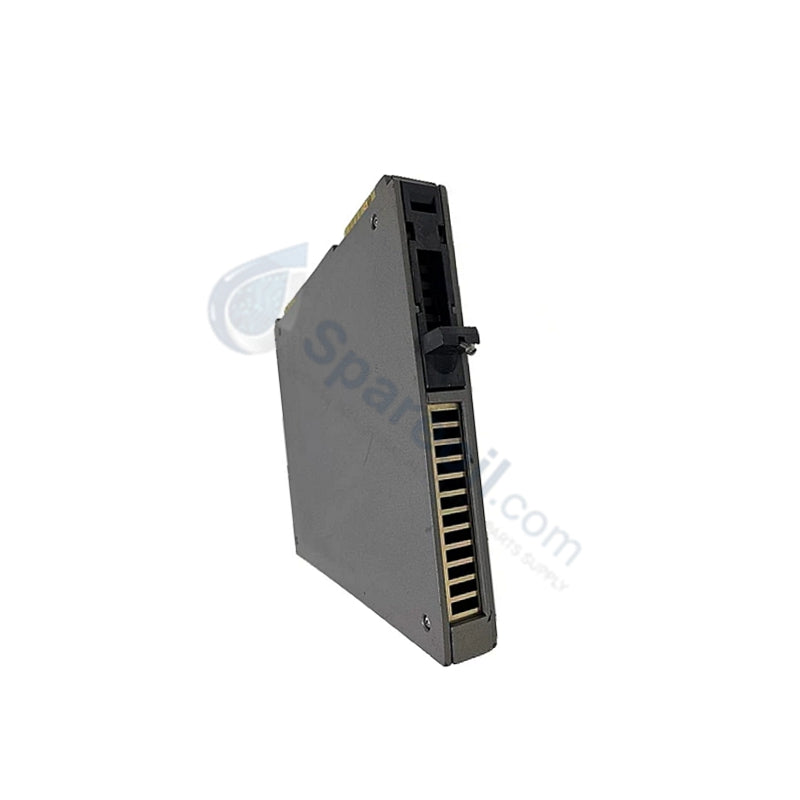

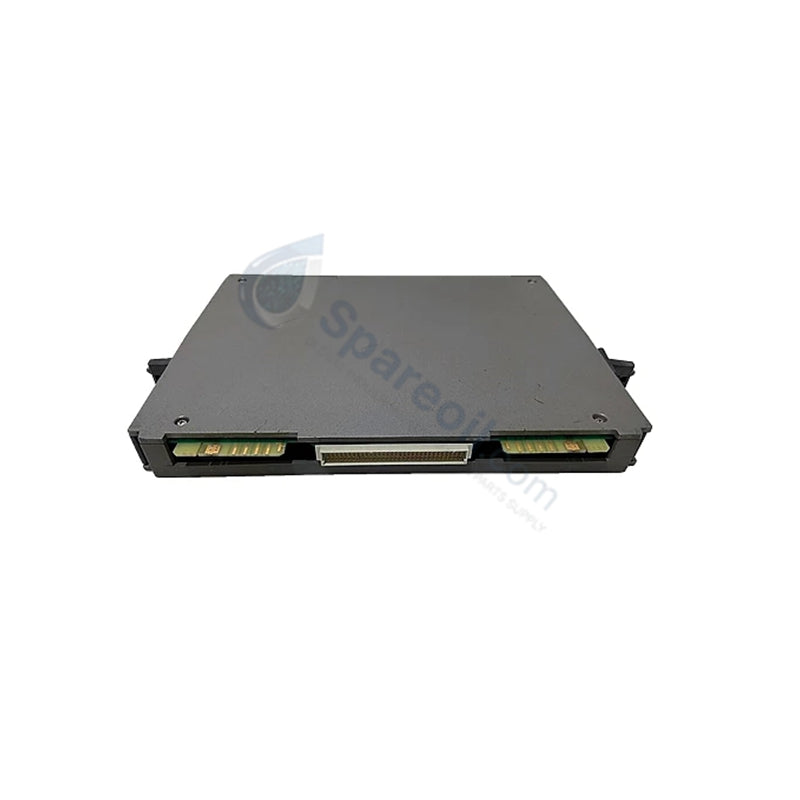

T3511 ICS Triplex TMR Analog Input Module

ICS Triplex T3511 Trusted TMR Analog Input Module

ICS Triplex T3511 Trusted TMR Analog Input Module

التوفر: 20 متوفر في المخزون

ICS Triplex T3511 TMR Analog Input Module Configured for high-integrity analog signal acquisition in Trusted safety systems, the ICS Triplex...

رمز المنتج: T3511

Manufacturer: ICS Triplex
Product No.: T3511
Product Type: Analog Input Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 900g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

ICS Triplex T3511 TMR Analog Input Module

Configured for high-integrity analog signal acquisition in Trusted safety systems, the ICS Triplex T3511 (T3511 TMR Analog Input Module) provides direct physical signal processing via a 16-channel isolated interface.

Hardware Specifications

Parameter	Specification
Model	T3511
Brand	ICS Triplex
Origin	N/A
Weight	0.9 kg
Dimensions	142 x 92 x 54 mm
Operating Temp	-20 deg C to +60 deg C
Power Consumption	4.5 W
Input Channels	16 isolated analog inputs
Input Resolution	16-bit A/D conversion
Isolation	3000 VAC channel-to-channel

Triple Modular Redundancy (TMR) & Safety Execution

The T3511 utilizes a TMR 2oo3 architecture to execute continuous safety-related data acquisition. By processing inputs across three independent signal paths, the module ensures that internal hardware faults do not propagate to the control logic, maintaining a SIL 3 certified safety state. The module provides galvanic isolation between all input channels and the system backplane to prevent common-mode electrical noise interference from affecting measurement accuracy. In the event of a channel or subsystem failure, the module initiates a fail-safe state execution, reporting the discrepancy to the T8110 or T8310 processor without interrupting the operation of remaining healthy channels.

Frequently Asked Questions (FAQ)

Q: Does the T3511 support hot-swapping under normal operating conditions?

A: Yes, the T3511 is hot-swappable. The module can be removed or replaced while the system is powered and running, provided the chassis backplane supports the specific slot configuration for modular replacement.

Q: How does the module handle sensor faults such as open or short circuits?

A: The T3511 performs continuous signal validation against predefined ranges. If the input current or voltage falls outside the expected operating window—or if a wiring fault is detected—the module triggers a hardware-level fault flag and updates the corresponding diagnostic LED on the front panel.

Field Installation Guidelines

Mounting: Ensure the T3511 is properly aligned within the Trusted chassis guide rails before applying insertion force. Tighten the retaining screws to ensure proper electrical contact with the chassis grounding system.
Wiring: Route analog signal cables away from high-voltage power lines to minimize electromagnetic interference. Use shielded twisted-pair conductors, terminating the shields at the designated chassis grounding rail to maintain signal integrity.
Configuration: Verify that the loop power source (externally supplied, 18–32 VDC) matches the requirements of the specific field transmitters attached to the input channels.
Commissioning: Following installation, use the system engineering workstation to perform a channel-by-channel signal validation, confirming that inputs are within the calibrated range before enabling final safety loop logic.
