ICS Triplex T8111C Trusted TMR Main Processor Module

ICS Triplex T8111C Trusted TMR Main Processor Module

التوفر: 20 متوفر في المخزون

ICS Triplex T8111C TMR Main Processor Module The ICS Triplex T8111C, also cataloged as the T8111 TMR Processor, operates as...

رمز المنتج: T8111C

Manufacturer: ICS Triplex
Product No.: T8111C
Product Type: CPU Processors
Product Origin: USA
Payment:T/T, Western Union
Weight: 1500g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

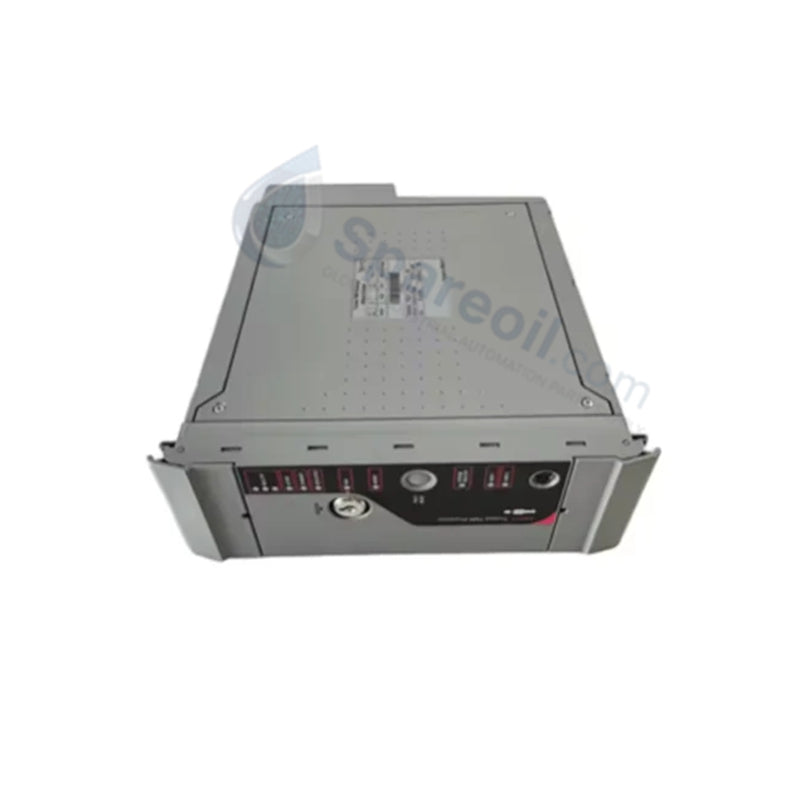

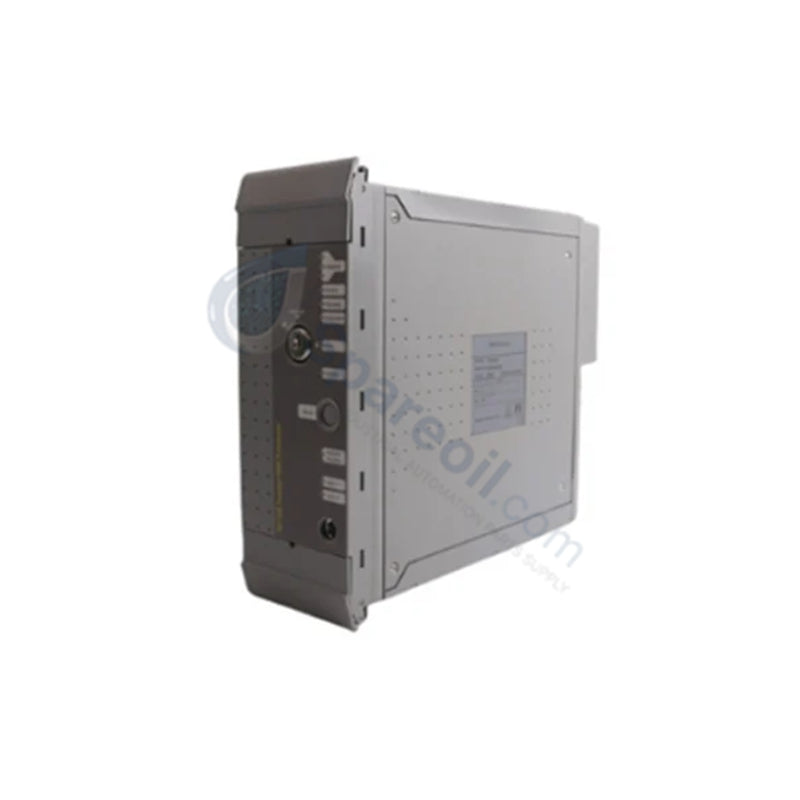

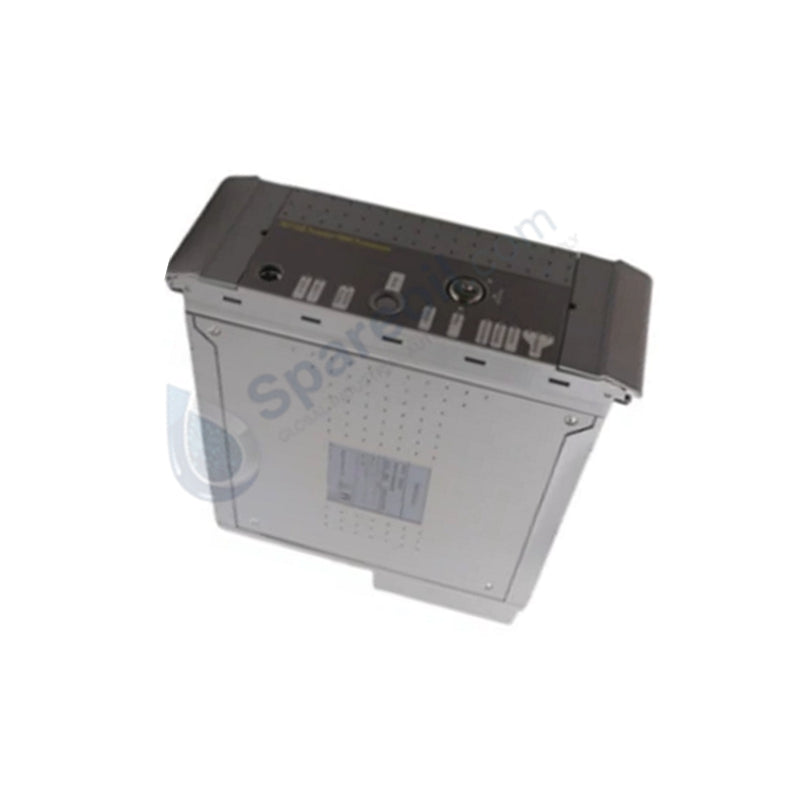

ICS Triplex T8111C TMR Main Processor Module

The ICS Triplex T8111C, also cataloged as the T8111 TMR Processor, operates as the primary computational hardware component for executing safety-critical logic within the Trusted SIS platform.

Hardware Specifications

Parameter	Specification
Model	T8111C
Brand	ICS Triplex
Origin	N/A
Weight	1.5 kg
Dimensions	160 x 320 x 120 mm
Operating Temp	-20 deg C to +60 deg C
Power Consumption	45 W
Processor Architecture	Triple Modular Redundancy (TMR)
Clock Speed	50 MHz (per CPU path)
Isolation	1500 VDC

TMR Safety & Fault-Tolerant Execution

The T8111C utilizes a triple modular redundancy (TMR) 2oo3 architecture, housing three independent processing paths that execute parallel safety logic. A hardware-level majority-voting system compares outputs from these paths in real-time to detect and mask single-point hardware failures. This architecture enables fail-safe state execution, ensuring that the processor maintains control even during transient fault conditions. The module incorporates comprehensive galvanic isolation between the processor circuitry and the system backplane to prevent electrical noise propagation, complying with IEC 61508 SIL 3 certification requirements for high-integrity safety applications.

Frequently Asked Questions (FAQ)

Q: Does the T8111C support hot-swapping within a powered Trusted main chassis?

A: Yes, the T8111C supports hot-swapping. The Trusted backplane design allows for the removal and insertion of the processor module while the system is energized, provided the replacement is performed in accordance with authorized system maintenance procedures.

Q: How does the processor maintain synchronization across its three redundant paths?

A: The T8111C implements high-speed synchronization logic across its three internal CPU paths. If one path deviates from the majority-voted state, the module flags the discrepancy through its internal diagnostics and reports the fault to the system engineering workstation while continuing to operate on the remaining two healthy paths.

Field Installation Guidelines

Mounting: Carefully align the T8111C with the guide rails of the Trusted main chassis. Apply even pressure until the backplane connectors fully engage. Secure the module using the integrated retaining fasteners to ensure proper grounding and mechanical stability.
Backplane Interface: Ensure the chassis backplane pins are free of debris or oxidation prior to insertion to prevent intermittent communication errors.
Power Requirements: Confirm that the dual redundant 24 VDC power supplies are connected and operating within the specified voltage range before initializing the processor.
Validation: Upon successful power-up, monitor the front-panel status LEDs. A successful self-test sequence will be indicated by the absence of fault flags; verify the processor state via the connected engineering terminal to confirm operational synchronization.
