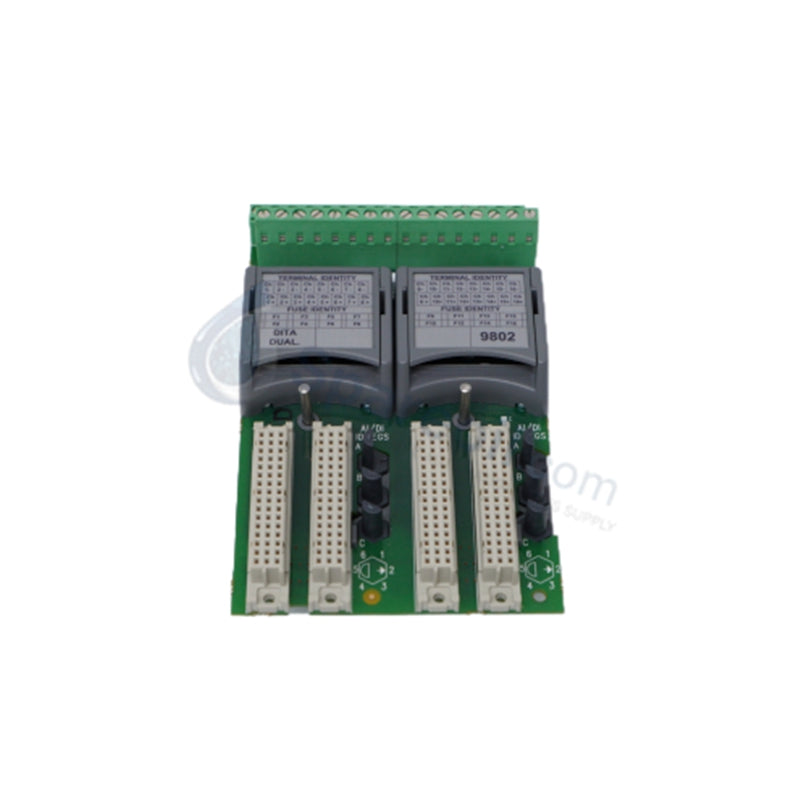

T9832 ICS Triplex Analog Input Module

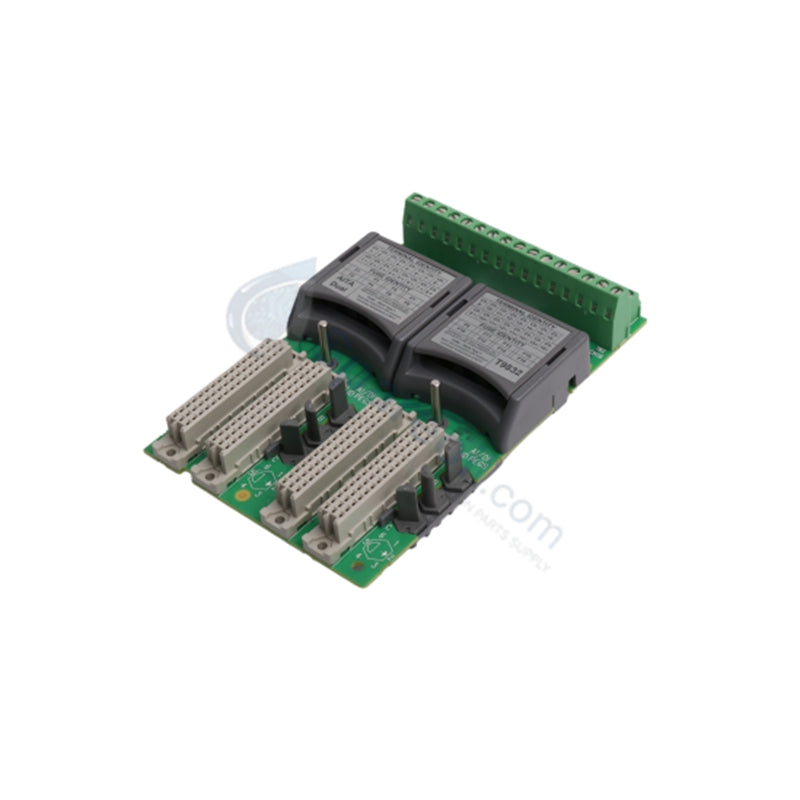

ICS Triplex T9832 Trusted Series Analog Input Module

ICS Triplex T9832 Trusted Series Analog Input Module

التوفر: 20 متوفر في المخزون

ICS Triplex T9832 Analogue Input Module The ICS Triplex T9832, also cataloged as the T9832 Analog Input Module, operates as...

رمز المنتج: T9832

Manufacturer: Allen Bradley
Product No.: T9832
Product Type: Analog Input Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 140g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

ICS Triplex T9832 Analogue Input Module

The ICS Triplex T9832, also cataloged as the T9832 Analog Input Module, operates as a dedicated hardware component for high-integrity signal acquisition within Trusted and AAdvance safety instrumented systems (SIS).

Hardware Specifications

Parameter	Specification
Model	T9832
Brand	ICS Triplex
Origin	USA
Weight	0.14 kg
Dimensions	13.1 cm x 8.4 cm x 3.5 cm
Operating Temp	-20 to +70 deg C
Power Consumption	2.8 W
Channels	16-channel, dual, isolated
Safety Rating	SIL 3 certified

High-Reliability Safety Control and TMR Architecture

The T9832 module utilizes a triple modular redundancy (TMR) architecture to maintain continuous operation in safety-critical loops. Each of the 16 channels features galvanic isolation, preventing common-mode interference from propagating between field signals and the system backplane. This design ensures that the system maintains a deterministic fail-safe state execution even under single-point channel failures. The module provides ongoing diagnostic self-testing, monitoring for open-circuits and short-circuits to ensure the integrity of the process variable data transmitted to the safety controller.

Frequently Asked Questions

Q: Does the T9832 support hot-swapping during system operation?

A: Yes, the T9832 supports hot-swapping. The hardware is designed to allow replacement of a faulted module without requiring a full system shutdown, provided the replacement is performed in accordance with the specific SIS maintenance procedure for the TMR processor pair.

Q: How is galvanic isolation managed across the 16 channels?

A: The module incorporates channel-to-channel and channel-to-system isolation barriers rated at 500 VDC. This isolation ensures that faults on one field loop do not impact the measurement accuracy or safety status of adjacent channels or the internal logic circuits.

Field Installation Guidelines

Ensure the chassis slot is properly prepared and free of debris before inserting the T9832 module.
Align the module with the backplane connectors and apply steady pressure to engage the primary interface. Confirm the mechanical locking mechanism is fully secured.
Terminate 4-20 mA or voltage signals using shielded twisted-pair cabling. Ground the shields at the designated cabinet reference point to maintain electromagnetic compatibility and signal fidelity.
Verify the integrity of the field loop before applying power. Ensure that no voltage exceeding the rated input range is applied to the terminals to prevent internal circuit damage.
After initialization, observe the front-panel LED indicators to verify channel status and verify that the safety controller reports no communication or diagnostic faults.
