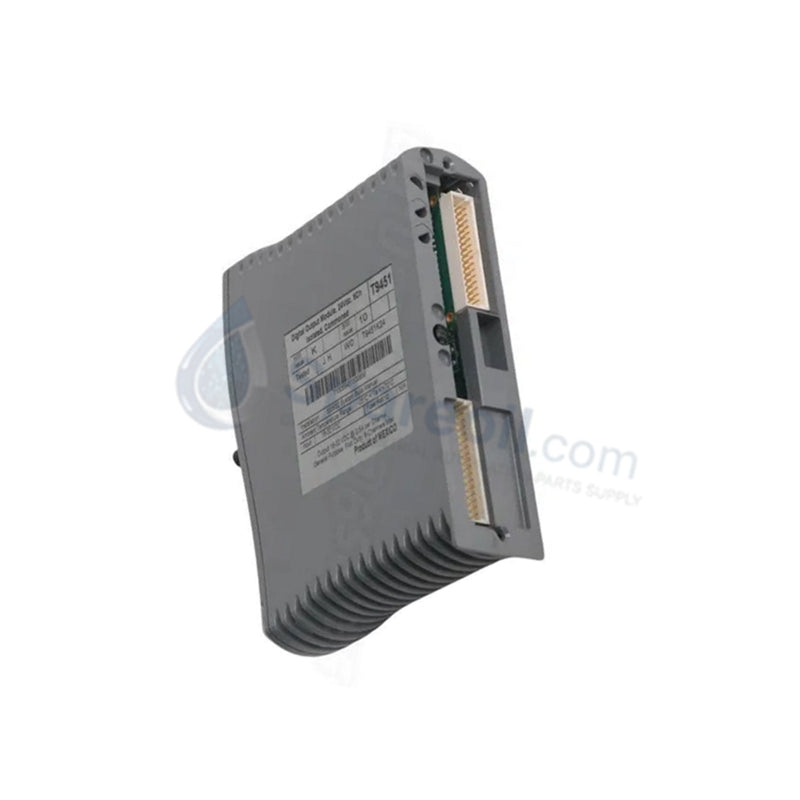

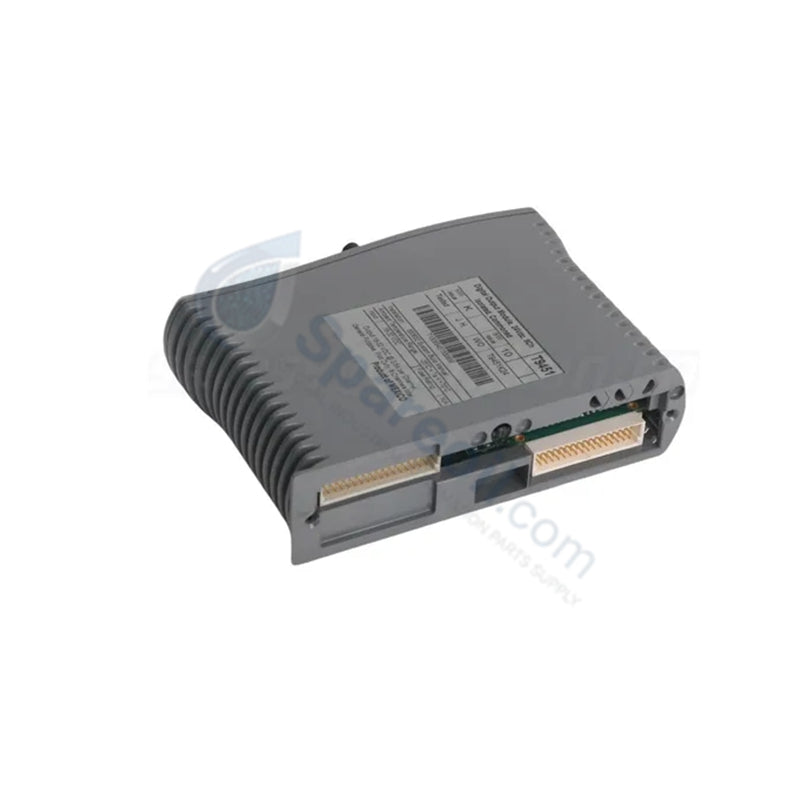

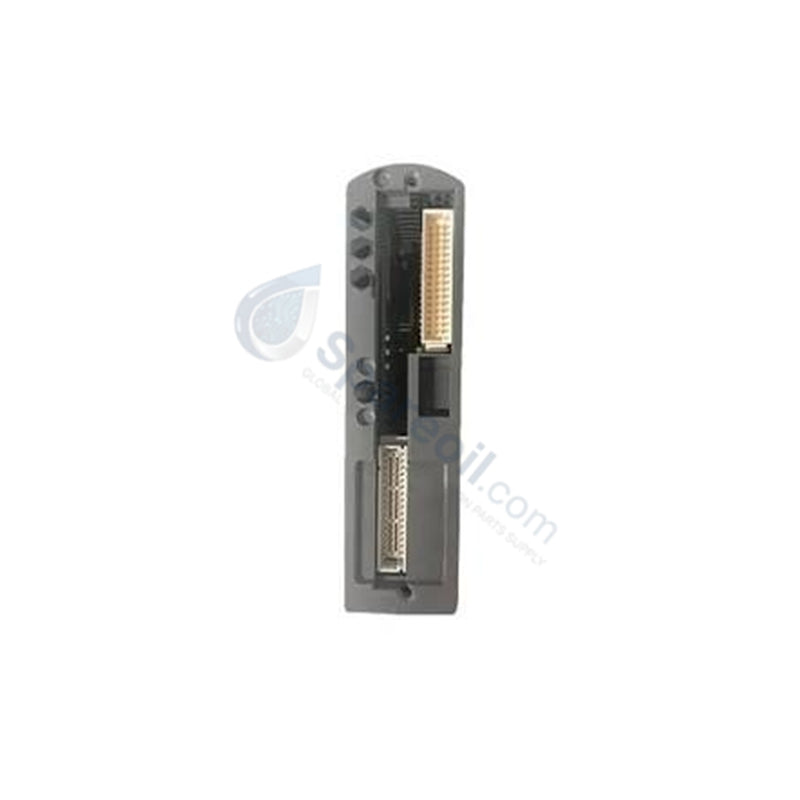

Rockwell ICS Triplex T9451 Analog Output Module

Rockwell ICS Triplex T9451 Analog Output Module

التوفر: 20 متوفر في المخزون

Rockwell ICS Triplex T9451 Analog Output Module The Rockwell ICS Triplex T9451, also cataloged as the T9451 Analog Output Module,...

رمز المنتج: T9451

Manufacturer: ICS Triplex
Product No.: T9451
Product Type: Analog Output Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 340g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

Rockwell ICS Triplex T9451 Analog Output Module

The Rockwell ICS Triplex T9451, also cataloged as the T9451 Analog Output Module, operates as a dedicated hardware component for safety-critical actuator control within Trusted safety system platforms.

Hardware Specifications

Parameter	Specification
Model	T9451
Brand	Rockwell (ICS Triplex)
Origin	United States
Weight	340 g
Dimensions	166 mm x 42 mm x 118 mm
Operating Temp	-20 to +60 deg C
Power Consumption	3.0 W
Output Channels	16 isolated analog outputs
Safety Rating	SIL 3 certified

High-Reliability Safety Control and TMR Architecture

The T9451 module leverages a triple modular redundancy (TMR) 2oo3 architecture to provide fault-tolerant signal delivery to process actuators. By executing a majority vote across three internal control paths, the module effectively masks hardware failures, ensuring continuous command execution without unintended process disturbances. Galvanic isolation is maintained between channels and the system backplane to prevent the propagation of electrical transients. The internal diagnostic suite monitors field loop current and voltage status, ensuring that any deviation from the commanded output triggers an immediate diagnostic fault report, maintaining the integrity of the SIL 3 safety loop.

Frequently Asked Questions

Q: Does the T9451 module support hot-swapping during system operation?

A: Yes, the T9451 is designed to support hot-swapping. The Trusted TMR backplane architecture allows for the extraction and replacement of a failed module without disrupting the safety-critical outputs of the remaining redundant channels, provided the replacement follows established maintenance procedures.

Q: How does the module maintain control stability during field loop faults?

A: The T9451 incorporates integrated output overload protection, capable of handling surge currents up to 2 A for 50 ms. When an overload or short-circuit is detected, the module limits the current and reports the fault to the system controller, preventing a total loss of the analog loop signal.

Field Installation Guidelines

Verify that the system backplane is configured to the correct voltage (18-32 VDC) before inserting the T9451.
Align the module with the chassis slot guides. Seat the module firmly to engage the rear electrical connectors. Secure the front-panel retaining screws to ensure proper grounding to the chassis frame.
Terminate field wiring using shielded cables. Bond the cable shield to the cabinet earth bus to preserve the galvanic isolation and electromagnetic compatibility (EMC) of the analog loops.
Confirm that the field supply voltage matches the module operating range (18-32 VDC) and that the loop resistance complies with the output drive capabilities.
Upon power-up, observe the front-panel LED indicators. A steady green status indicates successful completion of internal self-tests and correct handshake with the Trusted processor.
