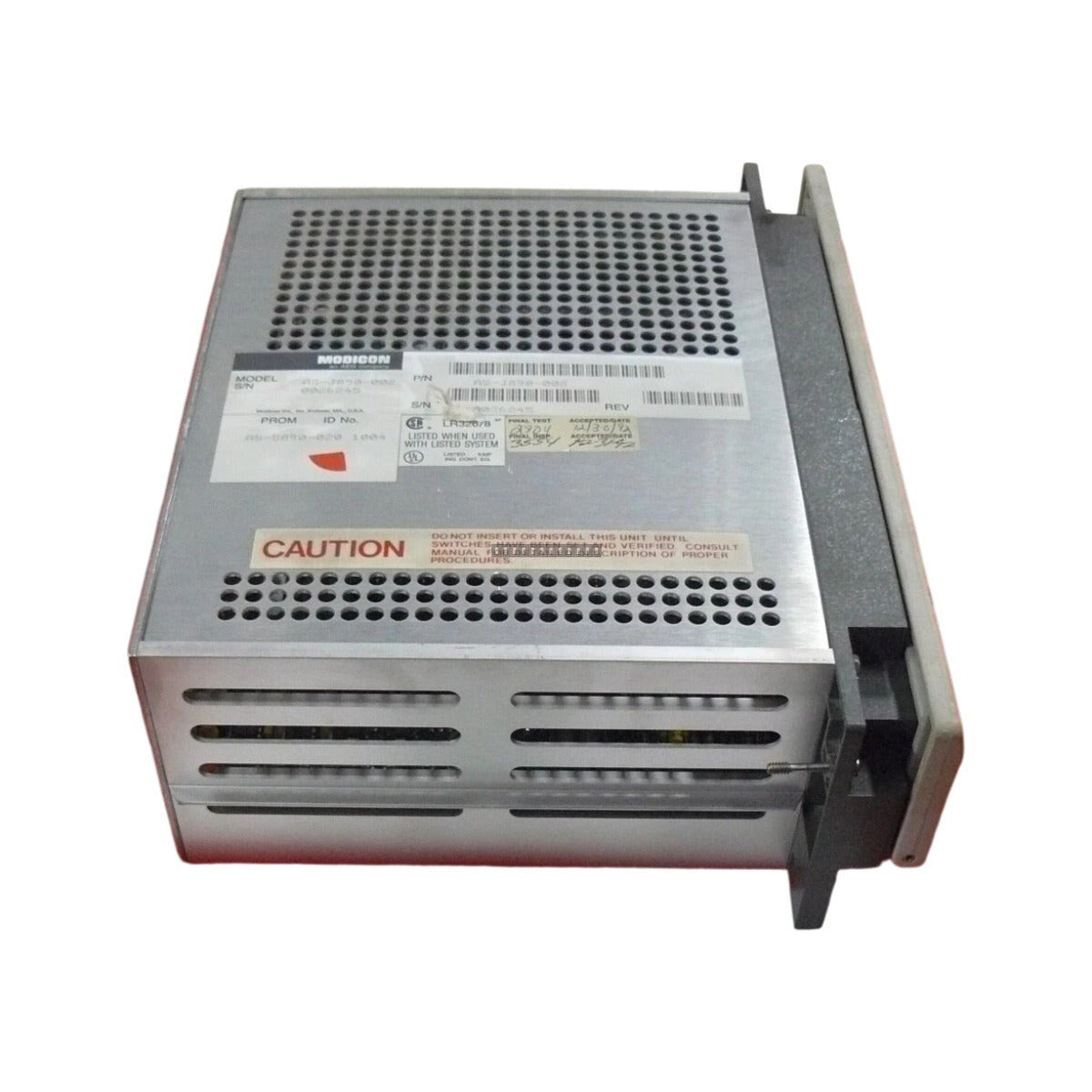

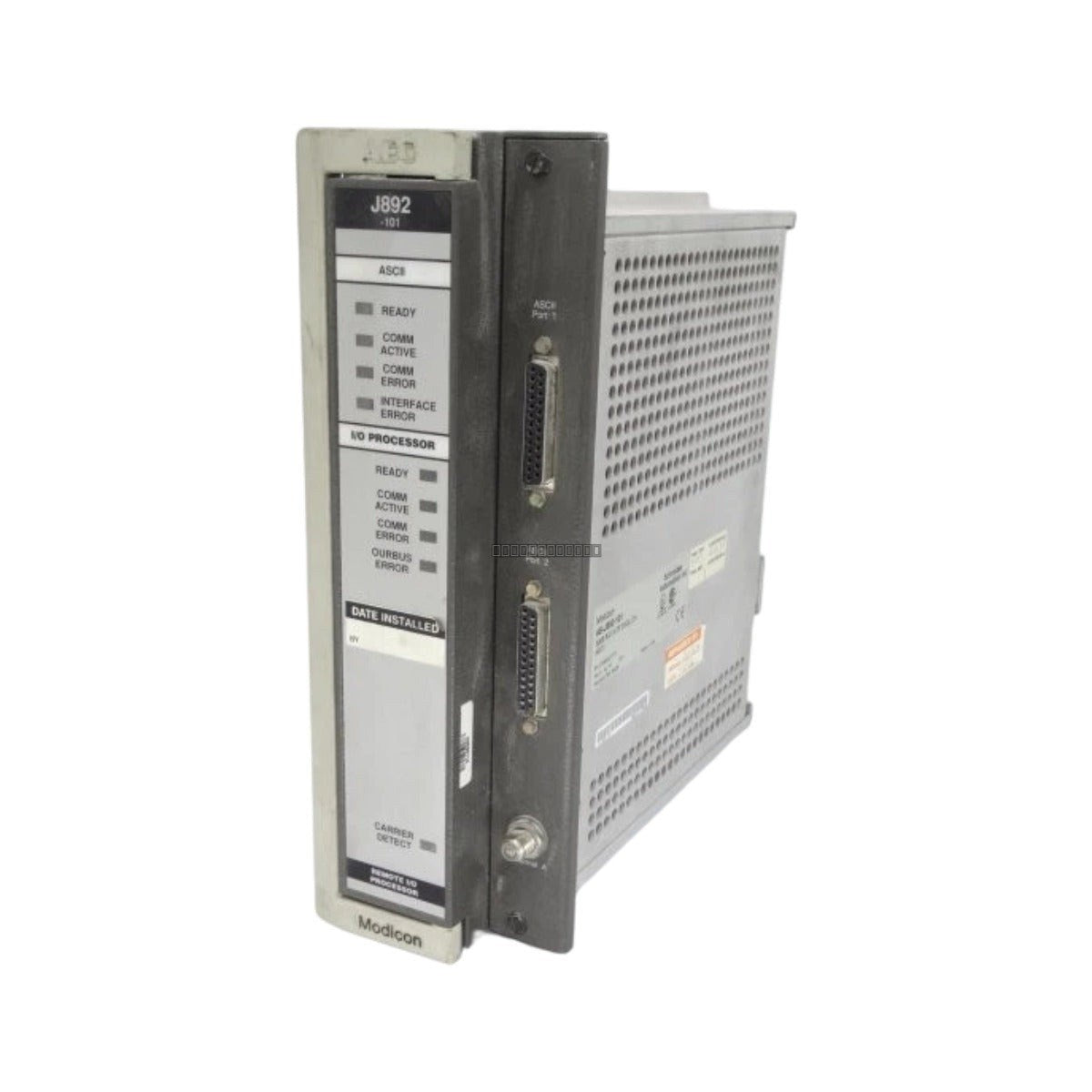

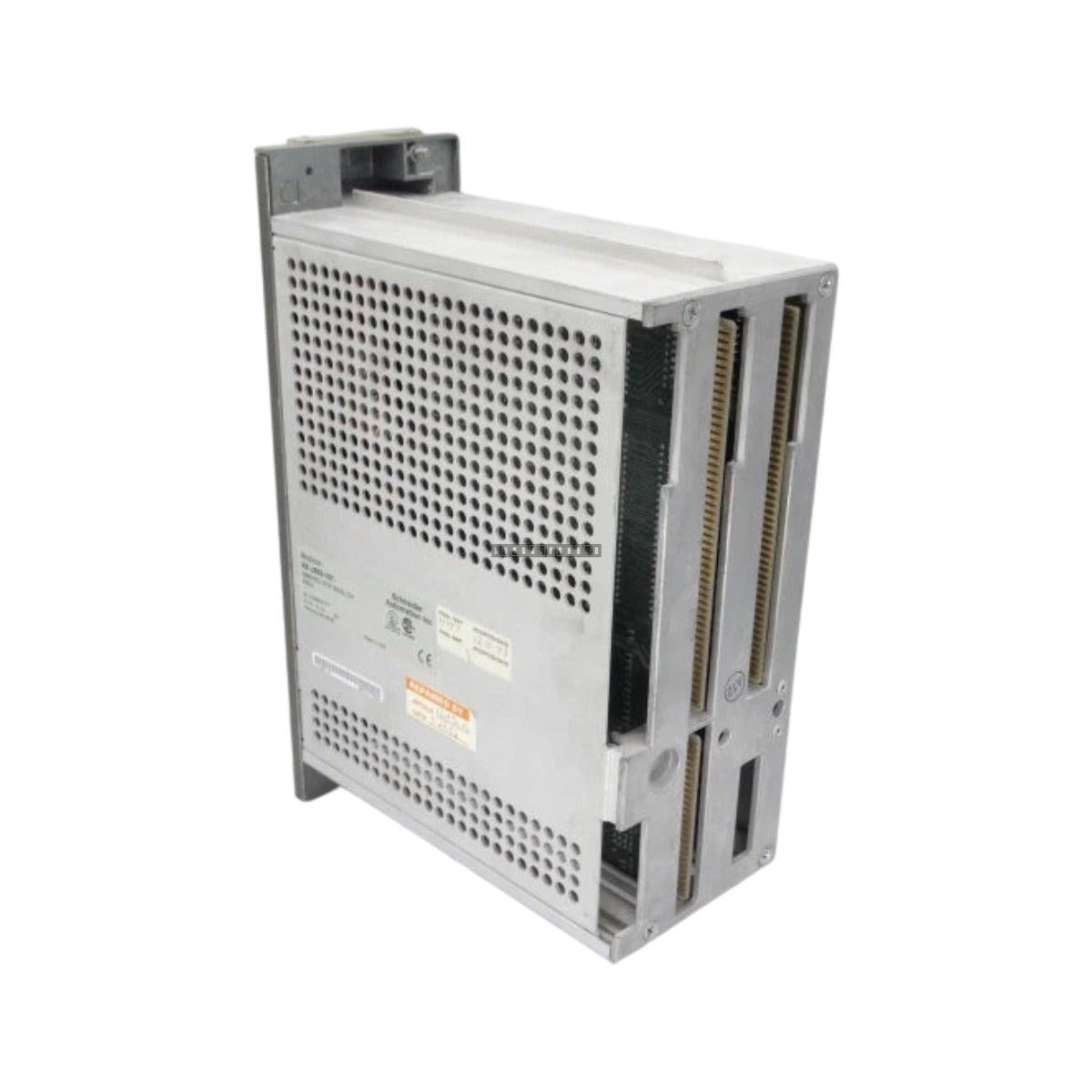

Schneider ASJ890002 Modicon Quantum Remote I/O Adapter

Schneider Modicon Quantum ASJ890002 Remote I/O Adapter Module

التوفر: 7 متوفر في المخزون

DescriptionThe ASJ890002 interface module is an essential component for the Schneider Electric Modicon Quantum automation platform, specifically designed to function...

رمز المنتج: ASJ890002

Manufacturer: Schneider
Product No.: ASJ890002
Product Type: Remote I/O Adapter Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 650g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

Description

The ASJ890002 interface module is an essential component for the Schneider Electric Modicon Quantum automation platform, specifically designed to function as a remote I/O adapter. This module facilitates reliable, deterministic communication between remote I/O drops and the central controller, making it well-suited for demanding industrial environments such as power generation, chemical processing, and mining operations. By enabling distributed network architectures, the ASJ890002 ensures consistent telemetry transmission over long distances, aiding in the prevention of unplanned downtime through robust data link maintenance and rapid fault detection.

Features

Supports dual-channel redundancy to ensure high availability and network fault tolerance.
Integrated transceivers optimized for high-speed token-pass bus networks.
Dedicated internal logic for packet encapsulation, error checking, and efficient address routing.
Front-panel LED indicators for immediate status monitoring of network activity and channel health.
Designed for operation within the standard Modicon Quantum backplane environment.

Applications

This adapter module is typically deployed in large-scale distributed control systems where remote I/O drops must maintain high-speed connectivity with the primary PLC. Common applications include heavy industrial automation, infrastructure management, and large-scale manufacturing processes requiring reliable, long-distance signal transmission.

Technical Specifications

Model	ASJ890002
Brand	Schneider Electric
Network Protocol	Modbus Plus / Remote I/O
Redundancy	Dual Channel (A and B)
Power Requirements	5 VDC, 750 mA (via backplane)
Cable Compatibility	RG-6 Coaxial
Isolation Voltage	500 VDC (Channel-to-Backplane)
Operating Temperature	0 to 60 deg C
Storage Temperature	-40 to 85 deg C

Installation Guidelines

Ensure the system power is completely disconnected before inserting or removing the module from the Quantum backplane.
Verify that the backplane slot is free of debris and pins are aligned correctly to prevent damage during seating.
Use appropriate shielded RG-6 coaxial cabling to maintain signal integrity and minimize EMI interference.
Maintain proper grounding practices for the rack and cable shields to ensure stable communication.
Verify that both Channel A and Channel B are correctly terminated if redundancy is utilized in the network topology.

FAQ

What is the primary function of the ASJ890002 module?

The ASJ890002 acts as a remote I/O adapter for the Modicon Quantum series, allowing the controller to communicate with distributed I/O drops via a Modbus Plus network.

Does this module support redundant network configurations?

Yes, the module is designed with dual-channel support (Channel A and Channel B) to provide redundancy against cable breaks or signal degradation.

What is the power source for this unit?

The module draws its operating power directly from the Modicon Quantum backplane, requiring 5 VDC at 750 mA.
