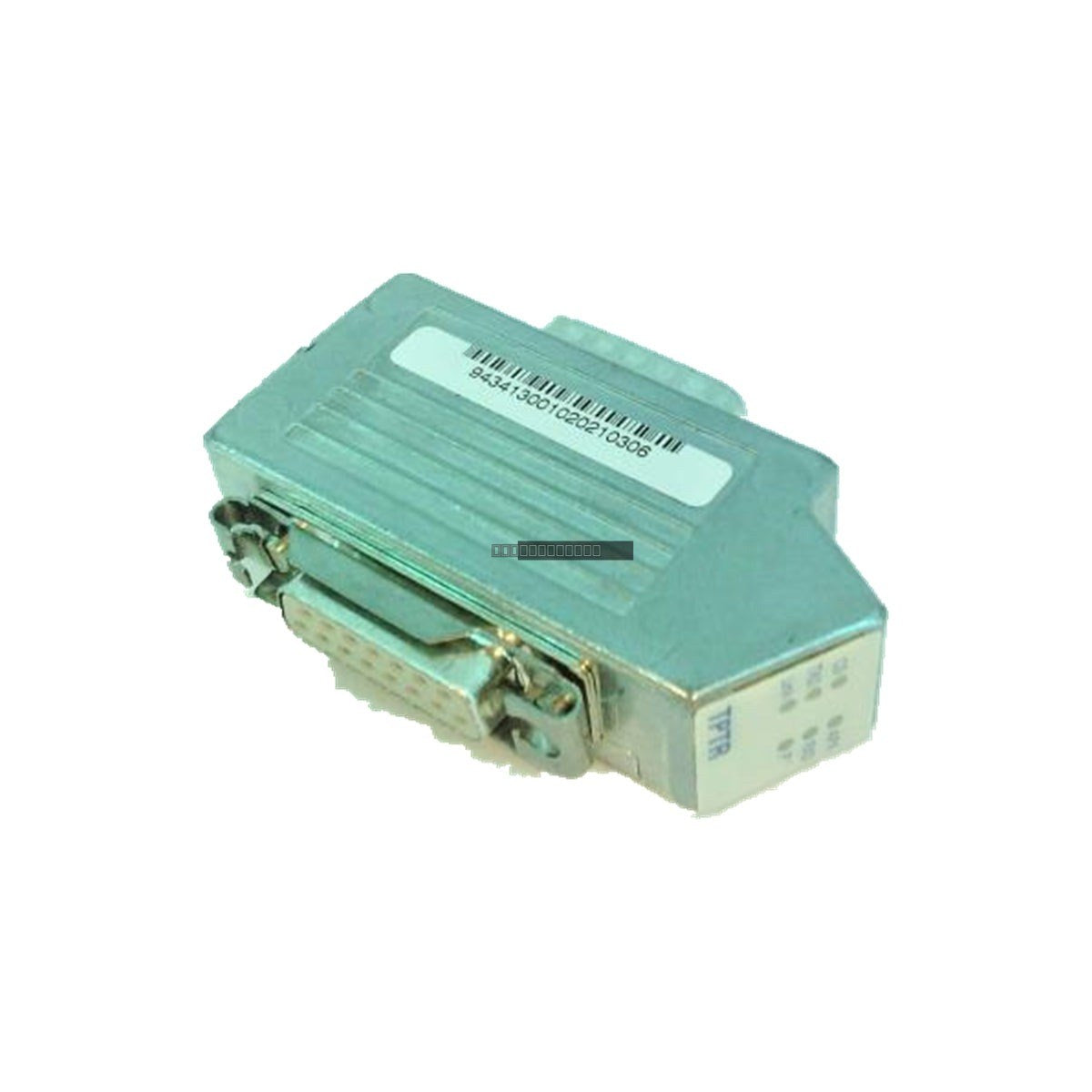

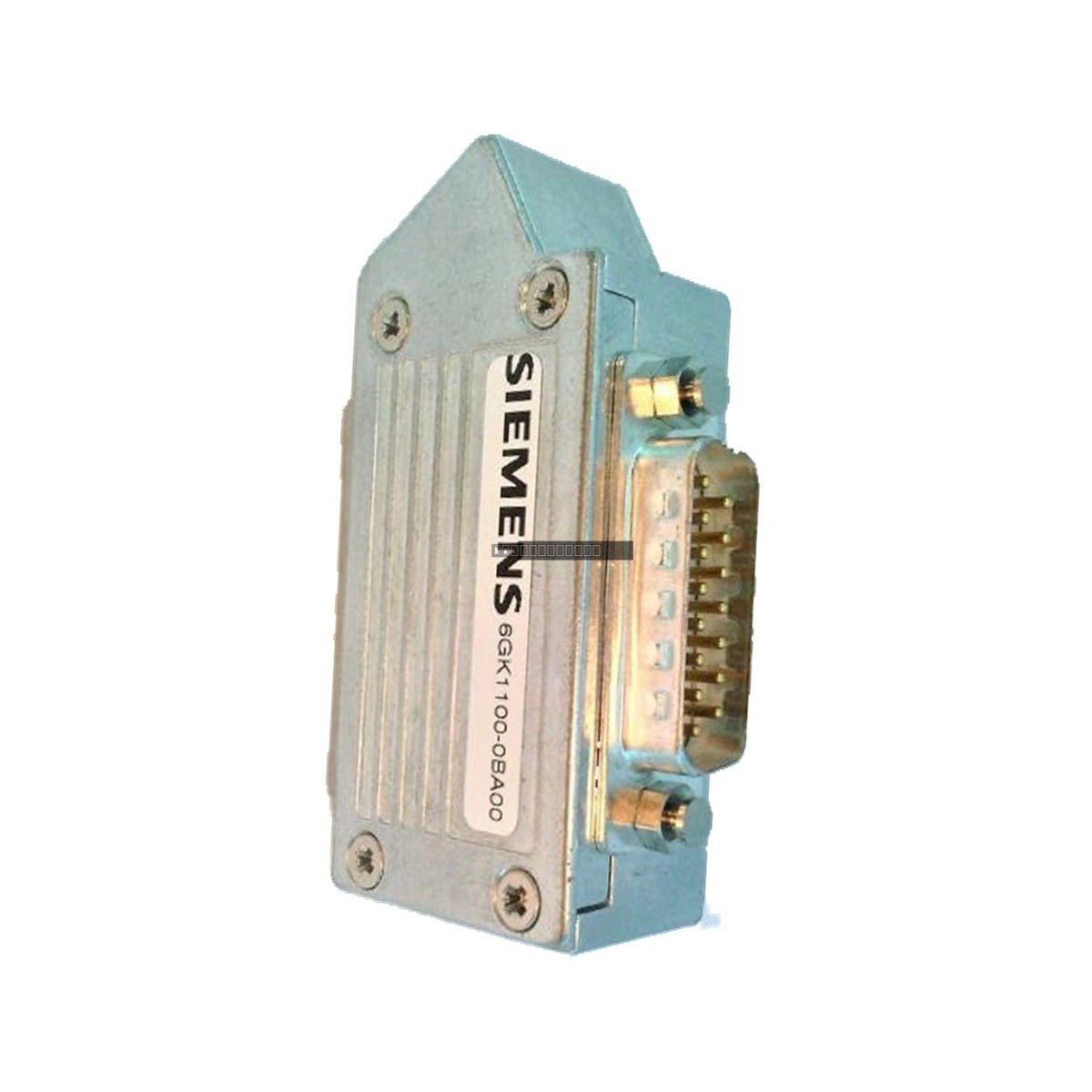

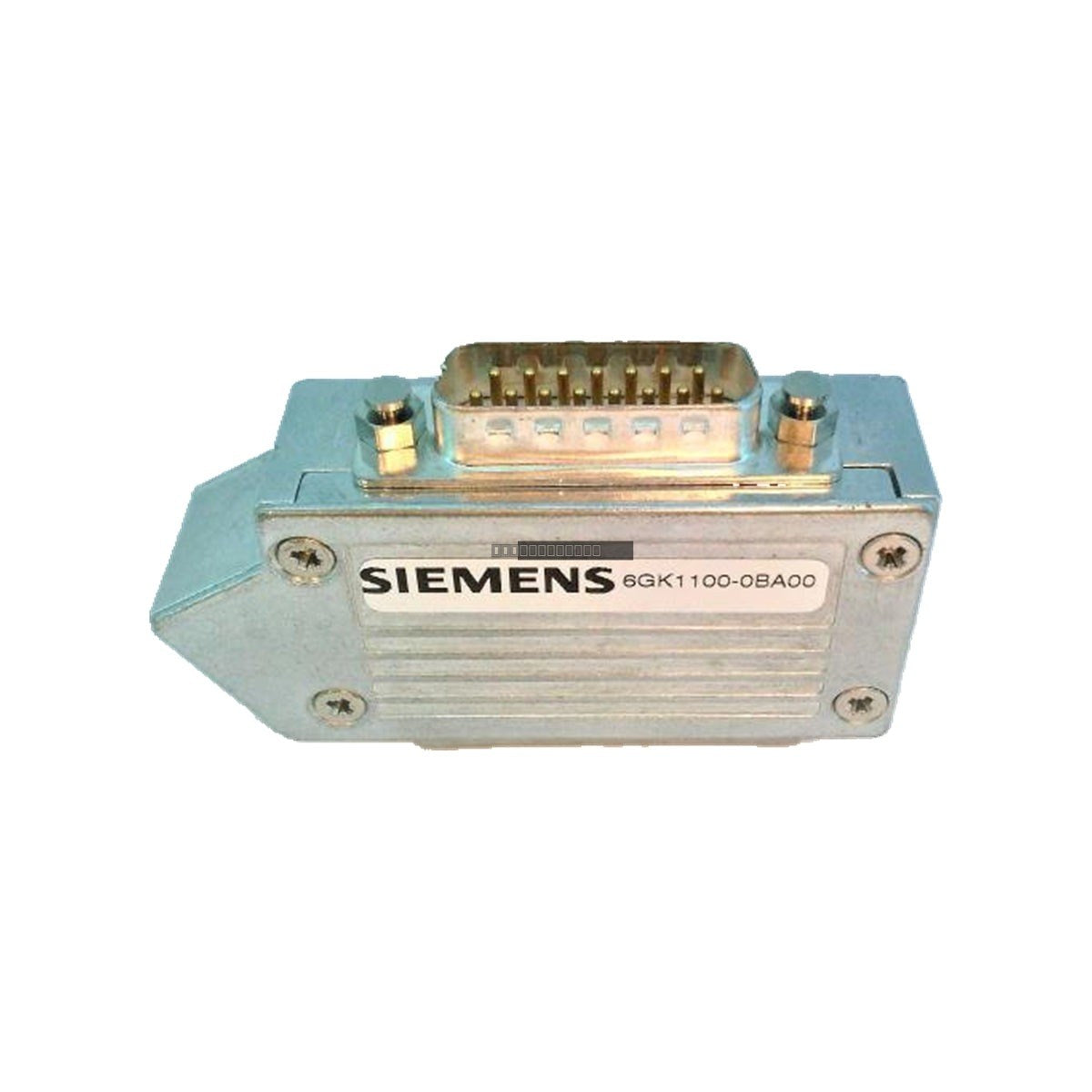

Siemens 6GK1100-0BA00 Simatic Net Transceiver Plug

التوفر: 1 متوفر في المخزون

DescriptionThe Siemens 6GK1100-0BA00 is a dedicated transceiver plug engineered for the Simatic Net product family. This component serves as a...

رمز المنتج: 6GK1100-0BA00

Manufacturer: Siemens
Product No.: 6GK1100-0BA00
Product Type: Transceiver Plug
Product Origin: Germany
Payment:T/T, Western Union
Weight: 90g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

Description

The Siemens 6GK1100-0BA00 is a dedicated transceiver plug engineered for the Simatic Net product family. This component serves as a critical interface element within industrial communication architectures, specifically designed to support robust data exchange in environments utilizing Sub-D network topologies. By providing a stable, low-impedance physical bridge, the unit ensures signal integrity for point-to-point communication links between field devices and central control systems.

Features

Designed for seamless integration with 15-pin Sub-D industrial communication interfaces.
Pass-through design featuring one male and one female 15-pin Sub-D connection for efficient inline routing.
Optimized for legacy LAN topologies requiring transparent, high-reliability signal transmission.
Mechanical design provides resistance against structural strain and vibration common in control cabinet environments.
Passive integration profile requires no external power source, simplifying installation and maintenance.

Applications

The 6GK1100-0BA00 is widely deployed in automated manufacturing environments, logistics automation, and critical infrastructure control systems. It is primarily used to maintain consistent network connectivity in PLC-based control loops, helping to prevent signal attenuation and data packet loss that can lead to system downtime.

Technical Specifications

Model	6GK1100-0BA00
Brand	Siemens
Series	Simatic Net
Interface A	15-Pin Male Sub-D
Interface B	15-Pin Female Sub-D
Operating Temperature	0 to 60 deg C
Power Consumption	Passive

Installation Guidelines

Ensure the system is powered down before installing or removing the transceiver plug to prevent electrical arcing or damage to the communication ports.
Verify that the Sub-D pins are aligned correctly before seating the connector to avoid bending or damaging the interface pins.
Secure the plug firmly to the corresponding port using the integrated mounting screws to ensure vibration resistance and reliable ground contact.
Maintain proper cable management to avoid mechanical stress on the transceiver housing.
Keep the module away from high-voltage power lines or heavy inductive loads to minimize potential electromagnetic interference (EMI) on the communication signal.

FAQ

Is the 6GK1100-0BA00 an active or passive device?
This transceiver plug is a passive interface component; it does not require an external power supply to function.

Can this plug be used in high-vibration environments?
Yes, the unit is constructed for industrial use and features a robust mechanical design to maintain stable electrical contact in standard control enclosures and PLC racks.
