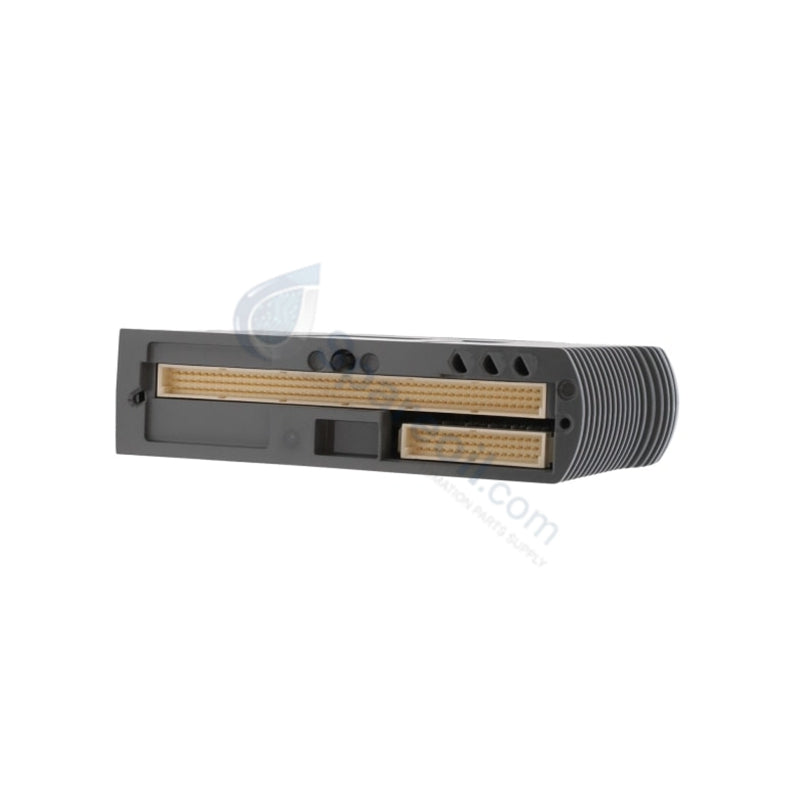

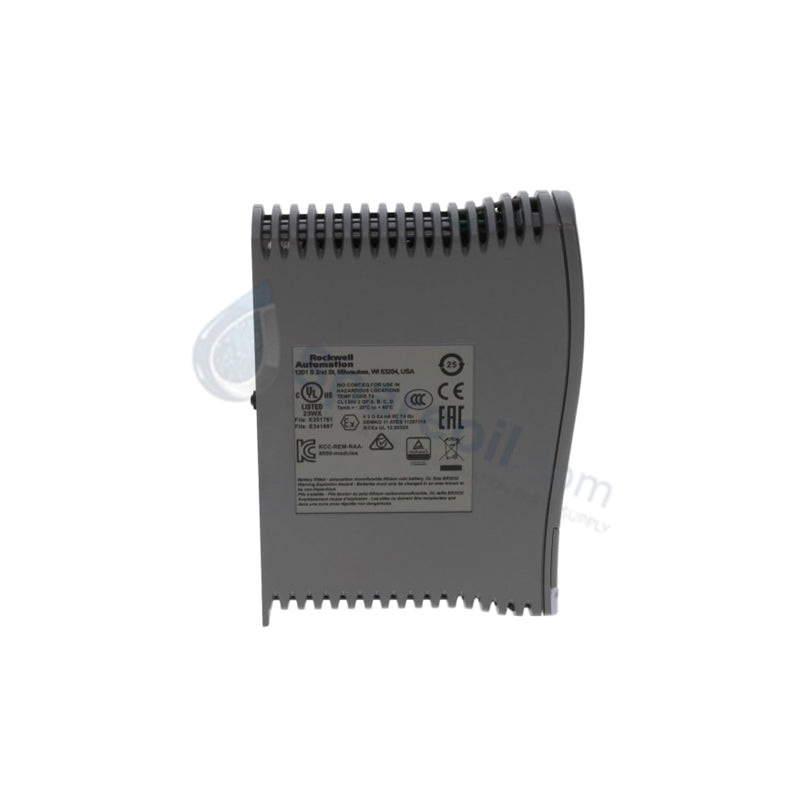

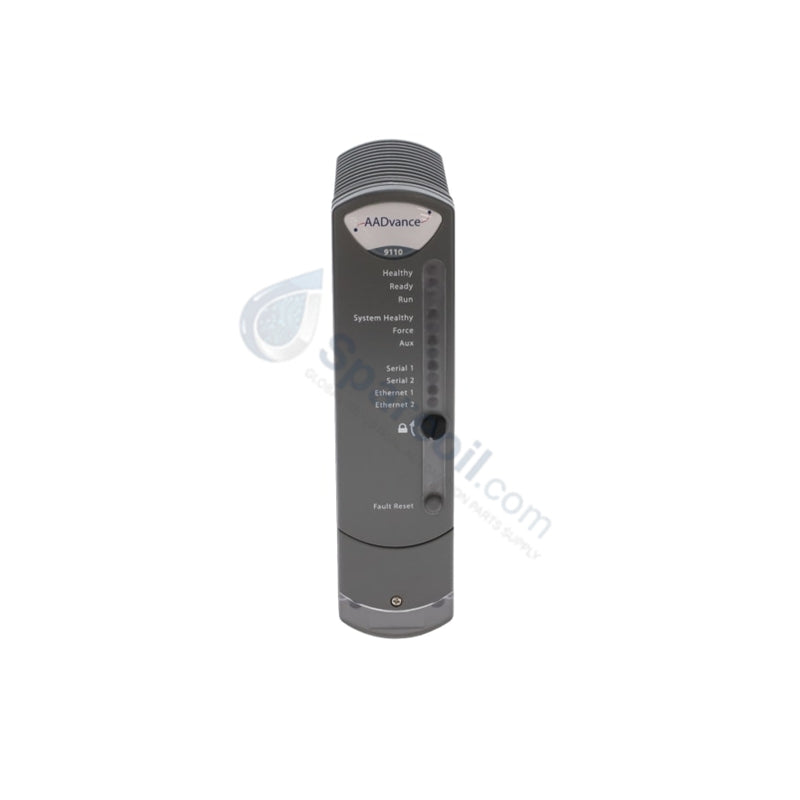

T9110 ICS Triplex Trusted Safety System Processor

التوفر: 20 متوفر في المخزون

ICS Triplex T9110 Processor Module The ICS Triplex T9110, also cataloged as the T9110 Processor Module, serves as the primary...

رمز المنتج: T9110

Manufacturer: Allen Bradley
Product No.: T9110
Product Type: Communication Processor Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 600g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

ICS Triplex T9110 Processor Module

The ICS Triplex T9110, also cataloged as the T9110 Processor Module, serves as the primary T9110 Processor Module utilized to execute safety-critical control and fault-tolerant signal processing across Trusted safety system platforms.

Hardware Specifications

Parameter	Specification
Model	T9110
Brand	ICS Triplex
Origin	United States
Weight	0.6 kg
Dimensions	19.5 cm x 28 cm x 10 cm
Operating Temp	-20 to +70 deg C
Power Consumption	6 W
Processor Architecture	Triple Modular Redundancy (TMR)
Safety Rating	SIL 3 certified

High-Reliability Safety Control and TMR Architecture

The T9110 module utilizes a triple modular redundancy (TMR) 2oo3 architecture to ensure continuous process execution. By running three independent processors in parallel and performing a majority vote on all inputs and outputs, the module identifies and masks single-point hardware faults without system interruption. Galvanic isolation is implemented across the I/O interface to prevent electrical transients from propagating through the safety logic. The internal diagnostic suite continuously executes self-tests and watchdog monitoring to ensure the system maintains a deterministic fail-safe state execution in the event of internal hardware degradation.

Frequently Asked Questions

Q: Does the T9110 support hot-swapping for module replacement?

A: Yes, the T9110 is designed for hot-swapping. The TMR architecture allows for the removal and replacement of a faulted module without interrupting the process control or safety shutdown functions, provided the redundant paths remain operational.

Q: How does the module handle fault detection within the TMR configuration?

A: The processor performs real-time comparison of the data streams from all three processors. If a discrepancy is detected, the module automatically flags the error, performs a majority vote to isolate the faulty stream, and logs the diagnostic event without halting system operation.

Field Installation Guidelines

Ensure the module is seated fully into the chassis slot. Align the guide rails with the backplane connectors to prevent pin misalignment during insertion.
Secure the module using the front-panel locking mechanisms to ensure high-vibration stability.
Verify that the redundant +24 VDC power supplies are correctly terminated at the chassis backplane before powering on the module.
Ensure that the cabinet environment remains within the specified temperature range (-20 deg C to +70 deg C) to prevent thermal drift of the processor clock or flash memory degradation.
Ground the chassis and cable shielding according to standard industrial safety protocols to maintain the integrity of the galvanic isolation barriers.
