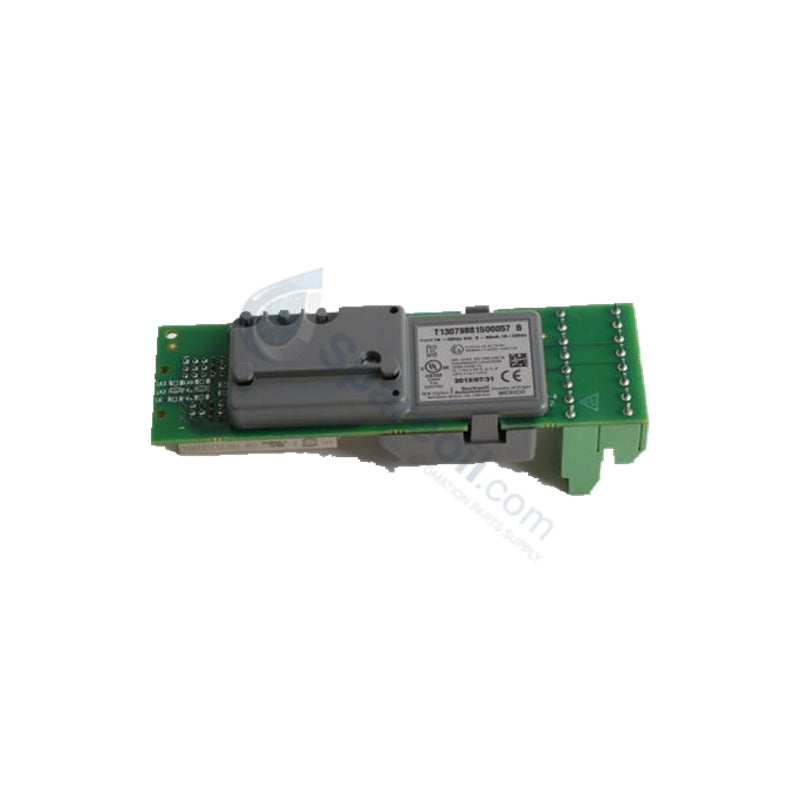

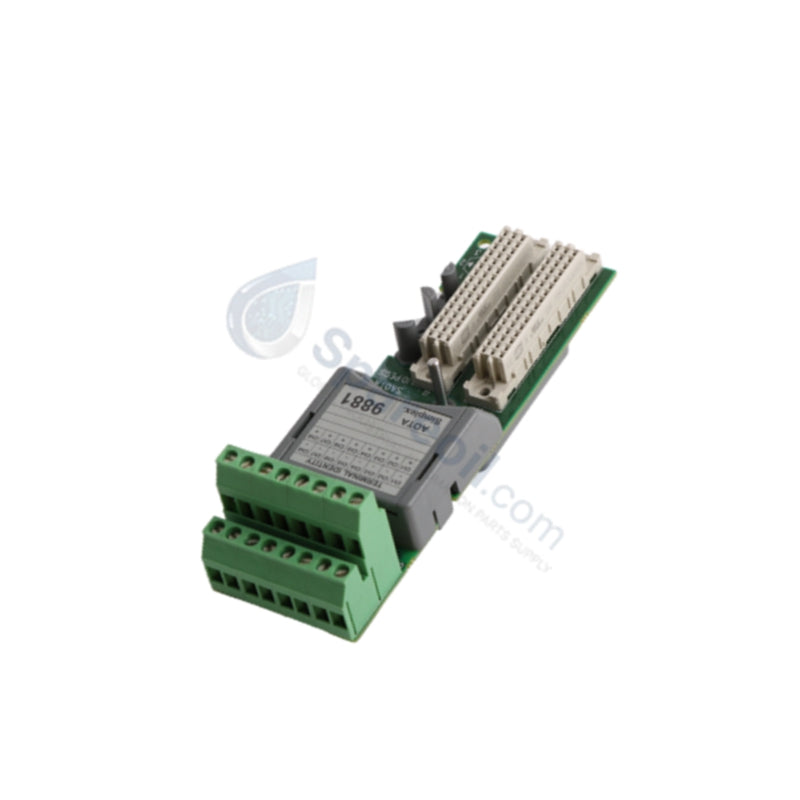

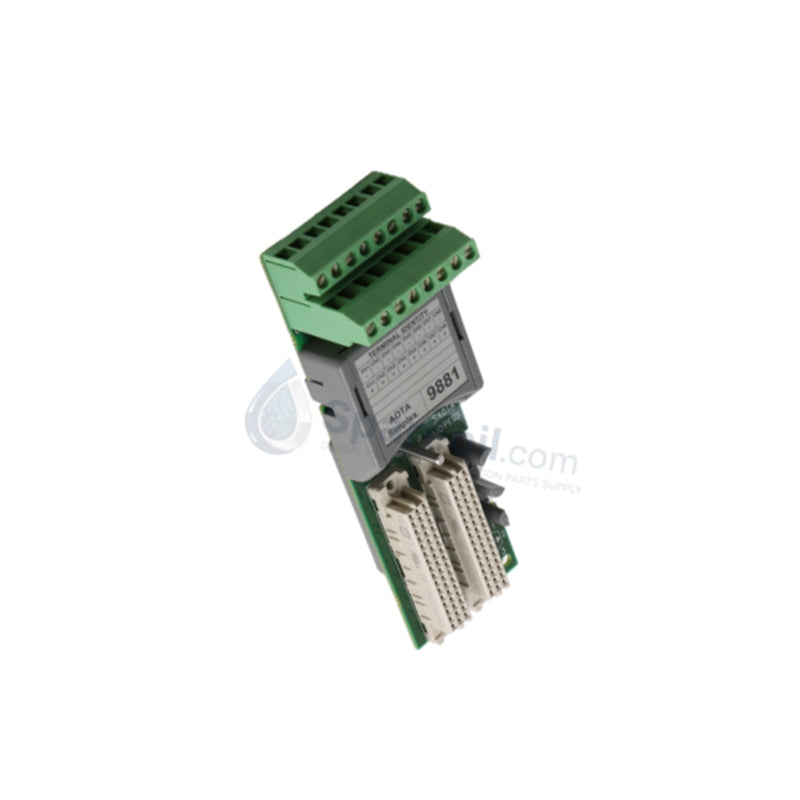

T9881 ICS Triplex TMR Analog Output Module

T9881 ICS Triplex Trusted TMR Analog Output Module

T9881 ICS Triplex Trusted TMR Analog Output Module

التوفر: 20 متوفر في المخزون

ICS Triplex T9881 TMR Analog Output Module Configured for high-integrity analog signal execution in Trusted safety systems, the ICS Triplex...

رمز المنتج: T9881

Manufacturer: ICS Triplex
Product No.: T9881
Product Type: Analog Output Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 900g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

ICS Triplex T9881 TMR Analog Output Module

Configured for high-integrity analog signal execution in Trusted safety systems, the ICS Triplex T9881 (T9881 TMR Analog Output Module) provides direct physical signal processing via a 16-channel isolated interface.

Hardware Specifications

Parameter	Specification
Model	T9881
Brand	ICS Triplex
Origin	Mexico
Weight	0.9 kg
Dimensions	142 x 92 x 54 mm
Operating Temp	-20 deg C to +60 deg C
Power Consumption	6 W
Output Channels	16 isolated analog outputs
Output Resolution	16-bit D/A conversion
Isolation	3000 VAC channel-to-channel

High-Reliability Safety Execution

The T9881 incorporates a triple modular redundancy (TMR) 2oo3 architecture to maintain fail-safe state execution for critical final control elements. By employing three independent output paths per channel with continuous majority-voting logic, the module eliminates single points of failure within the control signal loop. Each channel features galvanic isolation from the system backplane and neighboring channels, preventing ground loops or electrical transients from impacting output accuracy. This design adheres to IEC 61508 SIL 3 certification, ensuring that the module maintains defined output states even during internal subsystem hardware faults or external load-side disruptions.

Frequently Asked Questions (FAQ)

Q: Is the T9881 module hot-swappable during normal system operation?

A: Yes, the T9881 is designed for hot-swappable maintenance. The internal logic handles the transition of control to redundant modules, allowing the physical removal and replacement of the unit without necessitating a shutdown of the host controller or the attached field actuators.

Q: How does the T9881 detect and report a field-side load fault?

A: The module executes continuous diagnostic polling of all output loops. If the module detects an open circuit, short circuit, or a deviation from the commanded output range, it logs a fault condition and updates the front-panel status LEDs to notify system operators via the host processor.

Field Installation Guidelines

Mounting: Ensure the T9881 is correctly seated in the Trusted chassis backplane connector. Fasten the module using the built-in retention screws to secure the unit against vibration and ensure a reliable ground connection.
Wiring: Use shielded twisted-pair cabling for all analog output signal loops. Terminate shields at the chassis ground rail to mitigate electromagnetic interference and ensure the accuracy of the 4–20 mA or 0–10 V signal paths.
Power: Confirm that the dual redundant 24 VDC power source is within the specified operating range of 18–32 VDC before applying power to the module.
Validation: Following installation, utilize the system engineering interface to perform a loop-check, verifying that the configured analog signal output corresponds accurately to the command setpoint before enabling the module for safety-critical service.
