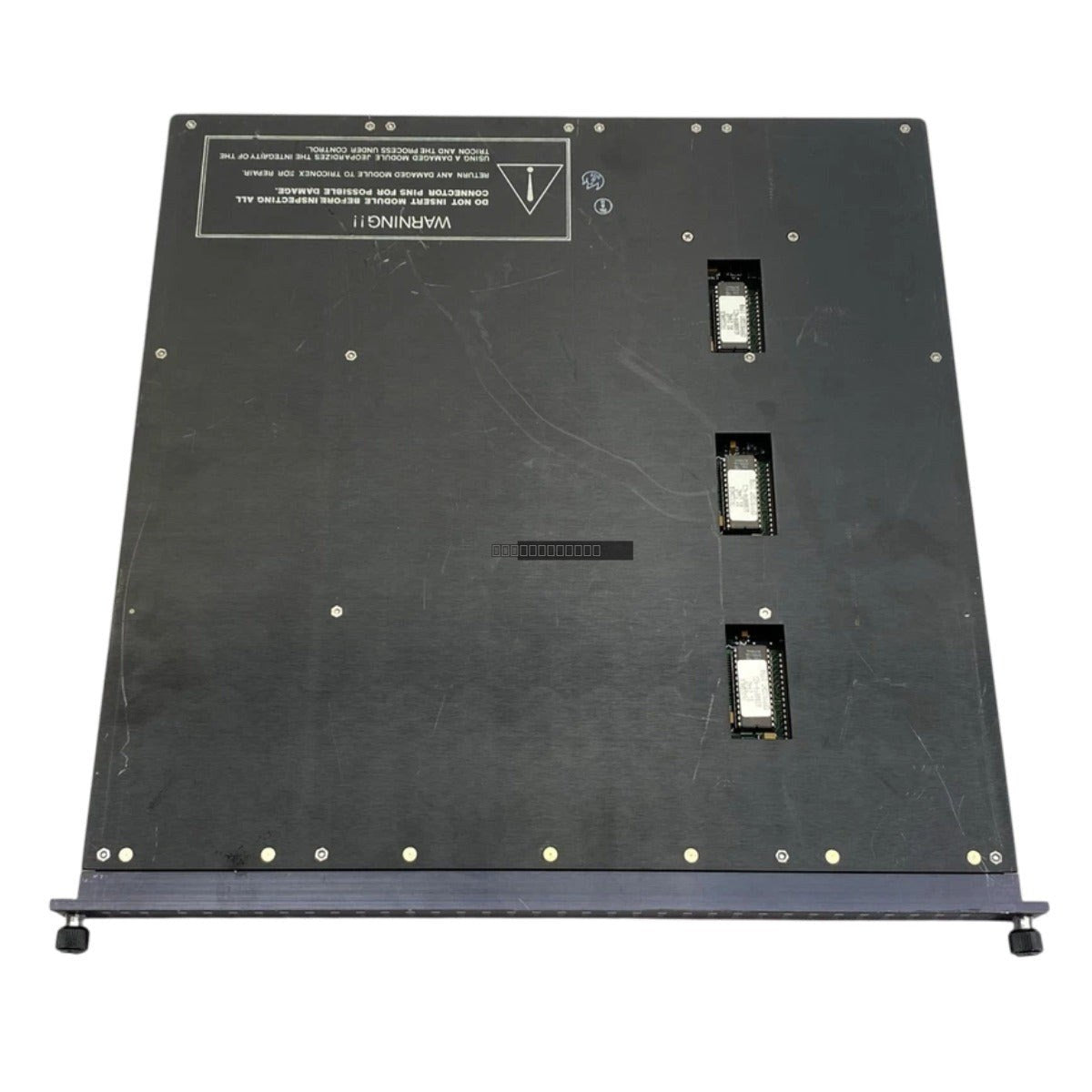

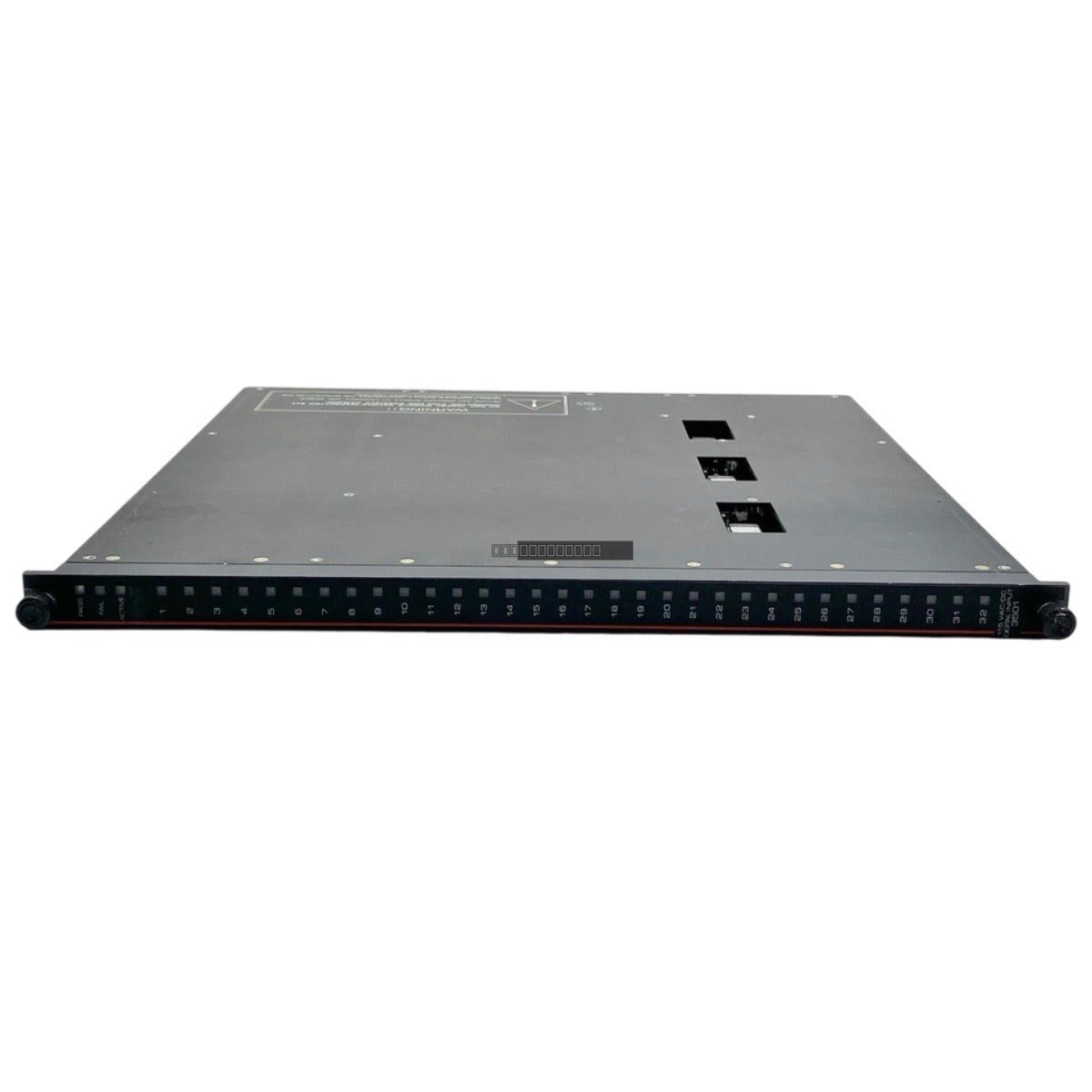

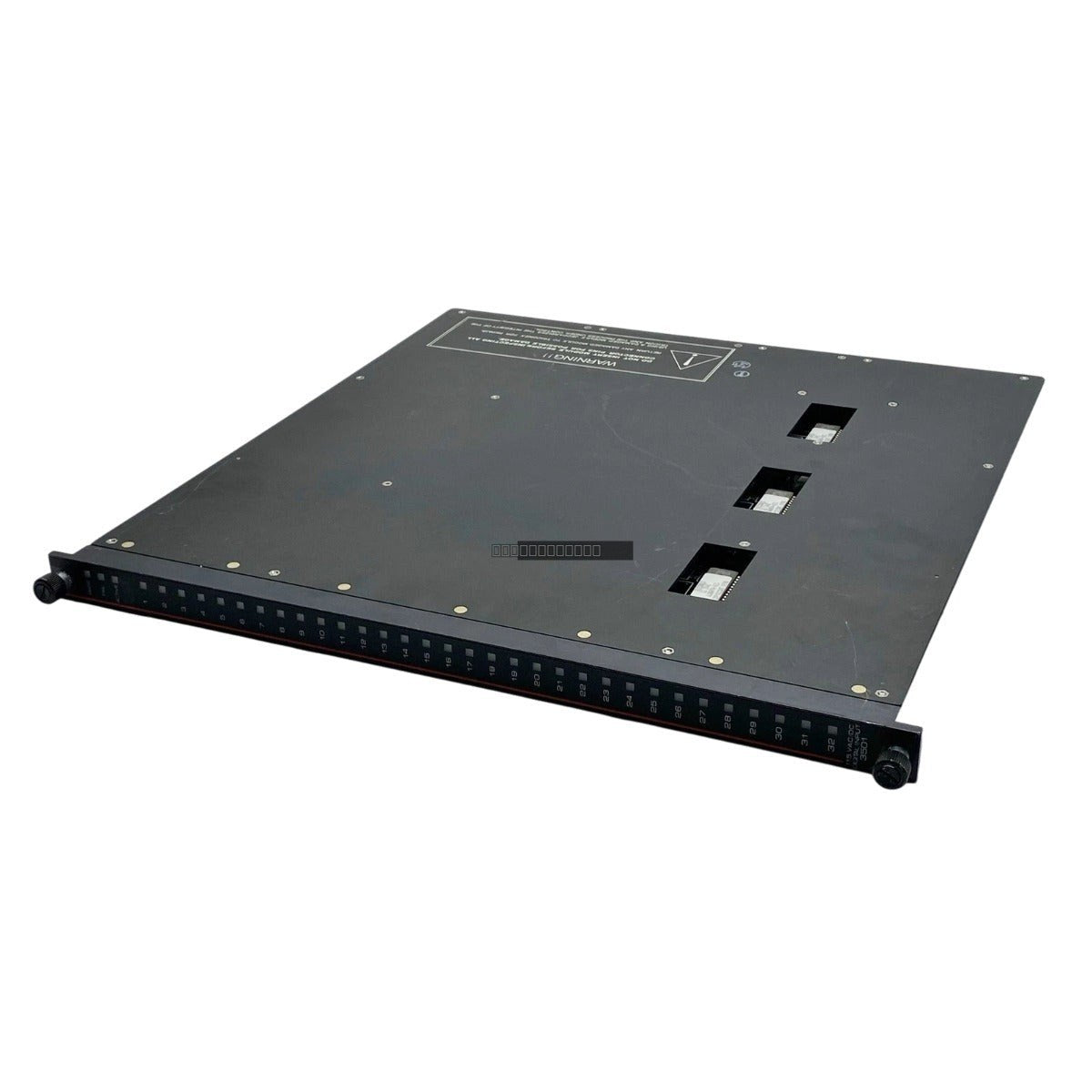

Triconex 3501 Digital Input Module

التوفر: 9 متوفر في المخزون

DescriptionThe Triconex 3501 is a high-density digital input module engineered for integration into Triple Modular Redundancy (TMR) safety systems. Designed...

رمز المنتج: 3501

Manufacturer: Triconex
Product No.: 3501
Product Type: Digital Input Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 2300g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

Description

The Triconex 3501 is a high-density digital input module engineered for integration into Triple Modular Redundancy (TMR) safety systems. Designed for demanding industrial environments such as petrochemical refineries, power generation, and mining, this module provides reliable monitoring of discrete signals from field devices, including safety interlocks, proximity switches, and standard field contacts. Through its integrated TMR architecture and continuous background diagnostics, the 3501 ensures high availability and fault-tolerant performance, effectively mitigating the risk of nuisance trips while providing rapid detection of field signal anomalies.

Features

32-channel isolated digital input capacity for high-density signal monitoring.
Triplicated signal processing paths providing fault-tolerant input validation.
Advanced optocoupler isolation to protect internal logic circuitry from field-side voltage transients.
Hardware-based voting logic for high-integrity safety function execution.
Support for hot-swapping, allowing module replacement during active operations without system downtime.

Applications

The 3501 module is typically deployed in safety-instrumented systems (SIS) requiring high reliability and continuous process monitoring. It is widely utilized for emergency shutdown (ESD) systems, fire and gas detection monitoring, and critical process interlock management.

Technical Specifications

Brand	Invensys Triconex
Model	3501
Signal Channels	32 (Isolated)
Input Voltage	24 VDC nominal
Isolation Rating	1500 V RMS
Power Consumption	8.5 W max
Operating Temperature	0 to 60 deg C

Installation Guidelines

Ensure the system backplane is powered and properly grounded before installing the module.
Handle the module using standard ESD (Electrostatic Discharge) protective measures to prevent damage to internal components.
Verify that the field wiring is correctly terminated according to the system's loop diagrams before applying power.
When performing a hot-swap, ensure the module is fully seated in the chassis to maintain electrical contact with the backplane.
Maintain adequate ventilation within the cabinet to keep ambient temperatures within the specified 0 to 60 deg C range.

FAQ

Is the Triconex 3501 compatible with hot-swapping?

Yes, the 3501 module supports live-insertion, allowing for maintenance and replacement while the system remains powered and operational.

What type of signals does this module accept?

The 3501 is designed for 24 VDC discrete digital inputs, such as field switches, sensors, and safety interlocks.

Does this module require external power?

The module is powered via the system backplane; however, field devices connected to the inputs may require external 24 VDC power depending on the specific loop configuration.
