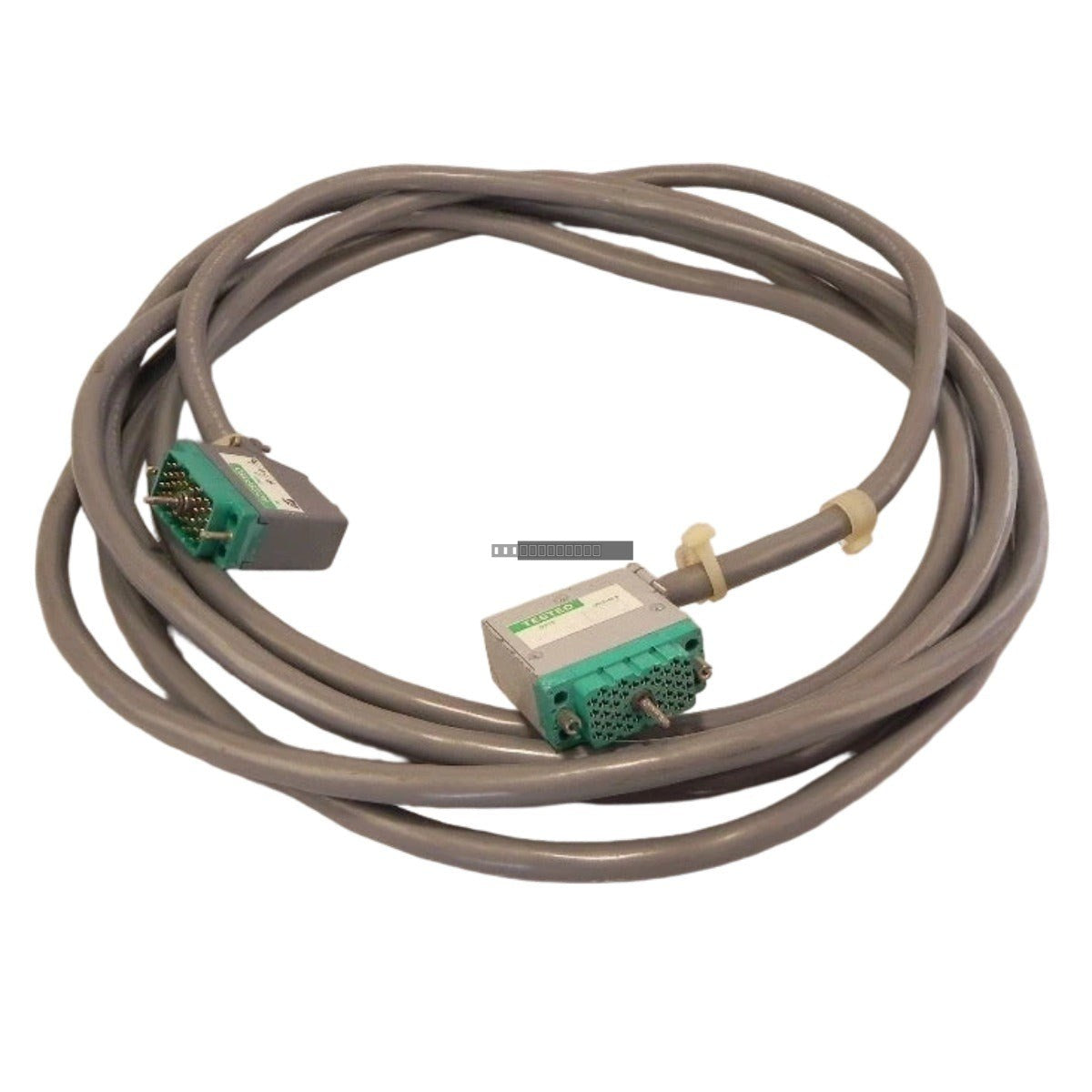

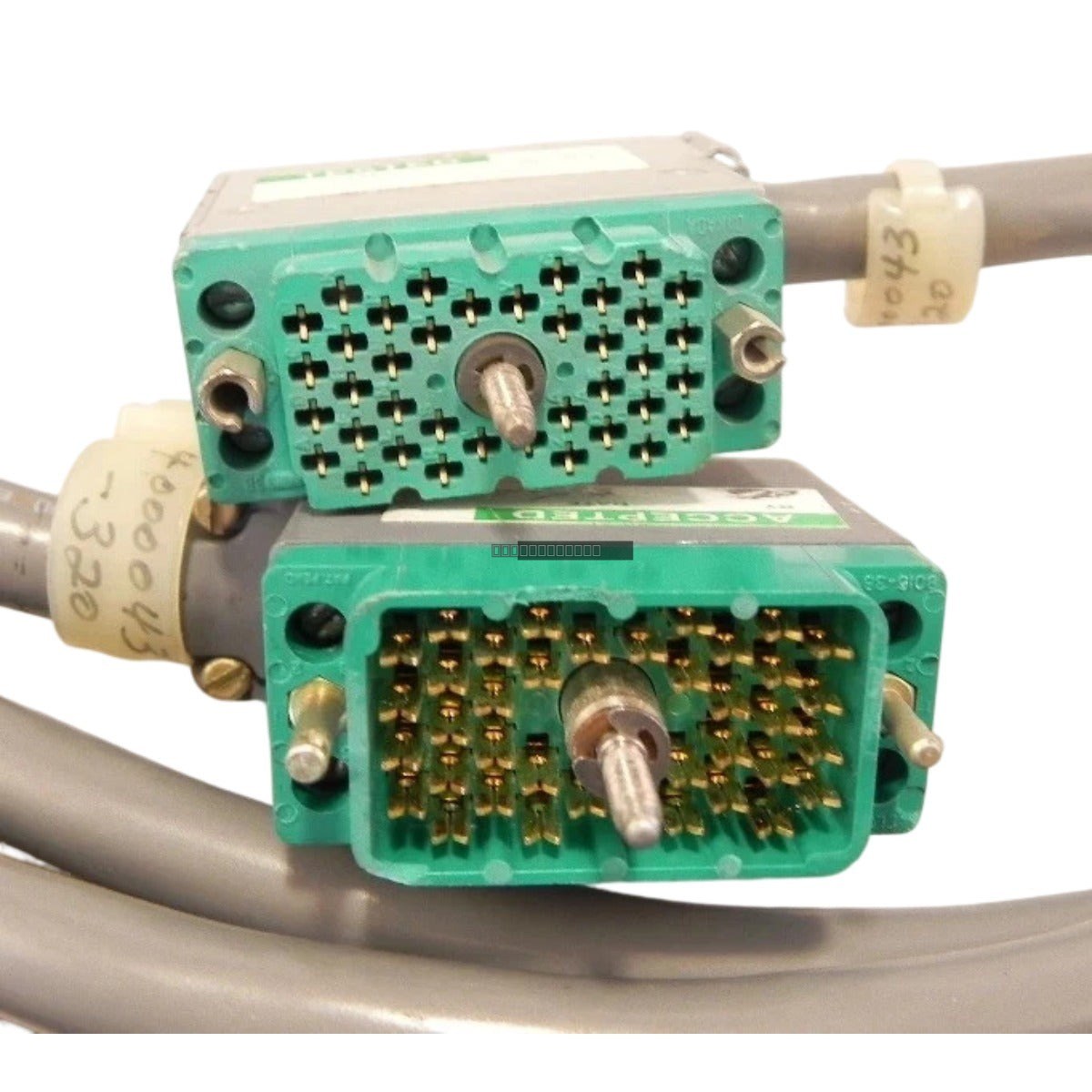

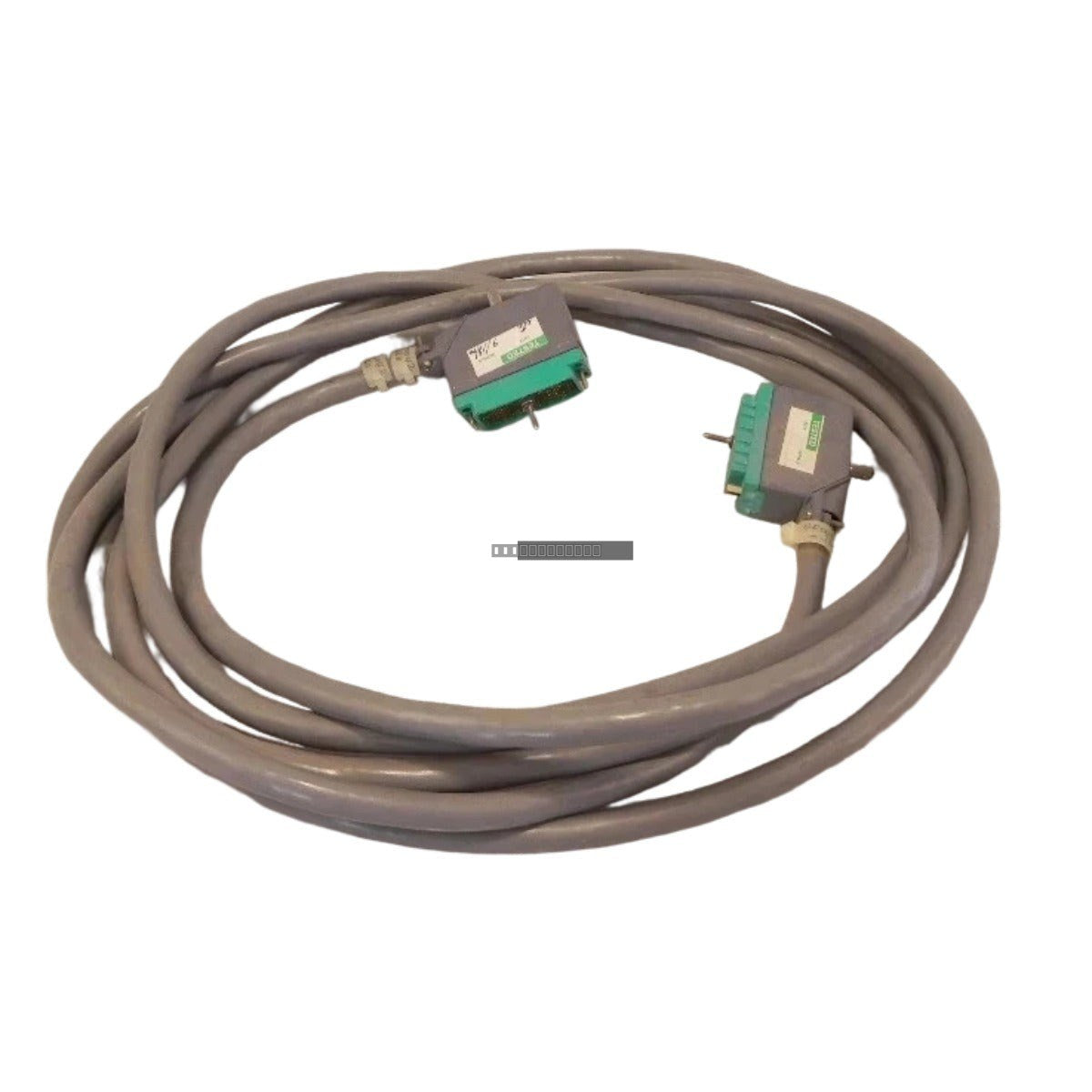

Triconex 4000043-320 Cable Assembly

التوفر: 8 متوفر في المخزون

Product OverviewThe Triconex 4000043-320 is a high-performance cable assembly designed for reliable signal transmission within fault-tolerant safety systems. This industrial-grade...

رمز المنتج: 4000043-320

Manufacturer: Triconex
Product No.: 4000043-320
Product Type: Cable Assembly
Product Origin: USA
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

Product Overview

The Triconex 4000043-320 is a high-performance cable assembly designed for reliable signal transmission within fault-tolerant safety systems. This industrial-grade component facilitates secure connectivity between I/O modules and processor chassis or termination panels, ensuring deterministic data flow in demanding environments such as chemical plants, refineries, and mining facilities. By maintaining high signal fidelity and minimizing data packet loss, this cable assembly is essential for supporting the uptime and integrity of critical safety loops.

Features

Engineered for high-integrity signal transmission in safety-instrumented systems.
Constructed with 18 AWG conductors for robust physical performance.
Features flame-retardant PVC jacketing for enhanced safety in industrial settings.
Optimized for low-capacitance (55 pF/m) to reduce signal distortion.
Controlled nominal impedance of 100 Ohms to mitigate EMI and signal reflection.
Molded connectors designed to prevent accidental disconnection and environmental ingress.

Technical Specifications

Model	4000043-320
Wire Gauge	18 AWG
Voltage Rating	1000 V
Max Current	4 A
Impedance	100 Ohms
Capacitance	55 pF/m
Resistance	0.1 Ohms
Operating Temperature	-45 to +85 deg C
Jacket Material	Flame Retardant PVC

Installation Guidelines

Ensure the cable path is clear of high-voltage conduits to prevent induced EMI.
Verify that connector latches are fully engaged to maintain environmental seals.
Avoid sharp bends or tight radii that exceed the cable's mechanical stress limits.
Perform all installation and maintenance activities while the associated system power is de-energized.
Use appropriate cable management (e.g., cable ties or trays) to prevent strain on the termination points.

FAQ

What is the primary application for the 4000043-320? This cable is intended for use within Triconex fault-tolerant safety systems to connect I/O modules to main processing or termination equipment.

Does this cable require external power? No, this is a passive interconnect component and does not consume power itself; it is designed for signal transmission.

Can this cable be used in outdoor environments? It is designed for industrial facility use; ensure it is protected from direct UV exposure and extreme weather if installed outside of a controlled enclosure.
