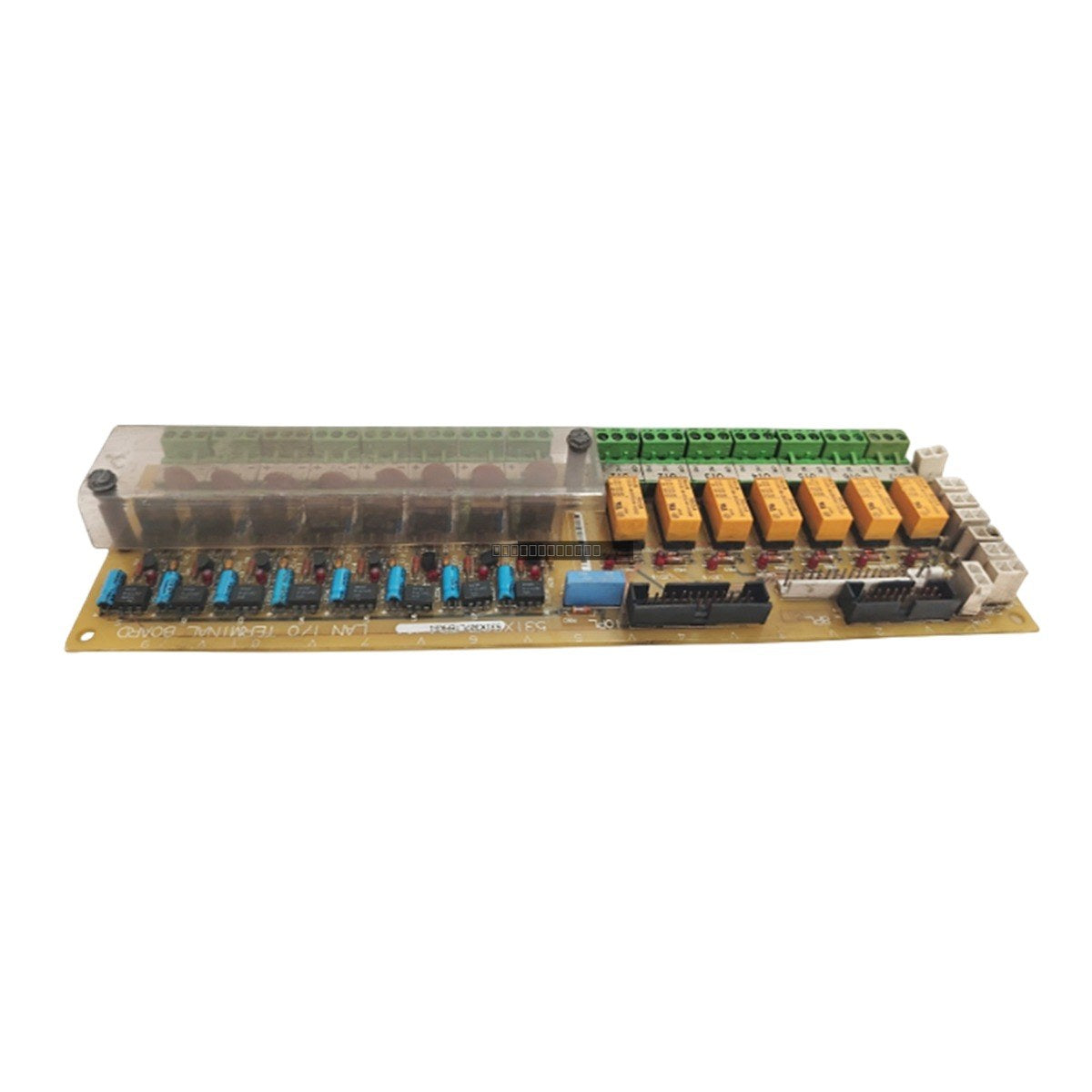

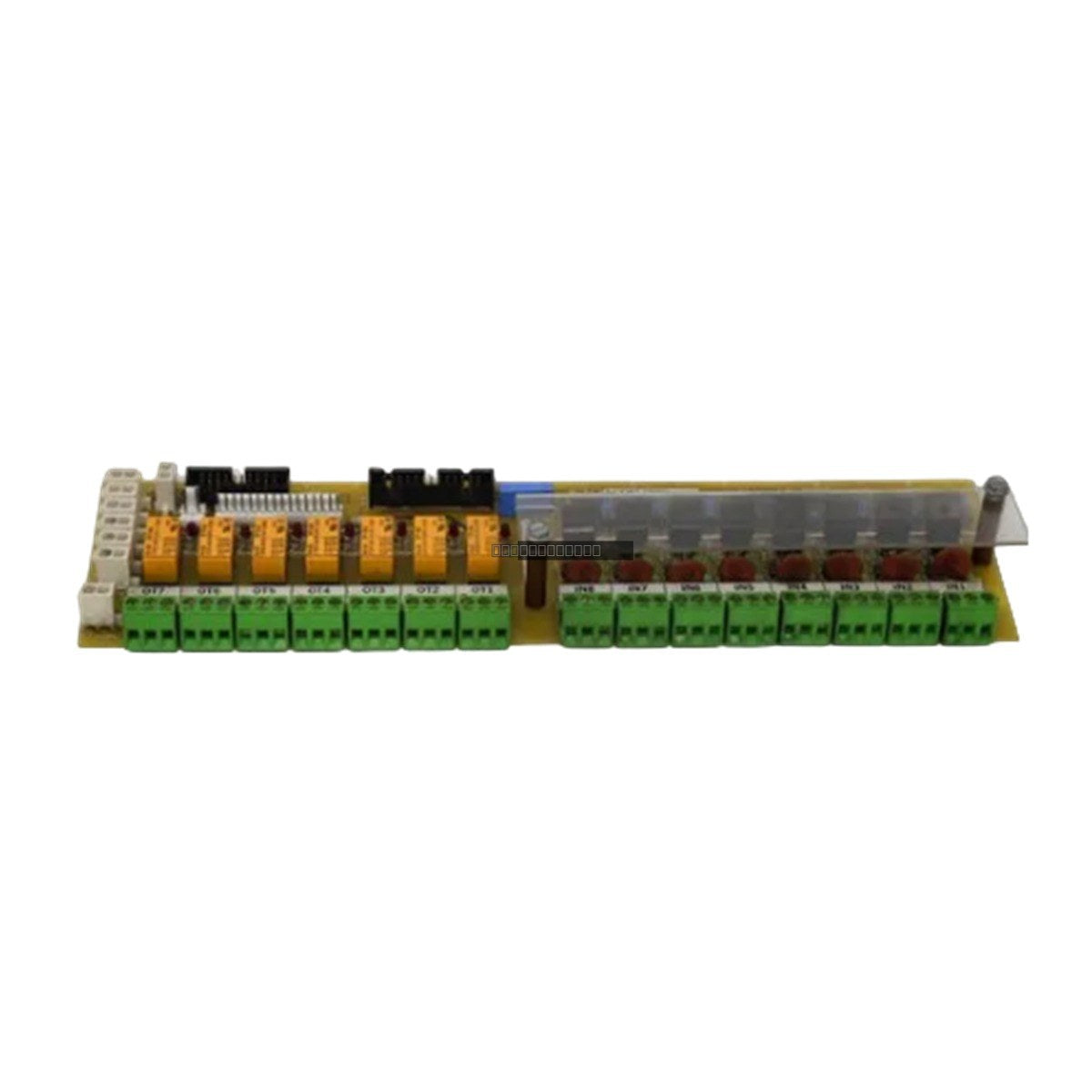

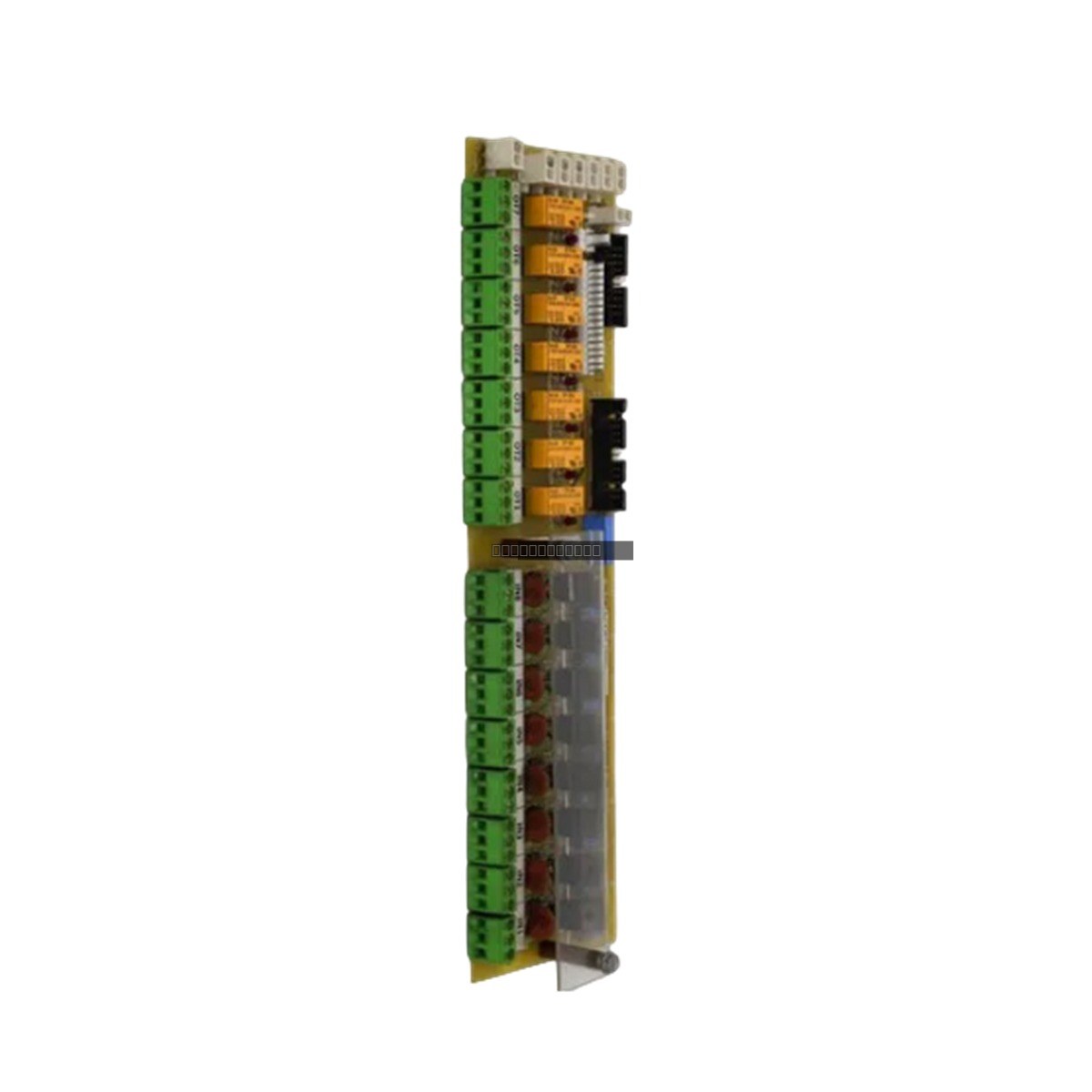

GE Fanuc 531X307LTBAKG1 LAN Terminal Board

التوفر: 3 متوفر في المخزون

The GE Fanuc 531X307LTBAKG1 is a LAN terminal board specifically designed for the 531X series of drives and exciters. This...

رمز المنتج: 531X307LTBAKG1

Manufacturer: GE FANUC
Product No.: 531X307LTBAKG1
Product Type: LAN Terminal Board
Product Origin: USA
Payment:T/T, Western Union
Weight: 650g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

The GE Fanuc 531X307LTBAKG1 is a LAN terminal board specifically designed for the 531X series of drives and exciters. This component acts as a critical interface bridge, connecting the primary drive control system to peripheral field equipment such as interlocks, indicator lamps, and contactors. Engineered for demanding industrial settings, including power generation and metal processing, this board ensures reliable signal translation and distribution, supporting stable system operation and reduced downtime.

Features

Provides eight configurable control input plugs capable of processing a wide range of AC or DC voltages between 2 V and 240 V.
Internal signal conversion to 24 VDC logic for compatibility with the drive control board and NTB terminal.
Equipped with seven Form C relay contact connectors, supporting both normally-open and normally-closed wiring configurations.
Designed for high-reliability communication between field devices and the internal control system.

Applications

This terminal board is typically utilized in heavy industrial drive and excitation control systems. It is essential for managing external signaling and control logic in environments where diverse field voltages must be integrated into a unified 24 VDC logic architecture.

Technical Specifications

Model	531X307LTBAKG1
Brand	GE Fanuc
Series	531X
Input Channels	8 Configurable Plugs
Input Voltage Range	2 V to 240 V (AC/DC)
Output Channels	7 Form C Relay Contacts
Operating Temperature	0 to 60 deg C

Installation Guidelines

Ensure the drive control system is fully powered down before installing or removing the terminal board to prevent electrical damage.
Handle the board using standard ESD (Electrostatic Discharge) safety practices to protect sensitive internal logic components.
Verify that all field wiring is properly secured in the provided terminal plugs and that voltage levels do not exceed the specified 240 V maximum.
Route signal cables away from high-EMI sources and power lines to maintain signal integrity.
Confirm proper seating within the rack or mounting assembly before restoring power to the system.

FAQ

What is the primary function of the 531X307LTBAKG1?
It serves as an interface between external field devices and the drive control system, converting various field voltages into standardized 24 VDC logic signals.

Can this board handle both AC and DC inputs?
Yes, the eight input channels are designed to accept either AC or DC voltages within the 2 V to 240 V range.
