Description

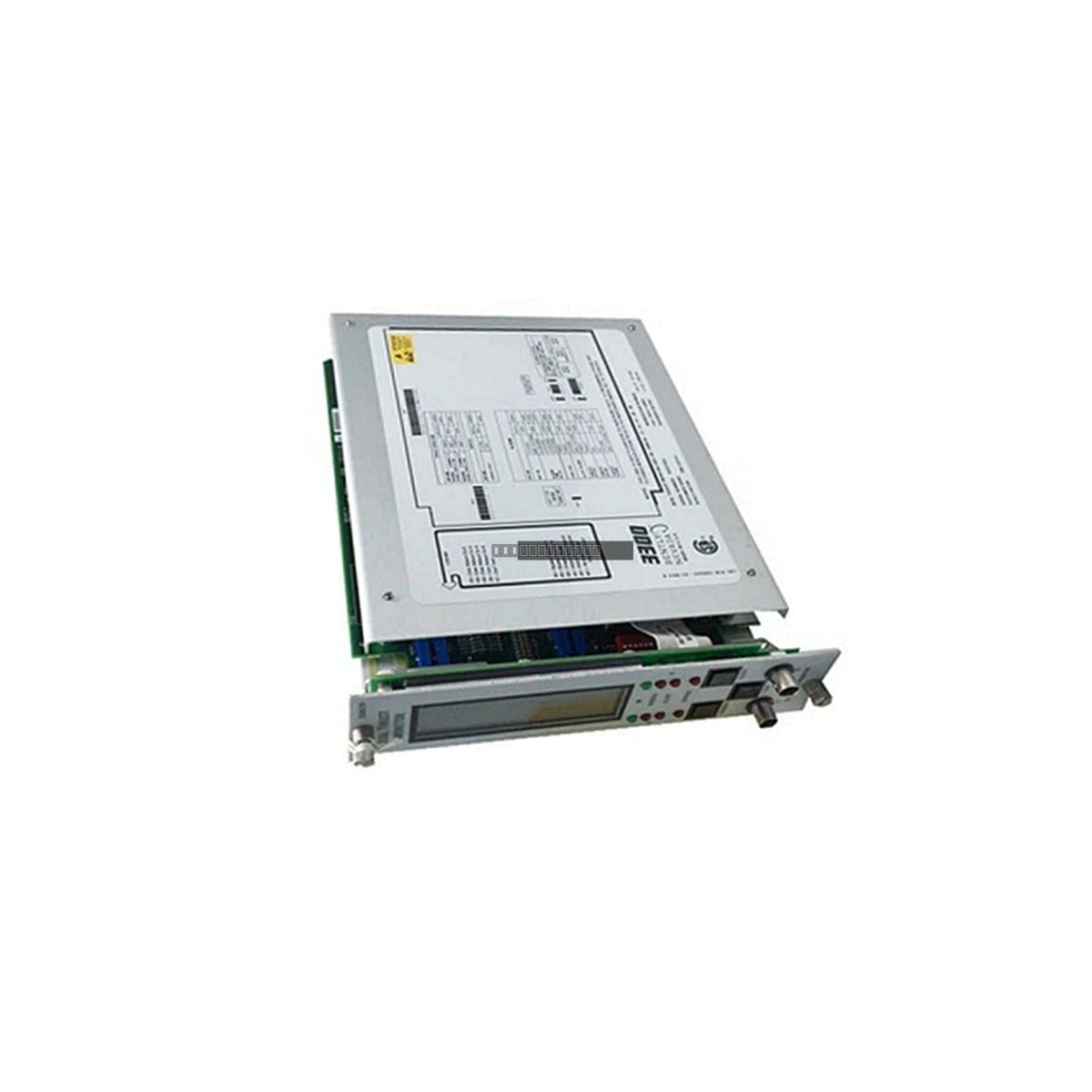

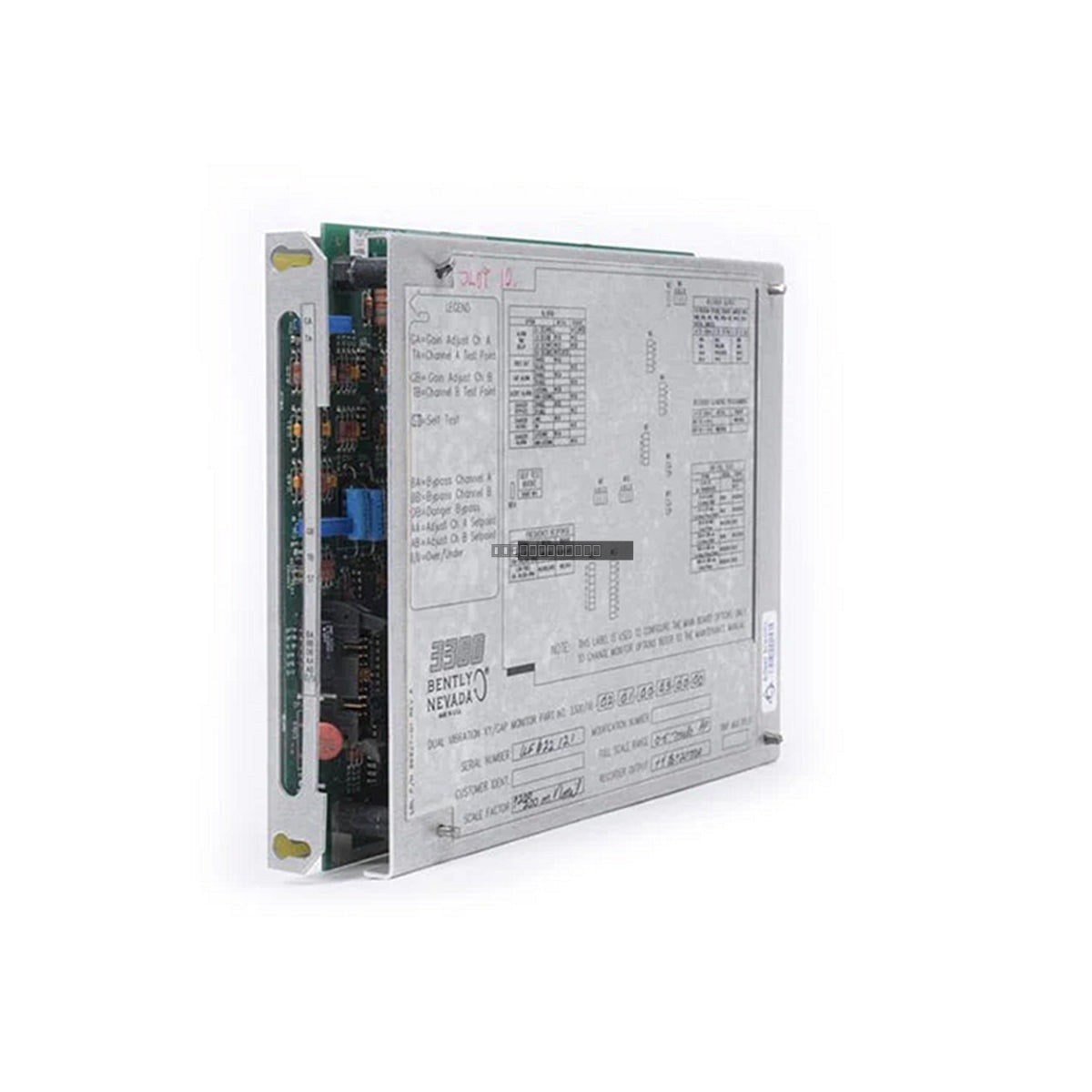

The Bently Nevada 3300/55-01-04-12-12-00-00-05-01 is a dual-channel velocity monitor module engineered for the 3300 Series rack-based monitoring system. This module is specifically designed to process signals from Velomitor piezo-velocity sensors to measure casing vibration velocity. It serves as a critical component for machinery protection, providing continuous monitoring and alarm logic to safeguard rotating equipment such as turbines, compressors, motors, and pumps.
Features
- Dual-channel architecture providing independent monitoring for two vibration inputs.
- Compatible with Velomitor piezo-velocity sensor interfaces.
- Integrated alarm logic with dedicated Alert and Danger setpoints.

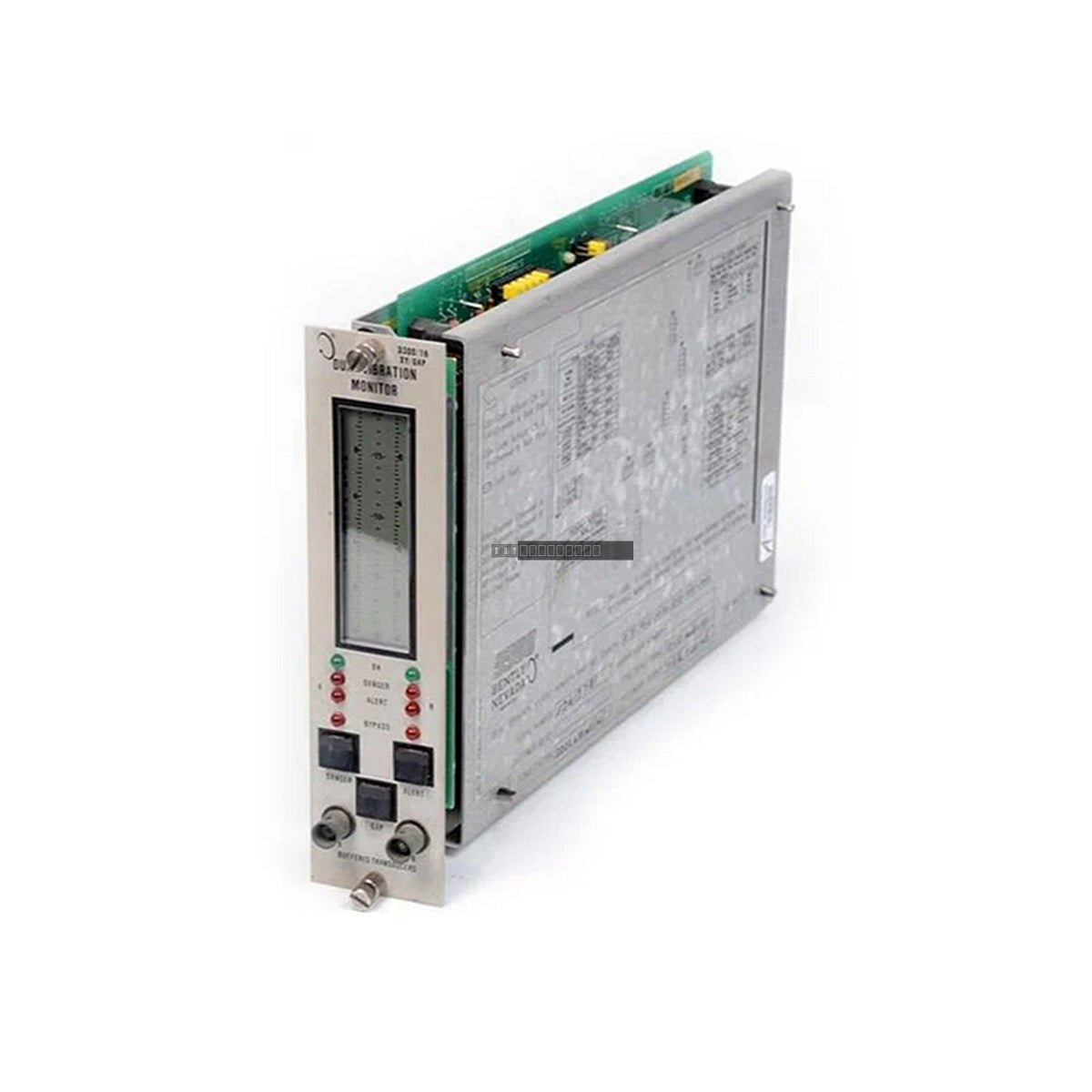

- Front-panel LED indicators for system status, including OK, Bypass, Alert, and Danger states.
- Proportional 4–20 mA output signals for integration with external control systems (DCS/PLC).
- Dynamic signal output capability for diagnostic analysis.
Applications
This module is widely utilized in industrial environments requiring rigorous casing vibration monitoring. It is essential for the protection of high-speed rotating machinery, ensuring early detection of vibration anomalies that could lead to equipment failure.
Technical Specifications
| Model | 3300/55-01-04-12-12-00-00-05-01 |
| Brand | Bently Nevada |
| Series | 3300 |
| Inputs | 2 x Velomitor piezo-velocity sensor channels |
| Outputs | 4-20 mA proportional, Dynamic signal, Relay outputs |
| Operating Temperature | 0 degC to 60 degC |
| Power Consumption | Approx. 1.5 W |
Installation Guidelines
- Ensure the 3300 Series rack is de-energized before inserting or removing the monitor module to prevent electrical damage.
- Handle the module using proper ESD-safe practices to protect sensitive internal circuitry.
- Verify that the slot position in the rack matches the system configuration requirements.
- Ensure all field wiring for the Velomitor sensors is shielded and properly grounded to prevent EMI interference.
- Confirm that the module is fully seated and the front-panel locking mechanism is engaged after installation.
FAQ
Does this module support intrinsic safety barriers?
No, this specific configuration (00 for the barrier option) does not include internal intrinsic safety barriers. Please ensure your system design accounts for external safety requirements if operating in hazardous zones.
What does the 3300/55-01-04-12-12-00-00-05-01 order code represent?
The code defines the hardware configuration, including channel count, agency approvals, sensor input scaling, relay logic, and output calibration settings specific to this unit's factory setup.
