Description

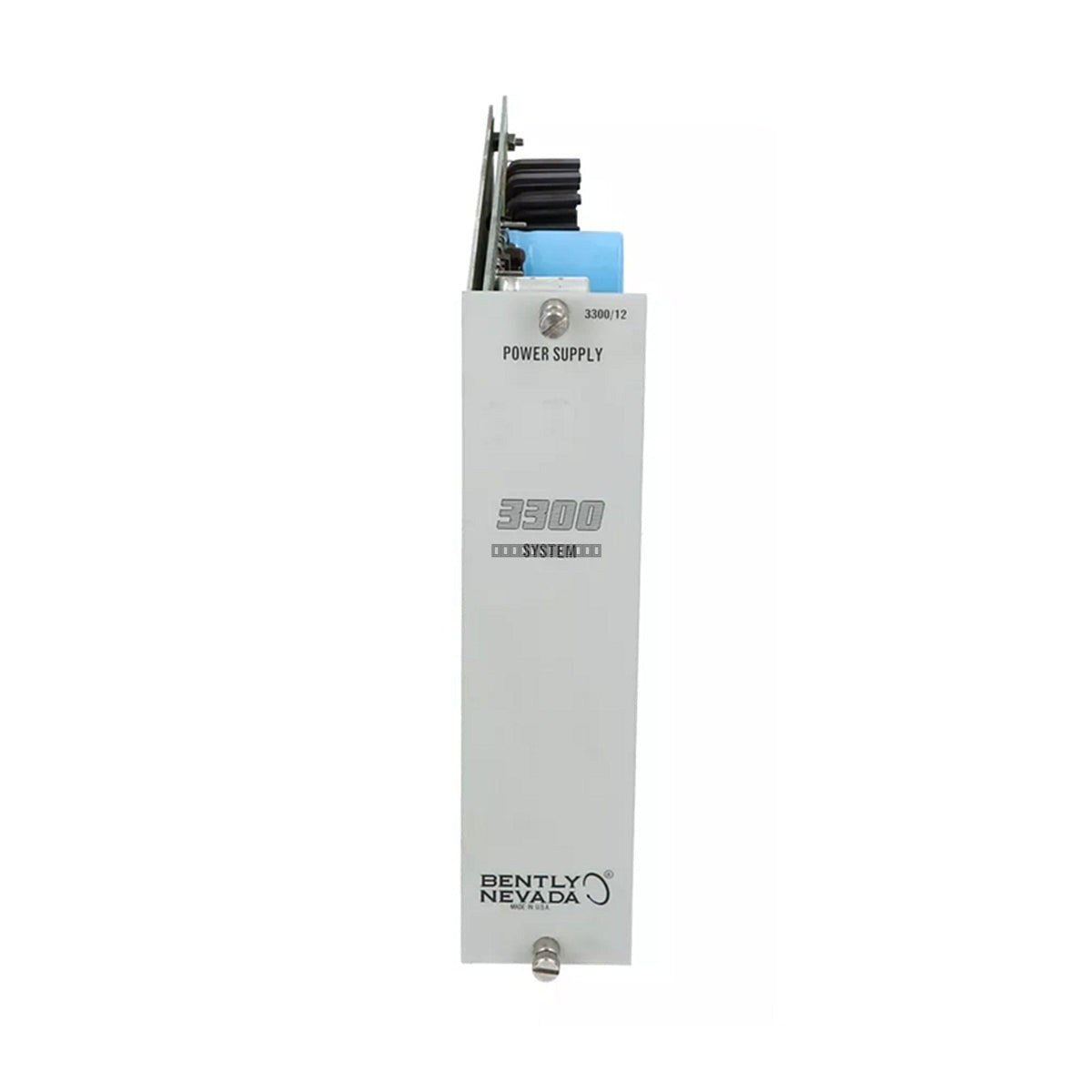

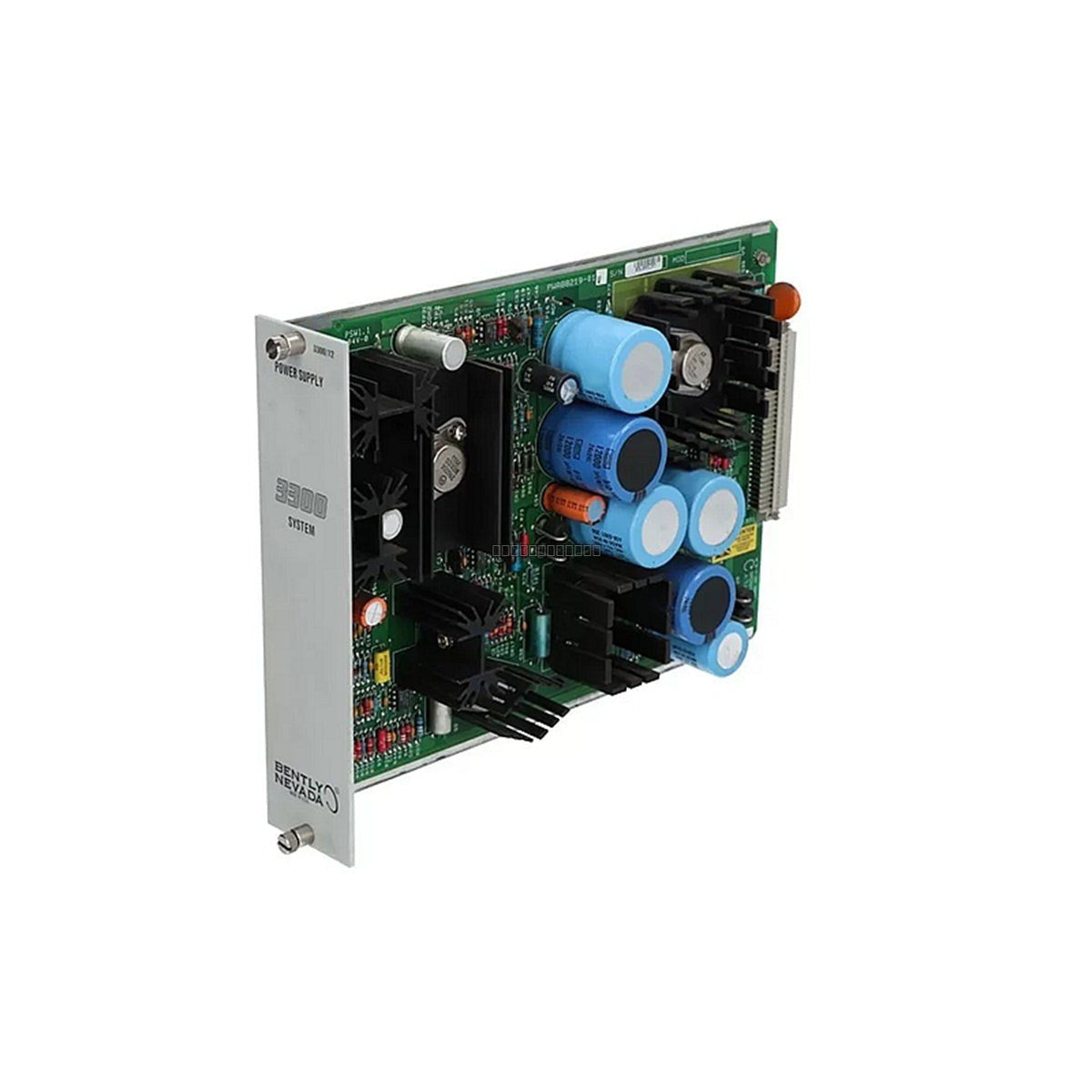

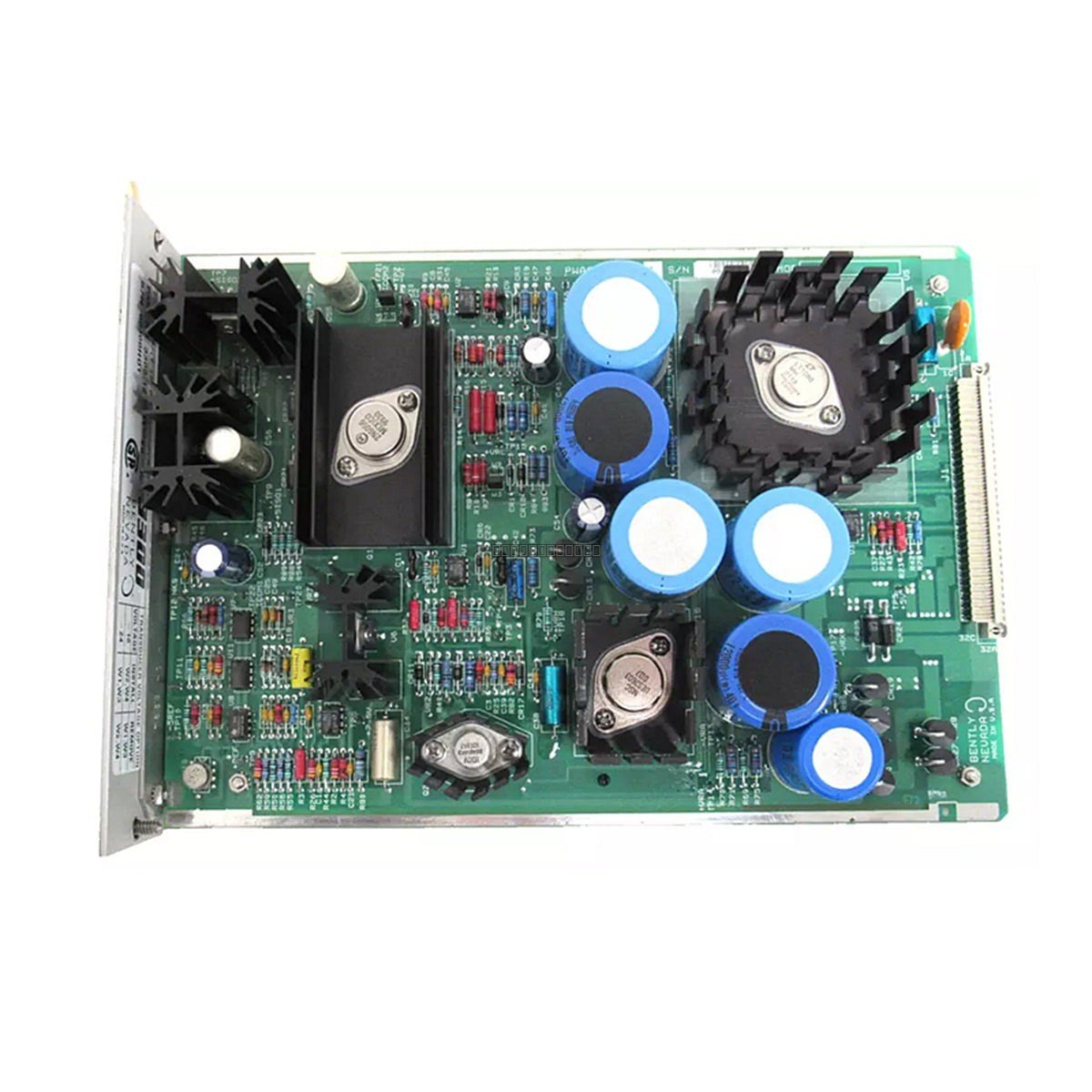

The Bently Nevada 3300/12-01-20-00 is a dedicated rack-mounted Power Supply Module engineered to provide stable, regulated DC power to the 3300 Series machinery monitoring system. By ensuring consistent voltage distribution, this module supports the reliable operation of critical monitoring components, including vibration, thrust, eccentricity, expansion, tachometer, and temperature sensors. This specific configuration is designed for high-voltage AC input applications.
Features
- Provides regulated DC output to all modules installed within the 3300 rack system.
- Includes integrated rack-wide OK status monitoring to ensure system health.
- Supports continuous operation for machinery protection monitoring.
- Designed for high-voltage AC input (220/240 VAC).
- Standard industrial barrier configuration for system compatibility.
Technical Specifications
| Model | 3300/12-01-20-00 |
| Brand | Bently Nevada |
| Series | 3300 |
| Product Type | Power Supply Module |
| Input Voltage | 220/240 VAC |
| Power Capacity | Approximately 150 W total rack capacity |
| Operating Temperature | 0 to 60 degC |
Installation Guidelines
- Ensure the 3300 rack is powered down before inserting or removing the power supply module.
- Verify that the input voltage matches the module configuration (220/240 VAC) prior to applying power.
- Confirm the module is fully seated in the rack backplane to ensure proper electrical contact.
- Maintain adequate ventilation around the 3300 rack to ensure operation within the 0 to 60 degC temperature range.
- Handle with standard ESD precautions to prevent damage to sensitive internal circuitry.
FAQ
What is the primary function of the 3300/12 module?
The 3300/12 serves as the primary power source for the 3300 monitoring system, converting AC input into the regulated DC power required by all installed monitoring modules.
What does the 20 suffix indicate in the model number?
The 20 suffix designates that this specific unit is configured for high-voltage AC input (220/240 VAC) operations.
Does this module provide status feedback?
Yes, the module includes an OK relay output to signal the power status of the rack, allowing for integration with system-wide diagnostic and alarm monitoring.
