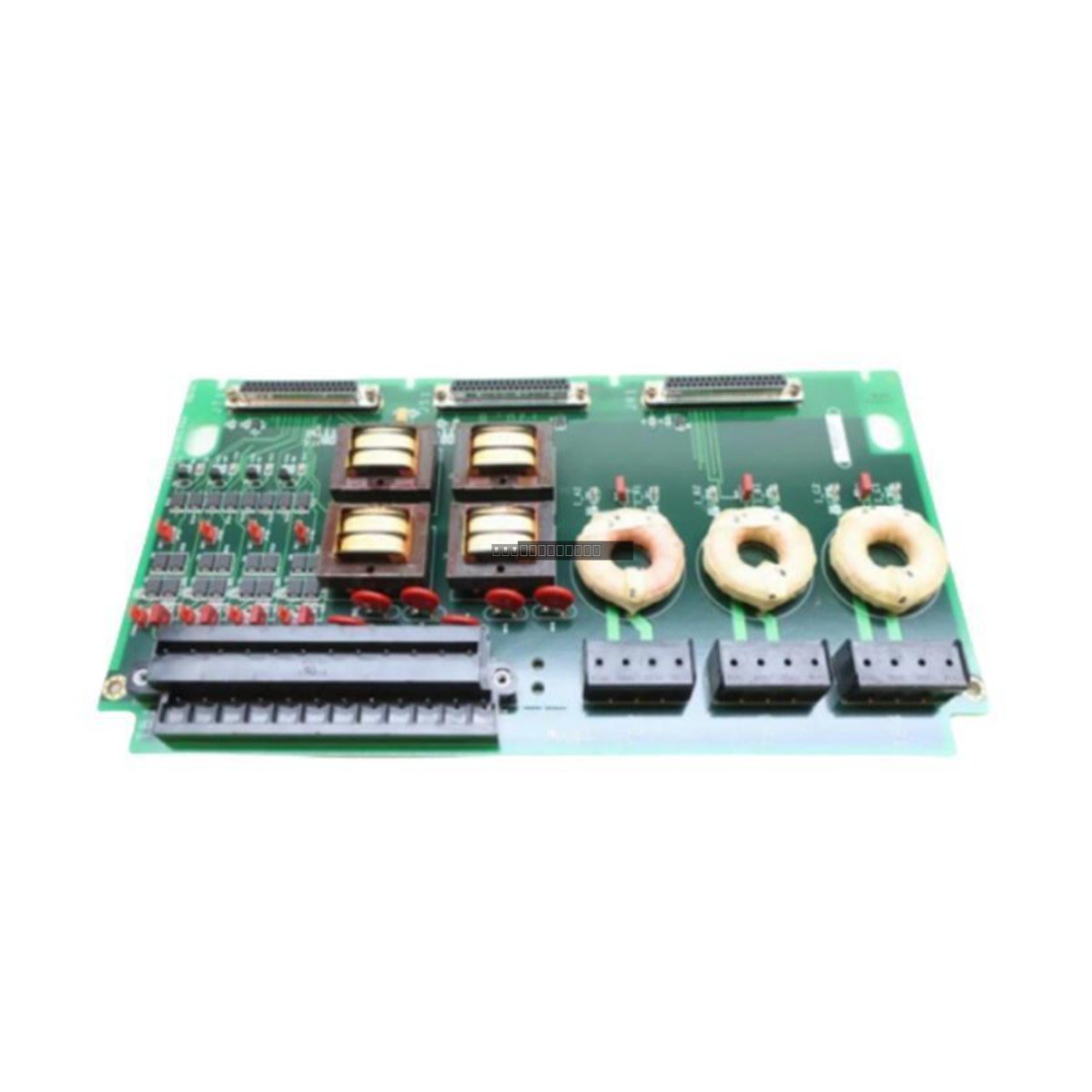

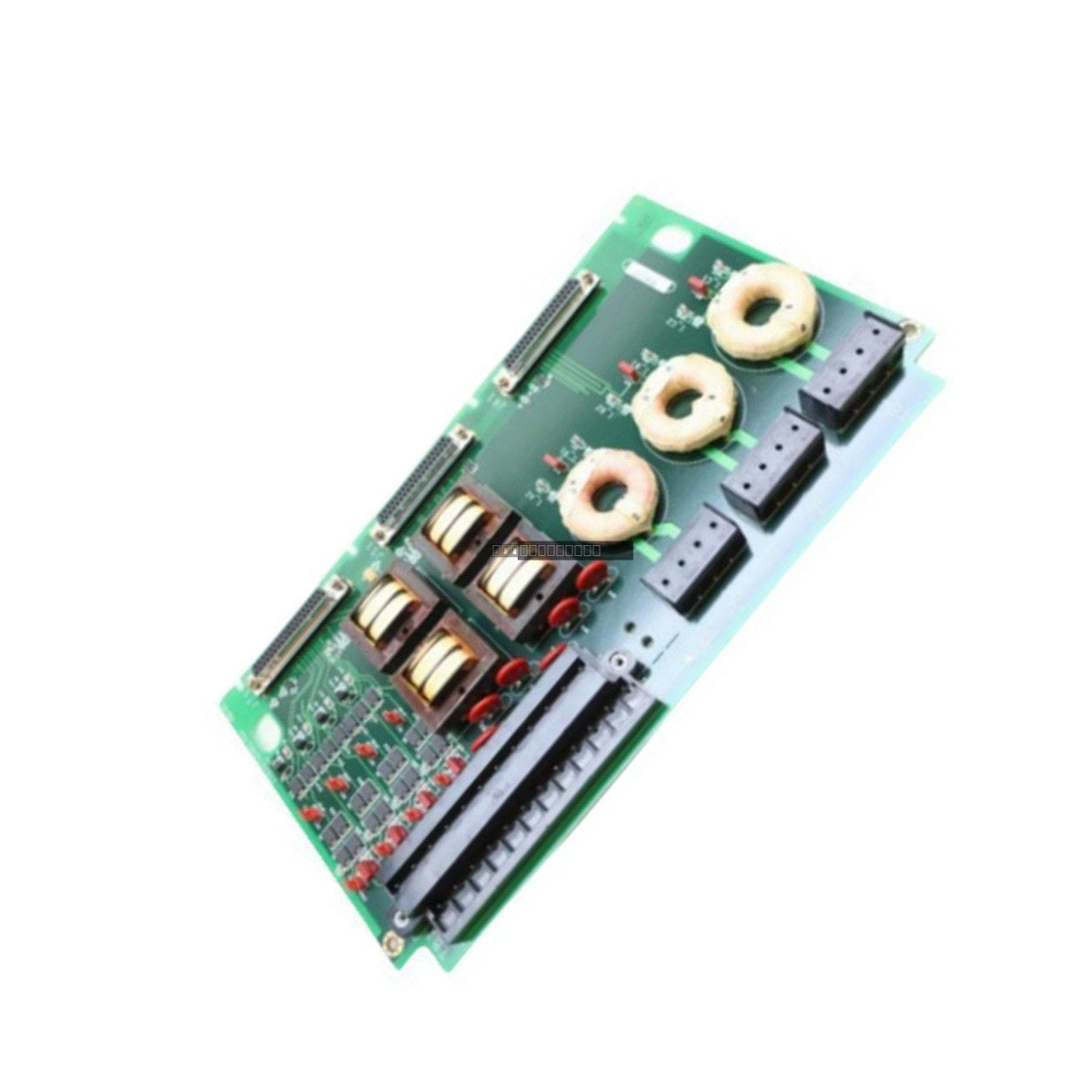

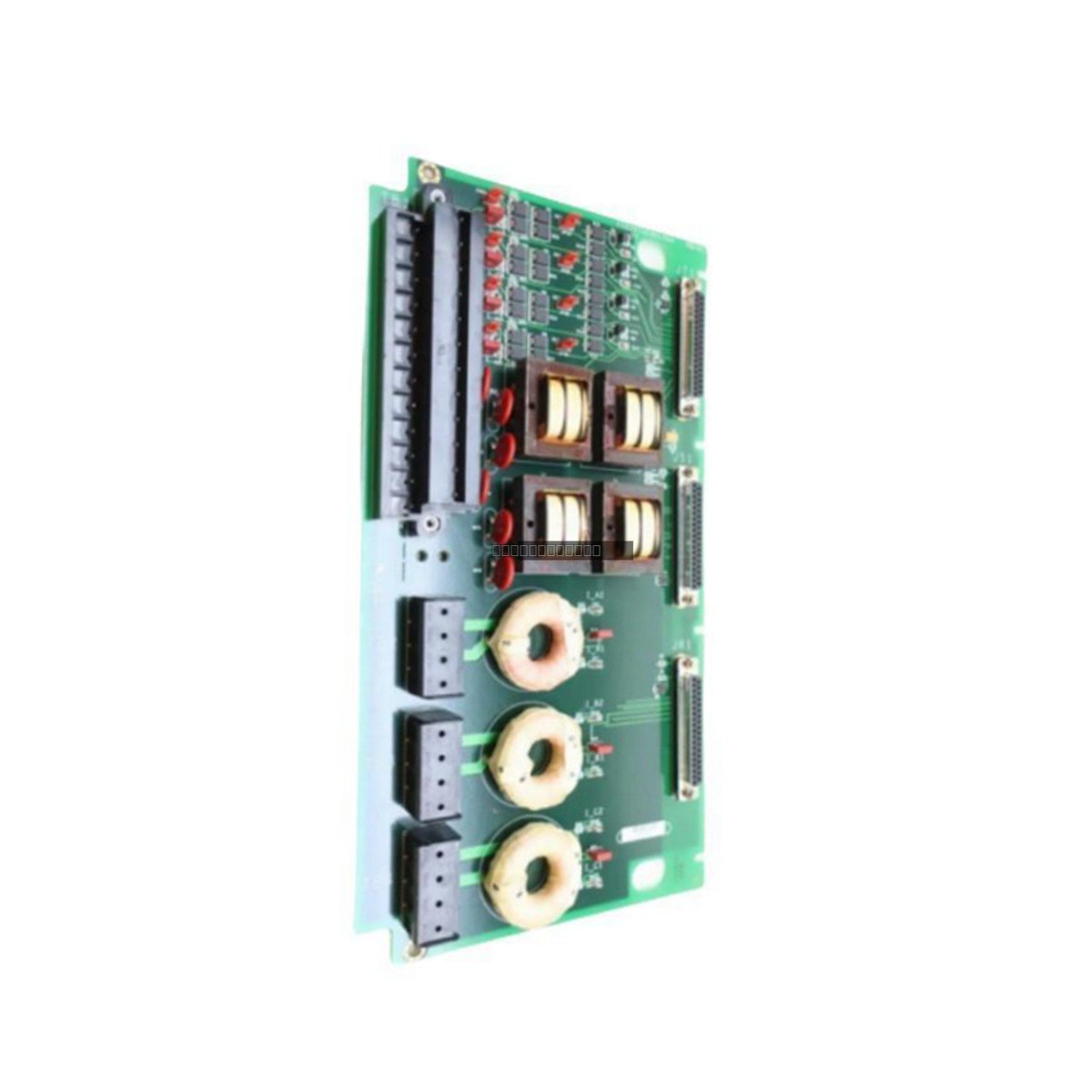

GE Fanuc IS200TGENH1A Mark VI Generator Terminal Board

GE Fanuc IS200TGENH1A Mark VI Generator Terminal Board

التوفر: 6 متوفر في المخزون

DescriptionThe IS200TGENH1A is a specialized terminal board designed for the General Electric Mark VI control system, functioning as the Generator...

رمز المنتج: IS200TGENH1A

Manufacturer: GE FANUC
Product No.: IS200TGENH1A
Product Type: Terminal Board
Product Origin: USA
Payment:T/T, Western Union
Weight: 1810g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

Description

The IS200TGENH1A is a specialized terminal board designed for the General Electric Mark VI control system, functioning as the Generator Monitor (TGEN). This component acts as the critical bridge between generator instrumentation and the VGEN processor, specifically engineered for deployment in large-scale steam turbine power generation environments. By facilitating the acquisition of three-phase voltage and current inputs, the board enables the system to compute essential operational metrics including power factor and real-time three-phase power.

Features

Designed for integration with VGEN processor modules.
Supports both simplex and Triple Modular Redundancy (TMR) system configurations.
Enables Power Load Unbalance (PLU) and Emergency Valve Activation (EVA) logic.
Interfaces with TRLY terminal boards to manage high-speed solenoid activation for turbine protection.
Ensures high-availability data throughput to prevent system-wide monitoring failures.

Applications

This terminal board is primarily utilized in power plant control systems where precise monitoring of generator output is required to safeguard turbine assets. It is a fundamental component for maintaining stability in steam turbine generator sets by providing the necessary signal processing for safety-critical control loops.

Technical Specifications

Model	IS200TGENH1A
Brand	General Electric (GE Fanuc)
Operating Temperature	0 to 60 degC
Power Consumption	10 W
Compatibility	Mark VI VGEN Processor, TRLY Terminal Board
Redundancy Support	Simplex and TMR

Installation Guidelines

Ensure the control system power is fully de-energized before attempting to install or remove the board from the cabinet.
Maintain proper ESD (Electrostatic Discharge) protocols when handling the board to prevent damage to integrated circuits.
For TMR configurations, ensure all three communication links to the VGEN processors are correctly seated and verified for signal integrity.
Verify that all field wiring for voltage and current inputs is securely terminated to the designated terminal blocks.
Ensure adequate ventilation within the cabinet to maintain operating temperatures within the specified 0 to 60 degC range.

FAQ

Does the IS200TGENH1A support redundant configurations?

Yes, this board is fully compatible with both simplex and Triple Modular Redundancy (TMR) architectures, allowing for fault-tolerant operation in critical control environments.

What is the primary function of this board?

The TGEN board serves as the generator monitor, processing three-phase voltage and current data to support power factor calculations and emergency turbine protection logic.
