ABB 3BHT300007R1 DO630 16-Channel Digital Output Relay Module

التوفر: 8 متوفر في المخزون

The ABB DO630, identified by order code 3BHT300007R1, is a high-performance 16-channel digital output relay module designed for integration within...

رمز المنتج: 3BHT300007R1

Manufacturer: ABB
Product No.: 3BHT300007R1
Product Type: Digital Output Module
Product Origin: Germany
Payment:T/T, Western Union
Weight: 1320g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

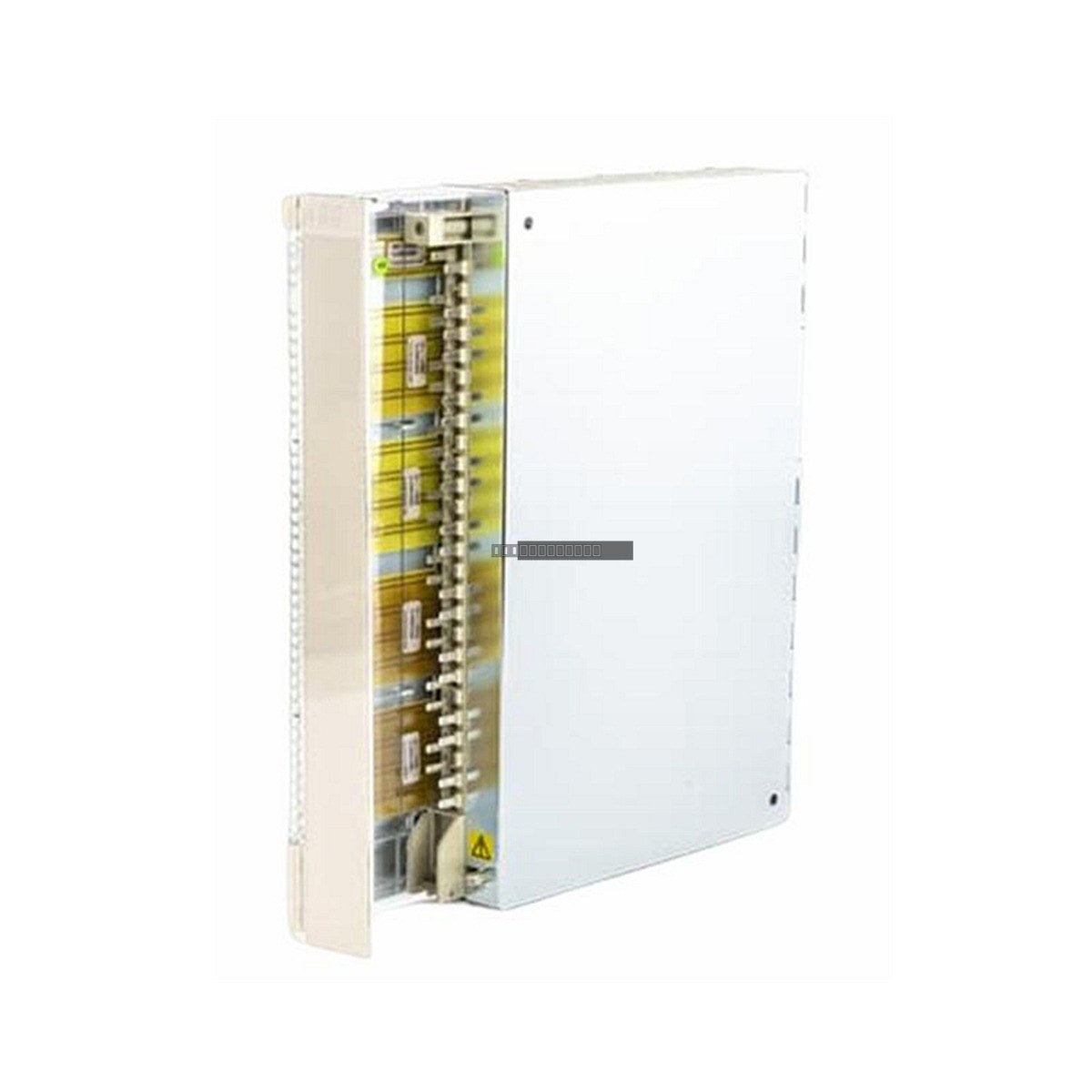

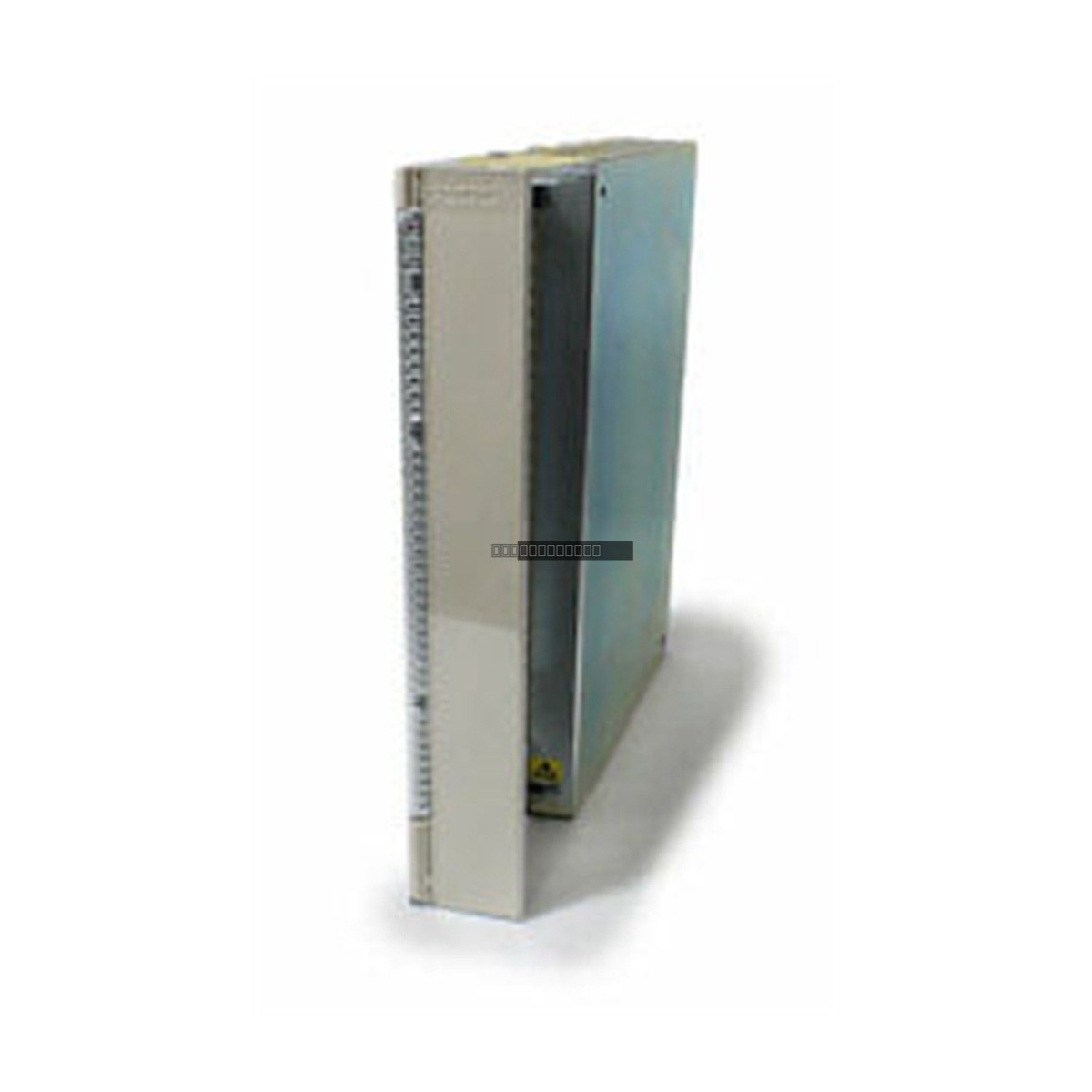

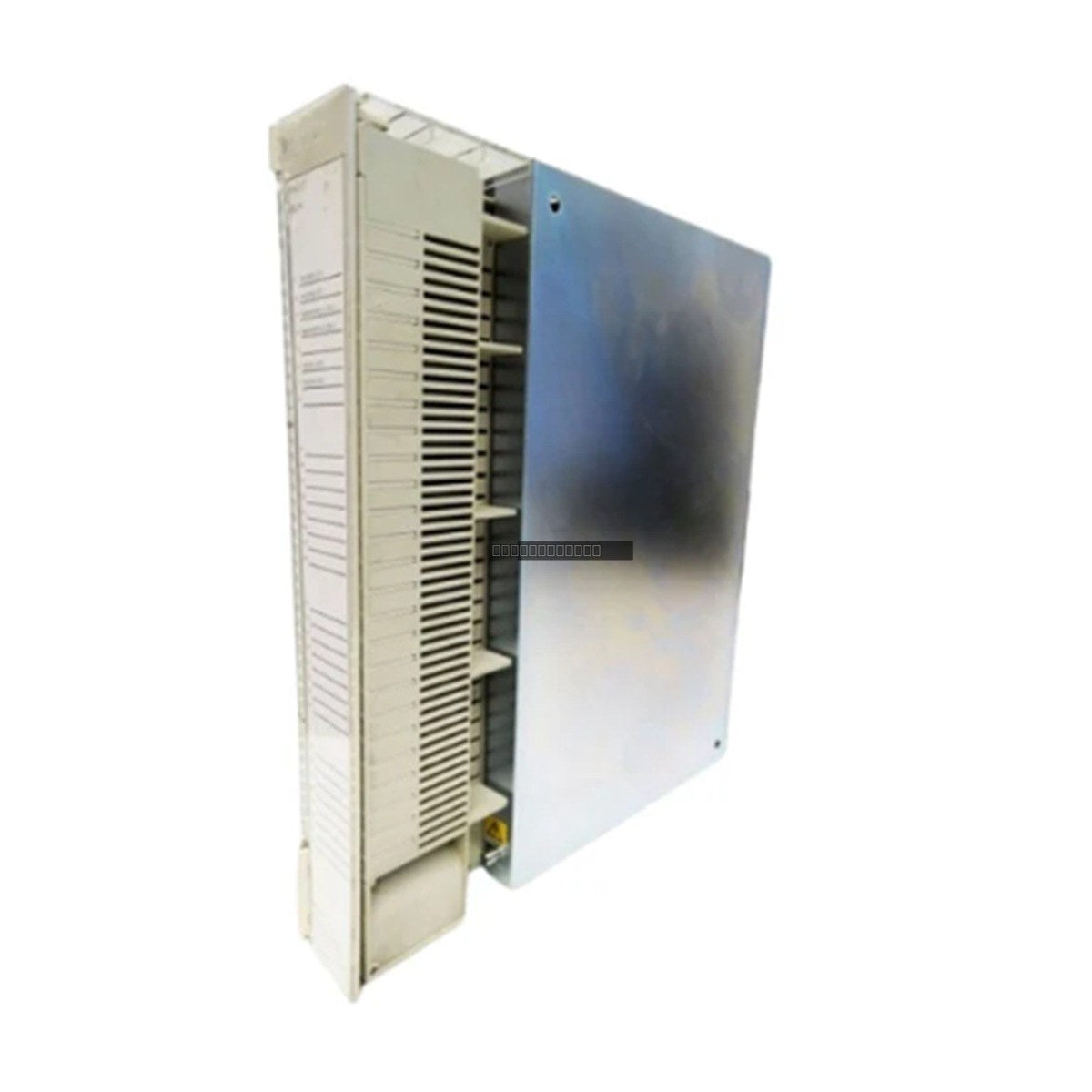

The ABB DO630, identified by order code 3BHT300007R1, is a high-performance 16-channel digital output relay module designed for integration within the Advant OCS control environment. This module provides reliable signal switching for industrial automation applications, offering 16 independent output channels capable of handling 250VAC. Engineered for robustness, it ensures stable operation in demanding industrial environments.

Features

16 independent relay output channels for flexible control logic.
High-voltage switching capability up to 250VAC.
Fast response time of less than 1ms for critical process timing.
Galvanic isolation between channels and the system bus (500VAC) to protect sensitive control circuitry.
Integrated overload and short-circuit protection features.
Compact, modular design suitable for standard DIN rail or cabinet mounting.

Applications

The DO630 module is primarily utilized in Advant OCS systems for driving actuators, contactors, solenoid valves, and other field-level devices that require relay-based digital switching. Its design makes it suitable for power plants, chemical processing facilities, and large-scale manufacturing infrastructure where high-density I/O and reliable isolation are required.

Technical Specifications

Model	DO630
Order Code	3BHT300007R1
Output Channels	16
Output Type	Relay
Max Voltage	250VAC
Max Current per Channel	0.5A
Isolation Voltage	500VAC
Response Time	<1ms
Power Consumption	5W (Typical)
Operating Temperature	-20 to 70 degC
Protection Rating	IP20

Installation Guidelines

Ensure the control system is powered down before installing or removing the module from the rack or DIN rail.
The module is intended for indoor cabinet installation only; ensure the cabinet environment meets the specified IP20 requirements.
Verify that all field wiring is properly shielded and routed away from high-EMI sources such as variable frequency drives or high-voltage power lines.
Maintain proper ventilation within the cabinet to ensure the operating temperature remains within the -20 to 70 degC range.
Check for secure terminal connections to prevent intermittent contact and potential signal degradation.

FAQ

What system is the ABB DO630 compatible with?
The DO630 is designed for use within the ABB Advant OCS (Open Control System) series.

Does this module provide electrical isolation?
Yes, it features 500VAC isolation between the output channels and the system bus to prevent electrical noise and damage.

What is the primary function of this module?
It acts as a digital output interface, converting control signals into relay-switched outputs for field devices.
