Description

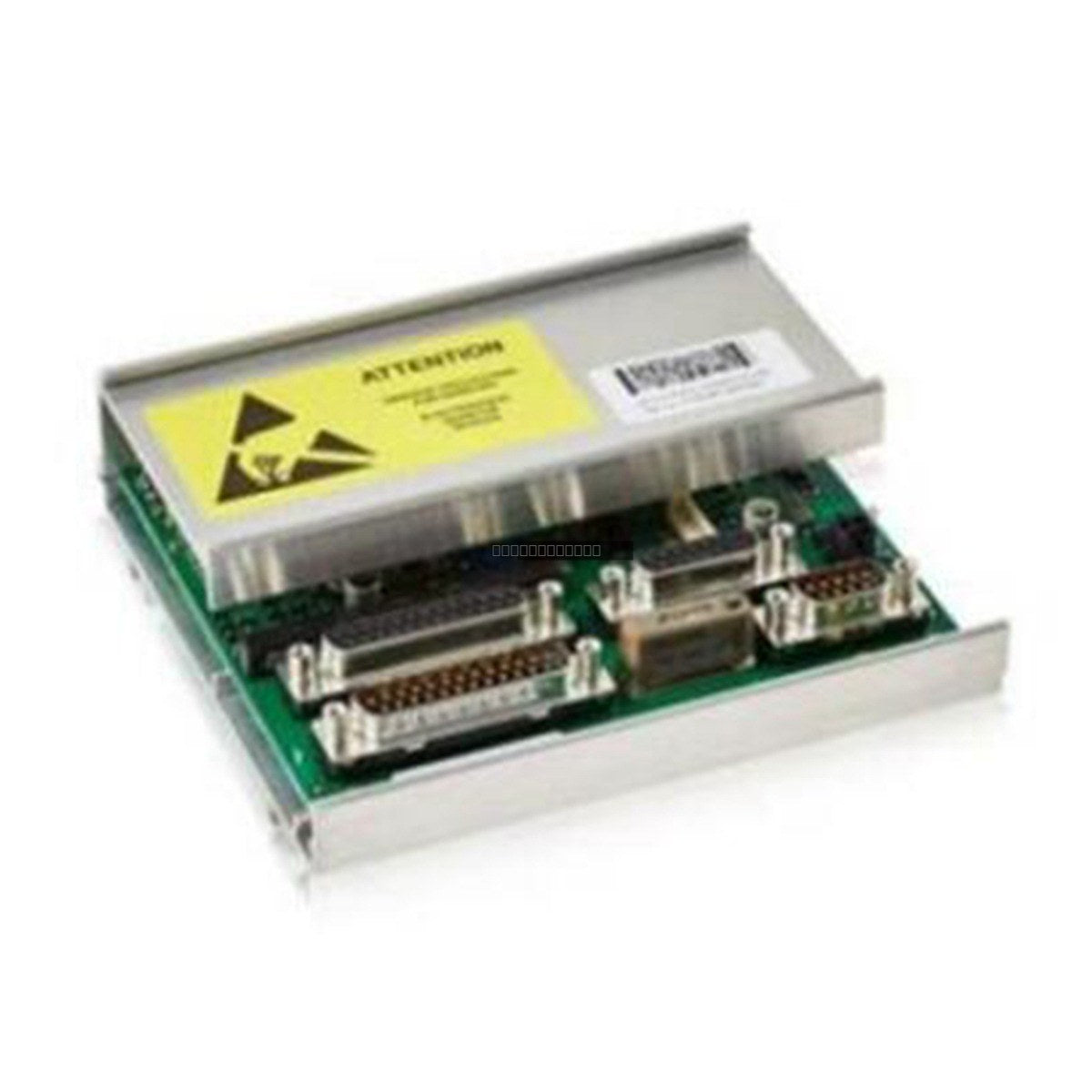

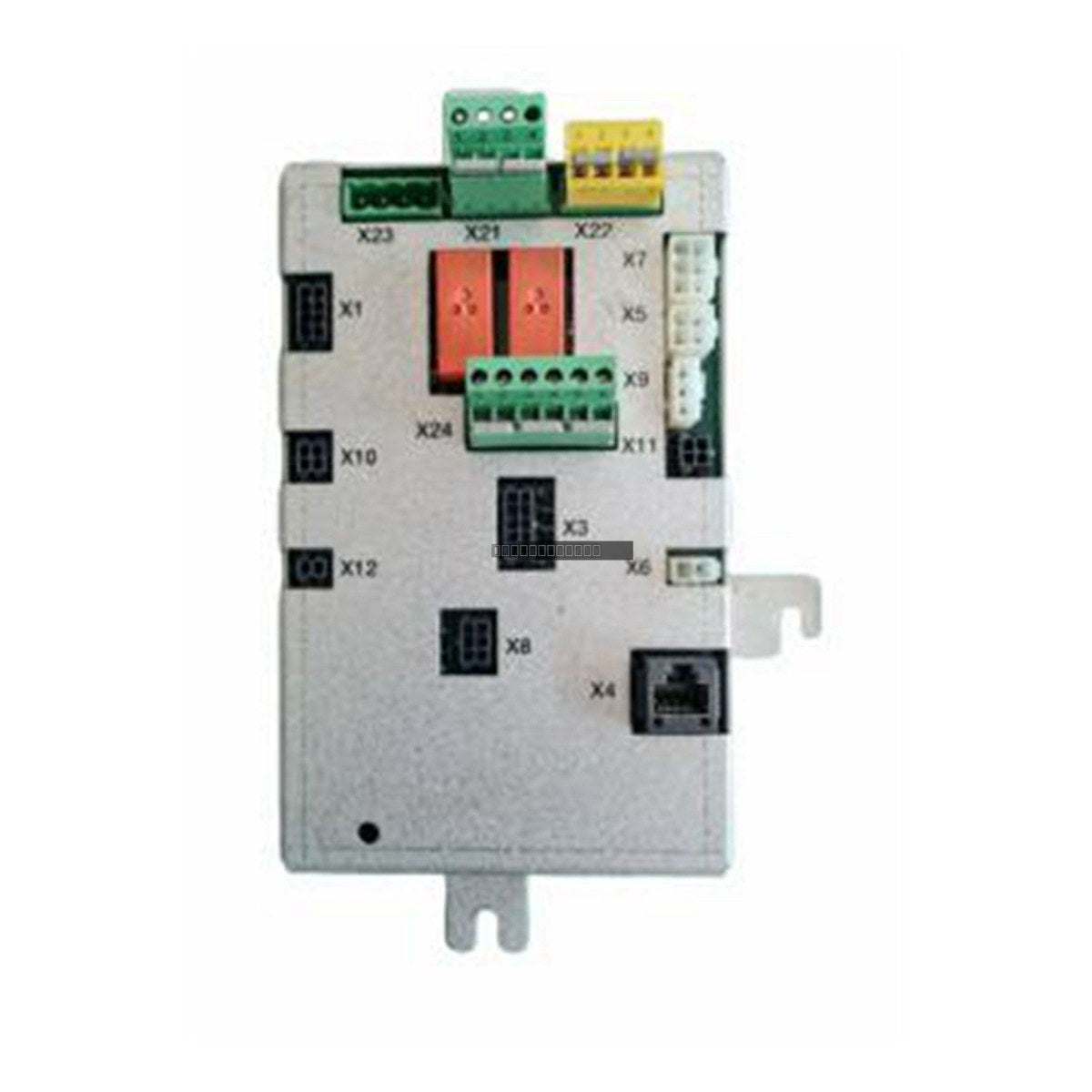

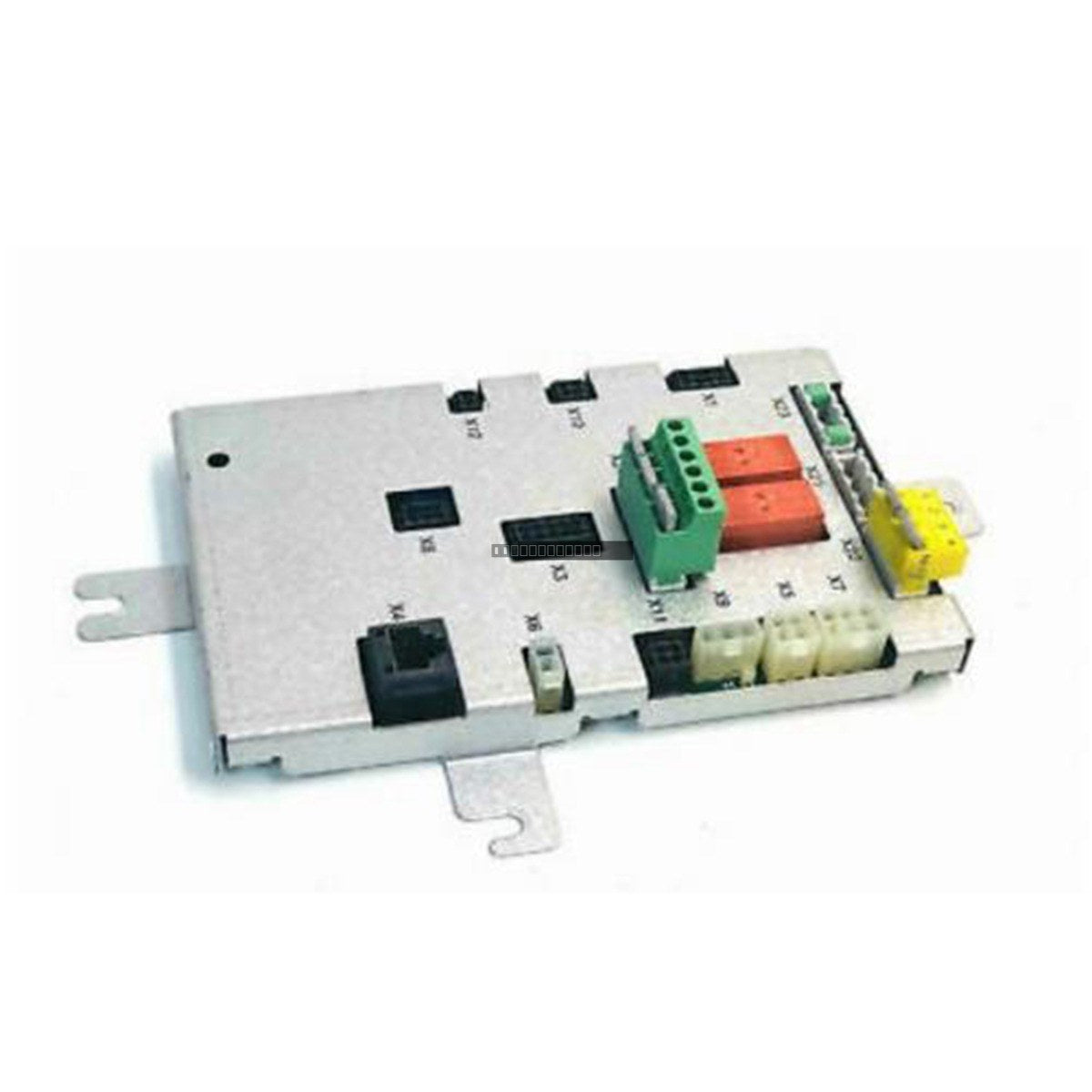

The ABB 3HAC13389-2, identified as the DSQC 611 Contactor Unit, is a specialized component engineered for integration within ABB industrial robotic and automation control systems. This unit is designed to facilitate reliable switching operations, ensuring precise control over electrical loads within the designated control cabinet architecture.
Features
- Official ABB replacement component for DSQC 611 series assemblies.
- Robust construction designed for industrial control environments.
- Compact form factor optimized for space-efficient cabinet mounting.
- Reliable electrical switching performance for robotic peripheral equipment.
Applications
This contactor unit is primarily utilized in ABB robot controller cabinets where specific contactor functionality is required for power distribution or signal switching. It serves as a vital link in the control chain for managing auxiliary equipment and power sequences within the robotic cell.
Technical Specifications
| Product ID | 3HAC13389-2 |
| Model Name | DSQC 611 Contactor Unit |
| Customs Tariff Number | 85389091 |
| Net Weight | 0.14 kg |
| Gross Weight | 0.34 kg |
Installation Guidelines
- Ensure all power sources to the controller cabinet are fully de-energized and locked out before attempting to install or remove the unit.
- Verify that the mounting surface is clean and free of debris to ensure proper electrical and mechanical seating.
- Handle the unit with care to avoid damage to the terminal pins or housing connectors.
- Ensure that all wiring connections are tightened to the manufacturer's specified torque requirements to prevent intermittent contact or overheating.
- Always follow the specific ABB service manual instructions for the associated robot controller model when performing hardware replacements.
FAQ
Is the 3HAC13389-2 compatible with all ABB robot controllers?
This unit is specific to the DSQC 611 series. Please verify your controller's parts list or the existing component's part number before installation to ensure compatibility.
Does this unit come with installation hardware?
The unit is typically supplied as the component itself. Ensure you retain any existing mounting hardware from the previous installation if required.
