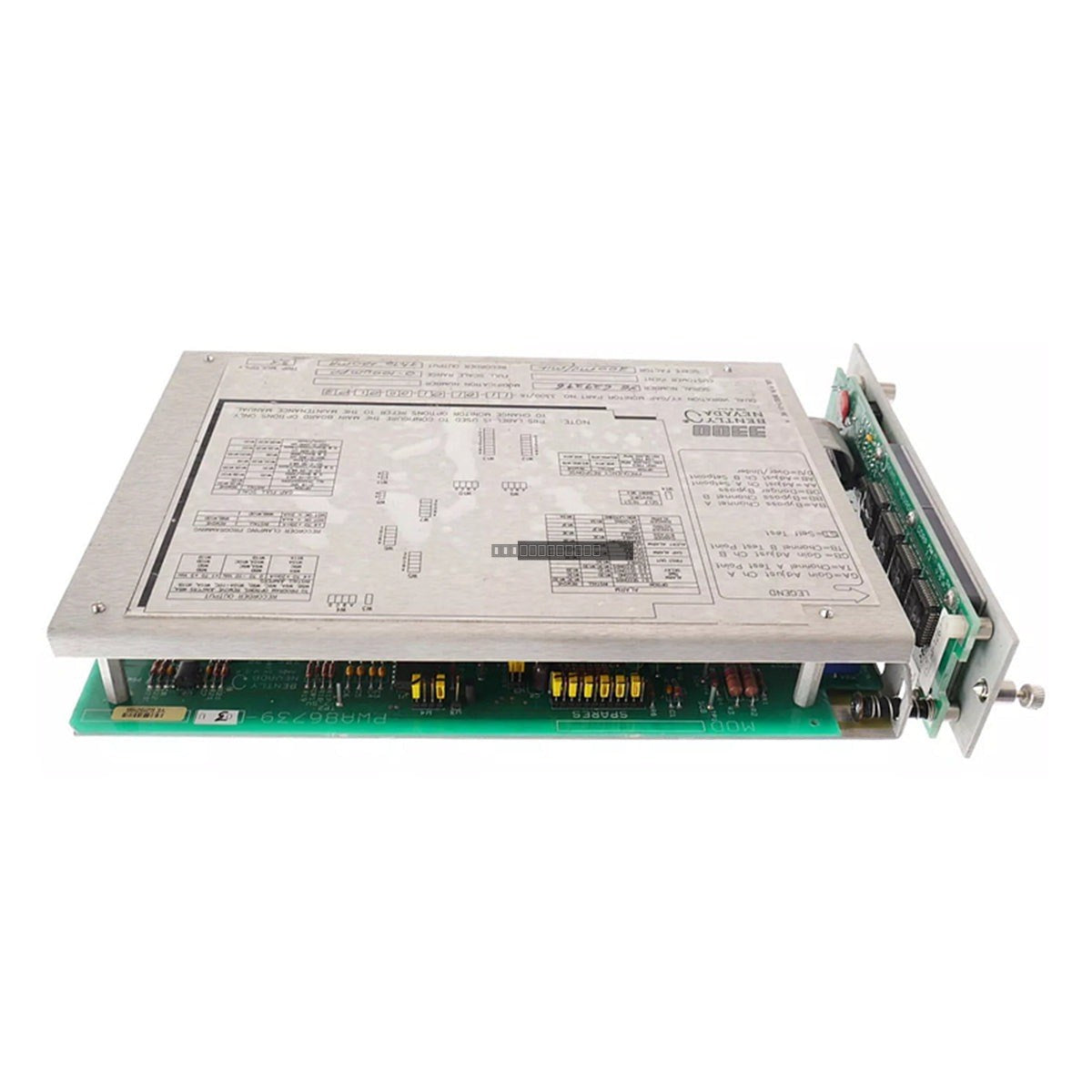

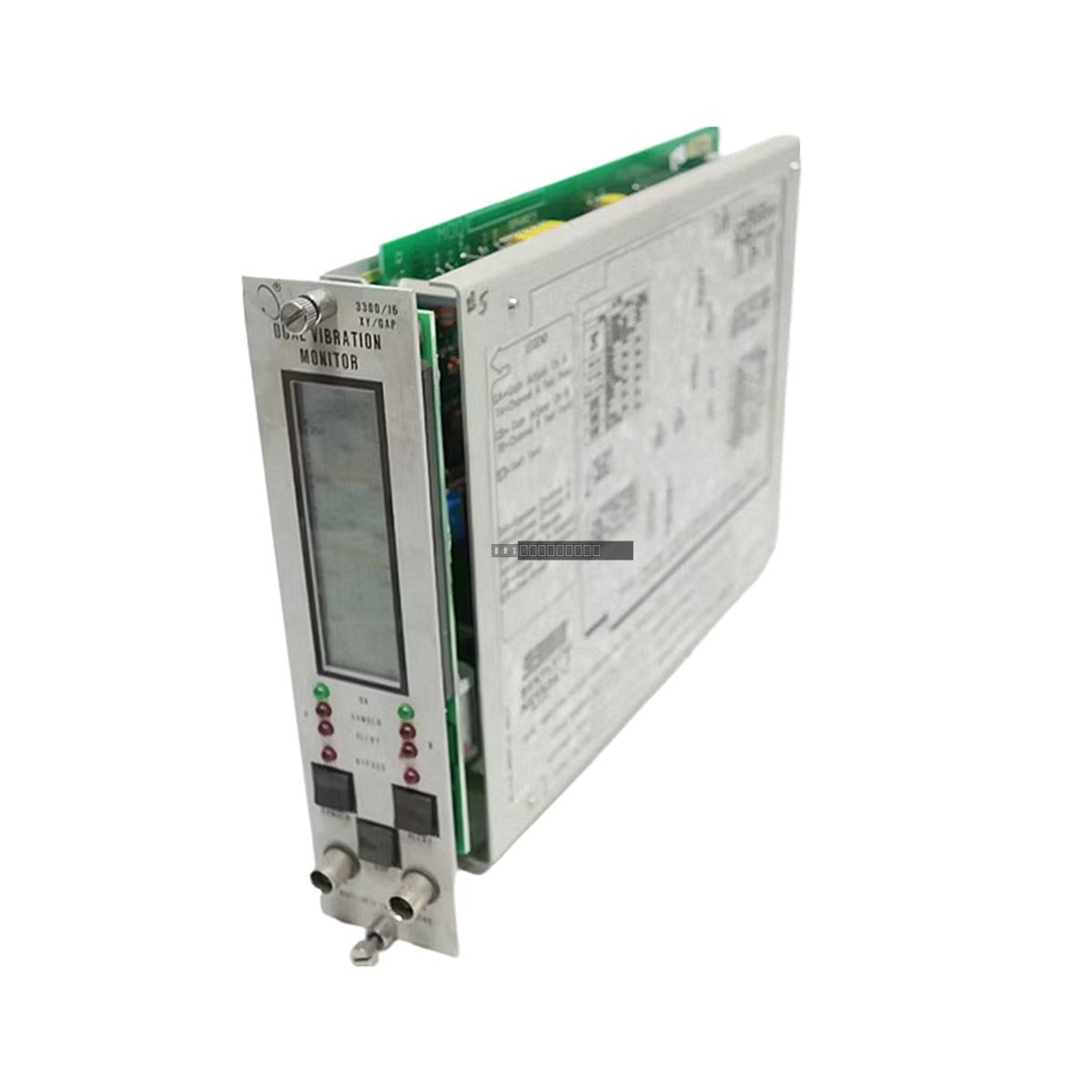

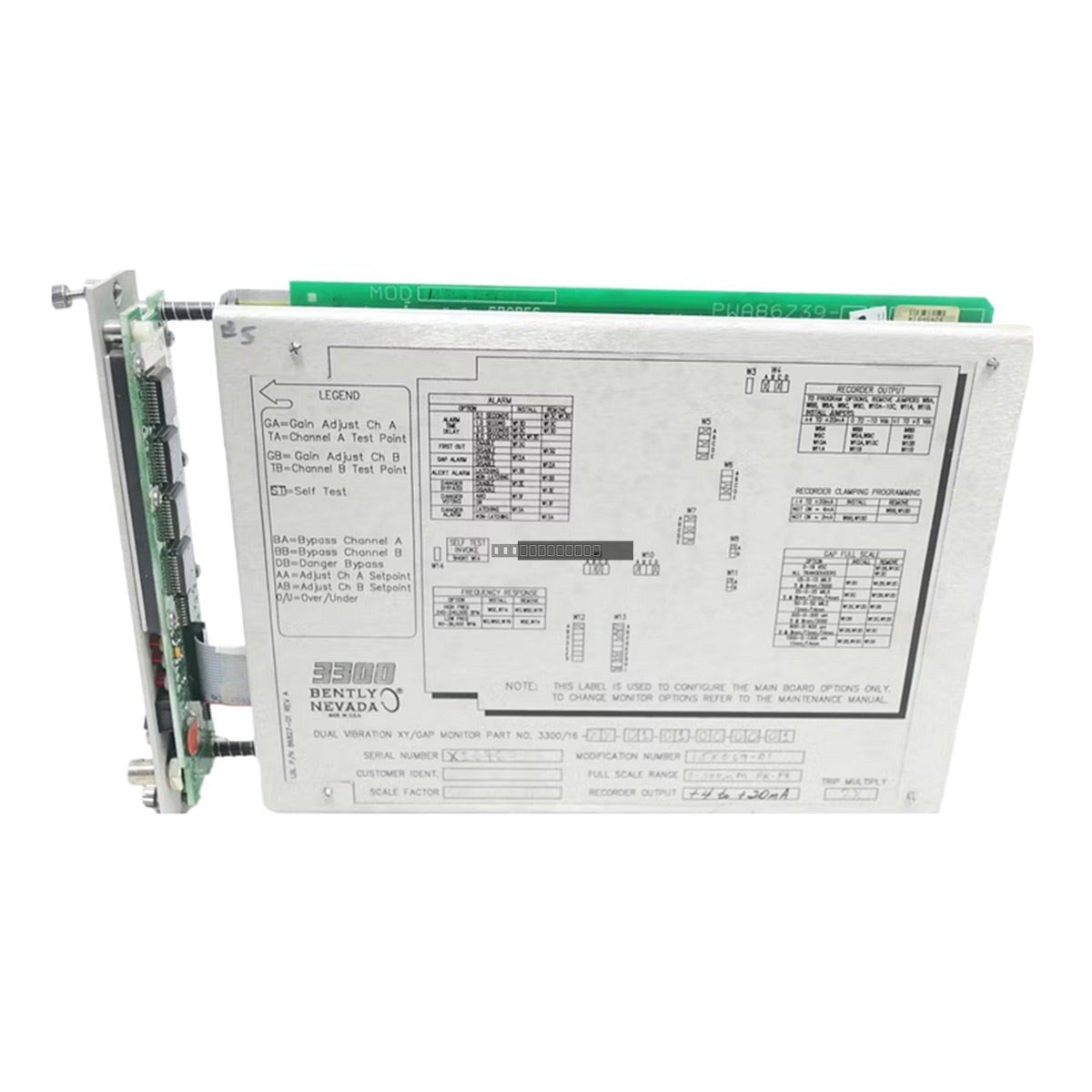

The Bently Nevada 3300/16-13-01-00-00-00-00 is a dual-channel monitor designed for the 3300 rack-based system. This module provides critical protection for rotating machinery by monitoring radial shaft vibration and probe gap voltage. It continuously processes incoming signals from proximity sensors, compares them against pre-configured alarm setpoints, and provides relay outputs for Alert and Danger status, ensuring reliable machine health management.
Features
- Dual-channel input configuration for simultaneous vibration and gap monitoring.
- Integrated status LEDs for quick visual diagnostics of OK, Bypass, Alert, and Danger states.
- Standardized alarm relay logic for integration into plant safety systems.
- Compatible with standard Bently Nevada proximity probe and Proximitor sensor systems.
- Designed for high-reliability operation in industrial environments with a wide operating temperature range.
Applications
This monitor is primarily utilized in power generation and petrochemical facilities for the protection of critical assets such as steam turbines, gas compressors, pumps, and large electric motors. It allows operations teams to track real-time shaft displacement and vibration, facilitating predictive maintenance and preventing catastrophic mechanical failure.
Technical Specifications
| Model | 3300/16-13-01-00-00-00-00 |
| Brand | Bently Nevada |
| Series | 3300 |
| Operating Temperature | 0 to 60 deg C |
| Power Consumption | 1.5 W (typical) |
| Signal Accuracy | ±0.33% typical, ±1% max at 25 deg C |
| Voltage/Current Outputs | +4 to +20 mA, +1 to +5 VDC, 0 to -10 VDC |
Installation Guidelines
- Ensure the 3300 rack is powered down before inserting or removing the module to prevent damage to backplane connectors.
- Verify that all signal wiring is properly shielded and grounded according to standard instrumentation practices to minimize EMI interference.
- Maintain proper ventilation within the cabinet to ensure the ambient temperature remains within the 0 to 60 deg C operating range.
- Handle with care using ESD-safe procedures to protect sensitive onboard electronic components.
- Configure switches and jumpers according to the specific transducer and range requirements before final commissioning.
FAQ
What is the primary function of the 3300/16 module?
The 3300/16 is a dual-channel monitor that processes inputs from proximity probes to track both radial shaft vibration and gap voltage, triggering alarms when values exceed safety thresholds.
Is this module compatible with all 3300 racks?
Yes, this monitor is designed to fit into the standard 3300 series rack architecture. Please ensure your rack backplane configuration is compatible with the specific input/output requirements of this model.
