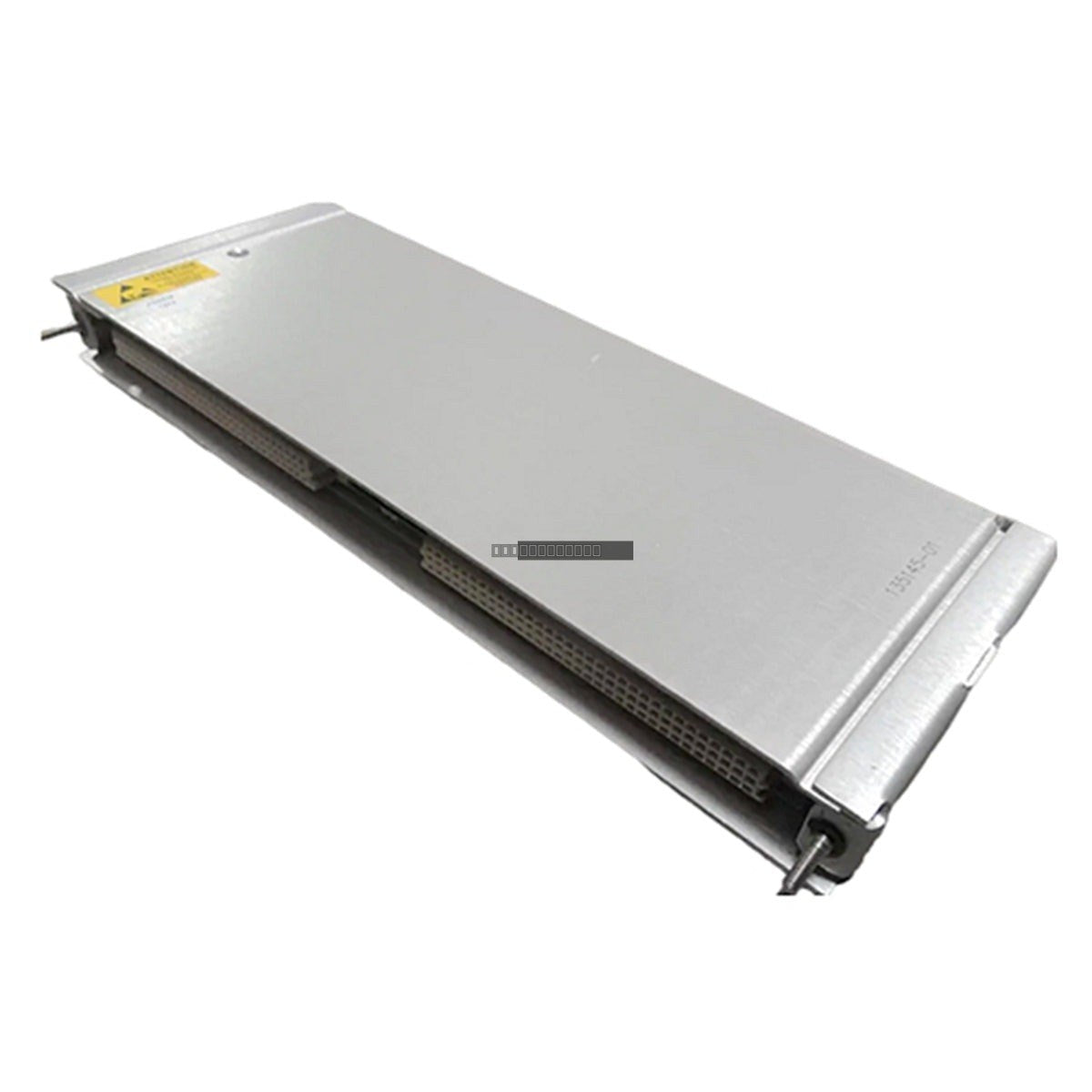

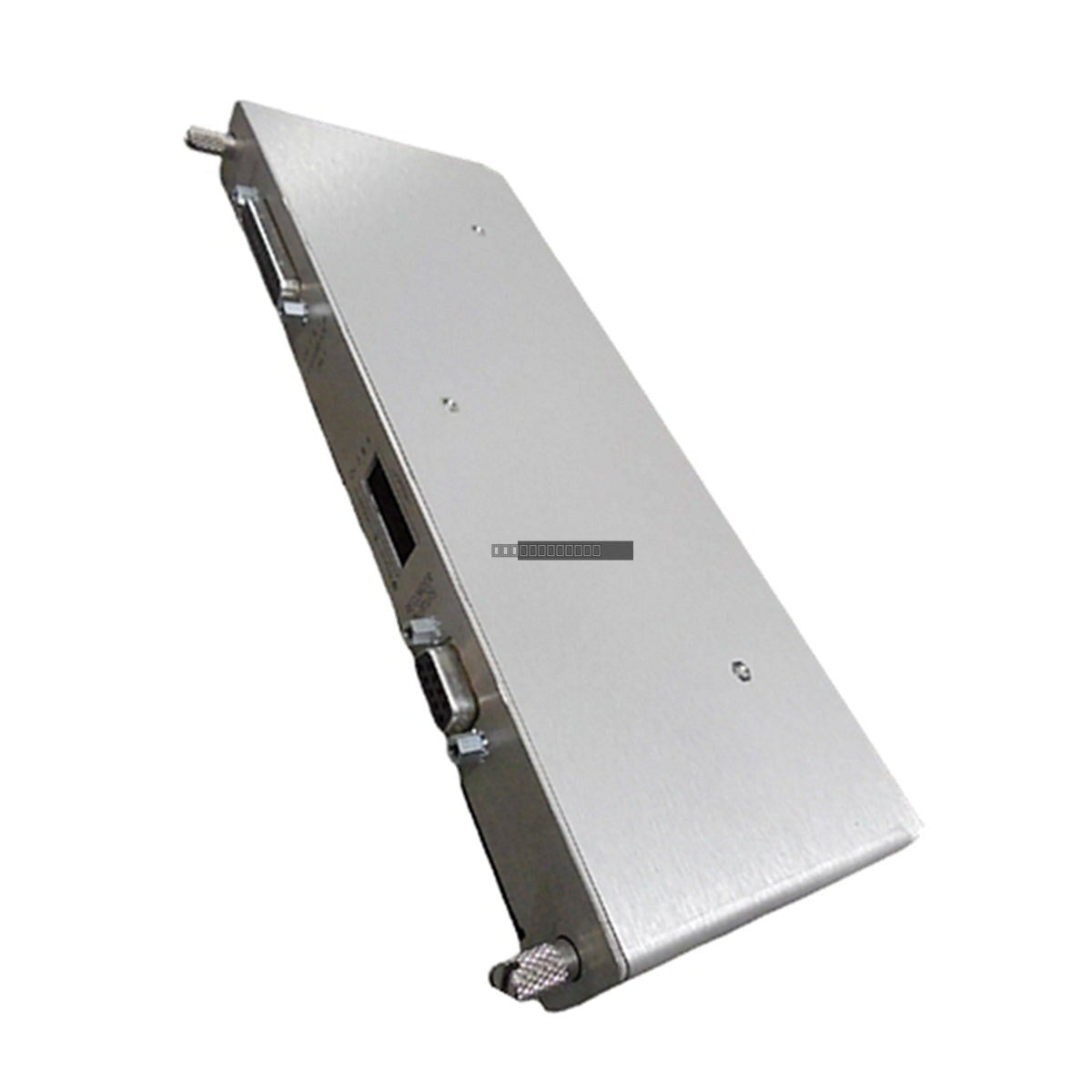

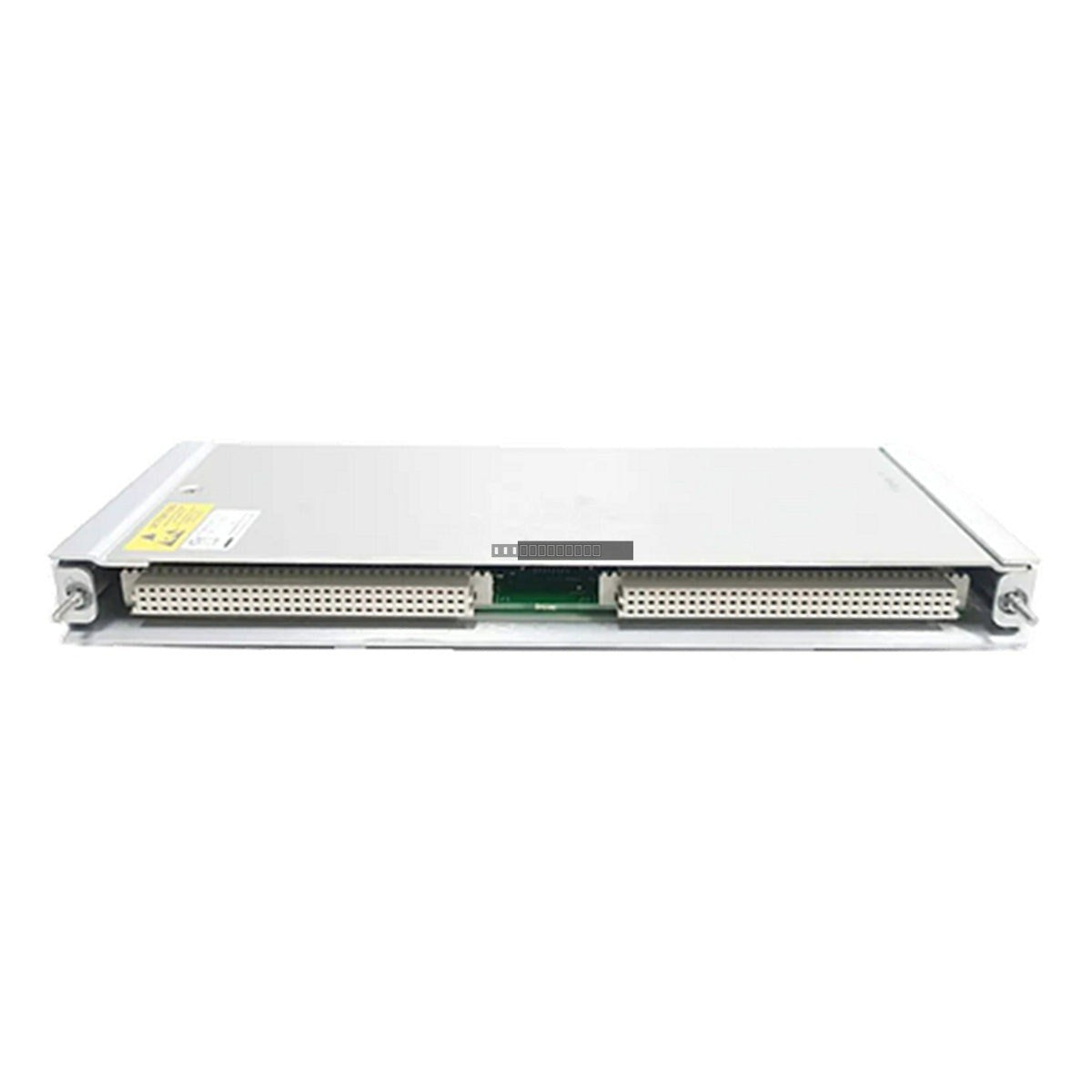

Bently Nevada 135145-01 Position I/O Module

التوفر: 4 متوفر في المخزون

The Bently Nevada 135145-01 is a specialized Position I/O Module engineered for the 3500 Series machinery protection platform. This module...

رمز المنتج: 135145-01

Manufacturer: Bently Nevada
Product No.: 135145-01
Product Type: Position I/O Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 2000g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

The Bently Nevada 135145-01 is a specialized Position I/O Module engineered for the 3500 Series machinery protection platform. This module serves as a critical interface component, facilitating the connection between various displacement and rotary sensors and the monitoring system. By utilizing external terminations, the 135145-01 streamlines the wiring architecture within control cabinets, making it an efficient choice for both new system deployments and complex plant retrofits.

Features

Versatile Sensor Support: Fully compatible with Proximitor sensors, Rotary Position Transducers (RPTs), and DC Linear Variable Differential Transformers (LVDTs).
Signal Conditioning: Delivers high-fidelity signal processing to ensure accurate position data, which is essential for triggering reliable alarm and machine trip sequences.
System Integration: Designed for seamless integration into standard Bently Nevada 3500 rack configurations, supporting continuous, high-availability machinery protection.
Simplified Cabling: Employs an external termination design that reduces installation time and minimizes field wiring complexity.

Applications

This module is engineered for mission-critical rotating equipment, including industrial turbines, centrifugal compressors, and large-scale pumps. It provides the precise shaft position and displacement telemetry required by operators in the petrochemical, power generation, and heavy manufacturing sectors to maintain operational safety and equipment longevity.

Technical Specifications

Model	135145-01
Brand	Bently Nevada
System Series	3500 Machinery Protection
Module Type	Position I/O Module
Termination Type	External Terminations
Sensor Compatibility	Proximitor, RPT, DC LVDT

Installation Guidelines

ESD Protection: Always utilize a grounded anti-static wrist strap when handling the module to prevent damage to sensitive internal electronic components.
Rack Seating: Ensure the module is properly aligned with the 3500 rack backplane connectors before applying pressure to engage the locking mechanisms.
Power Status: Verify that the rack power is disconnected or that the slot is designated for hot-swapping according to current site safety procedures before insertion or removal.
Wiring Integrity: Confirm that all external termination field wiring is securely fastened and properly shielded to minimize electromagnetic interference (EMI) in high-noise environments.

FAQ

Is the 135145-01 compatible with all 3500 racks?

Yes, this module is designed for standard Bently Nevada 3500 series racks. Please ensure your rack configuration and firmware support the specific requirements of the position monitoring application.

Does this module require external terminal blocks?

The 135145-01 is specifically designed for use with external terminations, which helps simplify the transition from field-run cables to the rack backplane.
