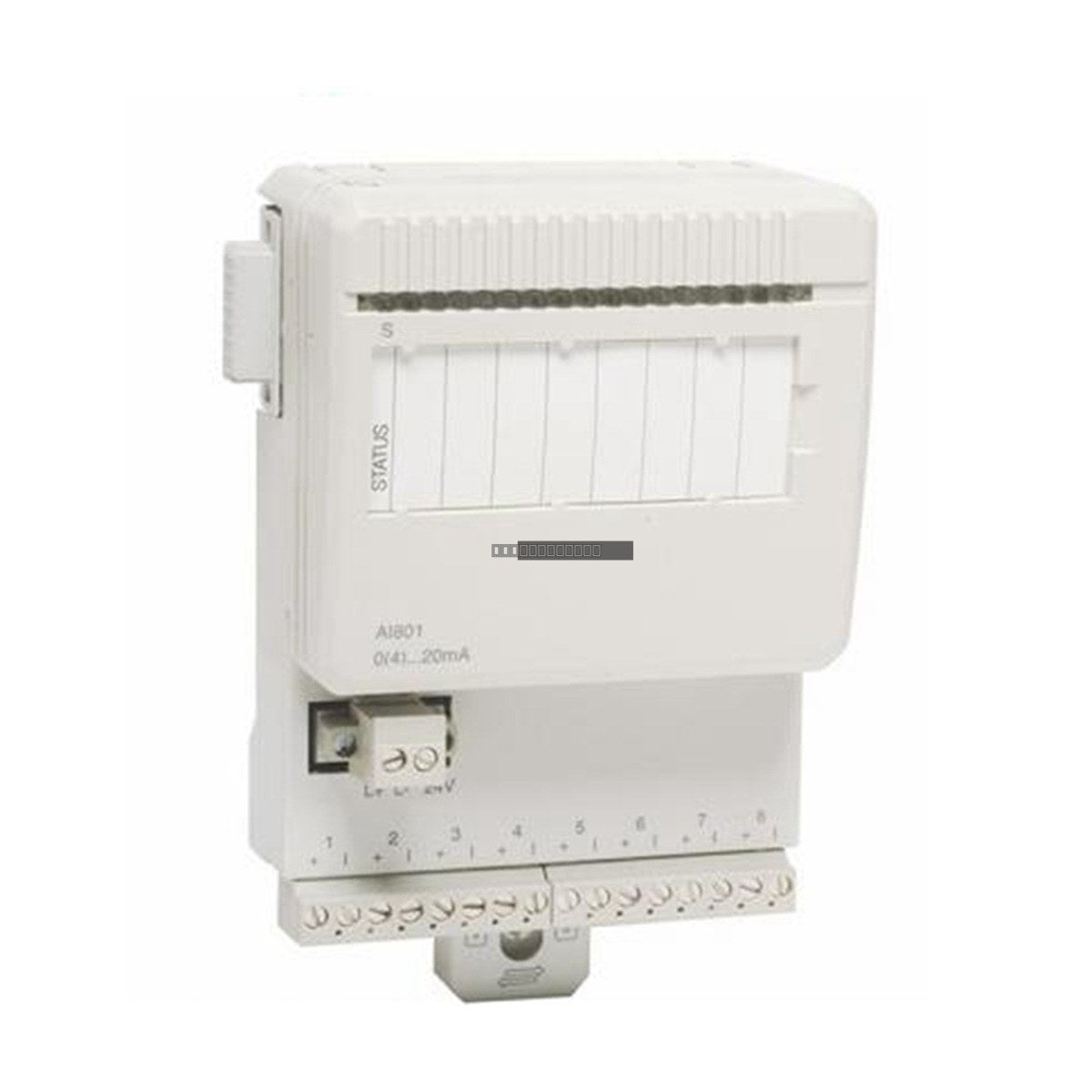

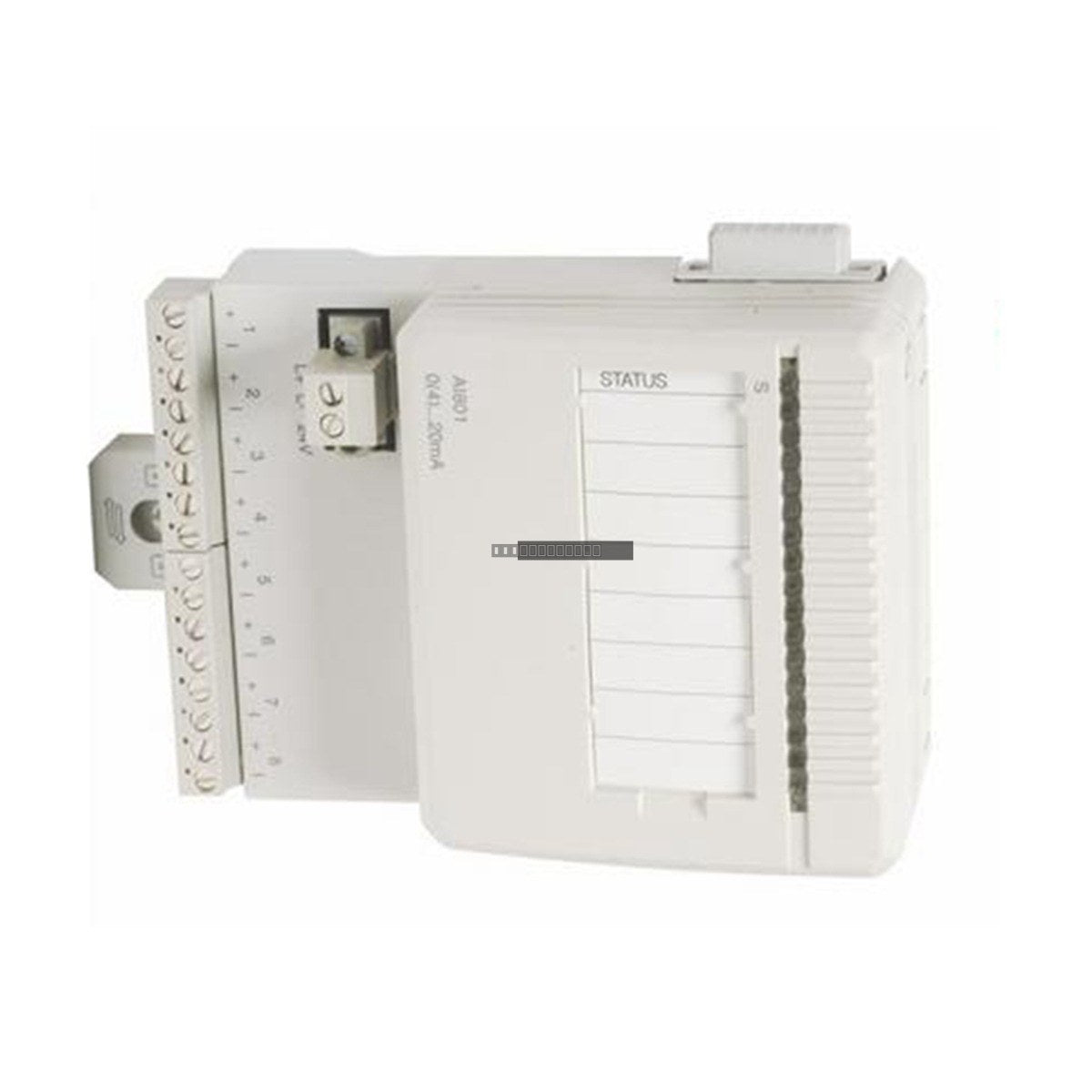

The ABB AI801 (3BSE020512R1) is a high-performance analog input module designed for the S800 I/O series. This module provides eight channels for processing analog signals, ensuring reliable data acquisition in demanding industrial automation environments.
Features
- Eight isolated analog input channels
- Supports standard 0 to 20 mA signal ranges
- 12-bit resolution for precise signal measurement
- Compact S800 I/O form factor for efficient cabinet space utilization
- Robust design suitable for extended operating temperature ranges
Applications
The AI801 module is widely utilized in process control systems, including ABB Advant and 800xA configurations. It is ideal for monitoring field sensors, transmitters, and other process instrumentation requiring high-accuracy current loop inputs.
Technical Specifications
| Model | AI801 (3BSE020512R1) |
| Number of Channels | 8 |
| Input Signal Type | 0 to 20 mA |
| Resolution | 12-bit |
| Input Impedance | 250 Ohm |
| Voltage Drop | Max 5V |
| Accuracy | +/- 0.1% of full scale |
| Scanning Time | 10 ms per channel |
| Operating Temperature | -25 degC to +70 degC |
Installation Guidelines
- Ensure the module is installed in a clean, vibration-free environment to maintain signal integrity.
- Verify that the S800 I/O base unit is properly grounded before inserting the module.
- Always power down the I/O rack before installing or removing the module to prevent electrical damage.
- Use shielded twisted-pair cabling for analog inputs to minimize EMI/RFI interference.
- Maintain proper ventilation within the control cabinet to ensure the module stays within its specified operating temperature range.
FAQ
What is the primary function of the AI801?
The AI801 is an analog input module used to convert 0-20 mA signals from field devices into digital values for processing by the control system.
Is this module compatible with the S800 I/O system?
Yes, the 3BSE020512R1 is a standard component of the ABB S800 I/O series.
