GE Fanuc IS200TBTCH1C Mark VIe Thermocouple Input Terminal Board

التوفر: 5 متوفر في المخزون

DescriptionThe GE Fanuc IS200TBTCH1C is a high-density thermocouple input terminal board designed for the Mark VIe control system. This component...

رمز المنتج: IS200TBTCH1C

Manufacturer: GE FANUC
Product No.: IS200TBTCH1C
Product Type: Terminal Board
Product Origin: USA
Payment:T/T, Western Union
Weight: 850g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

Description

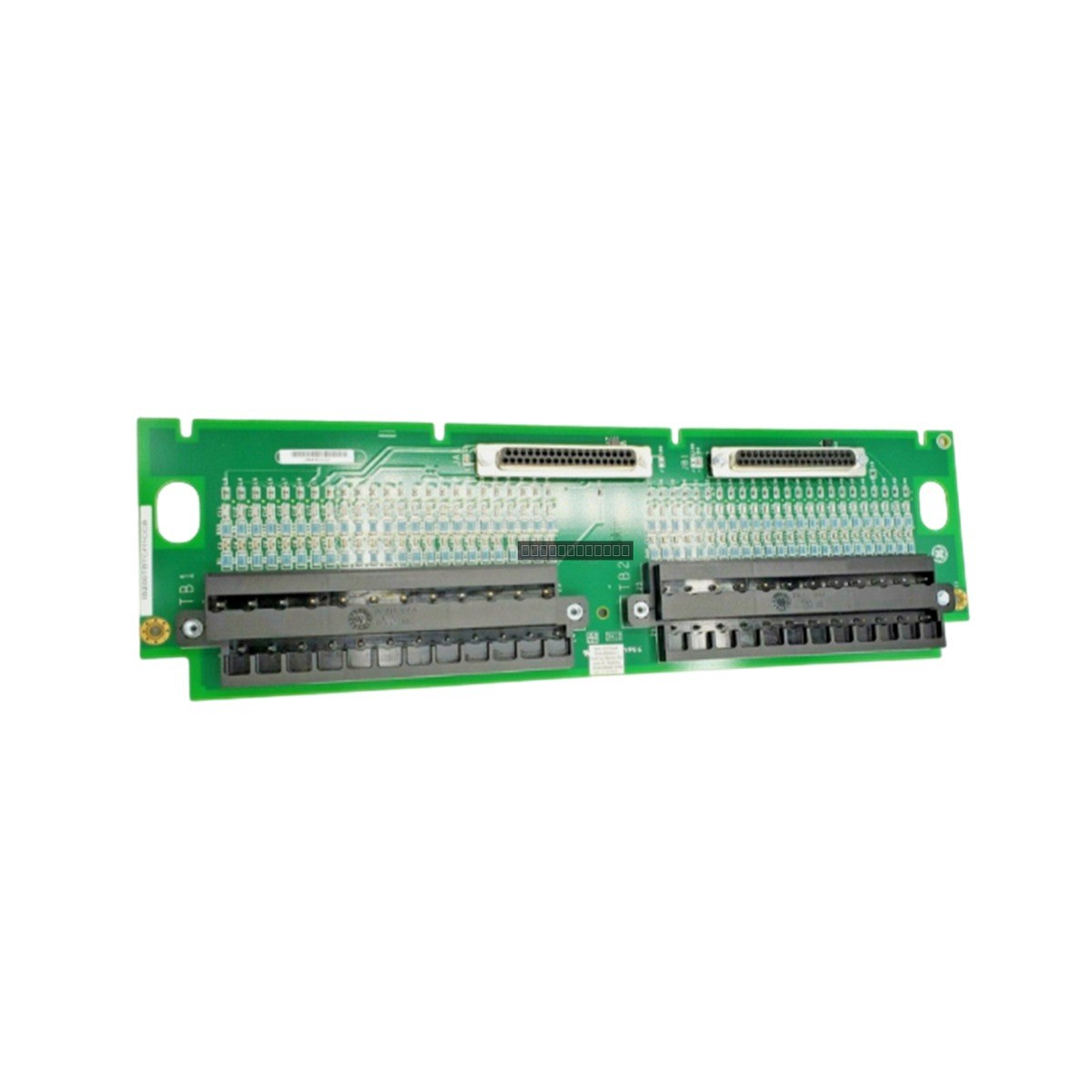

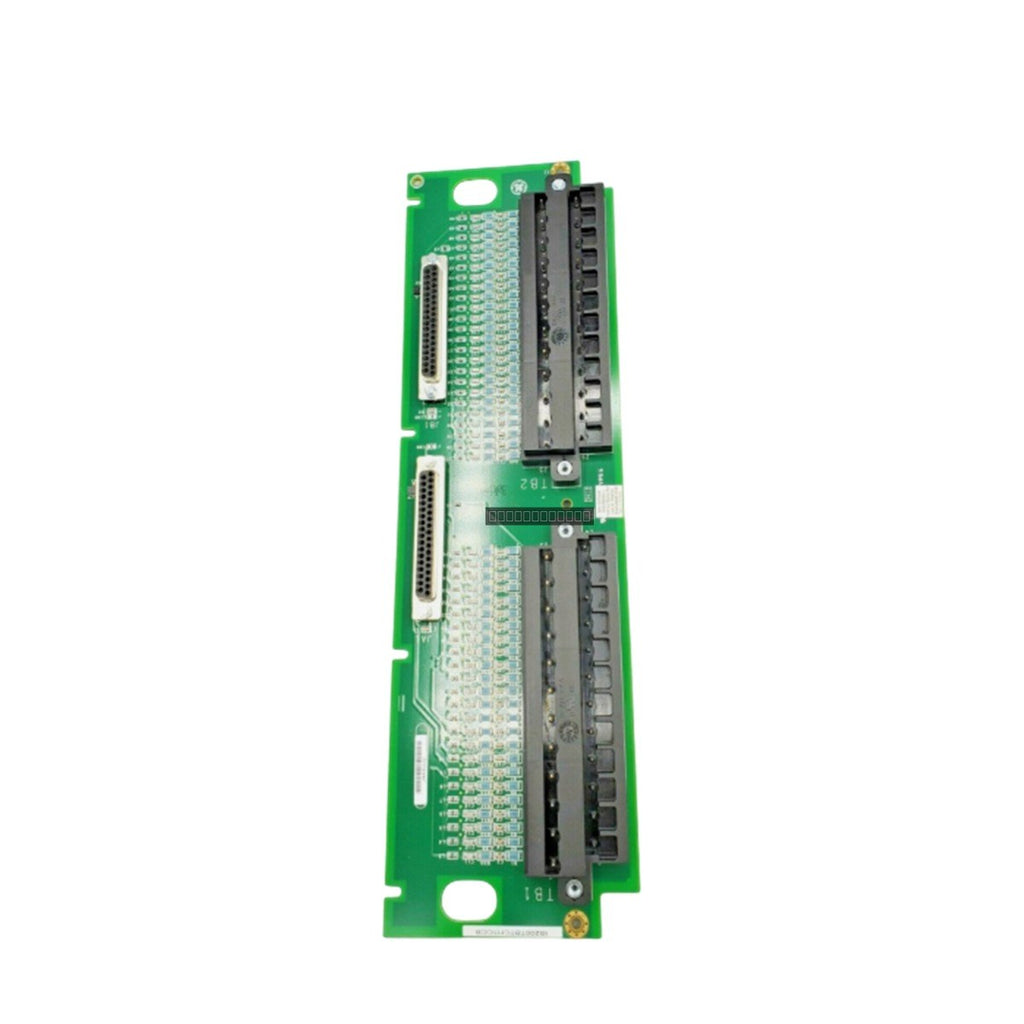

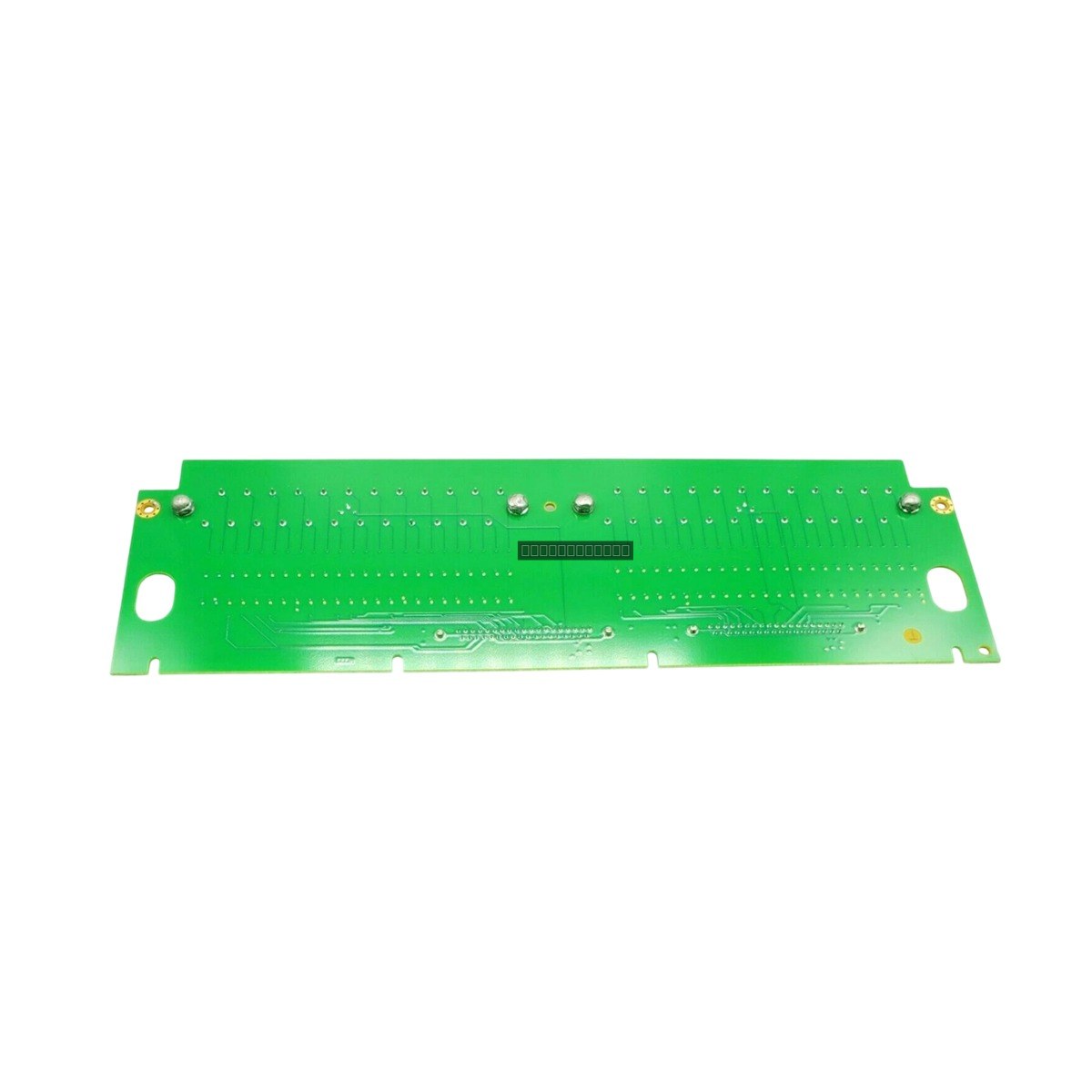

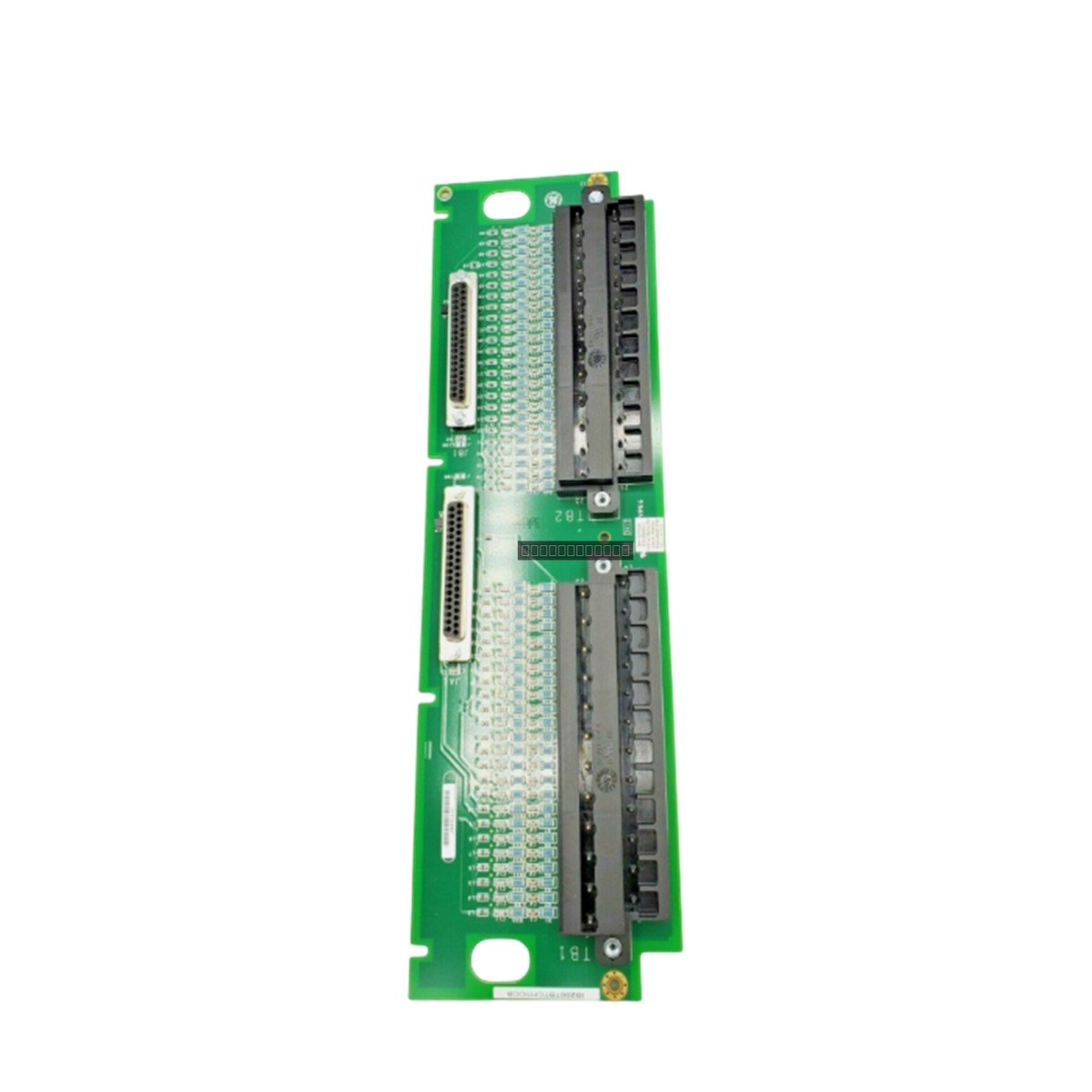

The GE Fanuc IS200TBTCH1C is a high-density thermocouple input terminal board designed for the Mark VIe control system. This component serves as the primary interface between field-mounted thermocouple sensors and the I/O processing hardware in critical turbine and power plant control applications. It is engineered to support up to 24 independent input channels, providing reliable signal acquisition for various thermocouple types, including E, J, K, S, and T, while ensuring robust performance in demanding industrial environments.

Features

High-Density Connectivity: Supports 24 independent thermocouple channels on a single board.
Flexible Redundancy: Designed to support Simplex, Dual, and Triple Modular Redundant (TMR) system configurations.
Direct Integration: Features integrated J-type connectors for direct attachment of PTCC I/O packs, simplifying panel wiring.
Signal Integrity: Includes a dedicated shield terminal strip tied to chassis ground for effective EMI mitigation and signal noise reduction.
Versatile Compatibility: Supports a wide input span of -8 mV to +45 mV for diverse sensor applications.

Technical Specifications

Model	IS200TBTCH1C
Series	Mark VIe
Input Channels	24
Supported Thermocouples	E, J, K, S, T
Input Span	-8 mV to +45 mV
Terminal Capacity	Up to 12 AWG
Operating Temperature	0 to 45 deg C
System Compatibility	PTCC I/O Packs

Installation Guidelines

Safety First: Ensure all power to the cabinet is disconnected before installing or removing the terminal board to prevent electrical shock or damage to the I/O packs.
ESD Handling: Always follow proper electrostatic discharge (ESD) prevention protocols when handling the board to protect sensitive internal components.
Wiring: Utilize the barrier-type terminal blocks for field connections. Ensure wires are stripped to the appropriate length and secured firmly to support up to 12 AWG conductors.
Grounding: Connect field cable shields to the designated terminal strip on the left side of the block to ensure proper chassis grounding and minimize signal interference.
Mounting: Ensure the board is securely seated within the Mark VIe rack assembly to maintain reliable electrical contact with the backplane and associated I/O packs.

FAQ

What types of thermocouples are compatible with the IS200TBTCH1C?

This terminal board is designed to interface with E, J, K, S, and T type thermocouples, making it suitable for a wide range of industrial temperature measurement tasks.

Can this board be used in a TMR configuration?

Yes, the IS200TBTCH1C is specifically designed to support Simplex, Dual, and Triple Modular Redundant (TMR) system architectures to ensure high availability in critical control loops.
