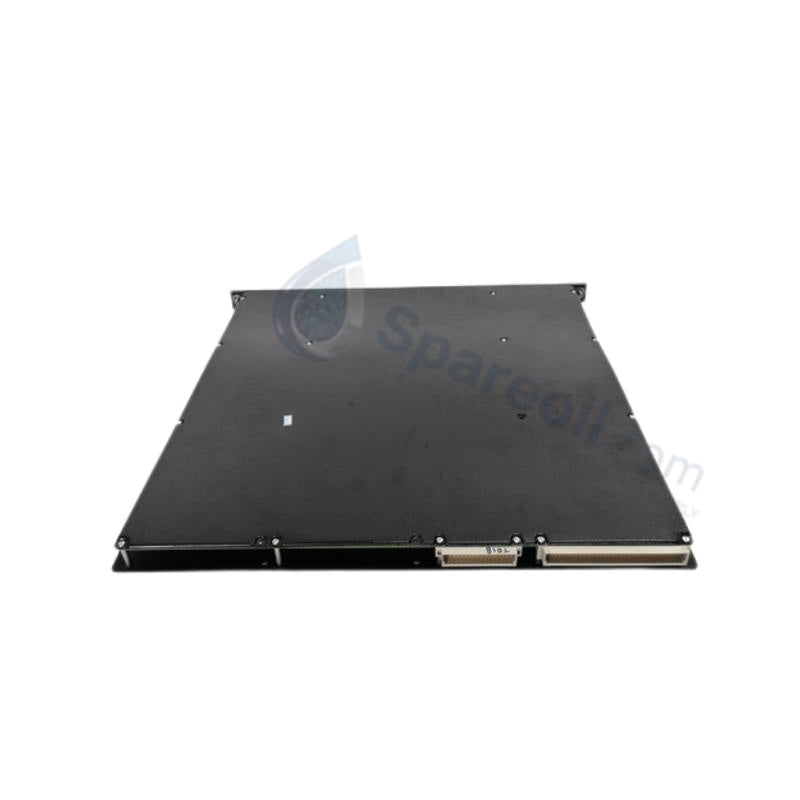

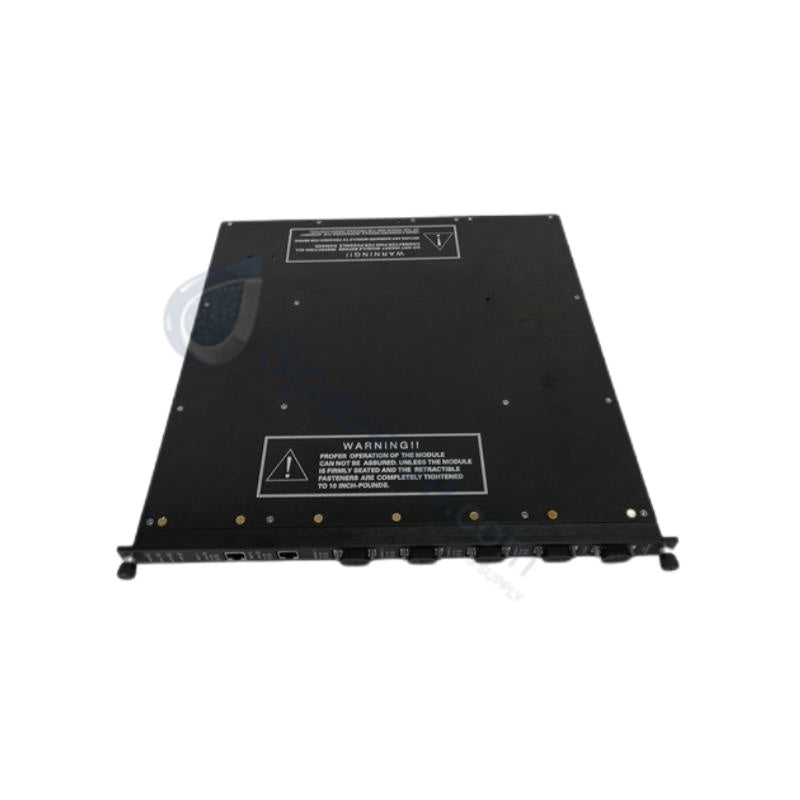

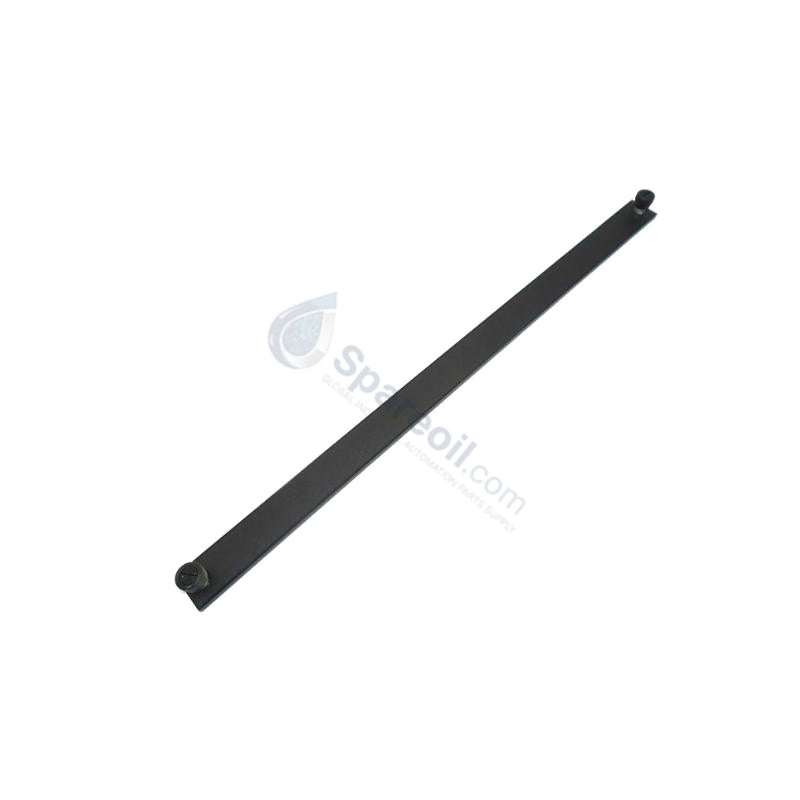

Triconex 8105 TMR System Communication Gateway Module

Triconex 8105 TMR System Communication Gateway Module

التوفر: 10 متوفر في المخزون

Triconex 8105 Communication / Gateway Module The Triconex 8105, also cataloged as the 8105 Communication / Gateway Module, operates as...

رمز المنتج: 8105

Manufacturer: Triconex
Product No.: 8105
Product Type: Communication Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 800g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

Triconex 8105 Communication / Gateway Module

The Triconex 8105, also cataloged as the 8105 Communication / Gateway Module, operates as a dedicated hardware component for supervisory integration within Triconex TMR Safety Instrumented Systems platforms. The hardware establishes deterministic communication interfaces across dual Ethernet and configurable serial links, routing process telemetry and internal safety metrics to external Distributed Control Systems (DCS) and SCADA layers. It manages peer-to-peer data paths without interfering with the primary execution loop of the safety controllers.

Hardware Specifications

Parameter	Specification
Model	8105
Brand	Triconex
Origin	United States
Weight	0.8 kg
Dimensions	190 x 120 x 25 mm
Operating Temp	-40 to +70 deg C
Storage Temp	-40 to +85 deg C
Power Consumption	15 W
Power Supply	24 VDC nominal (18-30 VDC range)
Network Interfaces	Dual Ethernet ports (10/100 Mbps, RJ45)
Serial Interfaces	RS-232 / RS-485 configurable
Protocols Supported	Modbus TCP/IP, OPC, TriStation 1131, peer-to-peer
Redundancy	Triple Modular Redundant (TMR) paths with 2oo3 voting logic
Diagnostics	PASS, FAULT, ACTIVE LEDs; TX/RX link indicators
Isolation	Greater than or equal to 500 VDC port isolation
Hot-Swappable	Yes
Certifications	IEC 61508 SIL 3, TUV, UL, CE

Triple Modular Redundant Safety Control

The communication interface incorporates internal path validation aligned with a triple modular redundancy (TMR) 2oo3 architecture to safeguard external networks against data corruption. Three independent communication legs cross-check incoming command packets and outgoing state sequences, applying hardware-based voting mechanisms before broadcasting variables to the supervisory host. Integrated galvanic isolation barriers rated for a minimum of 500 VDC separate the external physical transceivers from the internal safety bus, preventing high-voltage electrical faults or line transients from causing a fail-safe state execution failure inside the central processor plane and ensuring continuous SIL3 certification compliance.

Frequently Asked Questions

Q: How does the hot-swap procedure affect the dual Ethernet link states when replacing an active module online?

A: The online replacement capability ensures zero system downtime. When removing the active module, the chassis backplane retains configuration parameters, permitting the companion or newly inserted hardware to bind to the existing network addresses within milliseconds without dropping peer-to-peer logical connections.

Q: What is the significance of the 500 VDC isolation rating on the RS-232/RS-485 serial ports?

A: The 500 VDC isolation creates a physical barrier that stops ground potential differences and common-mode noise from penetrating the module internal electronics. This isolation ensures that external serial cabling faults do not compromise the TMR backplane logic or cause spurious module trips.

Field Installation Guidelines

Chassis Alignment and Mechanical Seating: Slide the module along the designated slot guides within the I/O rack until the backplane connectors align perfectly. Secure the module by engaging the integrated mechanical latching ears, and hand-tighten the retention screws to achieve proper chassis grounding.
Network Wiring and Shield Termination: Use Category 5e or higher shielded twisted-pair (STP) cabling for the RJ45 Ethernet links to maintain signal clarity. Connect the serial cable shields to the designated enclosure instrument ground terminal block, ensuring only one end is grounded to avoid creating ground loops.
Cable Routing and Physical Isolation: Route network and serial communication lines through dedicated low-voltage wireways. Maintain a distinct separation between these data lines and high-current AC power cables or variable frequency drive (VFD) conductors to eliminate industrial electromagnetic interference.
