ALE111-S50 Yokogawa Ethernet Communication Module

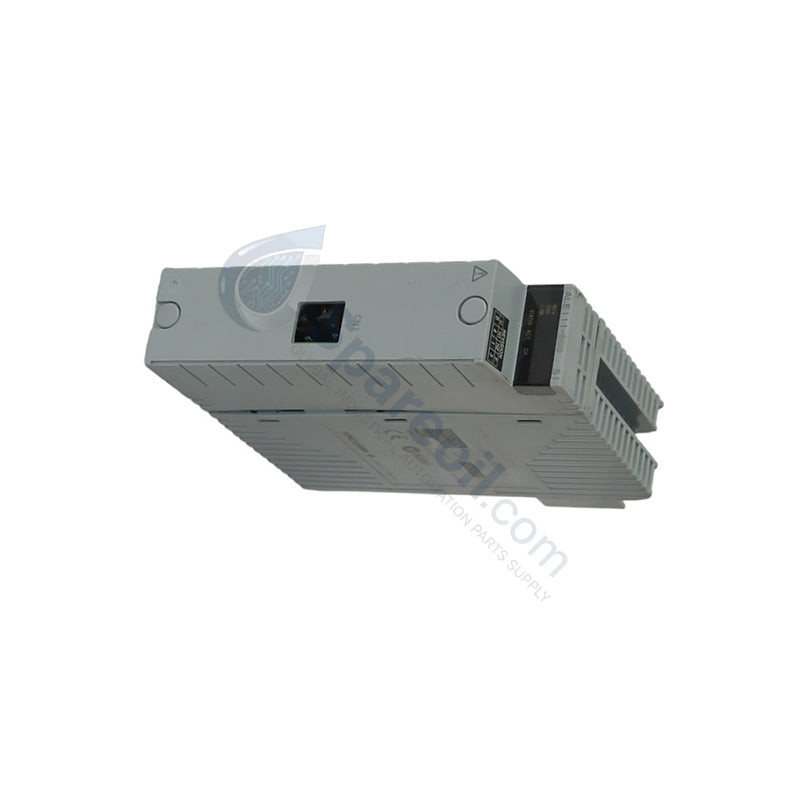

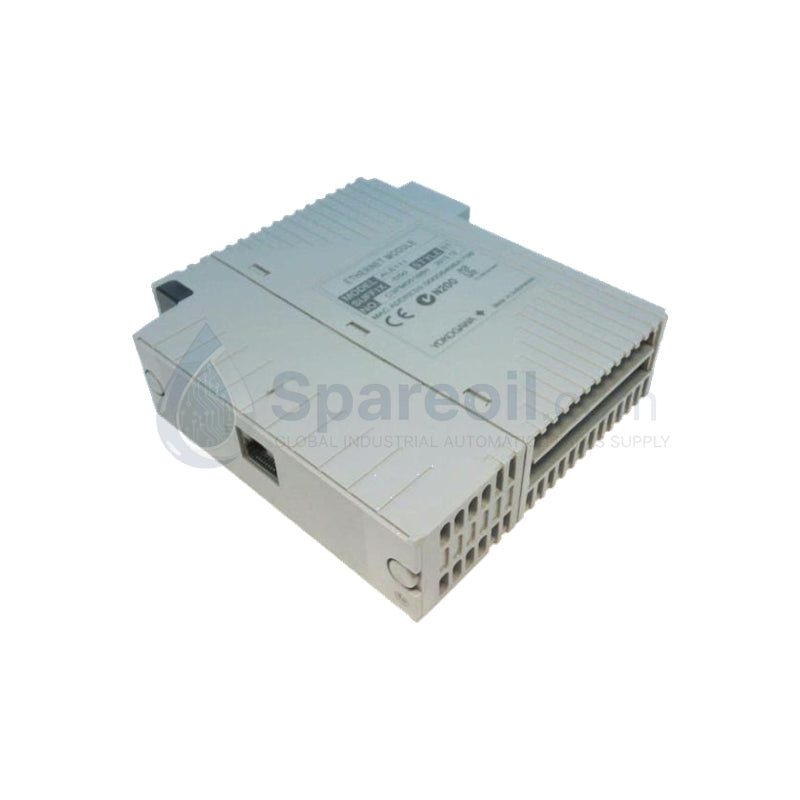

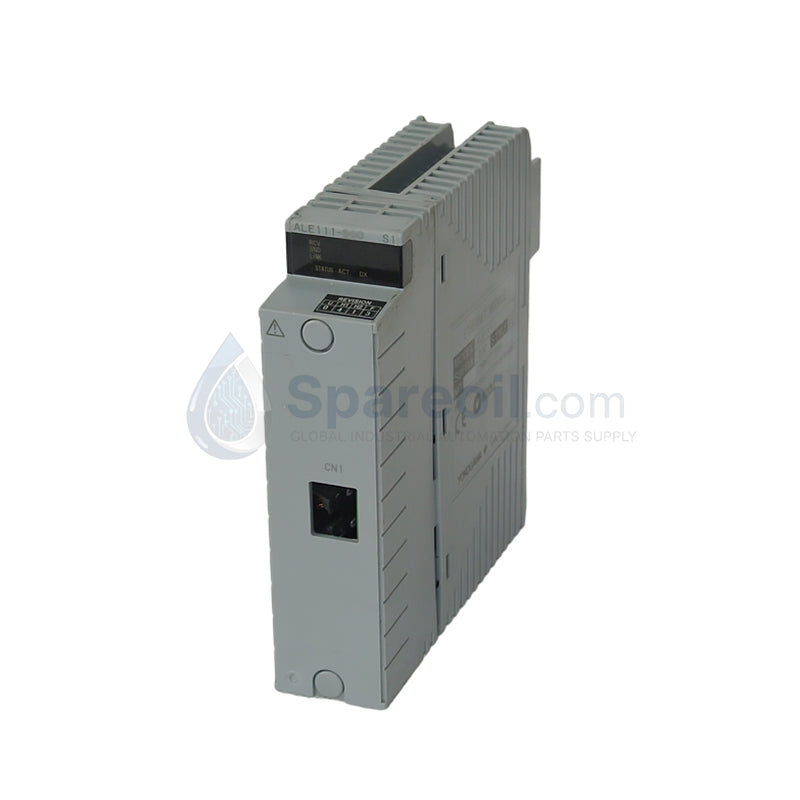

Yokogawa ALE111-S50 Centum VP Ethernet Communication Module

Yokogawa ALE111-S50 Centum VP Ethernet Communication Module

التوفر: 99 متوفر في المخزون

The Yokogawa ALE111-S50, also cataloged as the ALE111 Ethernet Communication Module, serves as the primary ALE111 Product Type utilized to...

رمز المنتج: ALE111-S50

Manufacturer: Yokogawa
Product No.: ALE111-S50
Product Type: Ethernet Communication Modules
Product Origin: JAPAN
Payment:T/T, Western Union
Weight: 300g
Shipping port: Xiamen
Warranty: 12 months

وصف التقييمات

The Yokogawa ALE111-S50, also cataloged as the ALE111 Ethernet Communication Module, serves as the primary ALE111 Product Type utilized to execute real-time data exchange across CENTUM VP and ProSafe-RS platforms. The hardware establishes physical communication links through an IEEE 802.3 10BASE-T half-duplex interface using start-stop synchronization over 100 Ohm twisted-pair unshielded cabling. Operating at a fixed transmission speed of 10 Mbps over a maximum segment distance of 100 m, the module routes field subsystem data directly to node units via standard RJ-45 connectivity.

Suffix Breakdown & Model Matrix

ALE111: Base module identifier for the FIO-compatible Ethernet communication module architecture.
-S: Designates the standard version configuration.
5: Validates the hardware configuration as having no integrated explosion protection ratings.
0: Indicates the standard basic hardware type.

Hardware Specifications

Parameter	Specification
Model	ALE111-S50
Brand	Yokogawa
Origin	Japan
Weight	0.3 kg
Dimensions	3.8 cm x 12.7 cm x 14.0 cm
Operating Temp	-20 to +70 deg C
Power Consumption	0.5 A at 5 V DC
Physical Layer Interface	IEEE 802.3 10BASE-T, half-duplex
Connector Type	RJ-45 (1 port)
Transmission Speed	10 Mbps
Cable Impedance	100 Ohm twisted-pair (non-shielded)
Maximum Distance	100 m per segment
Media Access Control	CSMA/CD
Communication Protocols	Modbus slave, DNP3 slave, subsystem communication
Bus Compatibility	ANB10/ANB11 (ESB bus), ANR10 (ER bus)

Process Control and DCS Instrumentation Features

The module integrates specialized channel-to-channel isolation matrices across its communication interface to decouple field network transients from the internal Field I/O (FIO) subsystem backplane. Protocol handling for Modbus slave and DNP3 slave architectures is executed directly on the embedded processor, minimizing backplane bus latency during high-density cyclic data updates. Furthermore, firmware flash compatibility limits are strictly mapped to system release revisions, requiring specific minimum controller baselines such as AFF50 R3.04+ or AFV10 R3.05+ when mapping data across remote ER bus sub-networks.

Frequently Asked Questions

Q: What are the software version requirements when installing this module into ER bus node units?

A: For proper initialization on ER bus sub-networks, the host node units must run firmware baselines of AFF50 R3.04 or higher, AFV10 R3.05 or higher, or AFG30/40/80 R3.03 or higher.

Q: Can this specific module configuration be deployed inside hazardous areas requiring explosion protection?

A: No, the S50 suffix designates a standard hardware type that lacks intrinsic safety barriers or explosion-proof encapsulation, restricting its installation to general-purpose, non-hazardous industrial environments.

Field Installation Guidelines

Baseplate Interfacing: Insert the module into the designated slot of the ANB10, ANB11, or ANR10 FIO baseplate. Press firmly until the top and bottom administrative latches fully engage with the structural bracket.
Communication Cabling: Route the 100 Ohm twisted-pair Ethernet cable through dedicated low-voltage wire ways. Maintain physical segregation from high-voltage AC three-phase lines to prevent electromagnetic induction from causing packet drops or CSMA/CD collisions.
Grounding Protocol: Ensure that the field control unit rack assembly is bounded directly to a low-impedance safety ground system. The RJ-45 shield must terminate strictly in accordance with the plant distributed control system earthing specifications to prevent ground loop currents.
