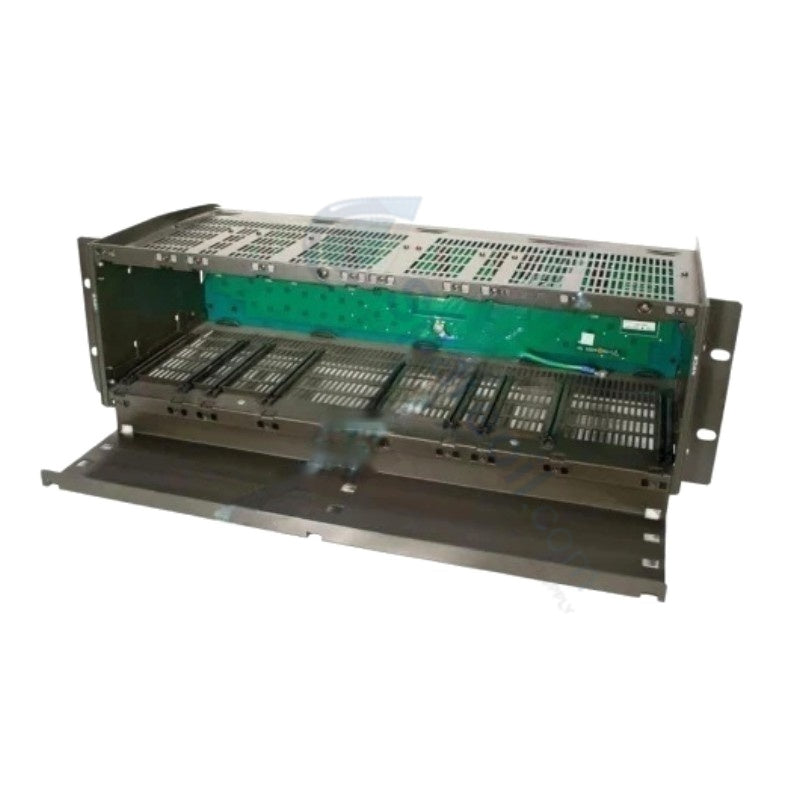

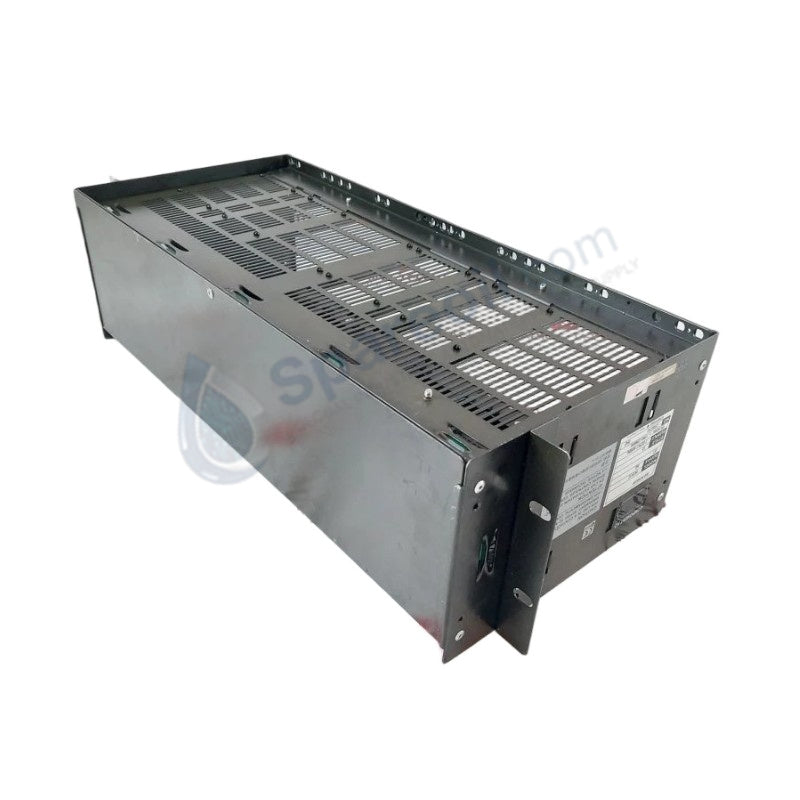

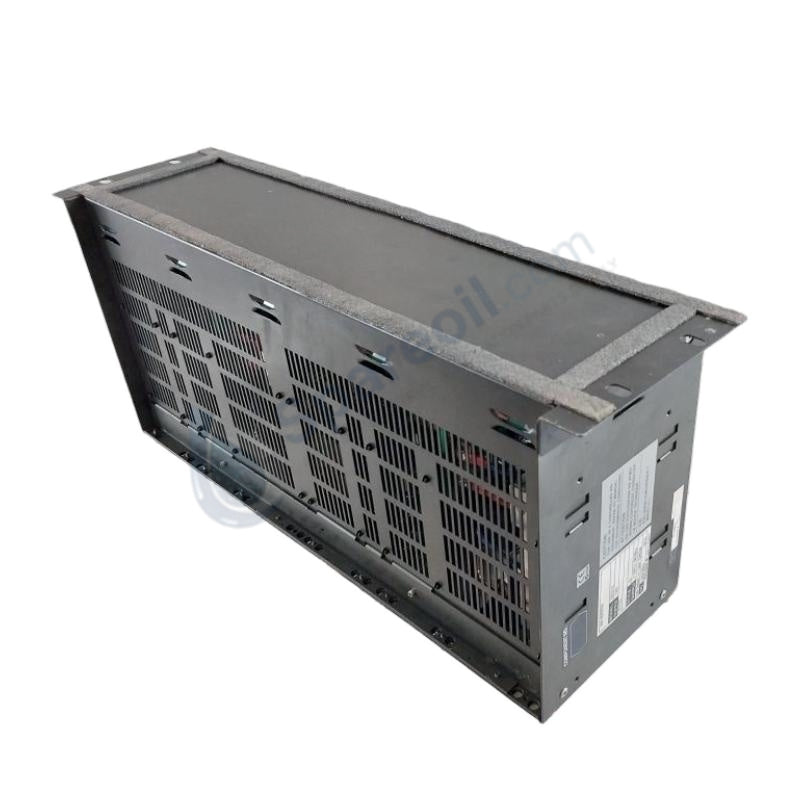

Yokogawa YNT512D-V12/KT V Net Bus Repeater

The Yokogawa YNT512D-V12/KT, also cataloged as the Yokogawa YNT512D-V12 V Net Bus Repeater, operates as a dedicated hardware component for signal amplification and network regeneration within Yokogawa V Net and Vnet/IP distributed control network platforms. It processes and rebuilds degraded communication packages directly at the physical layer to maintain signal integrity between distributed control nodes.

Hardware Specifications

Parameter Specification
Model YNT512D-V12/KT (including YNT512D-V12 base configuration)
Brand Yokogawa
Origin Japan
Weight 5.0 kg (repeater unit with housing assemblies) / 0.35 kg (internal module variant)
Dimensions 144 mm x 144 mm x 72 mm (standard assembly) / 130 mm x 28 mm x 130 mm (module option)
Operating Temp 0 to 55 deg C
Power Consumption 100-240 VAC, 50/60 Hz or 24 VDC +/-5% (up to 1500 mA load) / 5 VDC +/-5% (0.5 A current draw)
Signal Channels 2 independent communication lines
Transmission Protocol Yokogawa V Net / Vnet/IP proprietary system
Hardware Interface 2 x RJ45 Ethernet ports / RS-232C configuration port
Communication Speed 100 Mbps full-duplex transmission rate
Isolation Capacity Optical and electrical isolation barriers between backplane and interface circuits

Process Control & DCS Diagnostics

The hardware features dual-port physical redundancy configured specifically for high-availability distributed control environments. It implements a dedicated 4-20 mA HART loop protocol channel pass-through option alongside built-in watchdog circuits that continuously monitor network timing anomalies. Channel-to-channel isolation safeguards the primary control bus by dampening electrical transients, ensuring that errors remain localized and do not propagate across adjacent nodes on the network backbone.

Frequently Asked Questions

Q: What action occurs if the module detects an internal watchdog timing fault?

A: The internal hardware watchdog forces the module to trip an error indicator light, immediately isolating the degraded channel to protect system bus operations while transferring communications entirely over the redundant alternate network link.

Q: How do technical personnel configure the diagnostics system on the module?

A: Technicians use the built-in RS-232C serial interface port to connect a terminal tool, which allows them to verify signal attenuation levels, check diagnostic logs, and update internal parameter matrices directly.

Field Installation Guidelines

  • Mount the unit securely on standard industrial DIN rails or direct rack frames, ensuring that all physical mounting clips engage fully to resist vibrational displacement.
  • Ground the module via a low-impedance copper conductor connected to the dedicated industrial safety earth terminal, keeping the run as short as possible.
  • Terminate all copper communication links within standard 100 m physical segment lengths, and route the network cabling through isolated wireways separate from high-voltage AC lines to minimize electromagnetic interference.
  • Maintain a minimum 50 mm clearance perimeter around the chassis ventilation pathways to permit natural thermal convection currents during full-load operations.
