IC697PWR713 GE Series 90-70 Datasheet & Technical Manual

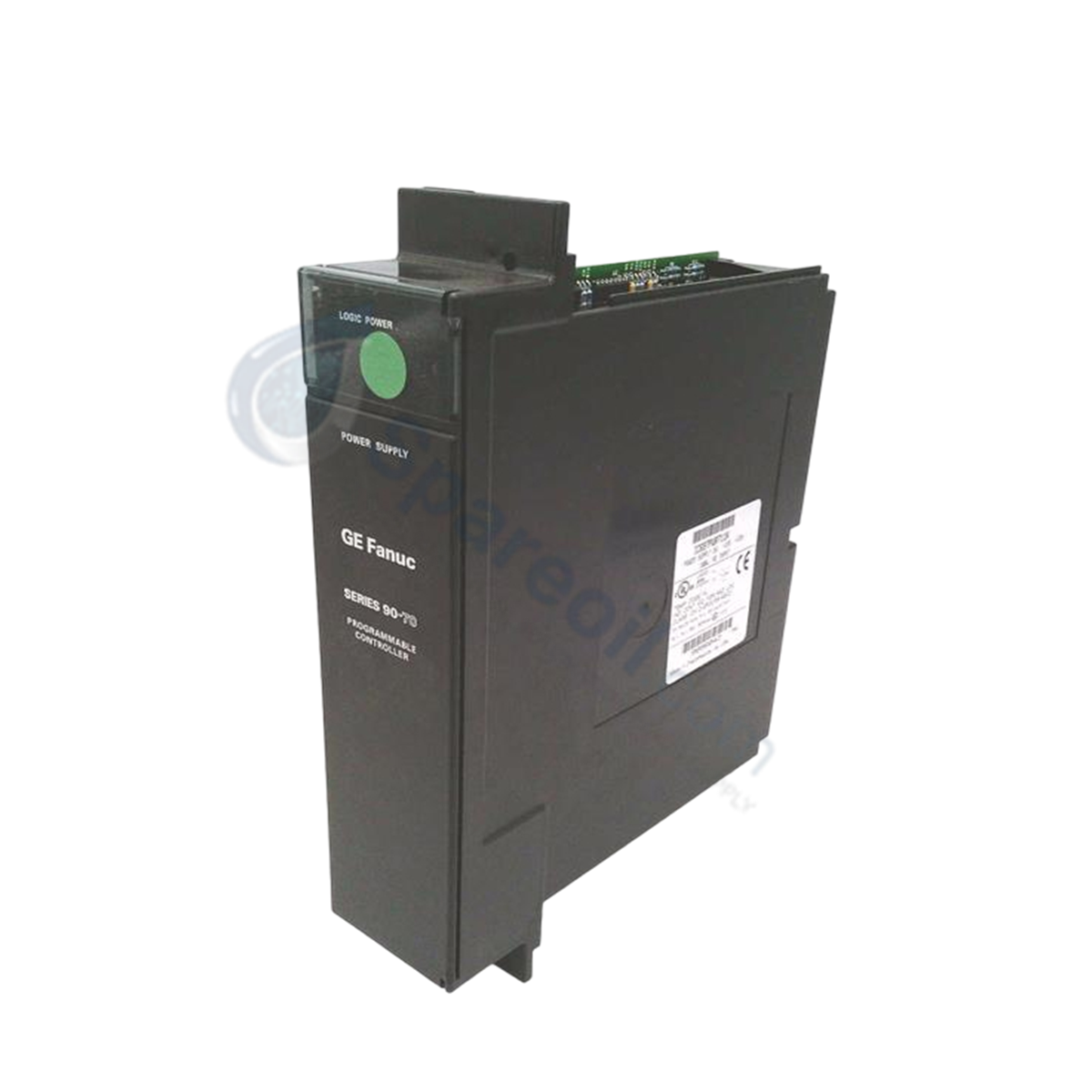

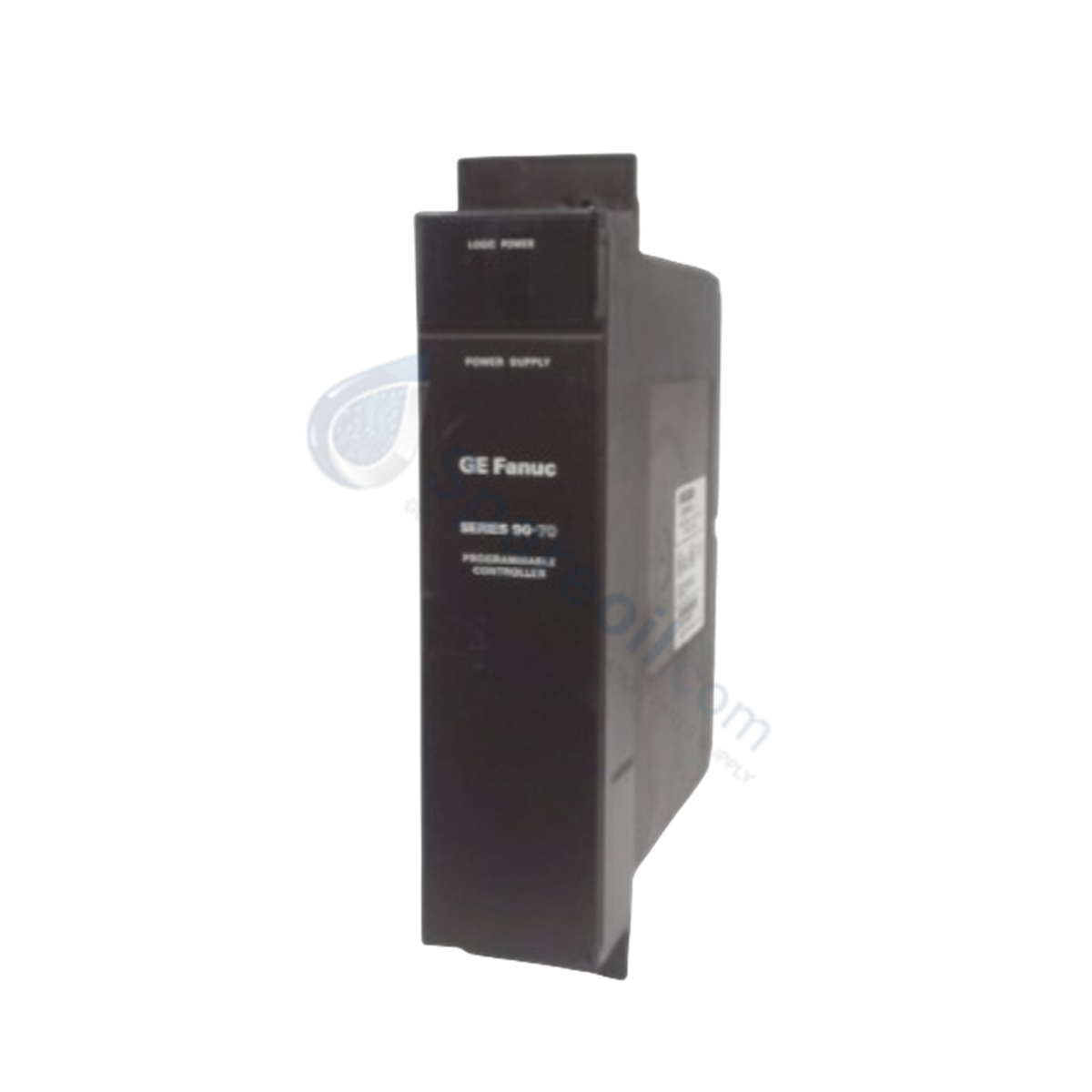

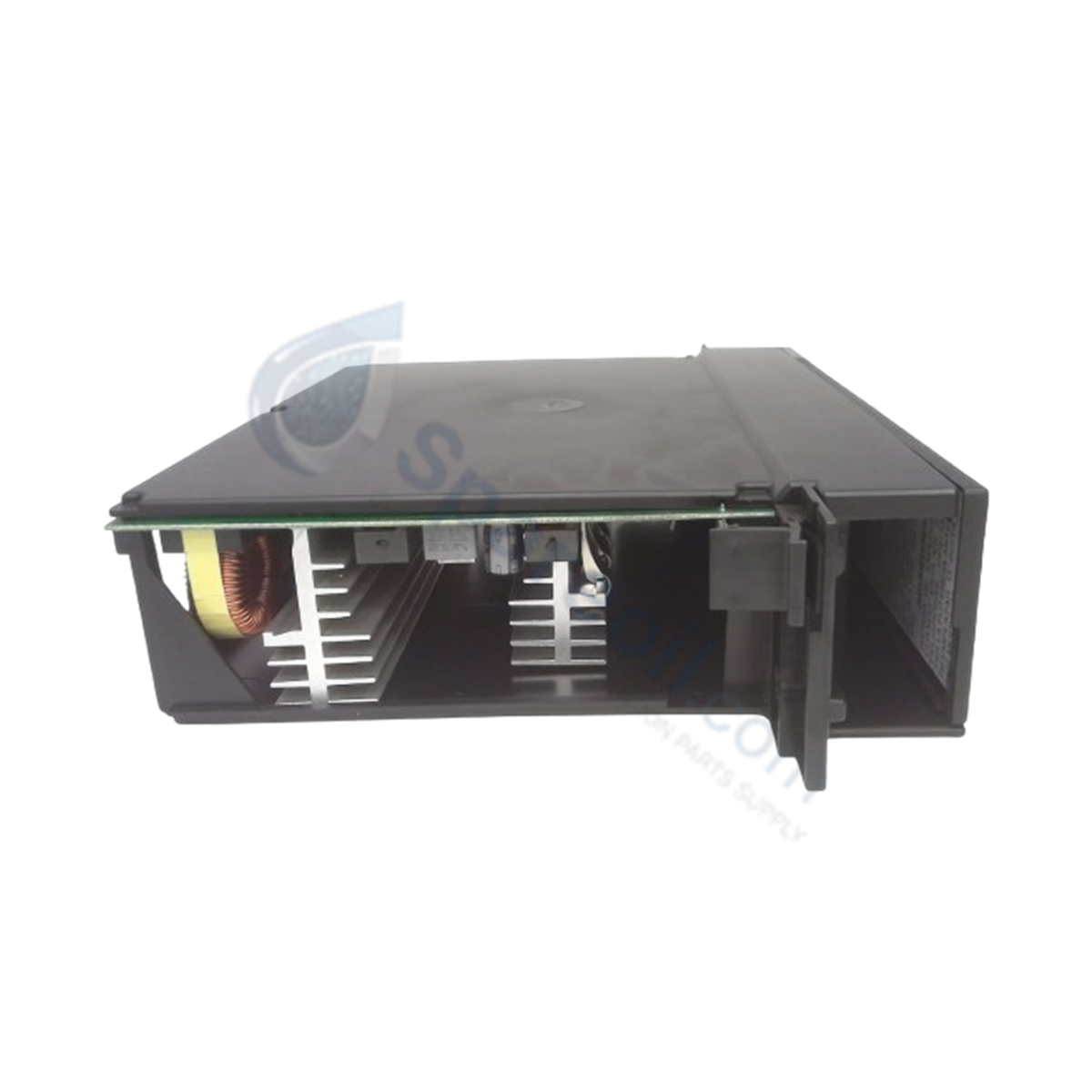

GE IC697PWR713 Series 90-70 Power Supply Module

GE IC697PWR713 Series 90-70 Power Supply Module

Disponibilidad: 10 Quedan en stock

Configured for rack power generation in Series 90-70 PLC platforms, the GE IC697PWR713 (IC697PWR713 Power Supply Module) provides direct physical/electrical...

Código: IC697PWR713

Manufacturer: GE Fanuc
Product No.: IC697PWR713
Product Type: Power Supply Modules
Product Origin: USA
Payment:T/T, Western Union
Weight: 1590g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

Configured for rack power generation in Series 90-70 PLC platforms, the GE IC697PWR713 (IC697PWR713 Power Supply Module) provides direct physical/electrical execution. The module converts AC or DC input power into regulated internal system voltages, supplying up to 100 Watts total output power across 5 VDC, 12 VDC, and -12 VDC rails to power backplane logic components and expansion modules.

Hardware Specifications

Parameter	Specification
Model	IC697PWR713
Brand	GE Fanuc Emerson
Series	Series 90-70
Product Type	Power Supply Modules
Nominal Input Voltage	120/240 VAC or 125 VDC
Input AC Voltage Range	90 to 264 VAC
Input Line Frequency	47 to 63 Hz
Input DC Voltage Range	100 to 150 VDC
Input Power Rating	135 Watts typical, 160 Watts maximum
Power Factor	>0.93
Output Power	100 Watts maximum total
Regulated Outputs	5 VDC at 20 A; 12 VDC at 2 A; -12 VDC at 1 A
Mounting Location	Leftmost slot of IC697 rack or VME Integrator rack
Operating Temp	0 to 60 deg C
Dimensions	Single-slot Series 90-70 module footprint
Weight	1.59 kg (3.50 lbs)
Origin	USA

Backplane Bus Interfacing and Deterministic Networks

The IC697PWR713 distributes regulated operating voltages directly through the backplane system bus to sustain high backplane bus communication velocity across installed processors and peripheral cards. Onboard voltage regulation circuits shield internal backplane logic signals against input line fluctuations, maintaining firmware flash compatibility and cycle execution stability across connected expansion racks.

Frequently Asked Questions

Q: What are the output voltage and current ratings for the IC697PWR713?

A: The module provides three regulated DC rails: 5 VDC at up to 20 A, 12 VDC at up to 2 A, and -12 VDC at up to 1 A, subject to a combined total limit of 100 Watts.

Q: Can the IC697PWR713 supply power to two adjacent racks simultaneously?

A: Yes, provided the total load stays within 100 Watts, the secondary rack current draw remains under 2.5 A, and the interconnecting cable length between adjacent racks does not exceed 3 feet.

Q: In which slot location must the IC697PWR713 be installed?

A: The module is designed for plug-in installation exclusively into the leftmost slot position of a standard IC697 rack or VME Integrator rack chassis.

Field Installation Guidelines

Ensure the main AC or DC supply circuit breaker is open and verified de-energized before inserting or wiring the power supply module.
Connect a grounded ESD wrist strap to the bare metal framework of the enclosure prior to handling the module assembly.
Align the module with the guides in the leftmost slot of the chassis rack and push firmly until the backplane connectors seat and lock securely.
Wire input power leads to the terminal strip using wire rated for the operational voltage, securing the earth ground conductor to the dedicated grounding terminal.
Apply input voltage and confirm proper output power delivery by monitoring the status diagnostic LEDs on the front panel assembly.
