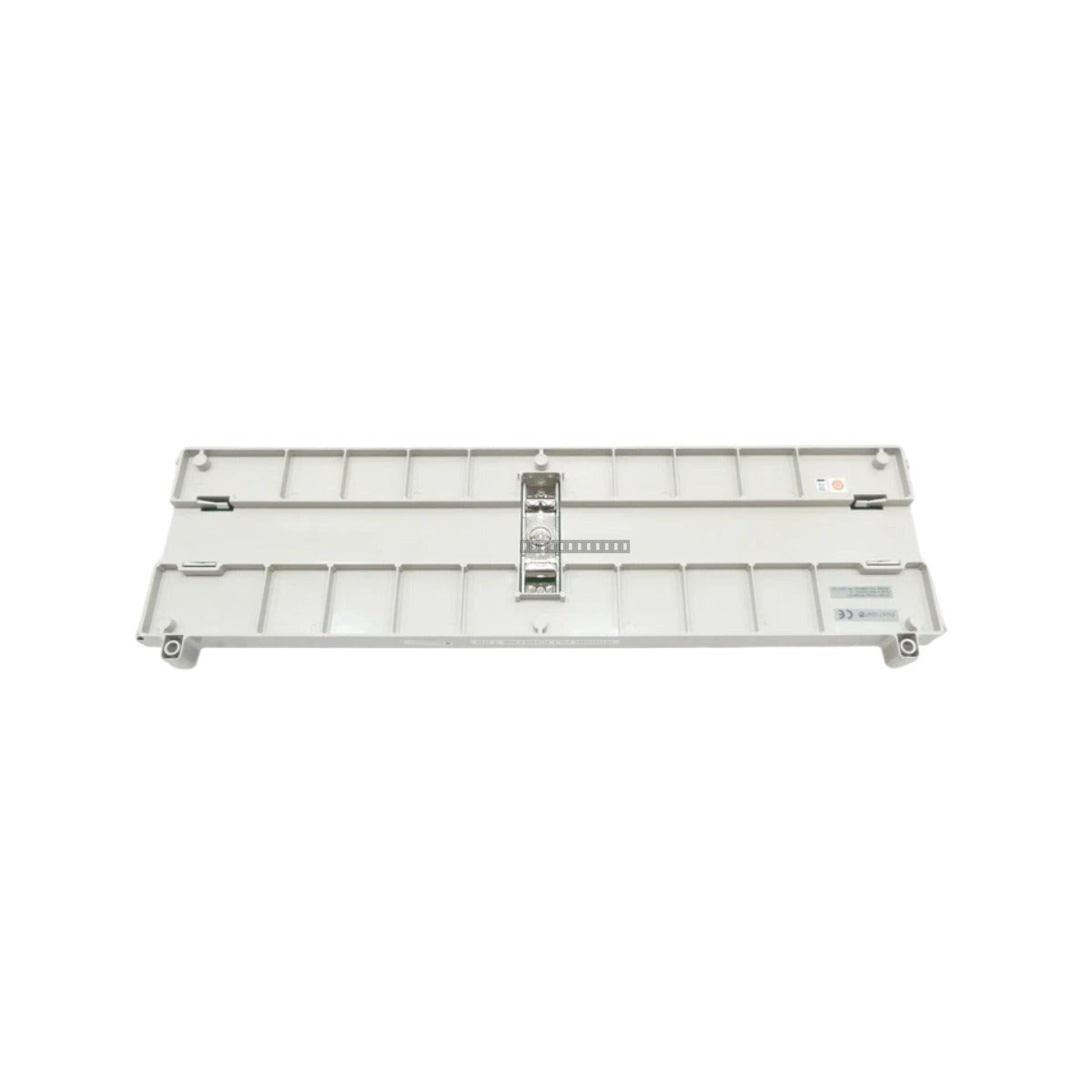

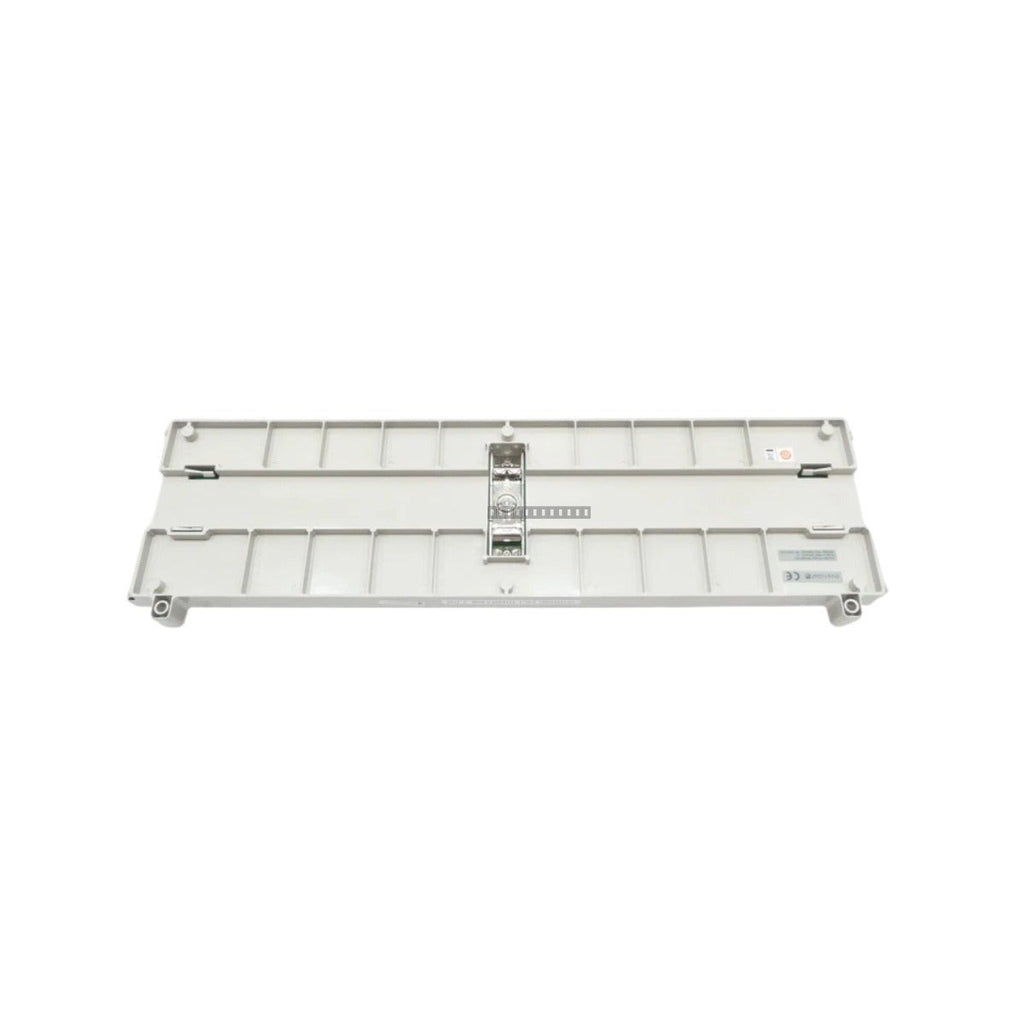

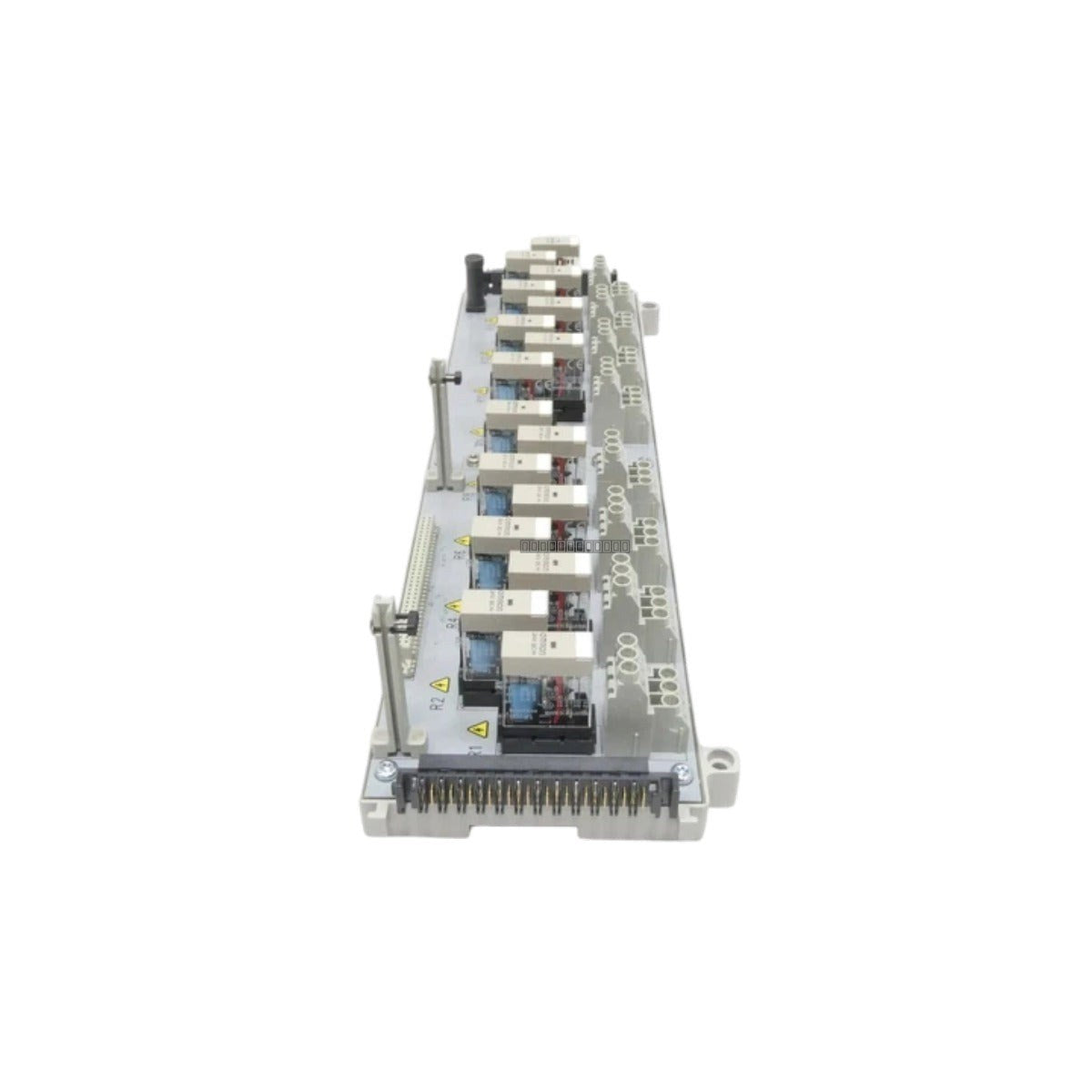

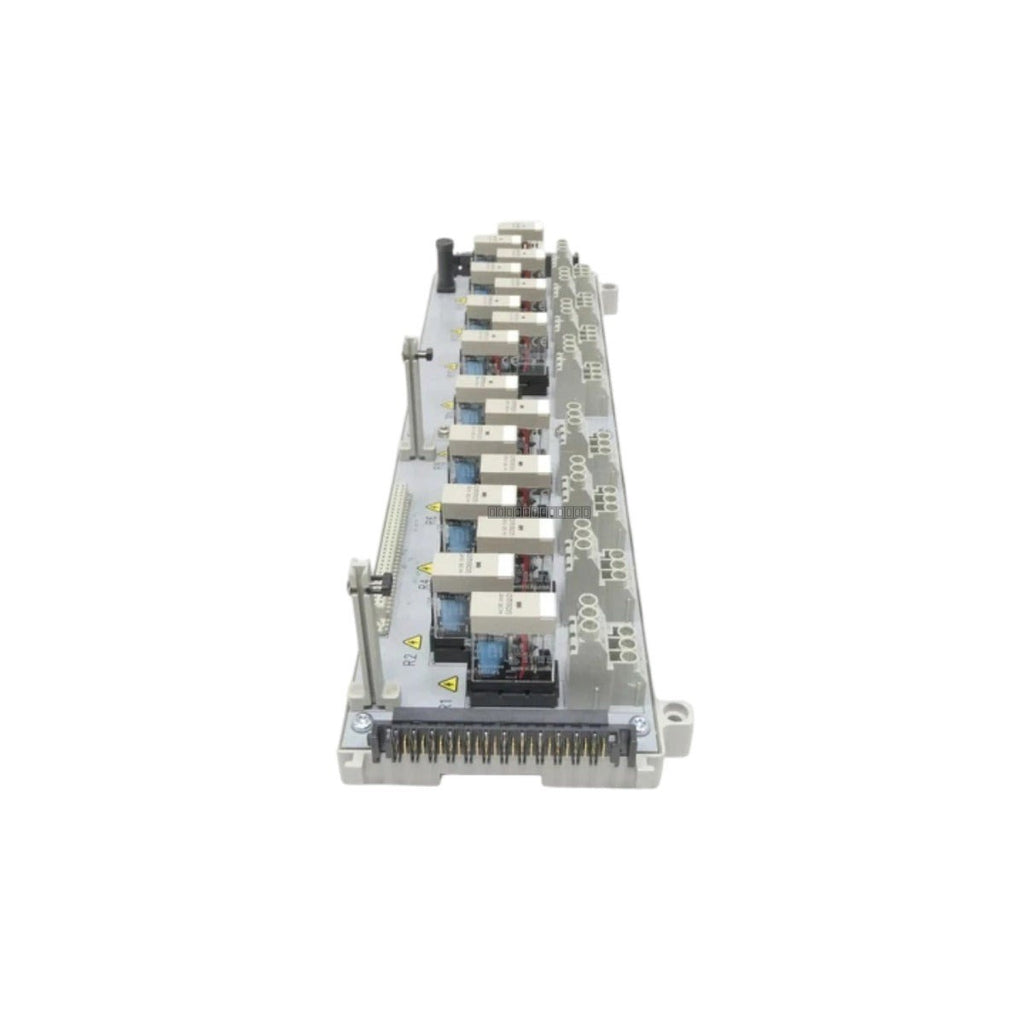

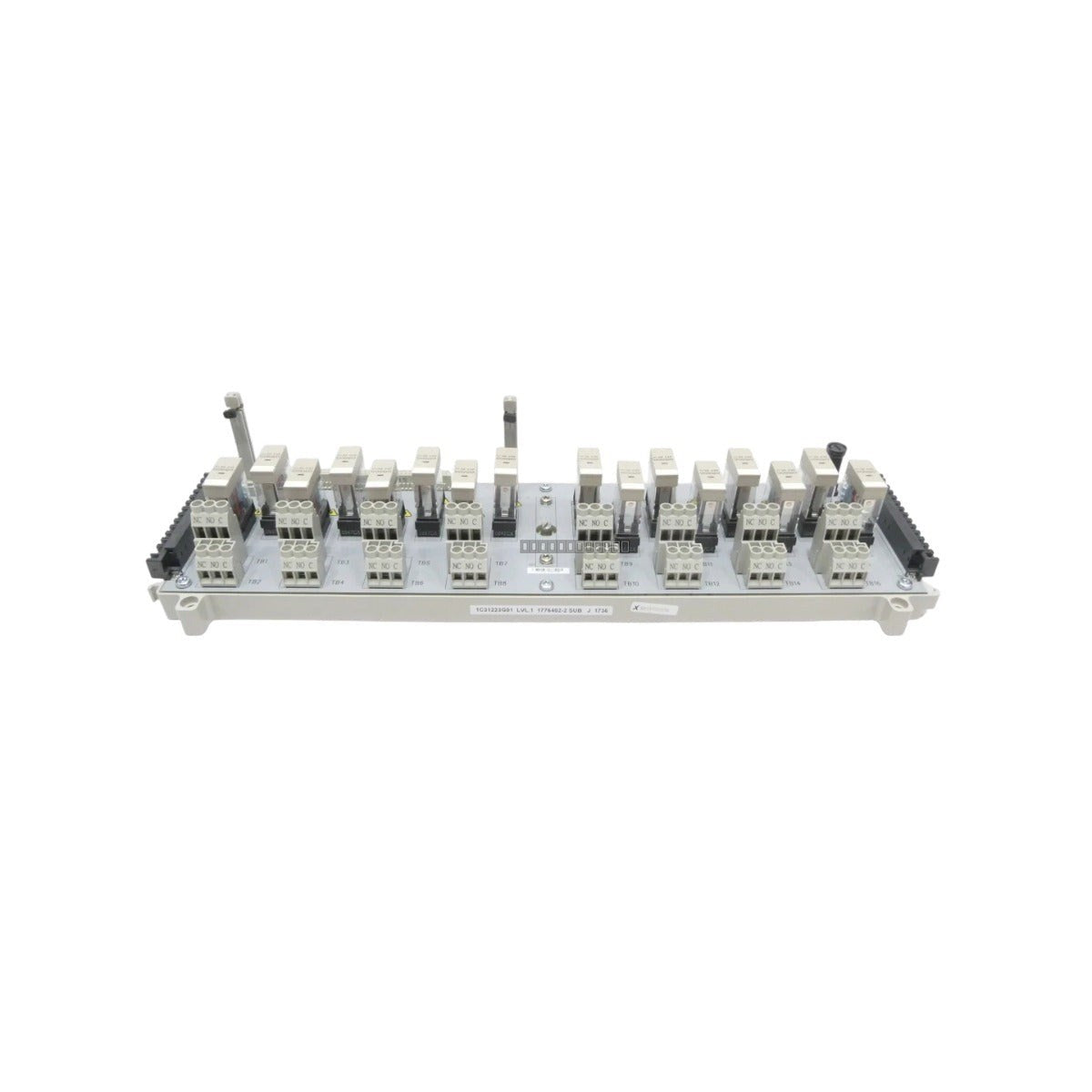

Emerson 1C31223G01 Relay Output Module 16-Channel

Emerson 1C31223G01 Relay Output Module

Disponibilidad: 1 Quedan en stock

The Emerson 1C31223G01 is a 16-channel relay output base module designed for use with G2R relay panels. This module provides...

Código: 1C31223G01

Manufacturer: Emerson
Product No.: 1C31223G01
Product Type: Relay Output Module
Product Origin: USA
Payment:T/T, Western Union
Weight: 1100g
Shipping port: Xiamen
Warranty: 12 months

Descripción Reseñas

The Emerson 1C31223G01 is a 16-channel relay output base module designed for use with G2R relay panels. This module provides reliable switching capabilities for low-power control applications in industrial automation systems, serving as a critical interface between the controller and field devices.

Features

16-channel configuration for high-density output control.
Designed for integration with G2R relay panels.
Supports both AC and DC load switching.
Robust construction suitable for harsh industrial environments.

Technical Specifications

Product Model	1C31223G01
Manufacturer	Emerson
Channel Count	16
Resistive Load	5A (AC) / 5A (DC)
Inductive Load	2A (AC) / 2A (DC)
Contact Resistance	≤100mΩ (initial)
Insulation Resistance	≥100MΩ (at 500VDC)
Dielectric Strength	1,500VAC
Operating Temperature	-40 degC to +70 degC
Storage Temperature	-55 degC to +85 degC
Vibration Resistance	10–55Hz, 1.5mm amplitude

Installation Guidelines

Ensure the system power is completely disconnected before installing or removing the module to prevent electrical shock or equipment damage.
Mount the module in a clean, dry, and well-ventilated enclosure to maintain optimal operating temperatures.
Verify that all wiring connections are secure and follow the appropriate torque specifications for the terminal blocks.
Maintain proper grounding practices to minimize electromagnetic interference (EMI) and ensure signal integrity.
Handle the module using ESD-safe procedures to prevent damage to sensitive internal components.

FAQ

Q: Is this module compatible with all G2R relays?
A: The 1C31223G01 is specifically designed as a base module for G2R relay panels. Please verify your specific panel revision and relay type to ensure full compatibility.

Q: What is the primary function of this module?
A: This is a relay output base module that facilitates the interface between a control system and field-level devices, allowing for the switching of 16 independent channels.
